8W-02 COMPONENT INDEX
Component
Page
A/C Compressor Clutch . . . . . . . . . . . . . . . . . 8W-42
A/C Compressor Clutch Relay . . . . . . . . . . . . 8W-42
A/C High Pressure Switch . . . . . . . . . . . . . . . 8W-42
A/C Low Pressure Switch . . . . . . . . . . . . . . . 8W-42
A/C Pressure Transducer . . . . . . . . . . . . . . . . 8W-42
A/C-Heater Control . . . . . . . . . . . . . . . . . . . . 8W-42
Airbag Control Module . . . . . . . . . . . . . . . . . 8W-43
Airbag On-Off Switch . . . . . . . . . . . . . . . . . . 8W-43
Airbag Squibs . . . . . . . . . . . . . . . . . . . . . . . . 8W-43
Ambient Temperature Sensor . . . . . . . . . 8W-30, 44
Antilock Brake Relay . . . . . . . . . . . . . . . . . . 8W-35
Automatic Shut Down Relay . . . . . . . . . . . . . 8W-30
Axle Lock Switch . . . . . . . . . . . . . . . . . . . . . . 8W-31
Back-Up Lamp Switch . . . . . . . . . . . . . . . . . . 8W-51
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-10
Battery Temperature Sensor . . . . . . . . . . . . . 8W-30
Blend Door Actuator . . . . . . . . . . . . . . . . . . . 8W-42
Blower Motor . . . . . . . . . . . . . . . . . . . . . . . . . 8W-42
Blower Motor Relay . . . . . . . . . . . . . . . . . . . . 8W-42
Blower Motor Resistor Block . . . . . . . . . . . . . 8W-42
Brake Lamp Switch . . . . . . . . . . . . . . . . . . . . 8W-51
Brake Transmission Shift Interlock
Solenoid . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-31
Brake Warning Indicator Switch . . . . . . . . . . 8W-40
Camshaft Position Sensor . . . . . . . . . . . . . . . 8W-30
Center High Mounted Stop Lamp . . . . . . . . . 8W-51
Cigar Lighter/Power Outlet . . . . . . . . . . . . . . 8W-41
Circuit Breaker . . . . . . . . . . . . . . . . . . . . . . . 8W-50
Clockspring . . . . . . . . . . . . . . . . . . . . 8W-33, 41, 43
Clutch Pedal Position Switch . . . . . . . . . . . . 8W-21
Coil Capacitor . . . . . . . . . . . . . . . . . . . . . . . . 8W-30
Compass/Temperature Mirror . . . . . . . . . . . . 8W-44
Controller Antilock Brake . . . . . . . . . . . . . . . 8W-35
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . . 8W-44
Crankshaft Position Sensor . . . . . . . . . . . . . . 8W-30
Data Link Connector . . . . . . . . . . . . . . . . . . . 8W-18
Daytime Running Lamp Module . . . . . . . . . . 8W-50
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . 8W-44
Door Ajar Switches . . . . . . . . . . . . . . . . . . . . 8W-44
Engine Coolant Temperature Sensor . . . . . . . 8W-30
Engine Oil Pressure Sensor . . . . . . . . . . . . . . 8W-30
Engine Oil Pressure Switch . . . . . . . . . . . . . . 8W-30
Engine Starter Motor . . . . . . . . . . . . . . . . . . 8W-21
Engine Starter Motor Relay . . . . . . . . . . . . . 8W-21
EVAP/Purge Solenoid . . . . . . . . . . . . . . . . . . 8W-30
Fog Lamp Relay . . . . . . . . . . . . . . . . . . . . . . 8W-50
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50
Fuel Injectors . . . . . . . . . . . . . . . . . . . . . . . . 8W-30
Fuel Pump Module . . . . . . . . . . . . . . . . . . . . 8W-30
Fuel Pump Relay . . . . . . . . . . . . . . . . . . . . . . 8W-30
Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-11
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-10, 11
Component
Page
Fusible Link . . . . . . . . . . . . . . . . . . . . . . . . . 8W-20
G-Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-35
Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-20
Grounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-15
Headlamp Leveling Motors . . . . . . . . . . . . . . 8W-50
Headlamp Leveling Switch . . . . . . . . . . . . . . 8W-50
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50
Heater Control . . . . . . . . . . . . . . . . . . . . . . . 8W-42
High Speed Radiator Fan Relay . . . . . . . . . . 8W-42
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-41
Horn Relay . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-41
Horn Switch . . . . . . . . . . . . . . . . . . . . . . . . . 8W-41
Idle Air Control Motor . . . . . . . . . . . . . . . . . . 8W-30
Ignition Coil Pack . . . . . . . . . . . . . . . . . . . . . 8W-30
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . 8W-10
Instrument Cluster . . . . . . . . . . . . . . . . . . . . 8W-40
Intake Air Temperature Sensor . . . . . . . . . . . 8W-30
Lamp Assemblies . . . . . . . . . . . . . . . . . . . . . . 8W-51
License Lamps . . . . . . . . . . . . . . . . . . . . . . . 8W-51
Locker Indicator Switches . . . . . . . . . . . . . . . 8W-31
Locker Pumps . . . . . . . . . . . . . . . . . . . . . . . . 8W-31
Locker Relays . . . . . . . . . . . . . . . . . . . . . . . . 8W-31
Low Speed Radiator Fan Relay . . . . . . . . . . . 8W-42
Manifold Absolute Pressure Sensor . . . . . . . . 8W-30
Multi-Function Switch . . . . . . 8W-44, 50, 51, 52, 53
Natural Vacuum Leak Detection Assembly . . 8W-30
Oxygen Sensors . . . . . . . . . . . . . . . . . . . . . . . 8W-30
Park Brake Switch . . . . . . . . . . . . . . . . . . . . 8W-40
Park/Turn Signal Lamps . . . . . . . . . . . . . . . . 8W-52
Position Lamps . . . . . . . . . . . . . . . . . . . . . . . 8W-50

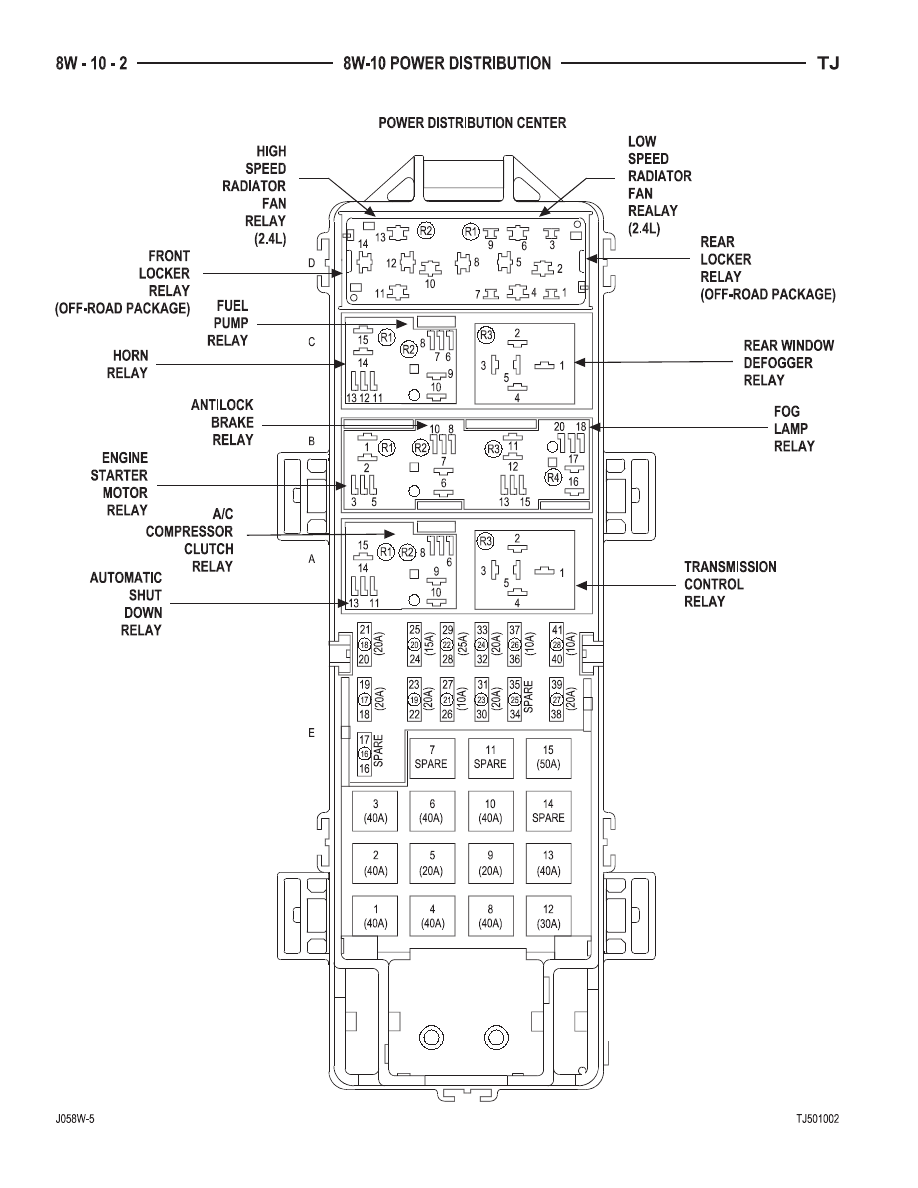

Power Distribution Center . . . . . . . . . . . . . . 8W-10
Power Outlet . . . . . . . . . . . . . . . . . . . . . . . . . 8W-41
Power Steering Pressure Switch . . . . . . . . . . 8W-30
Powertrain Control Module . . . . . . . . . . . 8W-30, 31
Radiator Fan Motor . . . . . . . . . . . . . . . . . . . . 8W-42
Radiator Fan Motor Circuit Breaker . . . . . . . 8W-42
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-47
Rear Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . 8W-51
Rear Window Defogger . . . . . . . . . . . . . . . . . 8W-48
Rear Window Defogger Relay . . . . . . . . . . . . 8W-48
Rear Window Defogger Switch . . . . . . . . . . . 8W-48
Rear Wiper/Washer Switch . . . . . . . . . . . . . . 8W-53
Seat Belt Switch . . . . . . . . . . . . . . . . . . . . . . 8W-40
Sentry Key Immobilizer Module . . . . . . . . . . 8W-39
Side Marker Lamps . . . . . . . . . . . . . . . . . . . . 8W-50
Side Repeater Lamps . . . . . . . . . . . . . . . . . . 8W-52
Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-47
Speed Control Servo . . . . . . . . . . . . . . . . . . . 8W-33
Speed Control Switches . . . . . . . . . . . . . . . . . 8W-33
Speed Sensors . . . . . . . . . . . . . . . . . . . . . . . . 8W-31
Splices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-70
Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-47
TJ
8W-02 COMPONENT INDEX
8W - 02 - 1
