or until the ignition switch is turned to the Off posi-
tion, whichever occurs first. When the switch toggle
button is depressed downward to its Wipe detent
position, the switch provides ignition switched bat-
tery current to the rear wiper motor and the rear
wiper system operates. When the switch toggle but-
ton is depressed downward to the momentary Wash
position, the switch provides ignition switched bat-
tery current to both the rear wiper motor and the
rear washer pump motor for as long as the switch is
held depressed. Refer to the owner’s manual in the
vehicle glove box for more information on the fea-
tures, use and operation of the rear wiper and
washer switch.

The incandescent switch illumination lamp is con-

trolled by a lamp driver output from the instrument
cluster based upon the panel lamps dimmer input to
the cluster from the left multi-function switch. The
rear wiper and washer switch can be diagnosed using
conventional diagnostic tools and methods.

DIAGNOSIS AND TESTING - REAR WIPER &
WASHER SWITCH

Be certain to perform the diagnosis for the rear

wiper system and/or rear washer system before test-
ing the rear wiper and washer switch. (Refer to 8 -
ELECTRICAL/REAR WIPERS/WASHERS - DIAG-
NOSIS AND TESTING). Refer to the appropriate
wiring information. The wiring information includes
wiring diagrams, proper wire and connector repair
procedures, details of wire harness routing and
retention, connector pin-out information and location
views for the various wire harness connectors, splices
and grounds.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

(1) Disconnect and isolate the battery negative

cable. Remove the accessory switch bezel from the
instrument panel and disconnect the instrument
panel wire harness connector for the rear wiper and
washer switch from the switch connector receptacle.

(2) Using an ohmmeter, check the rear wiper and

washer switch continuity at the switch terminals as
shown in the Rear Wiper & Washer Switch Continu-
ity chart (Fig. 24).

SWITCH POSITION

CONTINUITY BETWEEN

OFF

1 & 4

WIPE

4 & 5

WASH

2 & 5, 4 & 5

LAMP

1 & 3

(3) If the switch fails any of the continuity checks,

replace the faulty switch. If the switch checks OK,
repair the open or shorted rear wiper and/or rear
washer system circuits as required.

REMOVAL

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

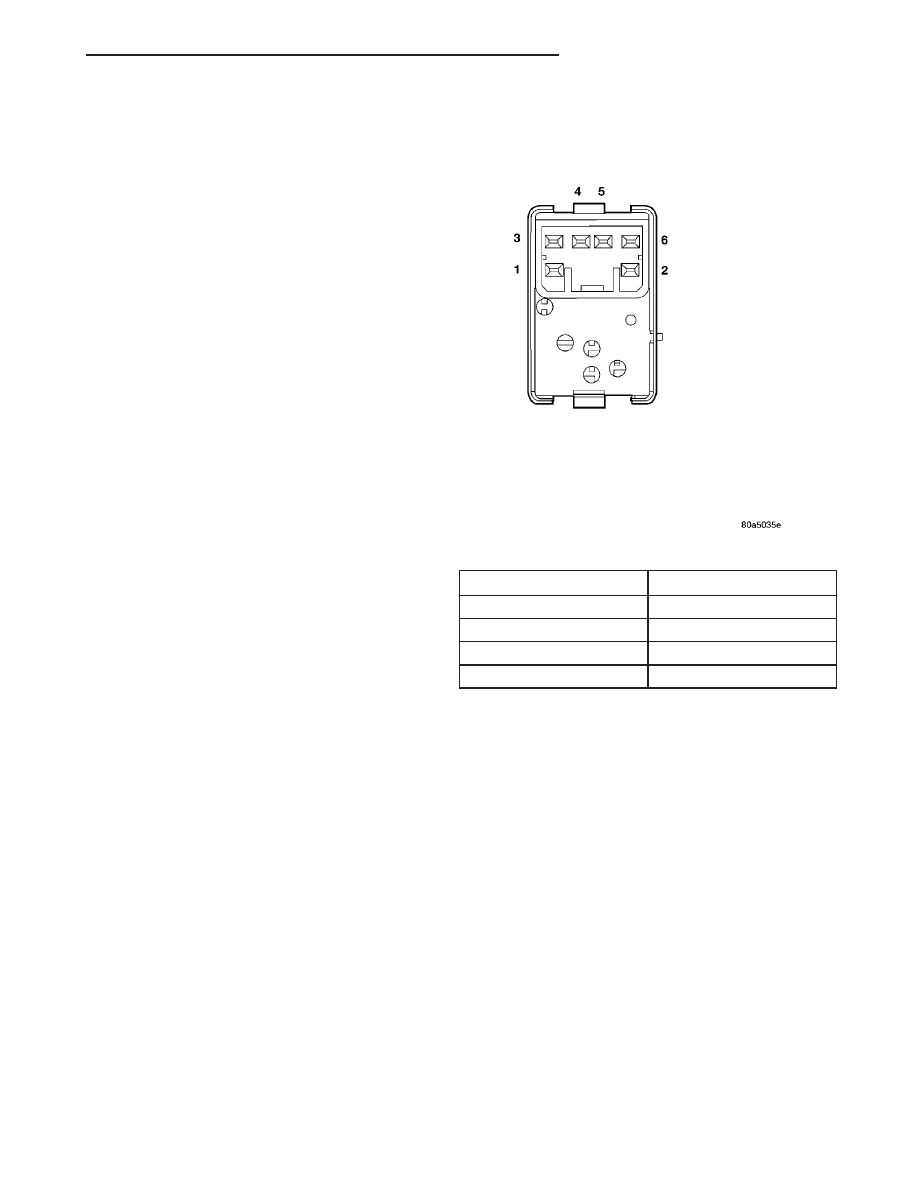

Fig. 24 Rear Wiper & Washer Switch Continuity

TJ

REAR WIPERS/WASHERS

8R - 41

REAR WIPER/WASHER SWITCH (Continued)

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the accessory switch bezel from the

instrument panel center bezel from the instrument
panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
ACCESSORY SWITCH BEZEL - REMOVAL).

(3) Using a trim stick or another suitable wide

flat-bladed tool, gently pry the latch tabs at the top
and bottom of the rear wiper and washer switch
receptacle on the back of the accessory switch bezel
far enough to disengage the snap features on the top
and bottom of the switch housing then pull the
switch out of the receptacle (Fig. 25).

INSTALLATION

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE WAY
TO DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT.

(1) Position the rear wiper and washer switch over

the proper receptacle on the back of the accessory
switch bezel (Fig. 25).

(2) Gently and evenly push the rear wiper and

washer switch into the receptacle until the snap fea-
tures on the top and bottom of the switch housing
are fully engaged by the latch tabs at the top and
bottom of the receptacle.

(3) Reinstall the accessory switch bezel onto the

instrument panel. (Refer to 23 - BODY/INSTRU-
MENT

PANEL/ACCESSORY

SWITCH

BEZEL

-

INSTALLATION).

(4) Reconnect the battery negative cable.

Fig. 25 Rear Wiper/Washer Switch Remove

1 - TRIM STICK
2 - REAR WIPER/WASHER SWITCH
3 - OVERDRIVE-OFF SWITCH
4 - AXLE LOCKER SWITCH
5 - ACCESSORY SWITCH BEZEL
6 - REAR WINDOW DEFOGGER SWITCH

8R - 42

REAR WIPERS/WASHERS

TJ

REAR WIPER/WASHER SWITCH (Continued)

WIRING

TABLE OF CONTENTS

page

page

WIRING DIAGRAM INFORMATION. . . . . . . 8W-01-1
COMPONENT INDEX . . . . . . . . . . . . . . . . . . 8W-02-1
POWER DISTRIBUTION . . . . . . . . . . . . . . . 8W-10-1
FUSE BLOCK. . . . . . . . . . . . . . . . . . . . . . . . 8W-11-1
GROUND DISTRIBUTION . . . . . . . . . . . . . . 8W-15-1
BUS COMMUNICATIONS . . . . . . . . . . . . . . 8W-18-1
CHARGING SYSTEM . . . . . . . . . . . . . . . . . . 8W-20-1
STARTING SYSTEM . . . . . . . . . . . . . . . . . . 8W-21-1
FUEL/IGNITION SYSTEM . . . . . . . . . . . . . . 8W-30-1
TRANSMISSION CONTROL SYSTEM . . . . . 8W-31-1
VEHICLE SPEED CONTROL . . . . . . . . . . . . 8W-33-1
ANTILOCK BRAKES. . . . . . . . . . . . . . . . . . . 8W-35-1
VEHICLE THEFT SECURITY SYSTEM . . . . . 8W-39-1
INSTRUMENT CLUSTER . . . . . . . . . . . . . . . 8W-40-1
HORN/CIGAR LIGHTER/POWER OUTLET . . 8W-41-1

AIR CONDITIONING-HEATER . . . . . . . . . . . 8W-42-1
AIRBAG SYSTEM . . . . . . . . . . . . . . . . . . . . 8W-43-1
INTERIOR LIGHTING. . . . . . . . . . . . . . . . . . 8W-44-1
AUDIO SYSTEM . . . . . . . . . . . . . . . . . . . . . 8W-47-1
REAR WINDOW DEFOGGER. . . . . . . . . . . . 8W-48-1
FRONT LIGHTING . . . . . . . . . . . . . . . . . . . . 8W-50-1
REAR LIGHTING . . . . . . . . . . . . . . . . . . . . . 8W-51-1
TURN SIGNALS. . . . . . . . . . . . . . . . . . . . . . 8W-52-1
WIPERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-53-1
SPLICE INFORMATION . . . . . . . . . . . . . . . . 8W-70-1
CONNECTOR PIN-OUTS . . . . . . . . . . . . . . . 8W-80-1
CONNECTOR/GROUND/SPLICE

LOCATION . . . . . . . . . . . . . . . . . . . . . . . . 8W-91-1

POWER DISTRIBUTION . . . . . . . . . . . . . . . 8W-97-1
