Jeep Wrangler TJ. Manual - part 332





WIPERS/WASHERS

TABLE OF CONTENTS

page

page

FRONT WIPERS/WASHERS . . . . . . . . . . . . . . . . . . 1

REAR WIPERS/WASHERS . . . . . . . . . . . . . . . . . . 24

FRONT WIPERS/WASHERS

TABLE OF CONTENTS

page

page

FRONT WIPERS/WASHERS

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

DIAGNOSIS AND TESTING - FRONT WIPER &

WASHER SYSTEM

. . . . . . . . . . . . . . . . . . . . . 5

CLEANING - FRONT WIPER & WASHER

SYSTEM

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

INSPECTION - FRONT WIPER & WASHER

SYSTEM

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

FRONT CHECK VALVE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 8

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 10

FRONT WASHER HOSES/TUBES

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 10

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

FRONT WASHER NOZZLE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 10

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 11

FRONT WASHER PUMP MOTOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 11

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 13

FRONT WIPER ARM

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 13

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 14

FRONT WIPER BLADE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 14

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 15

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 15

FRONT WIPER MODULE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 15

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 16

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . 17

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 17

RIGHT MULTI-FUNCTION SWITCH

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 18

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DIAGNOSIS AND TESTING - RIGHT MULTI-

FUNCTION SWITCH

. . . . . . . . . . . . . . . . . . . 19

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 21

WASHER RESERVOIR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 22

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 22

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 23

FRONT WIPERS/WASHERS

DESCRIPTION

An electrically operated intermittent front wiper

and washer system is standard factory-installed
safety equipment on this model (Fig. 1). The front

wiper and washer system includes the following
major components, which are described in further
detail elsewhere in this service information:

• Front Check Valve - The front washer system

check valve is located in the washer plumbing on the
underside of the hood panel between the cowl and
the front washer nozzle.

TJ

WIPERS/WASHERS

8R - 1

• Front Washer Nozzle - The single fluidic front

washer nozzle is secured by an integral latch feature
to a dedicated opening near the rear of the hood
panel. The washer plumbing fitting for the washer
nozzle is concealed beneath the hood panel.

• Front Washer Pump/Motor - The front washer

pump/motor unit is located in a dedicated hole on the
lower inboard side of the washer reservoir, on the top
of the left front wheel house in the engine compart-
ment. The front washer pump/motor unit is located

below and forward of the optional rear washer pump/
motor unit mounting hole.

• Front Washer Plumbing - The plumbing for

the front washer system consists of rubber hoses and
molded plastic fittings. The plumbing is routed along
the left side of the engine compartment from the
washer reservoir, and up the cowl panel to the hood
panel rear reinforcement. Then along the hood panel
rear reinforcement to the front washer nozzle fitting.

• Front Wiper Arm - The two front wiper arms

are secured with integral latches to the serrated ends

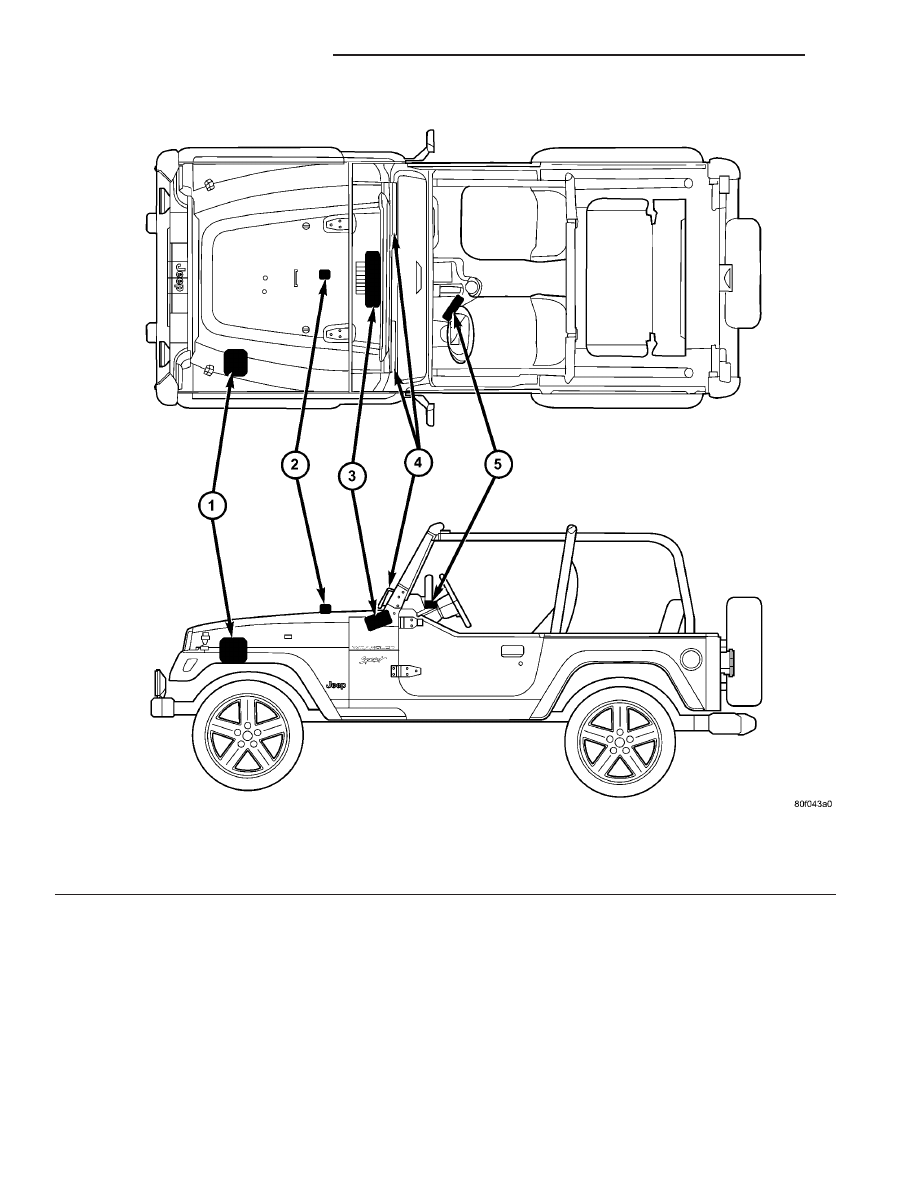

Fig. 1 Front Wiper & Washer System

1 - WASHER RESERVOIR, PUMP/MOTOR
2 - FRONT WASHER NOZZLE
3 - FRONT WIPER MODULE

4 - FRONT WIPER ARM & BLADE (2)
5 - RIGHT MULTI-FUNCTION SWITCH

8R - 2

FRONT WIPERS/WASHERS

TJ

FRONT WIPERS/WASHERS (Continued)

of the two wiper pivot shafts, which extend through
the cowl plenum cover/grille panel located near the
base of the windshield.

• Front Wiper Blade - The two front wiper

blades are secured to the two front wiper arms with
integral latches, and are parked on the glass near
the bottom of the windshield when the front wiper
system is not in operation.

• Front Wiper Module - The front wiper pivot

shafts are the only visible components of the front
wiper module. The remainder of the module is con-
cealed within the cowl plenum area beneath the cowl
plenum cover/grille panel. The front wiper module
includes the wiper module bracket, three rubber-iso-
lated wiper module mounts, the front wiper motor,
the front wiper motor crank arm, the front wiper
drive link, the front wiper connector link, and the
two front wiper pivots.

• Right Multi-Function Switch - The right

multi-function switch is located near the top of the
steering column, just below the steering wheel. The
right multi-function switch includes a control stalk
with a control knob on the end that extends through
a dedicated opening on the right side of the steering
column shrouds. The right multi-function switch is
dedicated to providing all of the driver controls for
the front wiper and washer systems.

• Washer Reservoir - The molded plastic washer

reservoir is secured by two screws through integral
mounting tabs to the top of the left front fender
wheel house, in the left front corner of the engine
compartment. The washer reservoir filler neck is
accessed from the left front corner of the engine com-
partment.

Hard wired circuitry connects the front wiper and

washer system components to the electrical system of
the vehicle. These hard wired circuits are integral to
several wire harnesses, which are routed throughout
the vehicle and retained by many different methods.
These circuits may be connected to each other, to the
vehicle electrical system and to the front wiper and
washer system components through the use of a com-
bination of soldered splices, splice block connectors,
and many different types of wire harness terminal
connectors and insulators. Refer to the appropriate
wiring information. The wiring information includes
wiring diagrams, proper wire and connector repair
procedures, further details on wire harness routing
and retention, as well as pin-out and location views
for the various wire harness connectors, splices and
grounds.

OPERATING MODES

The components of the wiper and washer system

are designed to work in concert to provide the follow-
ing operating modes:

• Continuous Wipe Modes - The control stalk of

the right multi-function switch has two continuous
wipe positions, Low and High. When selected, these
switch positions will cause the two-speed wiper motor
to operate in a continuous low or high speed cycle.

• Intermittent Wipe Mode - The control stalk of

the right multi-function switch has an intermittent
wipe position, and the control knob has several minor
detent positions which will each cause the wiper sys-
tem to operate at different delay intervals between
complete wipe cycles. The internal circuitry of the
right multi-function switch provides the intermittent
wipe mode and adjustable delay intervals between
wipe cycles of about one second to about fifteen sec-
onds.

• Mist Wipe Mode - The control stalk of the right

multi-function switch has a momentary mist wipe
position that will operate the front wipers for a sin-
gle complete cycle, then park the wiper blades near
the base of the windshield.

• Washer Mode - When the control stalk of right

multi-function switch is pulled toward the steering
wheel to the momentary Wash position while the
front wiper system is operating, washer fluid will be
dispensed onto the windshield glass through the
washer nozzles for as long as the front washer pump
is energized.

• Wipe-After-Wash Mode - When the control

stalk of right multi-function switch is pulled toward
the steering wheel to the momentary Wash position
while the front wiper system is not operating, the
internal circuitry of the right multi-function switch
provides a wipe-after-wash feature which will operate
the front washer pump/motor and the front wipers
for as long as the washer system is activated, then
provide one or two additional wipe cycles after the
washer system is deactivated before parking the
front wiper blades near the base of the windshield.

OPERATION

The front wiper and washer system is designed to

provide the vehicle operator with a convenient, safe,
and reliable means of maintaining visibility through
the windshield glass. The various components of this
system are designed to convert electrical energy pro-
duced by the vehicle electrical system into the
mechanical action of the wiper blades to wipe the
outside surface of the glass, as well as into the
hydraulic action of the washer system to apply
washer fluid stored in an on-board reservoir to the
area of the glass to be wiped. When combined, these
components provide the means to effectively main-
tain clear visibility for the vehicle operator by remov-
ing excess accumulations of rain, snow, bugs, mud, or
other minor debris from the outside windshield glass
surface that might be encountered while driving the

TJ

FRONT WIPERS/WASHERS

8R - 3

FRONT WIPERS/WASHERS (Continued)

vehicle under numerous types of inclement operating
conditions.

The vehicle operator initiates all front wiper and

washer system functions with the control stalk and
control knob of the right multi-function switch that
extends from the right side of the steering column,
just below the steering wheel. Moving the control
stalk upward selects the front wiper system operat-
ing mode. The front wiper system allows the vehicle
operator to select from two continuous wiper speeds,
High or Low, or the intermittent wipe Delay mode.
Pulling the control stalk downwards and releasing it
selects the front wiper system Mist mode, which
operates the front wipers for one complete wipe cycle
after the control stalk is released. Rotating the con-
trol knob on the end of the control stalk allows the
vehicle operator to select the intermittent wipe Delay
interval. Pulling the control stalk towards the steer-
ing wheel activates the front washer pump/motor,
which dispenses washer fluid onto the windshield
glass through the front washer nozzle.

When the ignition switch is in the Accessory or On

positions, battery current from a fuse in the Power
Distribution Center (PDC) is provided to the front
wiper and washer system fuse in the fuse block. This
fuse provides battery current through separate fused
ignition switch output (run-acc) circuits to the right
multi-function switch, and to the front wiper motor.
Within the right multi-function switch, this battery
current is fed to one side of the control coil in the
wiper motor relay, and to the electronic intermittent
wipe logic circuit, which are both integral to the
switch.

The intermittent wipe and wipe-after-wash fea-

tures of the front wiper and washer system are both
provided by the electronic intermittent wipe logic cir-
cuit within the right multi-function switch. In order
to provide the intermittent wipe feature, the logic cir-
cuit monitors the wiper switch state, the intermittent
delay resistance setting, and the wiper motor park
switch state. In order to provide the wipe-after-wash
feature, the logic circuit monitors both the front
washer switch state and the wiper motor park switch
state.

The hard wired circuits and components of the

front wiper and washer system may be diagnosed
and tested using conventional diagnostic tools and
procedures. However, conventional diagnostic meth-
ods are not possible in the diagnosis of the intermit-
tent wipe mode circuitry and logic within the right
multi-function switch. If the front wiper and washer
system operates satisfactorily in all modes except the
Delay mode, the faulty right multi-function switch
must be replaced. Refer to the appropriate diagnostic
information.

OPERATING MODES

Following are paragraphs that briefly describe the

operation of each of the front wiper and washer sys-
tem operating modes.

CONTINUOUS WIPE MODE

When the Low position of the right multi-function

switch control stalk is selected, the Low mode cir-
cuitry within the switch directs battery current to
the low speed brush of the front wiper motor, which
causes the front wipers to cycle at a low speed. When
the High position of the control stalk is selected, the
High mode circuitry within the switch directs battery
current to the high speed brush of the front wiper
motor, which causes the front wipers to cycle at a
high speed.

When the Off position of the right multi-function

switch control stalk is selected, one of two events is
possible. The event that occurs depends upon the
position of the wiper blades on the windshield at the
moment that the control stalk Off position is
selected. If the wiper blades are in the down position
on the windshield when the Off position is selected,
the park switch that is integral to the front wiper
motor is closed to ground and the wiper motor ceases
to operate.

If the wiper blades are not in the down position on

the windshield at the moment the Off position is
selected, the park switch is closed to battery current
through the fused ignition switch output (run-acc)
circuit of the front wiper motor. The park switch
sense circuit directs this battery current to the low
speed brush of the wiper motor through the normally
closed circuit of the wiper motor relay and the Off
mode circuitry of the wiper switch. This causes the
wiper motor to continue running until the wiper
blades are in the down position on the windshield
and the park switch is again closed to ground.

INTERMITTENT WIPE MODE

When the control stalk of the right multi-function

switch is moved to the Delay position, the Delay
mode circuitry within the switch directs battery cur-
rent to a request input of the integral logic circuit.
The Delay mode circuitry also directs battery current
through an internal variable resistor to the intermit-
tent wipe delay sense input of the logic circuit, which
indicates the delay interval that has been selected by
the vehicle operator using the control knob on the
end of the right multi-function switch control stalk.

The logic circuit responds to the Delay mode

request inputs by calculating the correct delay inter-
val. The logic circuit then energizes the wiper motor
relay by pulling the relay control coil to ground. The
energized wiper motor relay directs battery current
from the normally open relay terminal through the

8R - 4

FRONT WIPERS/WASHERS

TJ

FRONT WIPERS/WASHERS (Continued)















Content   ..  330  331  332  333   ..
