turn signals only until the left multi-function switch
control stalk is released. When the control stalk is
moved to a turn signal switch detent position, the
cancel actuator extends toward the center of the
steering column. A turn signal cancel cam that is
integral to the clockspring, rotates with the steering
wheel and the cam lobes contact the cancel actuator
when it is extended from the multi-function switch. If
only momentary signaling is desired, the switch is
actuated to a left or right intermediate detent posi-
tion. In this position the signal lamps flash as
described above, but the switch returns to the Off
position as soon as the lever is released. When the
system is activated, one of two turn indicators in the
instrument cluster flashes in unison with the turn
signal lamps, indicating to the driver that the system
is operating.

DIAGNOSIS AND TESTING - LEFT MULTI-
FUNCTION SWITCH

Refer to the appropriate wiring information.

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the left multi-function switch from the

steering column (Refer to 8 - ELECTRICAL/LAMPS/
LIGHTING - EXTERIOR/LEFT MULTI-FUNCTION
SWITCH - REMOVAL).

(3) Remove the combination flasher from the left

multi-function switch.

(4) Using an ohmmeter, perform the continuity

and resistance tests at the terminals in the left
multi-function switch connector receptacles as shown
in the Left Multi-Function Switch Test table. Refer to
(Fig. 25) and (Fig. 26) for connector terminal and
cavity identification.

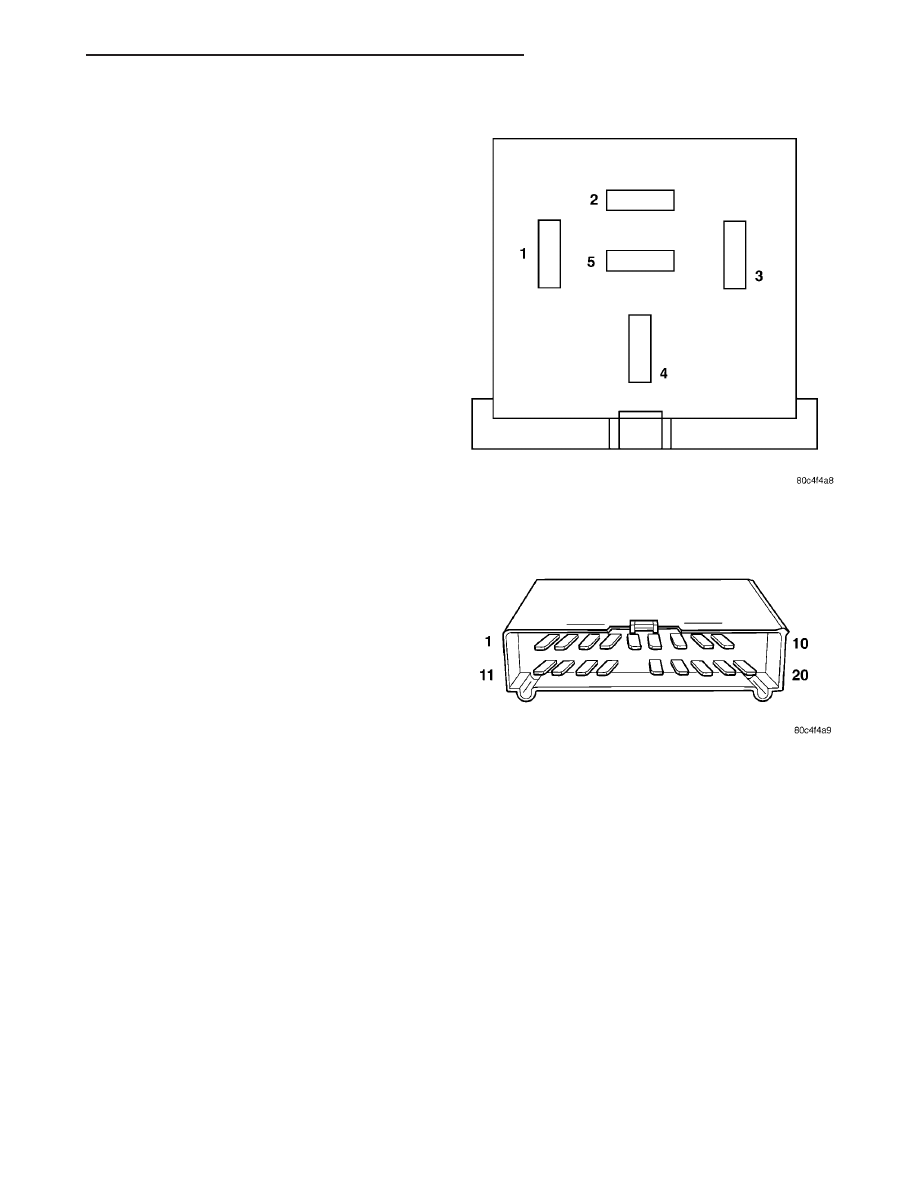

Fig. 25 Combination Flasher Receptacle (Connector

A)

Fig. 26 Left Multi-Function Switch Connector

Receptacle (Connector B)

TJ

LAMPS/LIGHTING - EXTERIOR

8L - 25

LEFT MULTI-FUNCTION SWITCH (Continued)

LEFT (LIGHTING) MULTI-FUNCTION SWITCH TEST

TURN SIGNAL AND HAZARD WARNING SWITCH TESTS

SWITCH POSITION

CONTINUITY

BETWEEN

TURN

HAZARD

Neutral

Off

B1 & B4, B1 & B5

Left

Off

A2 & B2, A2 & B4, B1 & B5

Right

Off

A2 & B5, B1 & B4

Neutral

On

A2 & B2, A2 & B4, A2 & B5, A2 & B6, A3 & B7, A3 & A5

EXTERIOR LIGHTING SWITCH TESTS

SWITCH POSITION

CONTINUITY BETWEEN

Park Lamps On

B9 & B20

Headlamp Low Beams On

B16 & B18, B16 & B19

Headlamp High Beams On

B17 & B18, B17 & B19

Fog Lamps On

B13 & B14

Rear Fog Lamps On

B12 & B13

Optical Horn On

B17 & B18, B17 & B19

INTERIOR LIGHTING SWITCH TESTS

SWITCH POSITION

RESISTANCE

BETWEEN

RESISTANCE (OHMS)

Panel Lamps Dimming Position 1 (Dimmest)

B7 & B8

5653 ± 10%

Dimming Position 2

B7 & B8

3743 ± 10%

Dimming Position 3

B7 & B8

2593 ± 10%

Dimming Position 4

B7 & B8

1825 ± 10%

Dimming Position 5

B7 & B8

1221 ± 10%

Dimming Position 6 (Brightest)

B7 & B8

768 ± 10%

Parade Mode On

B7 & B8

412 ± 10%

Courtesy Lamps On

B7 & B8

150 ± 10%

(5) If the left multi-function switch fails any of the

continuity or resistance tests, replace the faulty
switch unit as required.

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the steering column opening cover

from the instrument panel. (Refer to 23 - BODY/IN-
STRUMENT PANEL/STEERING COLUMN OPEN-
ING COVER - REMOVAL).

(3) Remove the two screws that secure the lower

steering column shroud to the upper shroud (Fig. 27).

(4) If the vehicle is equipped with the optional tilt

steering column, move the tilt steering column to the
fully lowered position and leave the tilt release lever
in the released (down) position.

(5) Remove both the upper and lower shrouds from

the steering column.

(6) Disconnect the cross body wire harness connec-

tor for the left multi-function switch from the connec-
tor receptacle on the back of the switch.

(7) Disconnect the cross body wire harness connec-

tor for the right multi-function switch from the con-
nector receptacle on the back of the switch.

8L - 26

LAMPS/LIGHTING - EXTERIOR

TJ

LEFT MULTI-FUNCTION SWITCH (Continued)

(8) Remove the two screws that secure the multi-

function switch assembly to the upper steering col-
umn housing (Fig. 28).

(9) Remove the multi-function switch assembly

from the upper steering column housing.

(10) Remove the two small screws that secure the

right multi-function switch to the left multi-function
switch mounting housing.

(11) Grasp the right multi-function switch control

stalk firmly and pull the switch toward the right far
enough to disengage the alignment pins on the top
(1) and bottom (2) of the right switch housing from
the alignment ramps on the left multi-function
switch mounting housing.

(12) Remove the right multi-function switch from

the left multi-function switch.

(13) Remove the combination flasher from the con-

nector receptacle on the back of the left multi-func-
tion switch.

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-

LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

(1) Install the combination flasher into the connec-

tor receptacle on the back of the left multi-function
switch.

(2) Position the right multi-function switch to the

left multi-function switch.

(3) Grasp the right multi-function switch control

stalk firmly and slide the switch toward the left far
enough to engage the alignment pins on the top (1)
and bottom (2) of the right switch housing into the
alignment ramps on the left multi-function switch
mounting housing.

(4) Install and tighten the screws that secure the

right multi-function switch to the left multi-function
switch mounting housing (Fig. 28). Tighten the
screws to 2 N·m (17 in. lbs.).

(5) Position the multi-function switch assembly

onto the upper steering column housing.

(6) Install and tighten the screws that secure the

multi-function switch assembly to the upper steering
column housing. Tighten the screws to 2 N·m (17 in.
lbs.).

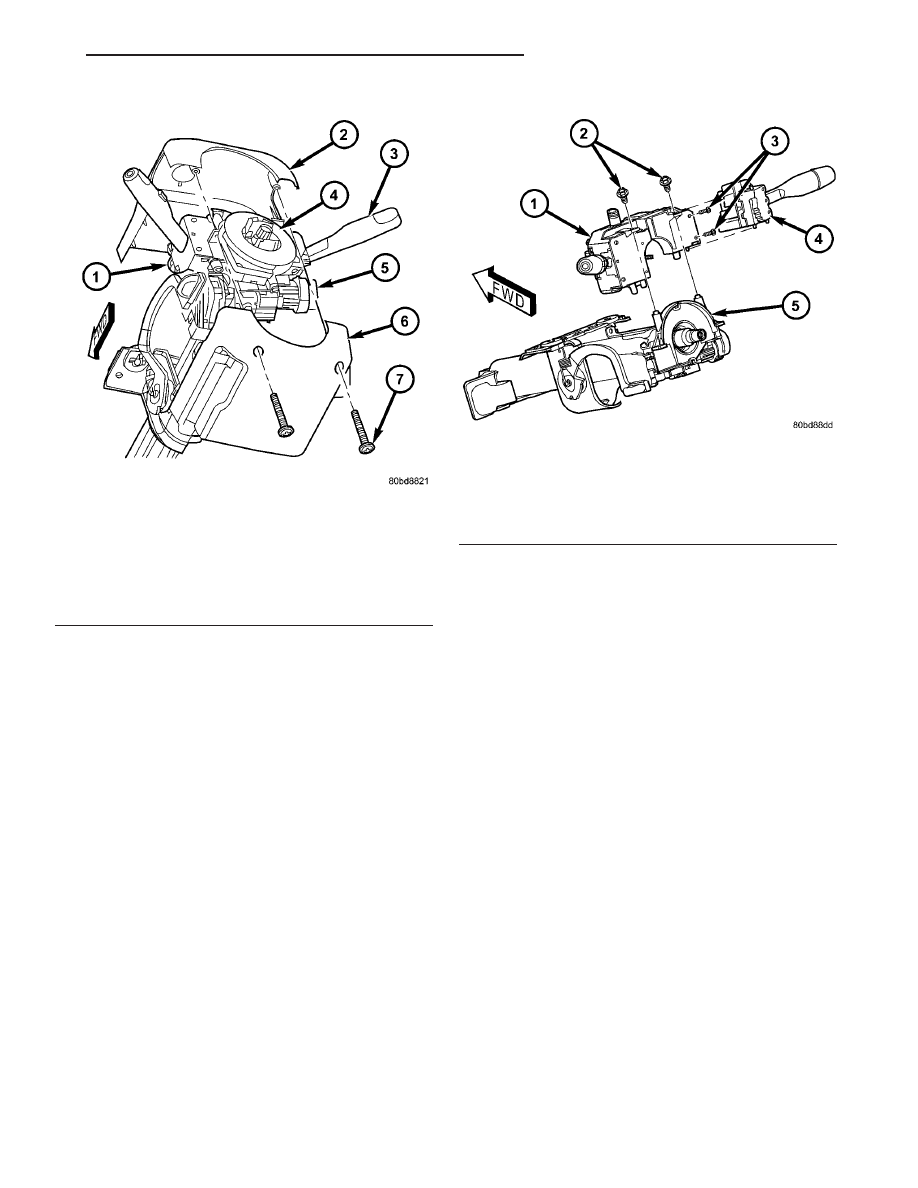

Fig. 27 Steering Column Shrouds Remove/Install

1 - LEFT MULTI-FUNCTION SWITCH
2 - UPPER SHROUD
3 - RIGHT MULTI-FUNCTION SWITCH
4 - CLOCKSPRING
5 - IGNITION LOCK CYLINDER HOUSING
6 - LOWER SHROUD
7 - SCREW (2)

Fig. 28 Multi-Function Switch Remove/Install

1 - LEFT MULTI-FUNCTION SWITCH
2 - SCREW (2)
3 - SCREW (2)
4 - RIGHT MULTI-FUNCTION SWITCH
5 - UPPER STEERING COLUMN HOUSING

TJ

LAMPS/LIGHTING - EXTERIOR

8L - 27

LEFT MULTI-FUNCTION SWITCH (Continued)

(7) Reconnect the cross body wire harness connec-

tor for the right multi-function switch to the connec-
tor receptacle on the back of the switch.

(8) Reconnect the cross body wire harness connec-

tor for the left multi-function switch to the connector
on the back of the switch.

(9) Position both the upper and lower shrouds onto

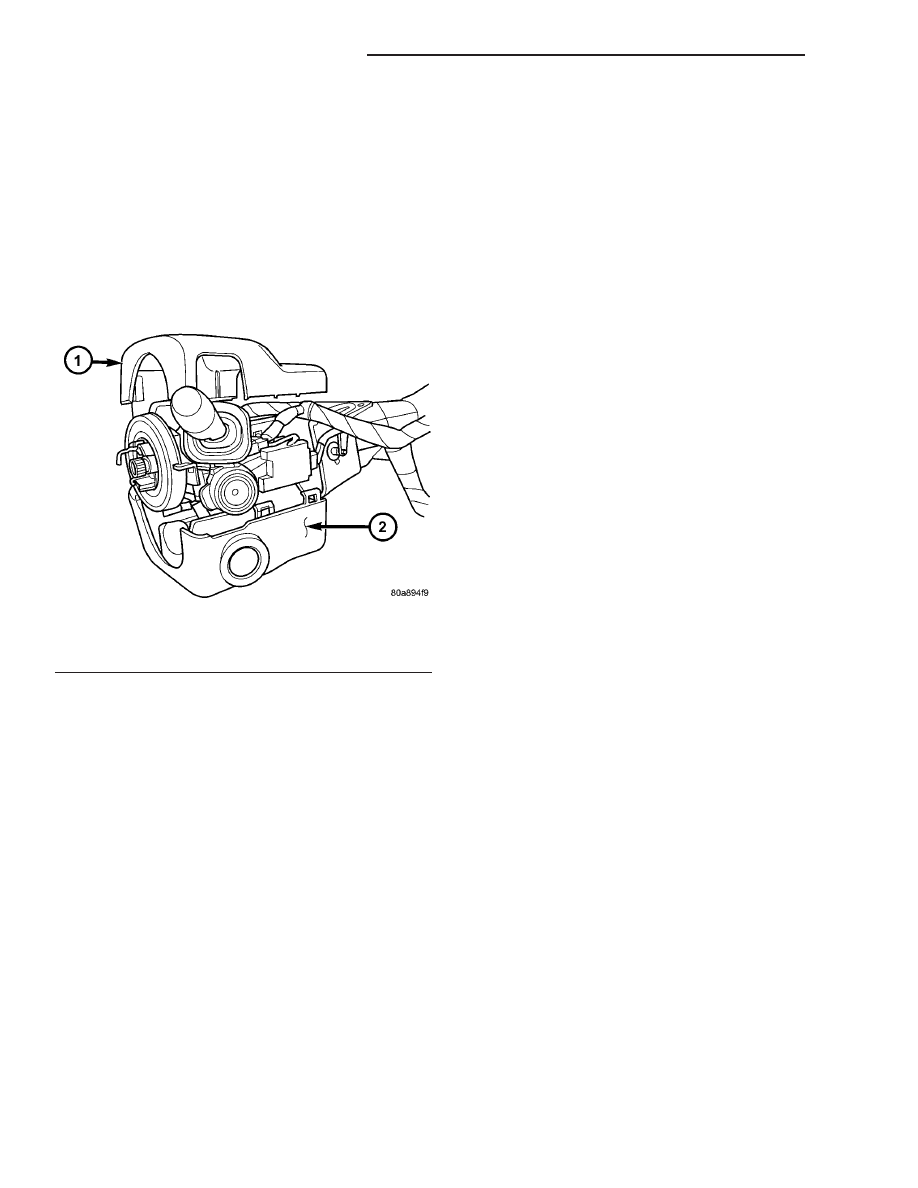

the steering column (Fig. 29). Be certain that the
locating tabs for the left and right multi-function
switch

control

stalk

watershields

are

properly

engaged in the openings of both the upper and lower
shrouds.

(10) Install and tighten the screws that secure the

lower steering column shroud to the upper shroud.
Tighten the screws to 2 N·m (17 in. lbs.).

(11) If the vehicle is equipped with the optional tilt

steering column, move the tilt steering column to the
fully raised position and secure it in place by moving
the tilt release lever back to the locked (up) position.

(12) Reinstall the steering column opening cover

onto the instrument panel. (Refer to 23 - BODY/IN-
STRUMENT PANEL/STEERING COLUMN OPEN-
ING COVER - INSTALLATION).

(13) Reconnect the battery negative cable.

SIDE MARKER LAMP UNIT

REMOVAL

(1) Disconnect and isolate the battery negative cable.
(2) From underside of the fender flare, remove the

nut that secures the side marker lamp housing to the
front fender flare.

(3) Remove the lamp housing from the fender flare.
(4) Rotate the socket one-third turn counterclockwise

and separate the socket and lamp from the housing.

INSTALLATION

(1) Install the socket and lamp into the housing

and rotate the socket one-third turn clockwise.

(2) Position the side marker lamp housing into the

front fender flare.

(3) Install the nut that secures the side marker

lamp housing to the fender flare. Tighten the nut
securely.

(4) Reconnect battery negative cable.

SIDE MARKER LAMP

REMOVAL

(1) Disconnect and isolate the negative battery

cable.

(2) From underside of the fender flare, rotate the

side marker lamp socket one-third turn counterclock-
wise and separate it from the side marker lamp
housing.

(3) Remove the lamp from the socket by pulling it

straight out of the socket.

INSTALLATION

(1) Install the side marker lamp into the socket by

pushing it straight into the socket.

(2) Install the socket into the housing and rotate

the socket one-third turn clockwise.

(3) Reconnect the battery negative cable.

REPEATER LAMP

DESCRIPTION

Some

export

models

are

equipped

with

side

repeater lamps instead of side marker lamps. The
side repeater lamp operates with the turn signals
and has an amber colored lens and a clear lamp. For
Removal and Installation procedures, refer to Side
Marker Lamps within this Group.

OPERATION

The side repeater lamps operate in series with the

front and rear turn signal lamps and are controlled
by

the

steering

column

mounted

multi-function

switch.

DIAGNOSIS AND TESTING - SIDE REPEATER
LAMP

The following chart is designed to diagnosis a

faulty side repeater lamp with the turn signals oper-
ating normally. Refer to Wiring Diagrams for a com-
plete system schematic.

Fig. 29 Shroud Remove/Install

1 - UPPER SHROUD
2 - LOWER SHROUD

8L - 28

LAMPS/LIGHTING - EXTERIOR

TJ

LEFT MULTI-FUNCTION SWITCH (Continued)















Content   ..  313  314  315  316   ..
