Jeep Wrangler TJ. Manual - part 245





(12) Remove and record pinion depth shims from

the pinion gear shaft.

INSTALLATION

NOTE: Pinion depth shims are placed between the
rear pinion bearing and pinion gear head to achieve
proper ring and pinion gear mesh. If the ring and
pinion gears are reused, the original pinion depth
shim can be used. Refer to Adjustments (Pinion
Gear Depth) to select the proper shim thickness.

(1) Install pinion depth shim in rear pinion bear-

ing cup bore.

(2) Apply Mopar Door Ease or equivalent lubricant

to the outside surface of pinion bearing cups. Install
rear bearing cup with Installer D-145 and Handle
C-4171 (Fig. 94) and verify cup is seated.

(3) Install front bearing cup with Installer D-144

and Handle C-4171 (Fig. 95) and verify cup is seated.

(4) Install front pinion bearing and oil slinger, if

equipped.

(5) Apply a light coating of gear lubricant on the

lip of pinion seal. Install seal with Installer 8681
(Fig. 96).

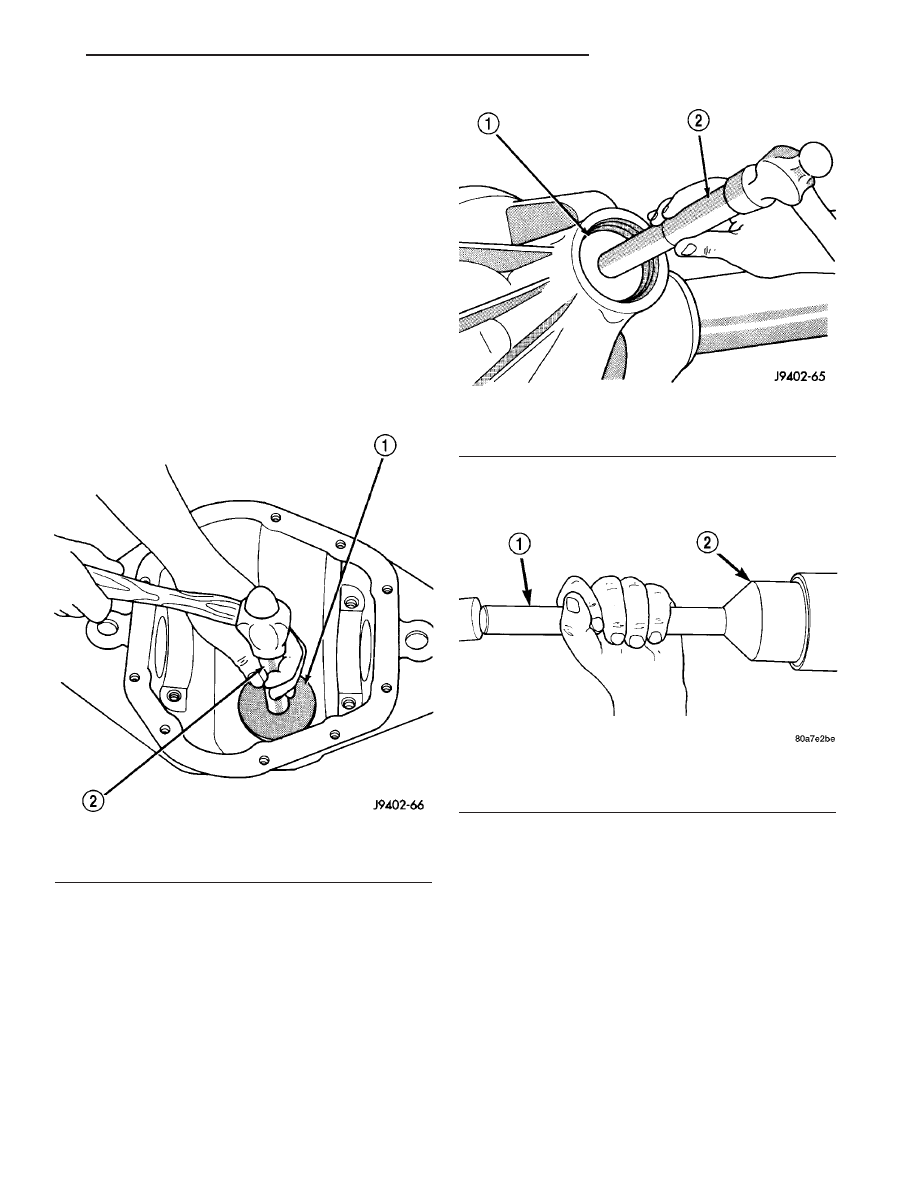

Fig. 94 REAR BEARING CUP

1 - INSTALLER
2 - HANDLE

Fig. 95 FRONT BEARING CUP

1 - INSTALLER
2 - HANDLE

Fig. 96 PINION SEAL INSTALLER

1 - HANDLE
2 - INSTALLER

TJ

REAR AXLE - 216RBI

3 - 157

PINION GEAR/RING GEAR/TONE RING (Continued)

(6) Install pinion depth shim on the pinion shaft.

Install rear pinion bearing on the pinion gear with
Installer W-262 and a press (Fig. 97).

(7) Install pinion gear into the housing.
(8) Install yoke with Installer W-162-B, Cup 8109

and Spanner Wrench 6958 (Fig. 98).

(9) Install pinion washer and a new nut hold pin-

ion yoke Spanner Wrench 6958 (Fig. 99) and tighten
nut to 217-271 N·m (160-200 ft. lbs.).

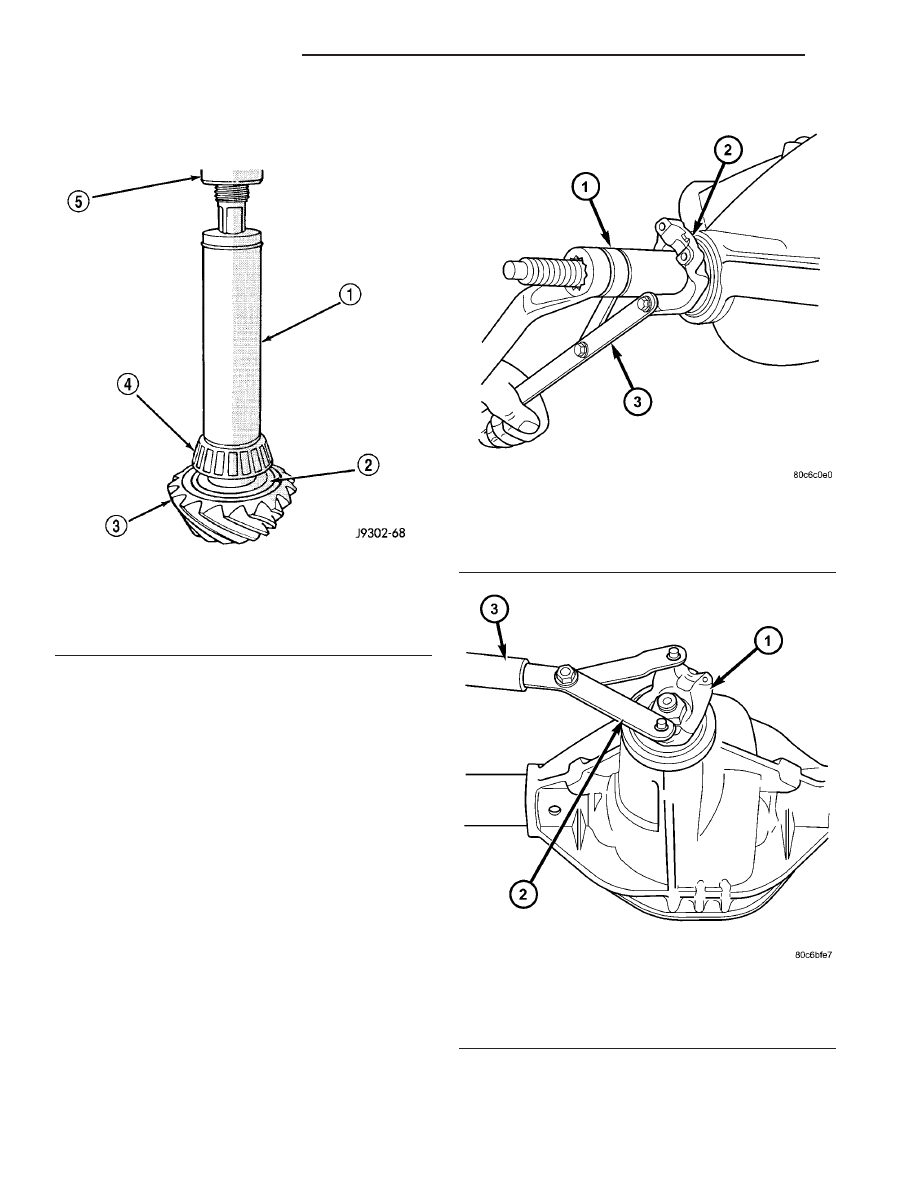

Fig. 97 REAR PINION BEARING

1 - INSTALLER
2 - SHIM
3 - DRIVE PINION GEAR
4 - REAR PINION BEARING
5 - PRESS

Fig. 98 PINION YOKE INSTALLER

1 - INSTALLER
2 - PINION YOKE
3 - SPANNER WRENCH

Fig. 99 YOKE SPANNER WRENCH

1 - PINION YOKE
2 - SPANNER WRENCH
3 - PIPE

3 - 158

REAR AXLE - 216RBI

TJ

PINION GEAR/RING GEAR/TONE RING (Continued)

(10) Check bearing preload torque with an inch

pound torque wrench (Fig. 100). The torque neces-
sary to rotate the pinion gear should be:

• Original Bearings: 1 to 2.26 N·m (10 to 20 in.

lbs.).

• New Bearings: 2.26 to 4.52 N·m (20 to 40 in.

lbs.).

(11) If

rotating

torque

is

above

the

desired

amount, remove the pinion yoke and increase the
preload shim pack thickness. Increasing the shim
pack thickness 0.025 mm (0.001 in.) will decrease the
rotating torque approximately 0.9 N·m (8 in. lbs.).

(12) If the maximum tightening torque is reached

prior to achieving the desired rotating torque, remove
the pinion yoke and decrease the thickness of the
preload shim pack. Decreasing the shim pack thick-
ness 0.025 mm (0.001 in.) will increase the rotating
torque approximately 0.9 N·m (8 in. lbs.).

(13) Invert differential case and start two ring

gear bolts. This will provide case-to-ring gear bolt
hole alignment.

CAUTION: Never reuse ring gear bolts, the bolts
can fracture causing extensive damage. Failure to
heed caution may result in damage.

(14) Invert differential case in the vise.
(15) Install new ring gear bolts and alternately

tighten to 108 N·m (100 ft. lbs.) (Fig. 101).

(16) Install differential in axle housing and verify

gear mesh and contact pattern. Refer to Adjustment
(Gear Contact Pattern).

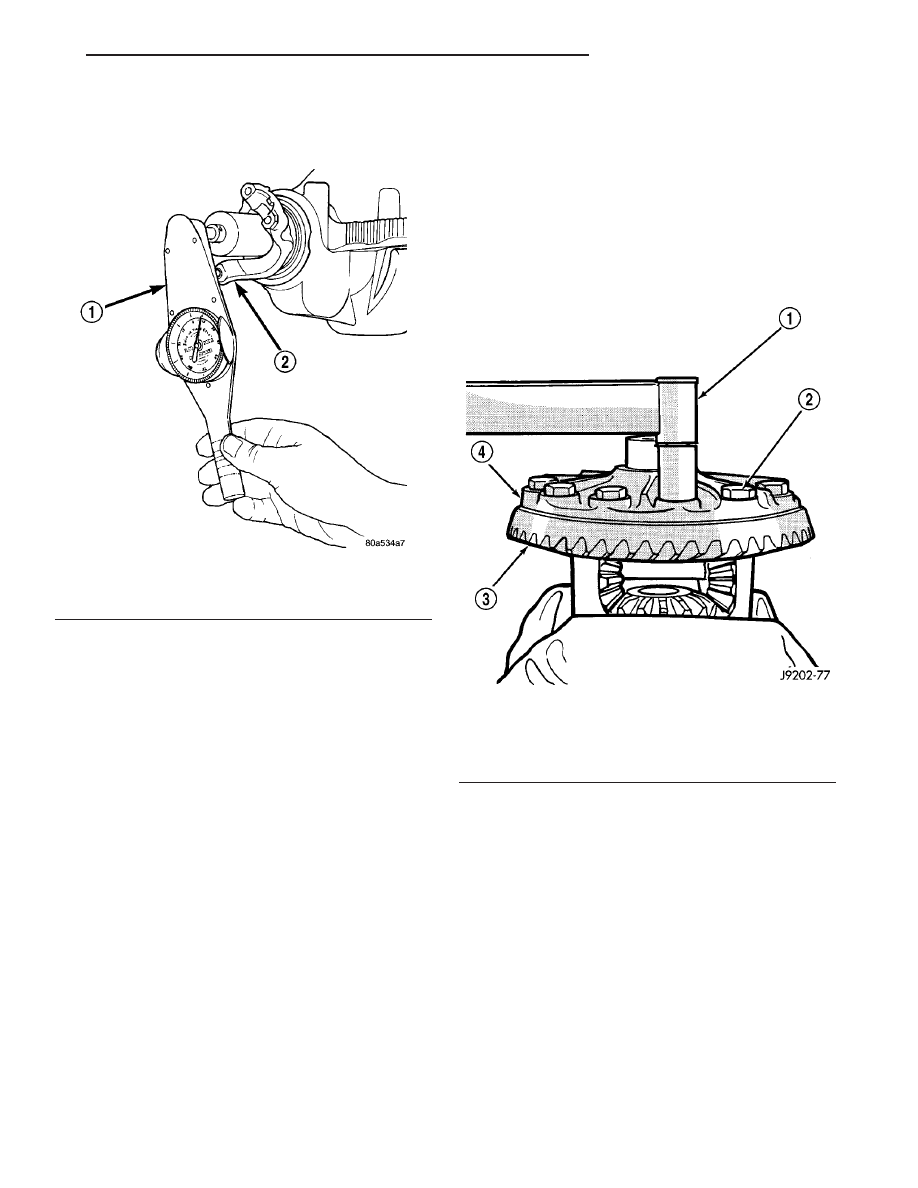

Fig. 100 PINION ROTATING TORQUE

1 - TORQUE WRENCH
2 - PINION YOKE

Fig. 101 RING GEAR

1 - TORQUE WRENCH
2 - RING GEAR BOLT
3 - RING GEAR
4 - CASE

TJ

REAR AXLE - 216RBI

3 - 159

PINION GEAR/RING GEAR/TONE RING (Continued)
