Jeep Wrangler TJ. Manual - part 244





(2) Remove pressure hoses from the front and rear

pumps.

(3) Remove pump mounting bracket bolts (Fig. 80).

(4) Remove pumps and bracket assembly from the

vehicle.

(5) Remove pump connectors from the mounting

bracket.

(6) Remove pump mounting screws (Fig. 81) from

the bracket and remove pump/pumps.

INSTALLATION

(1) Align pump with screw holes in pump bracket.
(2) Install and tighten pump mounting screws

(Fig. 82).

(3) Install pump bracket assembly on the cross-

member/skid plate and install pump bracket mount-
ing bolts (Fig. 83).

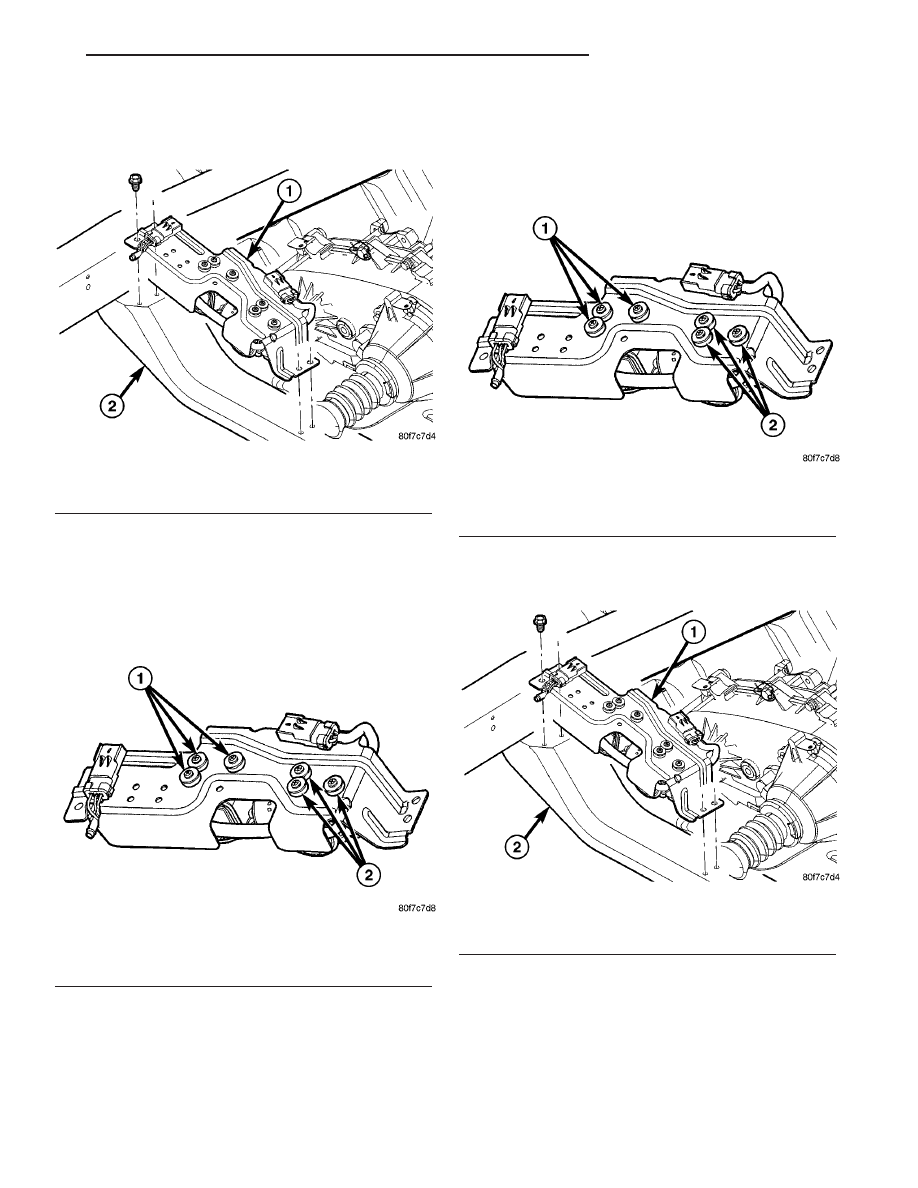

Fig. 80 PUMP BRACKET

1 - PUMP BRACKET
2 - CROSSMEMBER/SKID PLATE

Fig. 81 PUMP SCREWS

1 - REAR PUMP SCREWS
2 - FRONT PUMP SCREWS

Fig. 82 PUMP SCREWS

1 - REAR PUMP SCREWS
2 - FRONT PUMP SCREWS

Fig. 83 PUMP BRACKET

1 - PUMP BRACKET
2 - CROSSMEMBER/SKID PLATE

TJ

REAR AXLE - 216RBI

3 - 153

DIFFERENTIAL - TRU-LOK PUMP (Continued)

(4) Tighten pump bracket bolts to 14 N·m (125 in.

lbs.).

(5) Connector pump and axle harness connectors

(Fig. 84).

(6) Install pressure hoses on the pumps.
(7) Verify pump operation.

DIFFERENTIAL CASE
BEARINGS

REMOVAL

(1) Remove differential case from axle housing.
(2) Remove bearings from the differential case

with Puller/Press C-293-PA, Adapters C-293-18 and
Plug SP-3289 (Fig. 85).

INSTALLATION

NOTE: If replacement differential side bearings or
differential case are being installed, differential side
bearing shim requirements may change. Refer to
Adjustments for (Differential Bearing Preload and
Gear Backlash) procedures.

(1) Install differential side bearings with Installer

D-156 and Handle C-4171 (Fig. 86).

(2) Install differential into the housing.

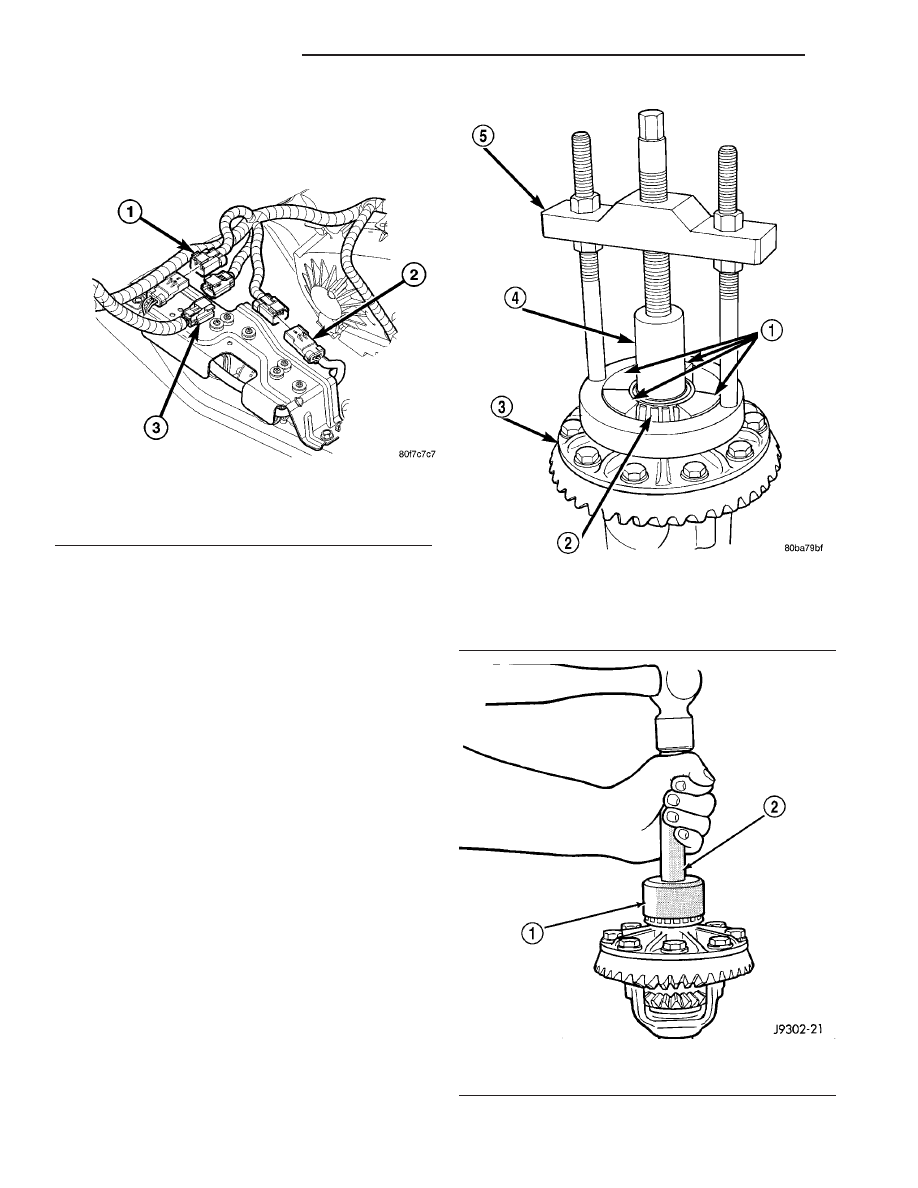

Fig. 84 PUMP CONNECTORS

1 - REAR PUMP CONNECTOR
2 - FRONT PUMP CONNECTOR
3 - AXLE HARNESS

Fig. 85 DIFFERENTIAL CASE BEARING

1 - ADAPTERS
2 - BEARING
3 - DIFFERENTIAL
4 - PLUG
5 - PULLER

Fig. 86 DIFFERENTIAL SIDE BEARING

1 - INSTALLER
2 - HANDLE

3 - 154

REAR AXLE - 216RBI

TJ

DIFFERENTIAL - TRU-LOK PUMP (Continued)

PINION GEAR/RING GEAR/
TONE RING

REMOVAL

NOTE: The ring gear and pinion are serviced as a
matched set. Never replace one gear without replac-
ing the other matched gear.

(1) With vehicle in neutral, position vehicle on

hoist.

(2) Remove differential assembly from axle hous-

ing.

(3) Place differential case in a vise with soft metal

jaw.

(4) Remove bolts holding ring gear to differential

case.

(5) Driver ring gear off the differential case with a

dead-blow hammer (Fig. 87).

(6) Using Spanner Wrench 6958 to hold yoke,

remove the pinion nut and washer (Fig. 88).

(7) Remove pinion yoke from pinion shaft with

Remover C-452 and Flange Wrench C-3281 (Fig. 89).

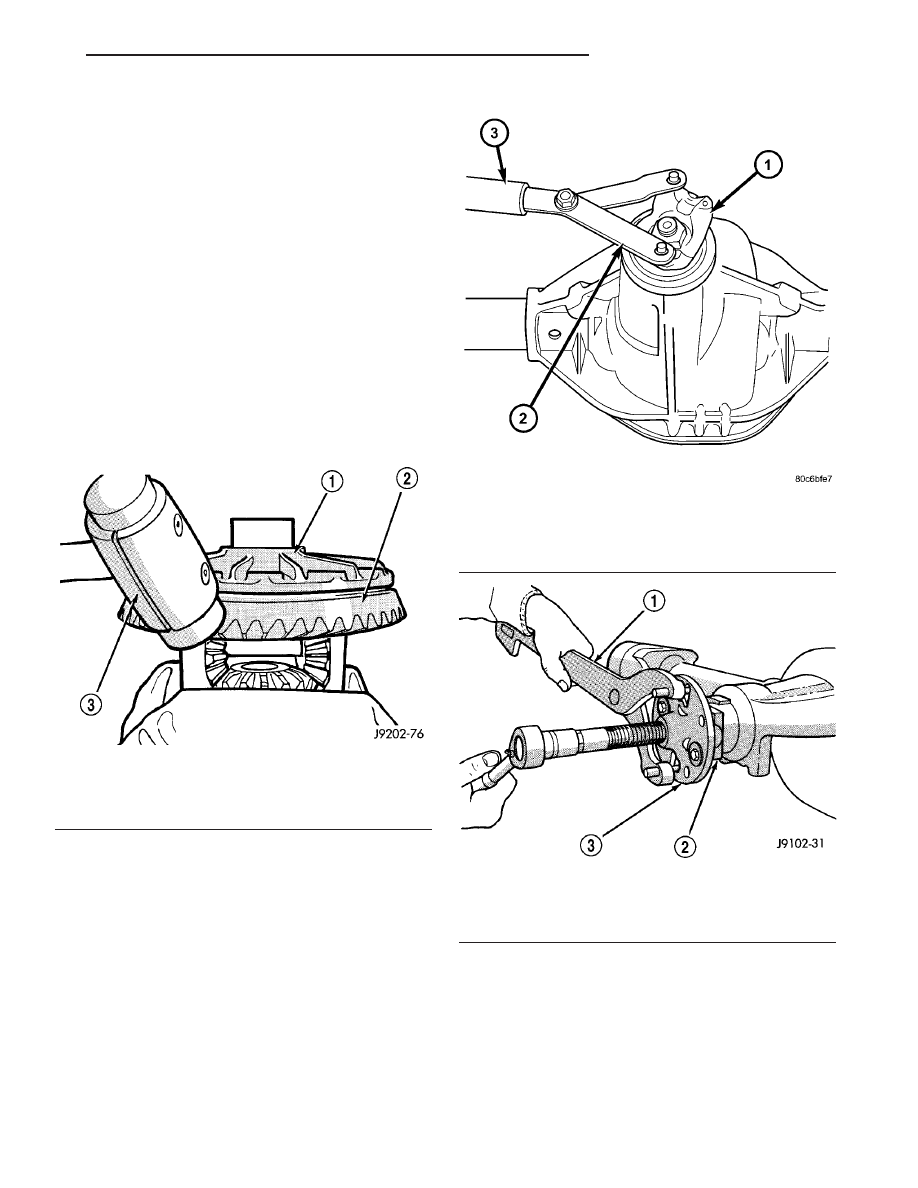

Fig. 87 RING GEAR

1 - CASE
2 - RING GEAR
3 - DEAD-BLOW HAMMER

Fig. 88 YOKE SPANNER WRENCH

1 - PINION YOKE
2 - SPANNER WRENCH
3 - PIPE

Fig. 89 PINION YOKE REMOVER

1 - REMOVER
2 - PINION YOKE
3 - FLANGE WRENCH

TJ

REAR AXLE - 216RBI

3 - 155

(8) Remove pinion gear from the housing (Fig. 90).

(9) Remove front pinion bearing cup, bearing and

pinion seal with Remover D-147 and Handle C-4171
(Fig. 91).

(10) Remove rear pinion bearing cup from axle

housing with remover D-148 and Handle C-4171 (Fig.
92).

(11) Remove rear pinion bearing from the pinion

with Puller/Press C-293-PA and Adapters C-293-39
(Fig. 93).

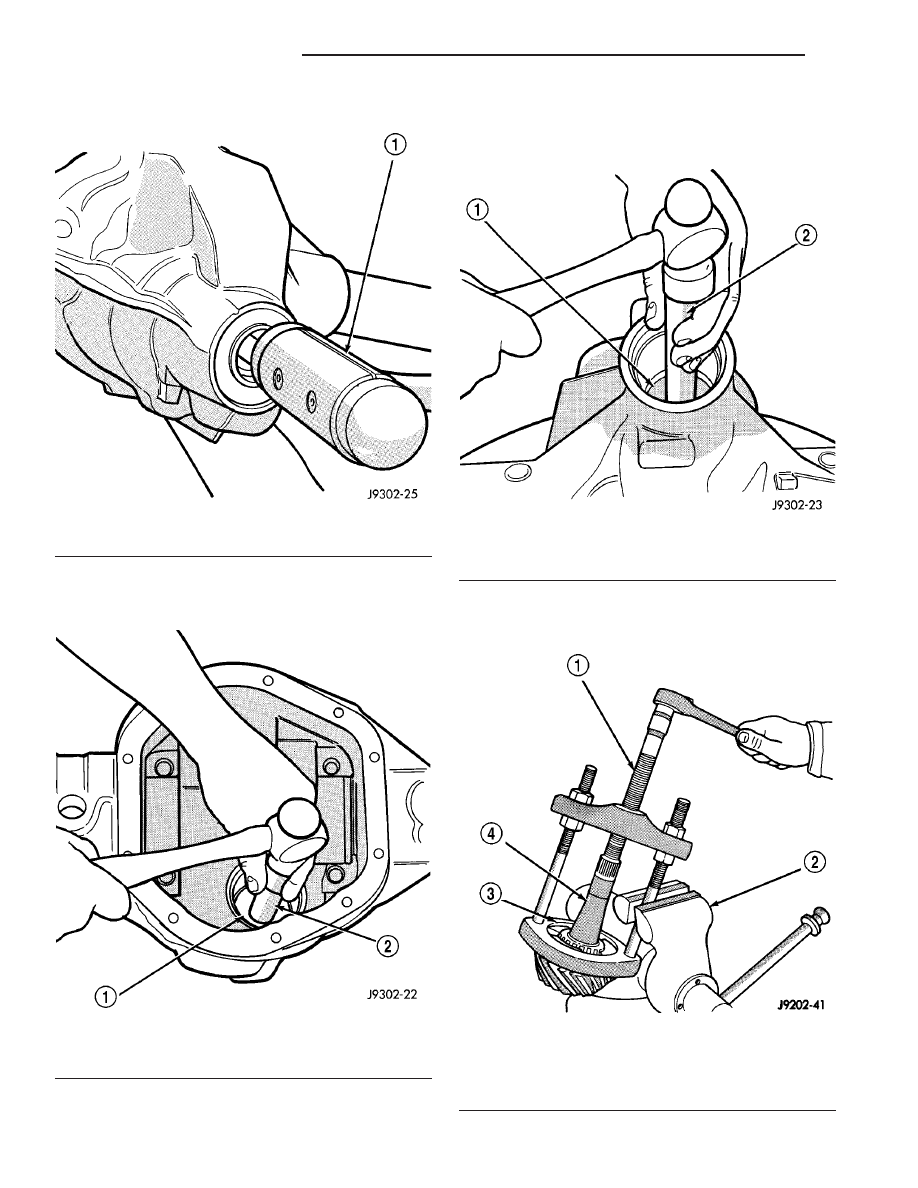

Fig. 90 PINION GEAR

1 - DEAD-BLOW HAMMER

Fig. 91 FRONT BEARING CUP

1 - REMOVER
2 - HANDLE

Fig. 92 REAR BEARING CUP

1 - DRIVER
2 - HANDLE

Fig. 93 REAR PINION BEARING

1 - PULLER
2 - VISE
3 - ADAPTERS
4 - PINION GEAR SHAFT

3 - 156

REAR AXLE - 216RBI

TJ

PINION GEAR/RING GEAR/TONE RING (Continued)
