Jeep Wrangler TJ. Manual - part 239

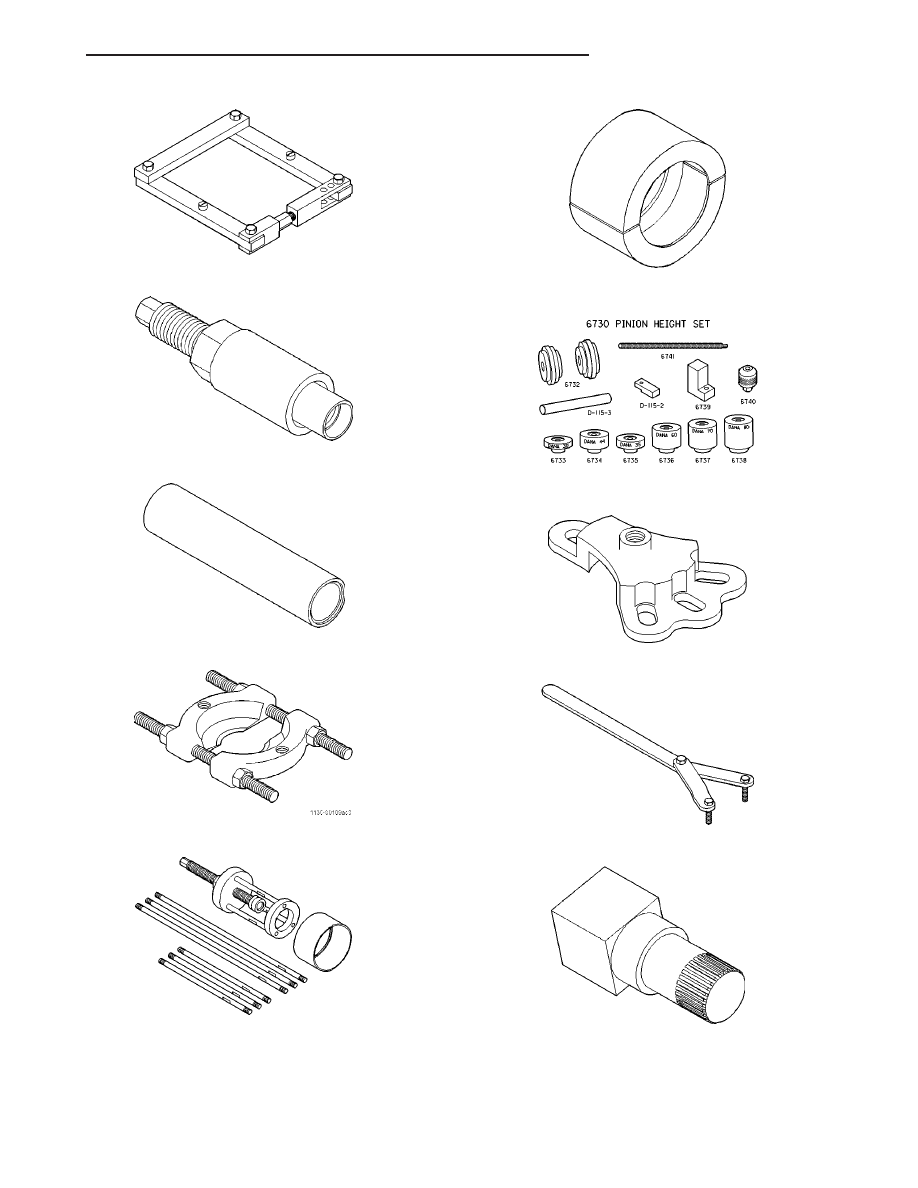

SPREADER W-129-B

INSTALLER W-162-D

INSTALLER W-262

SPLITTER 1130

PULLER 6444

JAWS 6447

PINION DEPTH SET 6730

PULLER 6790

SPANNER WRENCH 6958

FIXTURE 6963

TJ

REAR AXLE - 216RBI

3 - 133

REAR AXLE - 216RBI (Continued)

AXLE SHAFTS

REMOVAL

(1) With vehicle in neutral, position vehicle on

hoist.

(2) Remove brake caliper and rotor.
(3) Remove axle retainer plate nuts through access

hole in axle flange (Fig. 25).

(4) Pull axle shaft from the axle. If axle will not

come out use Slide Hammer 7420 and Adapter 6790.

INSTALLATION

WARNING: NEVER REUSE AXLE RETAINING BOLTS
AND NUTS. USED TORQUE NUT CAN LOOSEN.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
RESULT IN PERSONAL INJURY.

(1) Install axle into axle tube with the flat area of

the retainer plate upward (Fig. 26).

(2) Install new axle retaining bolts.
(3) Install new retaining nuts and tighten to 61

N·m (45 ft. lbs.).

(4) Install brake rotor and caliper.

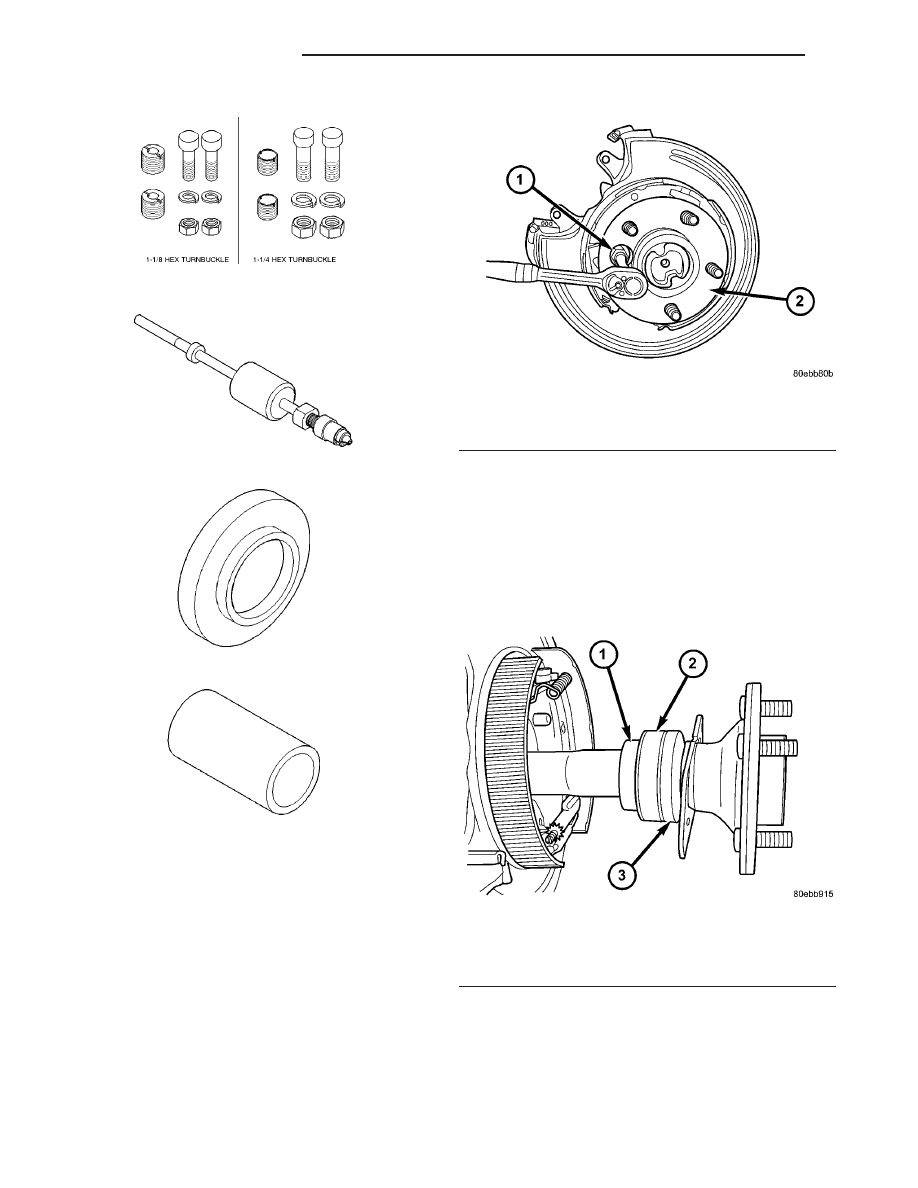

ADAPTER KIT 6987B

SLIDE HAMMER 7420

INSTALLER 7913-A

CUP 8109

Fig. 25 AXLE SHAFT BOLTS

1 - ACCESS HOLE
2 - AXLE FLANGE

Fig. 26 AXLE SHAFT

1 - RETAINER RING
2 - AXLE BEARING
3 - AXLE SEAL

3 - 134

REAR AXLE - 216RBI

TJ

REAR AXLE - 216RBI (Continued)

AXLE BEARINGS

REMOVAL

(1) Remove axle shaft from vehicle.

NOTE: It is normal that the axle bearing race is
loose in the axle tube.

(2) Drill a shallow hole into soft steel axle bearing

retaining ring with a 3/8 in. drill bit (Fig. 27). Use a
drill depth stop to avoid marking the axle.

(3) With a cold chisel cut the retaining ring across

drilled hole. (Fig. 28)

(4) Slide retaining ring from axle shaft.
(5) Remove axle bearing from the shaft with, a

press and Splitter 1130 placed between the seal and
bearing (Fig. 29).

(6) Remove seal from axle.
(7) Remove retaining plate from axle shaft.

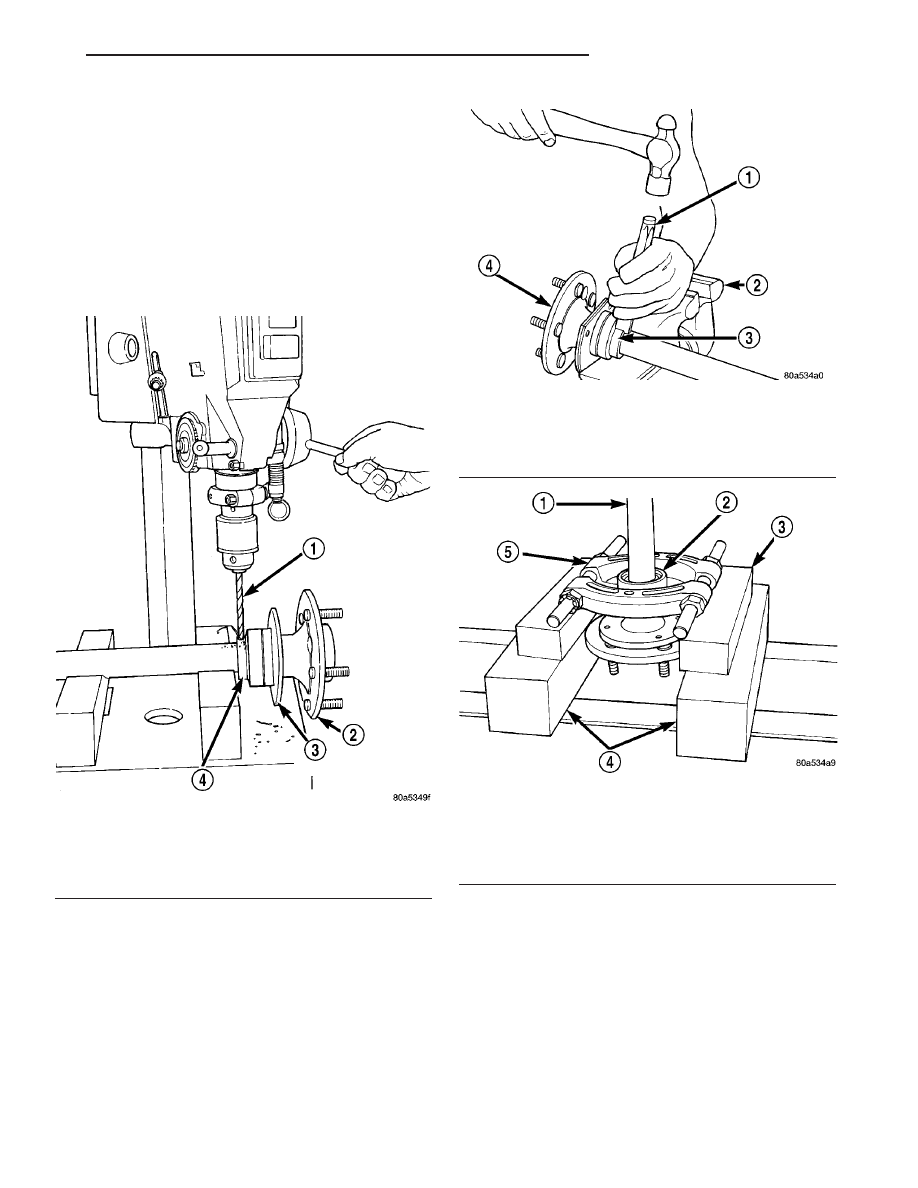

Fig. 27 DRILL RETAINING RING

1 - 3/8 in. DIA. DRILL BIT
2 - AXLE
3 - RETAINING PLATE
4 - SOFT METAL RETAINING RING

Fig. 28 CUT RETAINING RING

1 - COLD CHISEL
2 - VISE
3 - RETAINING RING
4 - AXLE

Fig. 29 AXLE BEARING AND SEAL

1 - AXLE
2 - UNIT BEARING
3 - PRESS PLATES
4 - BLOCKS
5 - SPLITTER

TJ

REAR AXLE - 216RBI

3 - 135

INSTALLATION

(1) Verify axle shaft retaining plate is flat with a

straight edge.

NOTE: Replace the retaining plate if warped.

(2) Install retaining plate on axle (Fig. 30).
(3) Apply a coat of multi-purpose grease on sealing

surface of axle seal.

(4) Install seal on axle with cavity away from

retaining plate (Fig. 30).

(5) Lubricate bearing with Mopar Wheel Bearing

Grease, or equivalent. Wipe excess grease from out-
side of bearing.

(6) Install bearing on the axle shaft with Installer

7913 and a press (Fig. 31).

NOTE: Install bearing with groove on the outer sur-
face toward the seal.

(7) Press soft metal retaining ring onto axle shaft

with Installer 7913 and a press (Fig. 32).

(8) Install axle in vehicle.

PINION SEAL

REMOVAL

(1) With vehicle in neutral, position vehicle on

hoist.

(2) Remove brake drums/calipers.
(3) Remove propeller shaft.
(4) Rotate pinion gear three or four times and ver-

ify that pinion rotates smoothly.

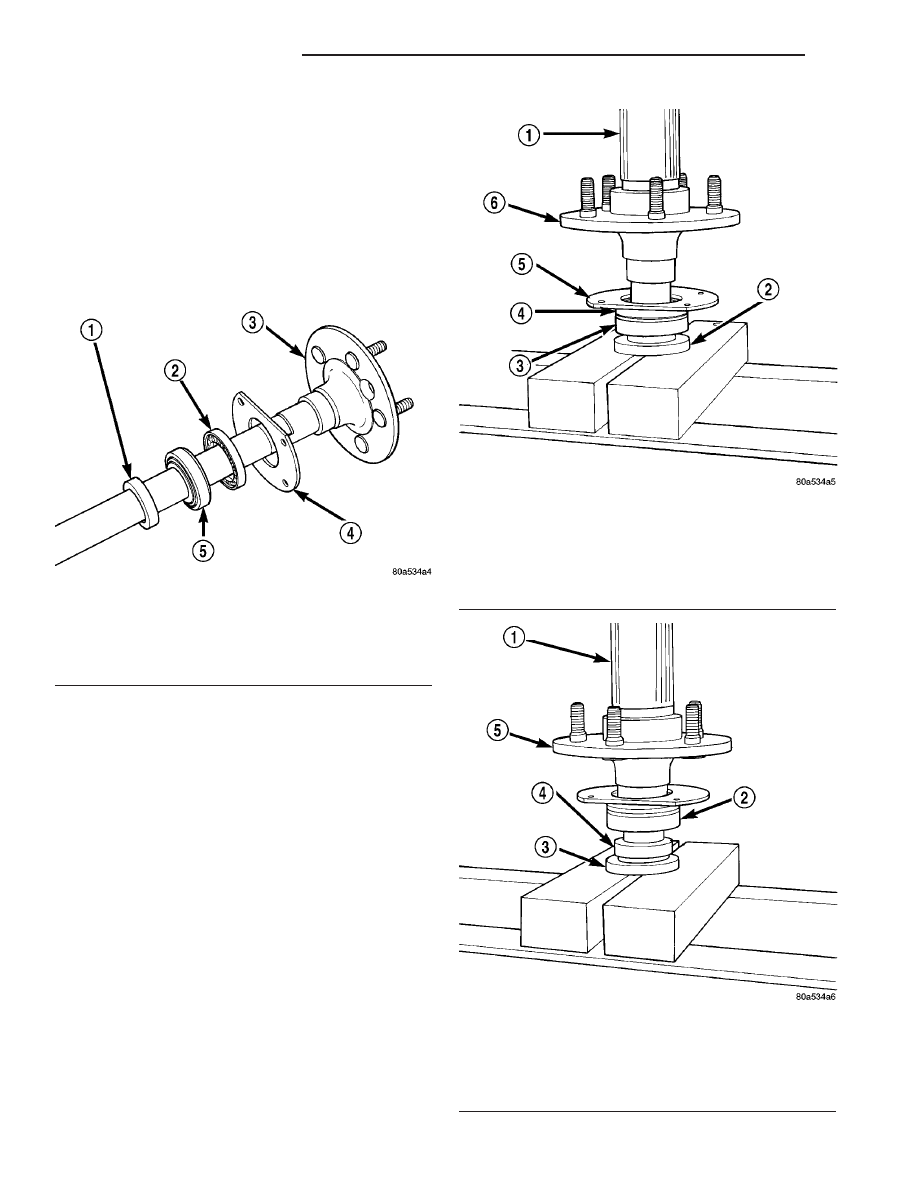

Fig. 30 AXLE BEARING AND SEAL COMPONENTS

1 - RETAINING RING
2 - SEAL
3 - AXLE
4 - RETAINING PLATE
5 - BEARING

Fig. 31 PRESS BEARING ON AXLE

1 - PRESS RAM
2 - INSTALLER
3 - UNIT BEARING
4 - SEAL
5 - RETAINING PLATE
6 - AXLE

Fig. 32 PRESS RETAINING RING ON AXLE

1 - PRESS RAM
2 - UNIT BEARING
3 - INSTALLER
4 - METAL RETAINING RING
5 - AXLE

3 - 136

REAR AXLE - 216RBI

TJ

AXLE BEARINGS (Continued)
