Jeep Wrangler TJ. Manual - part 200





• Always use a safety chain system that is inde-

pendent of the lifting and towing equipment.

• Do not allow towing equipment to contact the

disabled vehicle’s fuel tank.

• Do not allow anyone under the disabled vehicle

while it is lifted by the towing device.

• Do not allow passengers to ride in a vehicle

being towed.

• Always observe state and local laws regarding

towing regulations.

• Do not tow a vehicle in a manner that could

jeopardize the safety of the operator, pedestrians or
other motorists.

• Do not attach tow chains, T-hooks, J-hooks, or a

tow sling to a bumper, steering linkage, drive shafts
or a non-reinforced frame hole.

GROUND CLEARANCE

CAUTION: If vehicle is towed with wheels removed,
install lug nuts to retain brake drums.

A towed vehicle should be raised until lifted wheels

are a minimum 100 mm (4 in) from the ground. Be
sure there is adequate ground clearance at the oppo-
site end of the vehicle, especially when towing over
rough terrain or steep rises in the road. If necessary,
remove the wheels from the lifted end of the vehicle
and lower the vehicle closer to the ground, to
increase the ground clearance at the opposite end of
the vehicle. Install lug nuts on wheel attaching studs
to retain brake drums.

FLAT-BED TOWING RAMP ANGLE

If a vehicle with flat-bed towing equipment is used,

the approach ramp angle should not exceed 15
degrees.

VEHICLE TOWING

WARNING: WHEN TOWING A DISABLED VEHICLE
AND THE DRIVE WHEELS ARE SECURED IN A
WHEEL LIFT OR TOW DOLLIES, ENSURE THE
TRANSMISSION IS IN THE PARK POSITION (AUTO-
MATIC TRANSMISSION) OR A FORWARD DRIVE
GEAR (MANUAL TRANSMISSION).DO NOT ATTACH
SLING-TYPE TOWING EQUIPMENT TO THE REAR
OF A TJ.

TOWING-FRONT END LIFTED (WHEEL LIFT)

(1) Raise the rear of the vehicle off the ground and

install tow dollies under rear wheels.

(2) Attach the wheel lift to the front wheels.

TOWING-REAR END LIFTED (WHEEL LIFT ONLY)

(1) Raise the front of the vehicle off the ground

and install tow dollies under front wheels.

(2) Attach the wheel lift to the rear wheels.

TOWING-FRONT END LIFTED (SLING-TYPE)

(1) Raise the rear of the vehicle off the ground and

install tow dollies under rear wheels.

(2) Attach T-hooks to the access holes on the out-

board side of the frame rails (Fig. 8).

(3) Before tightening the chain, position a protec-

tive pad between the chain and the bumper.

(4) Attach the safety chains to the vehicle (Fig. 9).
(5) Turn the ignition switch to the OFF position to

unlock the steering wheel.

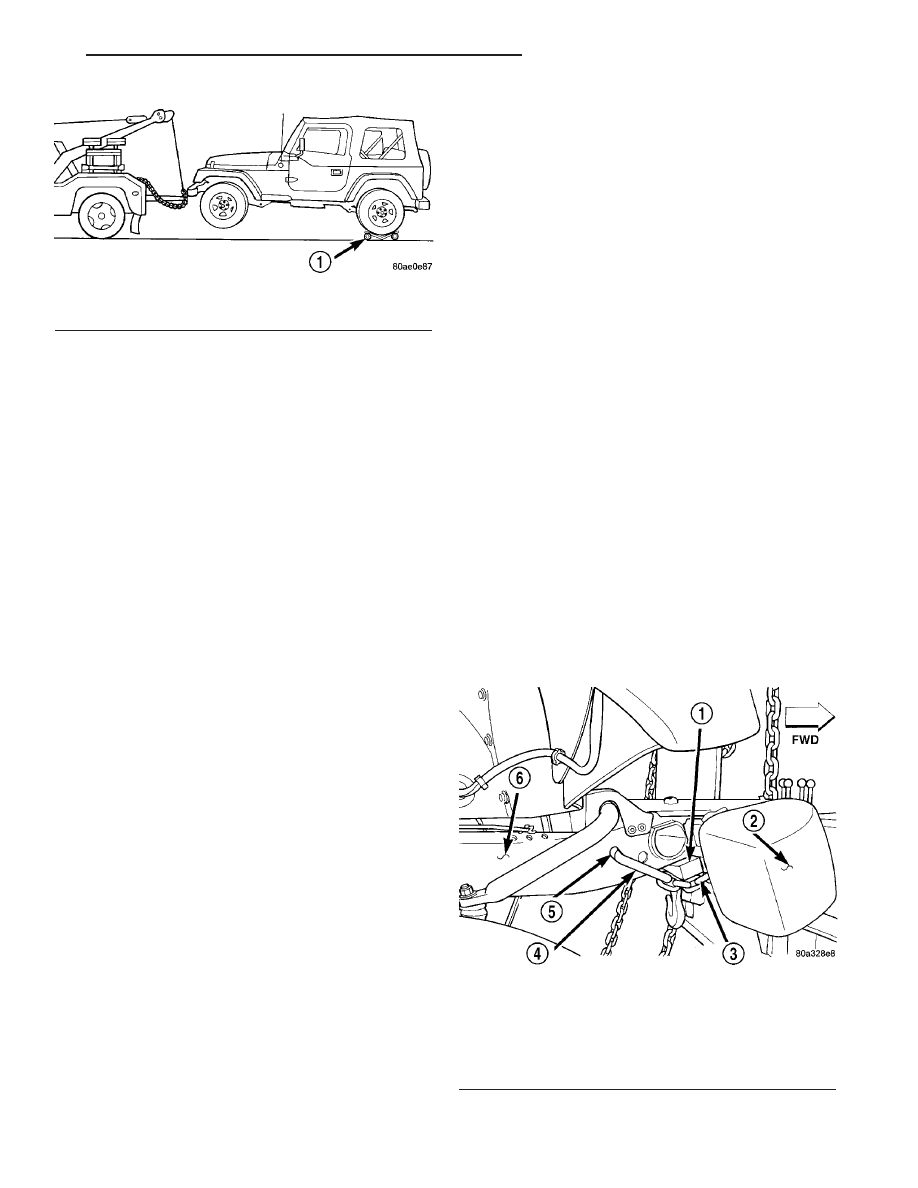

Fig. 7 Towing With Tow Dollies

1 - TOW DOLLY

Fig. 8 T-Hook Attachment

1 - PROTECTIVE PAD
2 - BUMPER
3 - CHAIN
4 - T-HOOK
5 - ACCESS HOLE
6 - FRAME

TJ

LUBRICATION & MAINTENANCE

0 - 23

TOWING (Continued)

RECREATIONAL TOWING

Refer to the Owners Manual for towing procedures.

EMERGENCY TOW HOOKS

WARNING: REMAIN AT A SAFE DISTANCE FROM A
VEHICLE THAT IS BEING TOWED VIA ITS TOW
HOOKS. THE TOW STRAPS/CHAINS COULD BREAK
AND CAUSE SERIOUS INJURY.

Some Jeep vehicles are equipped with front emer-

gency tow hooks. The tow hooks should be used for
EMERGENCY purposes only.

CAUTION: DO NOT use emergency tow hooks for
tow truck hook-up or highway towing.

JUMP STARTING

STANDARD PROCEDURE - JUMP STARTING
PROCEDURE

WARNING: REVIEW ALL SAFETY PRECAUTIONS
AND WARNINGS IN THE BATTERY SYSTEM SEC-
TION OF THE SERVICE MANUAL. (Refer to 8 -
ELECTRICAL/BATTERY SYSTEM/BATTERY - STAN-
DARD PROCEDURE)

DO NOT JUMP START A FROZEN BATTERY,

PERSONAL INJURY CAN RESULT.

IF EQUIPPED, DO NOT JUMP START WHEN

MAINTENANCE FREE BATTERY INDICATOR DOT IS
YELLOW OR BRIGHT COLOR.

DO NOT JUMP START A VEHICLE WHEN THE

BATTERY FLUID IS BELOW THE TOP OF LEAD
PLATES.

DO NOT ALLOW JUMPER CABLE CLAMPS TO

TOUCH EACH OTHER WHEN CONNECTED TO A
BOOSTER SOURCE.

DO NOT USE OPEN FLAME NEAR BATTERY.

REMOVE

METALLIC

JEWELRY

WORN

ON

HANDS OR WRISTS TO AVOID INJURY BY ACCI-
DENTAL ARCING OF BATTERY CURRENT.

WHEN USING A HIGH OUTPUT BOOSTING

DEVICE, DO NOT ALLOW BATTERY VOLTAGE TO
EXCEED 16 VOLTS. REFER TO INSTRUCTIONS
PROVIDED WITH DEVICE BEING USED.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
RESULT IN PERSONAL INJURY.

CAUTION:

When

using

another

vehicle

as

a

booster, do not allow vehicles to touch. Electrical
systems can be damaged on either vehicle.

TO JUMP START A DISABLED VEHICLE:

(1) Raise hood on disabled vehicle and visually

inspect engine compartment for:

• Generator drive belt condition and tension.

• Fuel fumes or leakage, correct if necessary.

• Frozen battery.

• Yellow or bright color test indicator, if equipped.

• Low battery fluid level.

CAUTION: If the cause of starting problem on dis-
abled vehicle is severe, damage to booster vehicle
charging system can result.

(2) When using another vehicle as a booster

source, turn off all accessories, place gear selector in
park or neutral, set park brake or equivalent and
operate engine at 1200 rpm.

(3) On disabled vehicle, place gear selector in park

or neutral and set park brake or equivalent. Turn
OFF all accessories.

(4) Connect jumper cables to booster battery. RED

clamp to positive terminal (+). BLACK clamp to neg-
ative terminal (-). DO NOT allow clamps at opposite
end of cables to touch, electrical arc will result (Fig.
10). Review all warnings in this procedure.

(5) On disabled vehicle, connect RED jumper cable

clamp to battery positive (+) terminal. Connect
BLACK jumper cable clamp to the engine as close to
the ground cable connection as possible (Fig. 10).

CAUTION: Do not crank starter motor on disabled
vehicle for more than 15 seconds, starter will over-
heat and could fail.

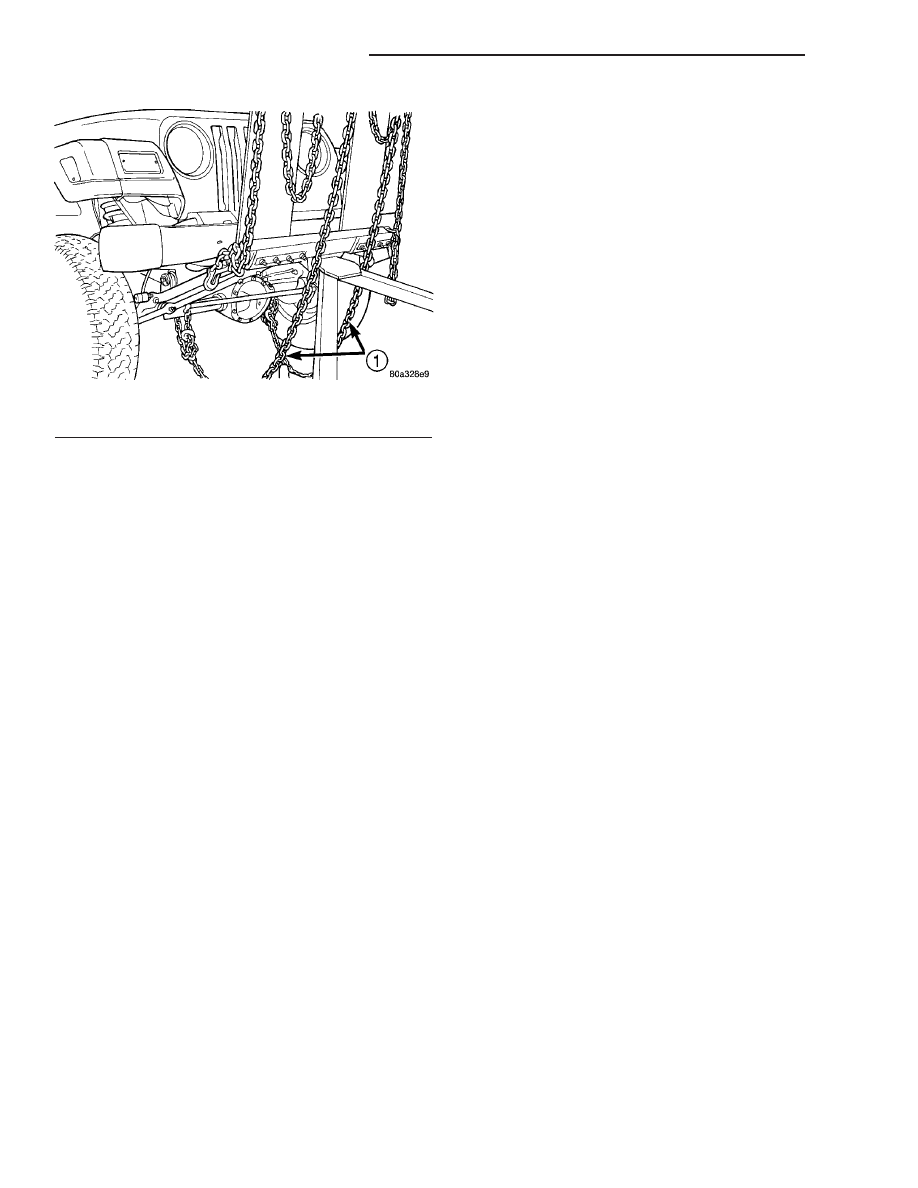

Fig. 9 Safety Chain Attachment

1 - SAFETY CHAIN

0 - 24

LUBRICATION & MAINTENANCE

TJ

TOWING (Continued)

(6) Allow battery in disabled vehicle to charge to

at least 12.4 volts (75% charge) before attempting to
start engine. If engine does not start within 15 sec-
onds, stop cranking engine and allow starter to cool
(15 min.), before cranking again.

DISCONNECT CABLE CLAMPS AS FOLLOWS:

• Disconnect BLACK cable clamp from engine

ground on disabled vehicle.

• When using a Booster vehicle, disconnect

BLACK cable clamp from battery negative terminal.
Disconnect RED cable clamp from battery positive
terminal.

• Disconnect RED cable clamp from battery posi-

tive terminal on disabled vehicle.

EMERGENCY TOW HOOKS

DESCRIPTION — EMERGENCY TOW HOOKS

WARNING: REMAIN AT A SAFE DISTANCE FROM A
VEHICLE THAT IS BEING TOWED VIA ITS TOW
HOOKS. THE TOW STRAPS/CHAINS COULD BREAK
AND CAUSE SERIOUS INJURY.

Some Jeep vehicles are equipped with front emer-

gency tow hooks. The tow hooks should be used for
EMERGENCY purposes only.

CAUTION: DO NOT use emergency tow hooks for
tow truck hook-up or highway towing.

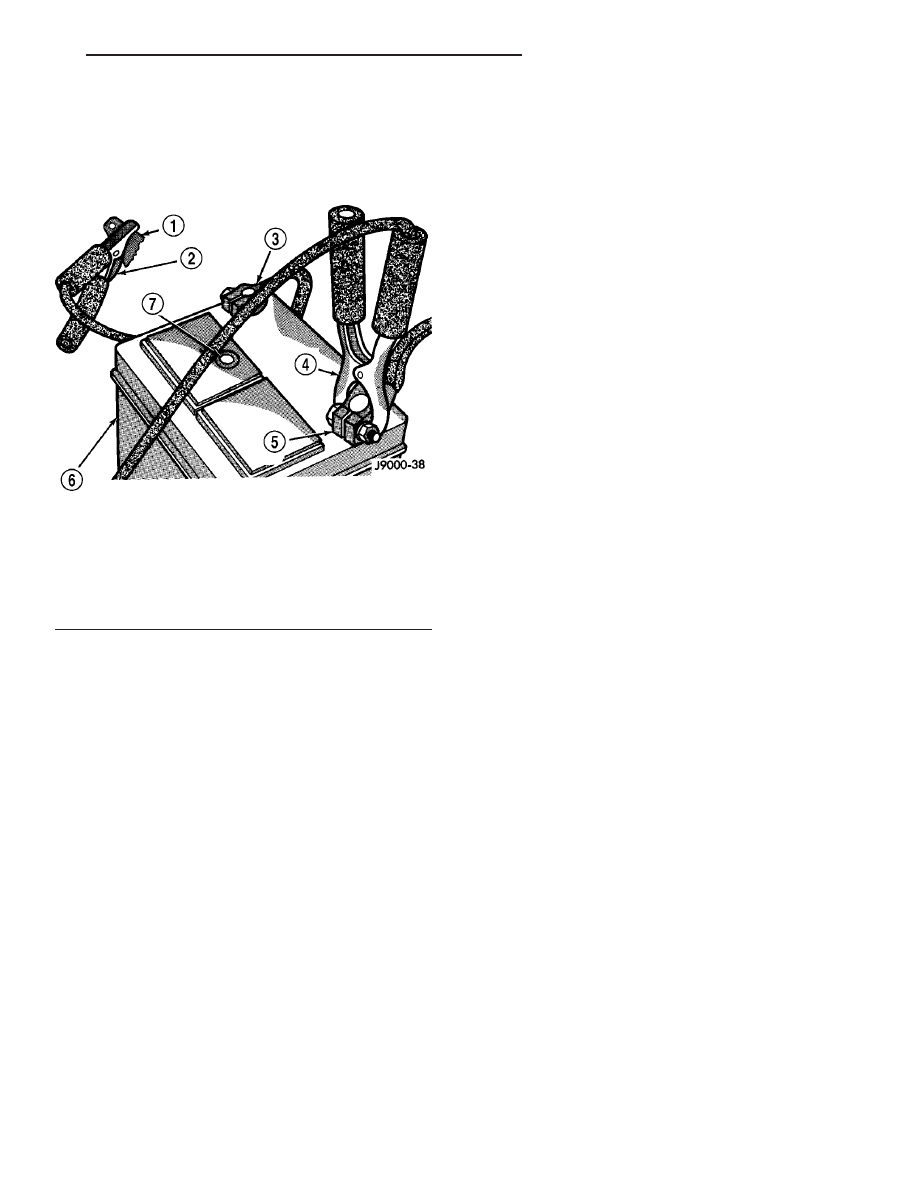

Fig. 10 Jumper Cable Clamp Connections

1 - ENGINE GROUND
2 - NEGATIVE JUMPER CABLE
3 - BATTERY NEGATIVE CABLE
4 - POSITIVE JUMPER CABLE
5 - BATTERY POSITIVE CABLE
6 - BATTERY
7 - TEST INDICATOR (IF EQUIPPED)

TJ

LUBRICATION & MAINTENANCE

0 - 25

JUMP STARTING (Continued)
