REMOVAL

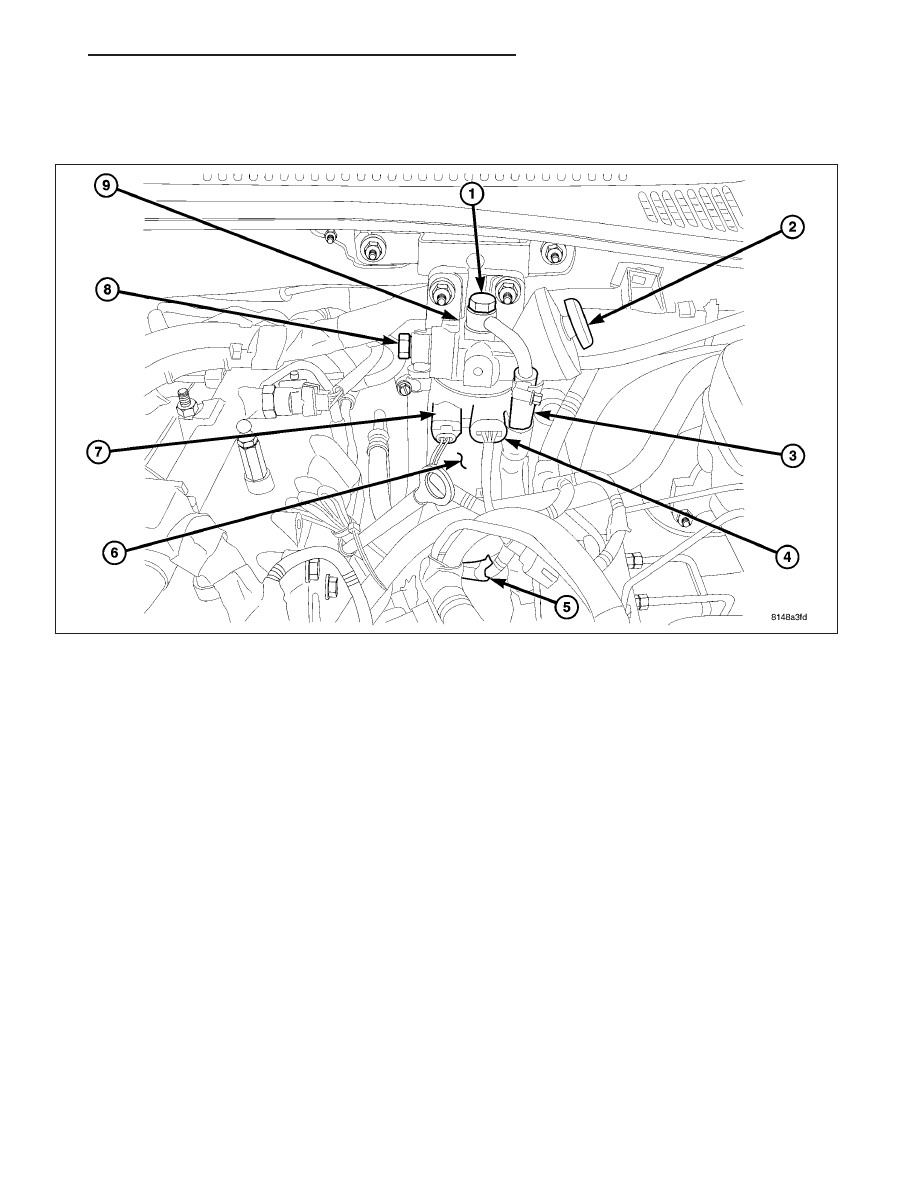

FUEL FILTER/WATER SEPARATOR ASSEMBLY

WARNING: Store fuel in approved and properly marked containers. Wear safety goggles and adequate pro-
tective clothing when servicing fuel system.

1. Disconnect negative battery cable.

2. Drain fuel filter/water separator assembly (Refer to 14 - FUEL SYSTEM - STANDARD PROCEDURE)

NOTE: DO NOT loosen the banjo bolt fittings. Loosen the fuel hose clamps and remove hoses from the fuel
lines.

3. Remove two fuel lines from the water separator. Loosen retaining clamps and slide the hose from barbed fittings.

4. Disconnect the fuel heater and temperature sensor harness connectors.

5. Remove the fuel filter/water separator assembly from the engine cowl.

FUEL FILTER

NOTE: Capture all fuel in approved and appropriately marked containers. Wear safety goggles and adequate
protective clothing when servicing the fuel system.

1. Disconnect the negative battery cable.

2. Disconnect the water in fuel (WIF) sensor wiring harness connector.

3. Drain the fuel filter/water separator (Refer to 14 - FUEL SYSTEM - STANDARD PROCEDURE).

4. Unscrew the filter assembly from the head assembly by rotating the housing counterclockwise.

5. Separate the WIF sensor and seal from the housing by rotating counterclockwise.

14 - 44

FUEL DELIVERY - 2.8L DIESEL

KJ

INSTALLATION

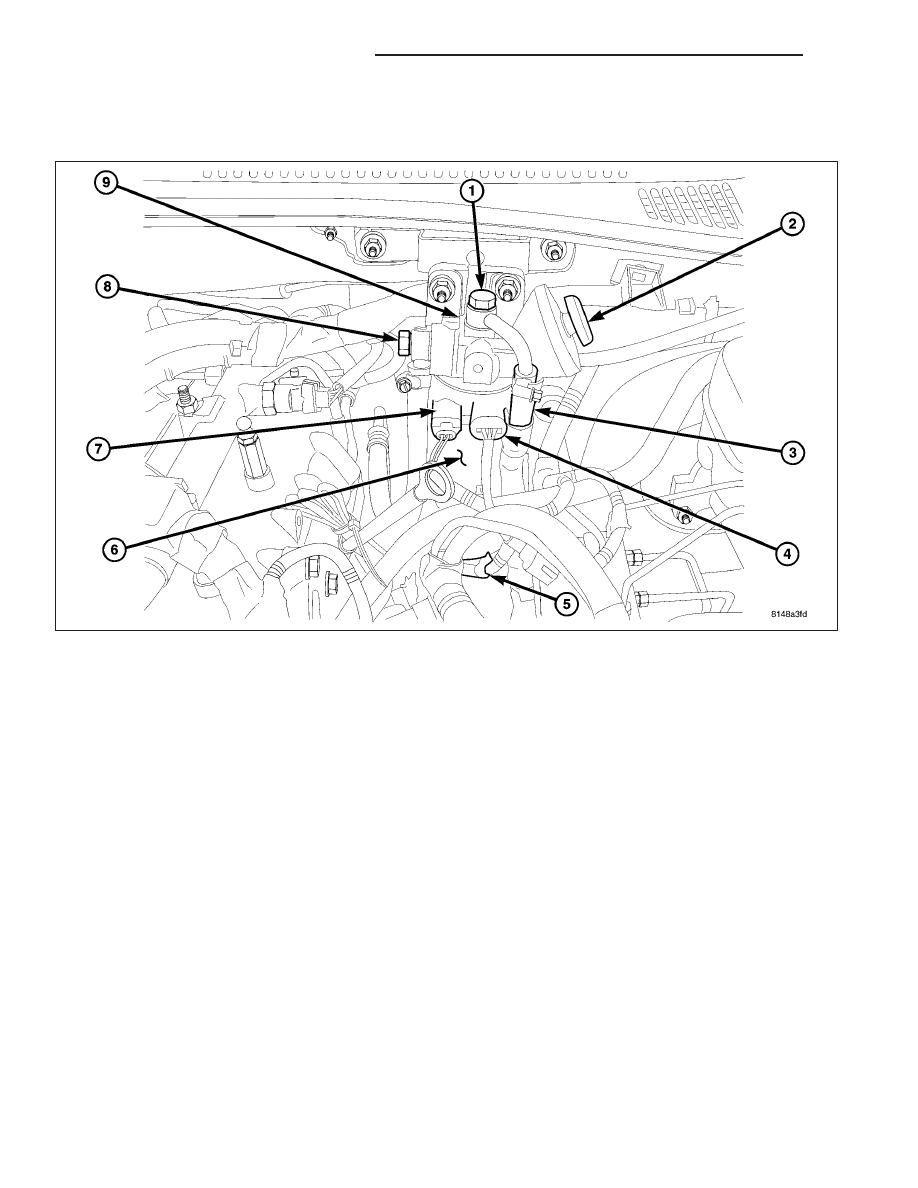

FUEL FILTER / WATER SEPARATOR ASSEMBLY

1. Carefully position fuel water separator over the mounting studs, install fasteners and tighten to 24.5 N·m (18 ft.

lbs.).

NOTE: Make sure the fuel supply hose to the high pressure pump is mounted to the left side of the filter
assembly.

2. Install the fuel lines to the housing assembly. tighten hose clamps to 7 N·m (62 in.lbs.).

3. Connect the water in fuel, fuel temperature sensor and the fuel heater electrical connectors.

4. Prime fuel system (Refer to 14 - FUEL SYSTEM - STANDARD PROCEDURE).

5. Connect negative battery cable.

KJ

FUEL DELIVERY - 2.8L DIESEL

14 - 45

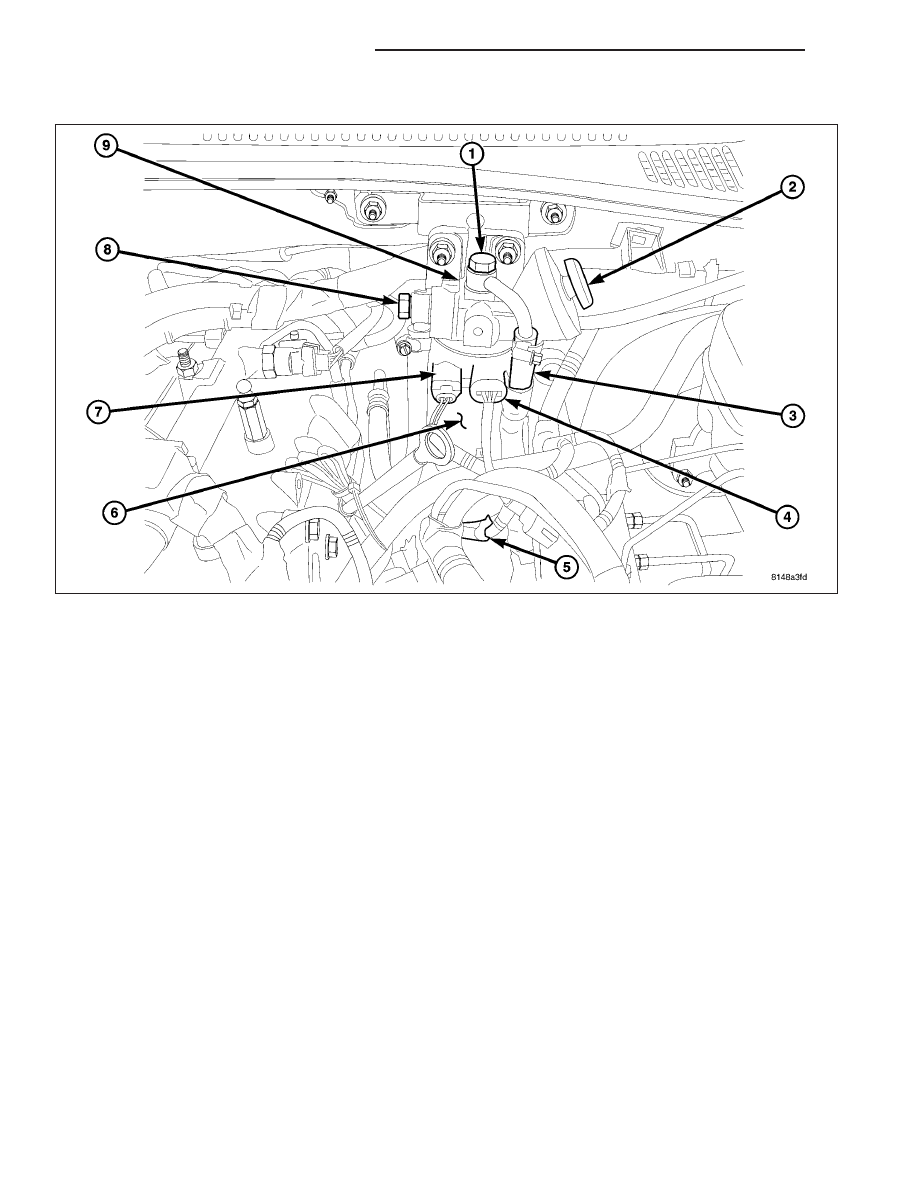

FUEL FILTER

1. Lubricate the fuel filter seal with clean diesel fuel.

2. Install the water in fuel (WIF) sensor hand tight.

3. Screw filter assembly onto the fuel filter/water separator head. Tighten filter to 18 N·m (159 in. lbs.).

4. Connect the WIF wiring harness connector.

5. Prime the fuel system (Refer to 14 - FUEL SYSTEM - STANDARD PROCEDURE).

6. Start the engine and allow to warm.

7. Turn engine off and inspect for leaks.

14 - 46

FUEL DELIVERY - 2.8L DIESEL

KJ

WATER IN FUEL SENSOR

DESCRIPTION

The WIF sensor is located in the bottom of the fuel filter/water separator. The sensor also has a drain channel and
a protrusion for adapting a hose during draining.

OPERATION

The sensor sends an input to the Engine Control Module (ECM) when it senses water in the fuel filter/water sep-
arator. As the water level in the filter/separator increases, the resistance across the WIF sensor decreases. This
decrease in resistance is sent as a signal to the ECM and compared to a high water standard value. Once the value
reaches 30 to 40 kilohms, the ECM will activate the water-in-fuel warning lamp. This all takes place when the igni-
tion key is initially put in the ON position.

KJ

FUEL DELIVERY - 2.8L DIESEL

14 - 47
