Jeep Liberty KJ. Manual - part 938





3. Install thermostat housing (Refer to 7 - COOLING/ENGINE/ENGINE COOLANT THERMOSTAT - INSTALLA-

TION).

4. Install viscous heater (Refer to 24 - HEATING & AIR CONDITIONING/PLUMBING/ELECTRIC COOLANT PUMP

- INSTALLATION).

5. Install accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).

6. Raise vehicle on hoist.

7. Connect turbocharger oil return line at turbocharger.

8. Connect exhaust pipe at turbocharger downpipe.

9. Lower vehicle from hoist.

10. Connect oil supply line at turbocharger. Torque banjo fitting to 24 N·m.

11. Install exhaust manifold heat shield. Torque retaining bolts to 24 N·m (18 lbs.ft.).

12. Reposition EGR cooler and or EGR valve assembly on exhaust manifold. Torque retaining nuts and bolt to

32.4N·m.

13. Connect EGR pipe to EGR valve. Torque bolts to 32 N·m.

14. Connect EGR cooler coolant hoses at cooler (2.8L).

15. Install coolant recovery pressure container (Refer to 7 - COOLING/ENGINE/COOLANT RECOVERY PRESS

CONTAINER - INSTALLATION).

16. Refill cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).

17. Connect charge air cooler inlet hose at turbocharger.

18. Install air cleaner assembly.

19. Connect air inlet hose to turbocharger.

20. Install engine cover (Refer to 9 - ENGINE - INSTALLATION).

21. Connect negative battery cable.

11 - 18

EXHAUST SYSTEM

KJ

FRAME & BUMPERS

TABLE OF CONTENTS

page

page

FRONT FASCIA

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

REAR FASCIA

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

REAR FASCIA SUPPORT

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

REAR FASCIA - STEP PAD

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

REAR FASCIA - RAIN DIVERTER

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

FRAME

SPECIFICATIONS

SPECIFICATIONS - FRAME DIMENSIONS . . . . 10
SPECIFICATIONS - TORQUE . . . . . . . . . . . . . . . . 12

FRONT SKID PLATE

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

ENGINE CRADLE CROSSMEMBER

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

TRANSFER CASE SKID PLATE

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

REAR CROSSMEMBER

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

FRONT TOW HOOK

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

REAR TOW HOOK

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

TRAILER HITCH

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

FUEL TANK SKID PLATE

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

KJ

FRAME & BUMPERS

13 - 1

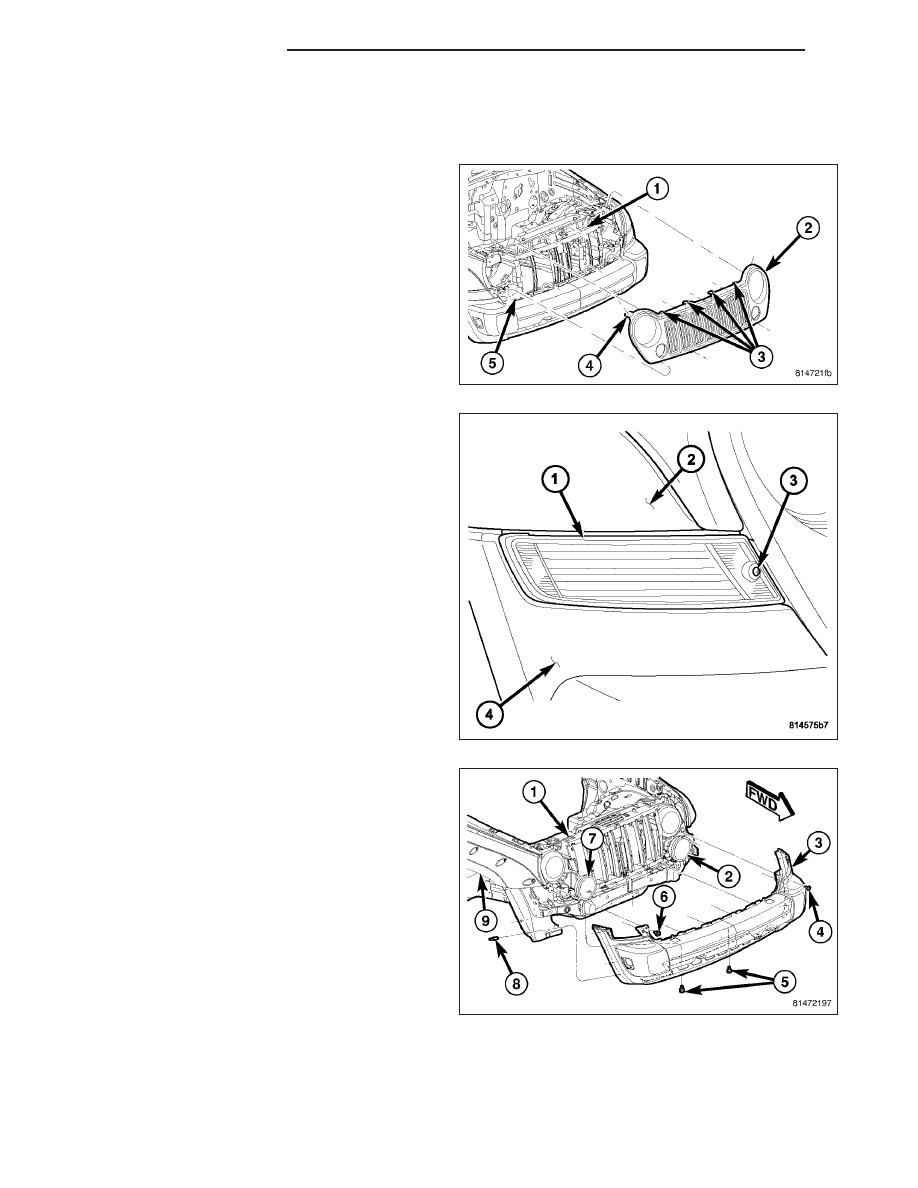

FRONT FASCIA

REMOVAL

1. Remove the grille (Refer to 23 - BODY/EXTERIOR/

GRILLE - REMOVAL).

2. Remove the turn signal lamps (Refer to 8 - ELEC-

TRICAL/LAMPS/LIGHTING

-

EXTERIOR/PARK/

TURN SIGNAL LAMP - REMOVAL).

3. Remove the fascia screws next to the turn signal

lamps (6).

4. Remove the two screws at the bottom of the fascia

(5).

5. Remove the three plastic rivets (8) securing the

fascia (3) to each wheelhouse splash shield.

6. Release the three tabs securing the fascia to the

grille opening reinforcement (1).

7. Remove the fascia (3).

13 - 2

FRAME & BUMPERS

KJ

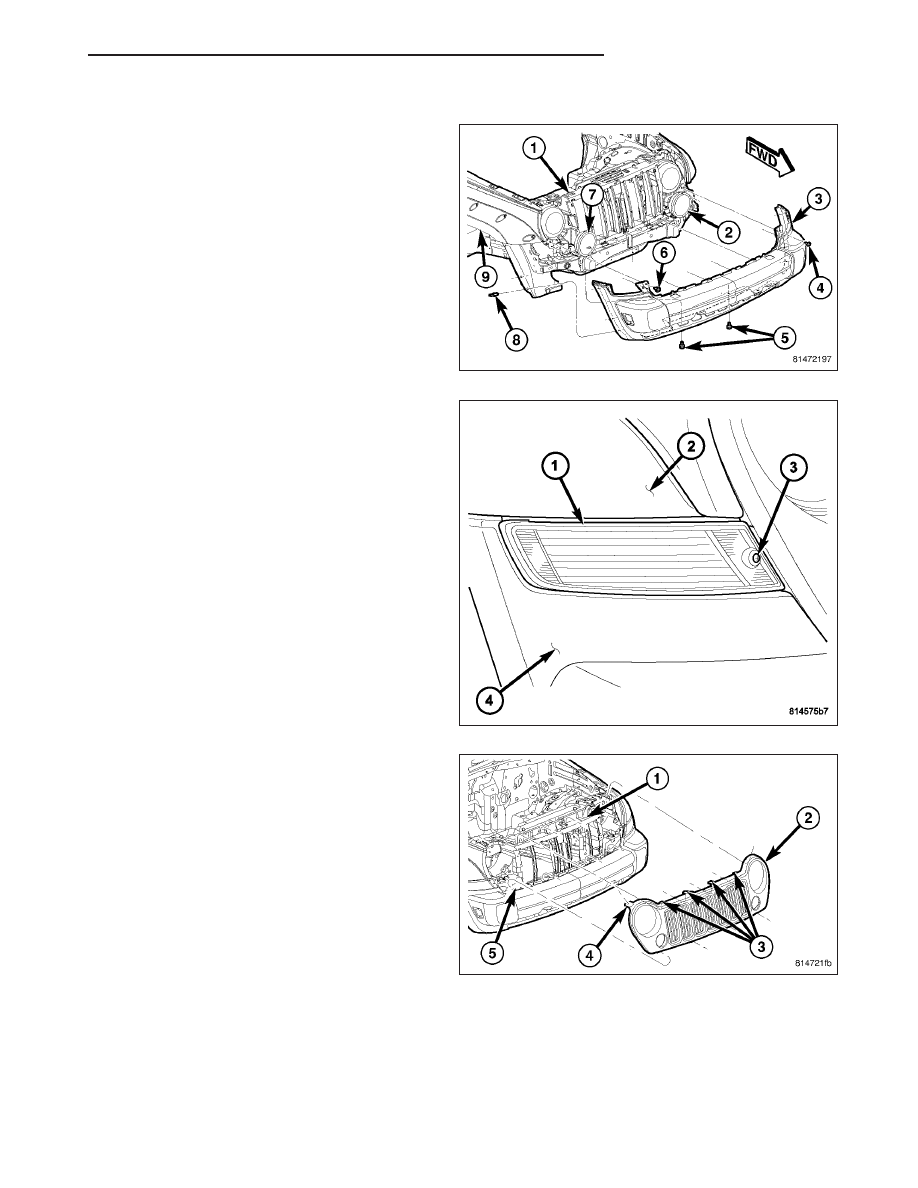

INSTALLATION

1. Position the fascia (3) onto the vehicle and align

the center pin into the hole located near the center
of the grille opening reinforcement (1).

2. Secure the three tabs onto the grille reinforcement

fully.

3. Install the two screws (4 & 6) next to the turn sig-

nal lamps.

4. Install the two lower screws (5).

5. Install new rivets (8) attaching the wheelhouse

splash shield to the fascia (3).

6. Install the turn signal lamps (Refer to 8 - ELECTRI-

CAL/LAMPS/LIGHTING - EXTERIOR/PARK/TURN
SIGNAL LAMP - INSTALLATION).

7. Install the grille (Refer to 23 - BODY/EXTERIOR/

GRILLE - INSTALLATION).

KJ

FRAME & BUMPERS

13 - 3
