Jeep Liberty KJ. Manual - part 925





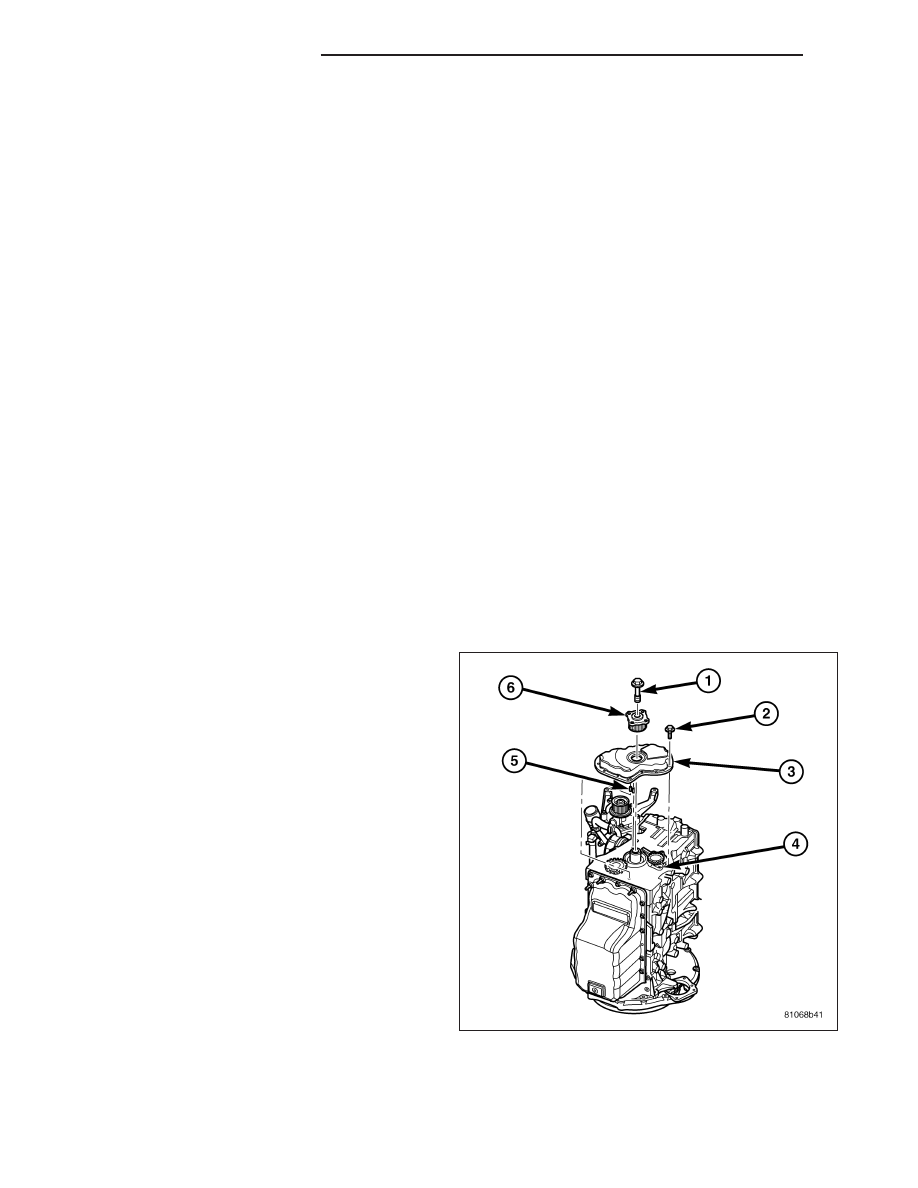

COVER-ENGINE - FRONT

DESCRIPTION

The front engine cover on this engine is a stamped steel cover which covers the oil pump and vacuum pump.

REMOVAL

1. Disconnect negative battery cable.

2. Remove cooling fan and fan drive viscous clutch assembly (Refer to 7 - COOLING/ENGINE/FAN DRIVE VIS-

COUS CLUTCH - REMOVAL).

3. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).

4. Remove cooling fan support (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - REMOVAL).

5. Remove vibration damper (Refer to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL).

6. Remove timing belt outer cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) -

REMOVAL).

CAUTION: Before removing the cylinder head cover/intake manifold or timing belt the engine must aligned
at 90° ATDC and special tool VM.1089 installed. Failure to do so could result in valve and/or piston damage
during reassembly. (Refer to 9 - ENGINE/VALVE TIMING - STANDARD PROCEDURE)

7. Remove timing belt (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS -

REMOVAL).

8. Remove timing belt inner cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) -

REMOVAL).

NOTE: Crankshaft hub has left hand thread.

9. Remove crankshaft hub.

10. Remove front engine cover.

INSTALLATION

1. Clean engine block and front engine cover sealing surfaces.

2. Apply a continous 3mm bead of Silicone Sealer to cover, install within 10 minutes. Torque bolts to 11.8N·m..

3. Install crankshaft hub. Torque bolt to 304N·m.

9 - 1658

ENGINE - 2.8L DIESEL

KJ

4. Install timing belt inner cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - INSTAL-

LATION).

5. Install timing belt (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLA-

TION).

6. Install timing belt outer cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - INSTAL-

LATION)

7. Remove 90 degree ATDC alignment pin VM.1080.

8. Install vibration damper (Refer to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION).

9. Install cooling fan support (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - INSTALLATION).

10. Install accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).

11. Install cooling fan and fan drive viscous clutch assembly (Refer to 7 - COOLING/ENGINE/FAN DRIVE VIS-

COUS CLUTCH - INSTALLATION).

12. Connect negative battery cable.

KJ

ENGINE - 2.8L DIESEL

9 - 1659

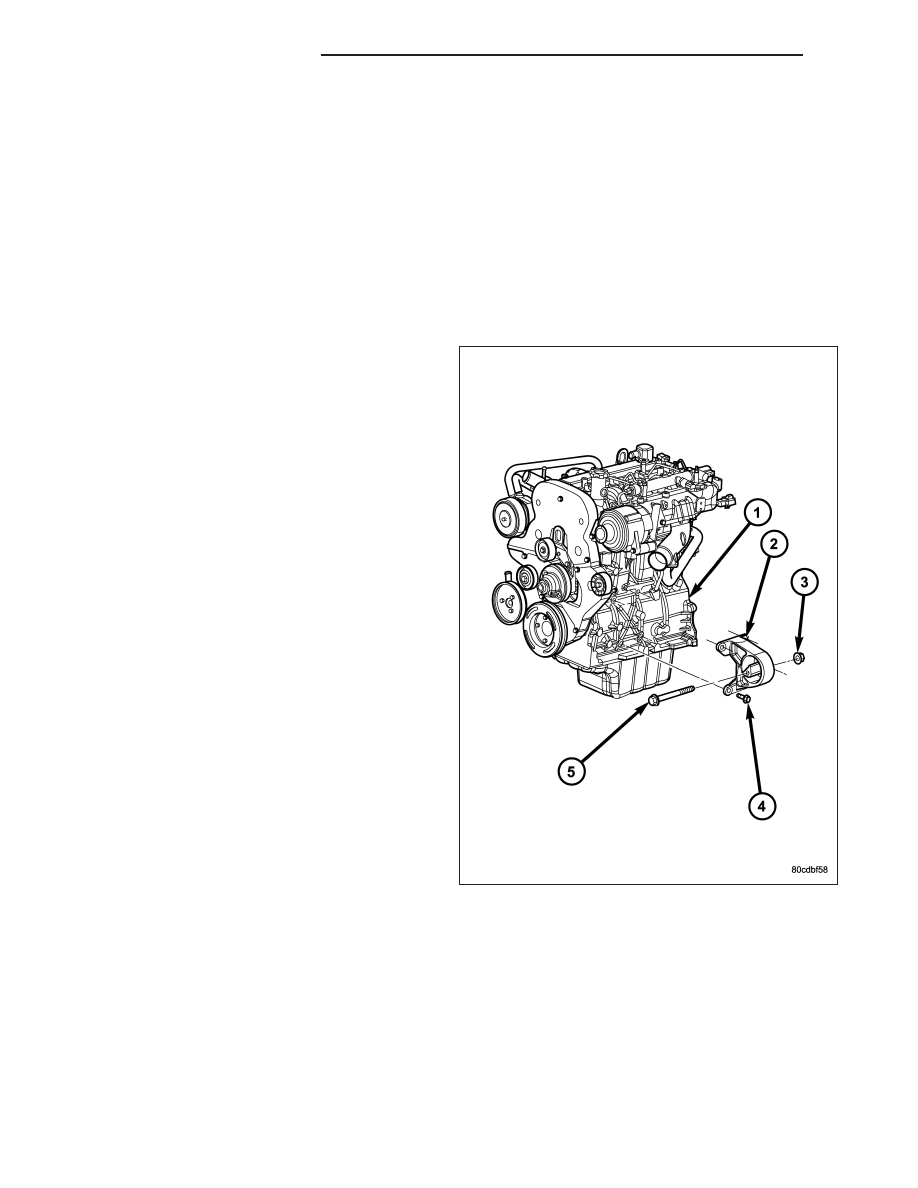

MOUNT-LEFT ENGINE

REMOVAL

1. Disconnect the negative battery cable.

2. Remove the cooling fan and fan shroud (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - REMOVAL).

3. Raise and support the vehicle.

4. Loosen both engine mount through bolts.

NOTE: Care must be taken not to damage any wiring above the transmission when raising the engine.

5. Using a suitable jack, raise and support the engine.

6. Remove the engine mount retaining bolts and remove the mount.

9 - 1660

ENGINE - 2.8L DIESEL

KJ

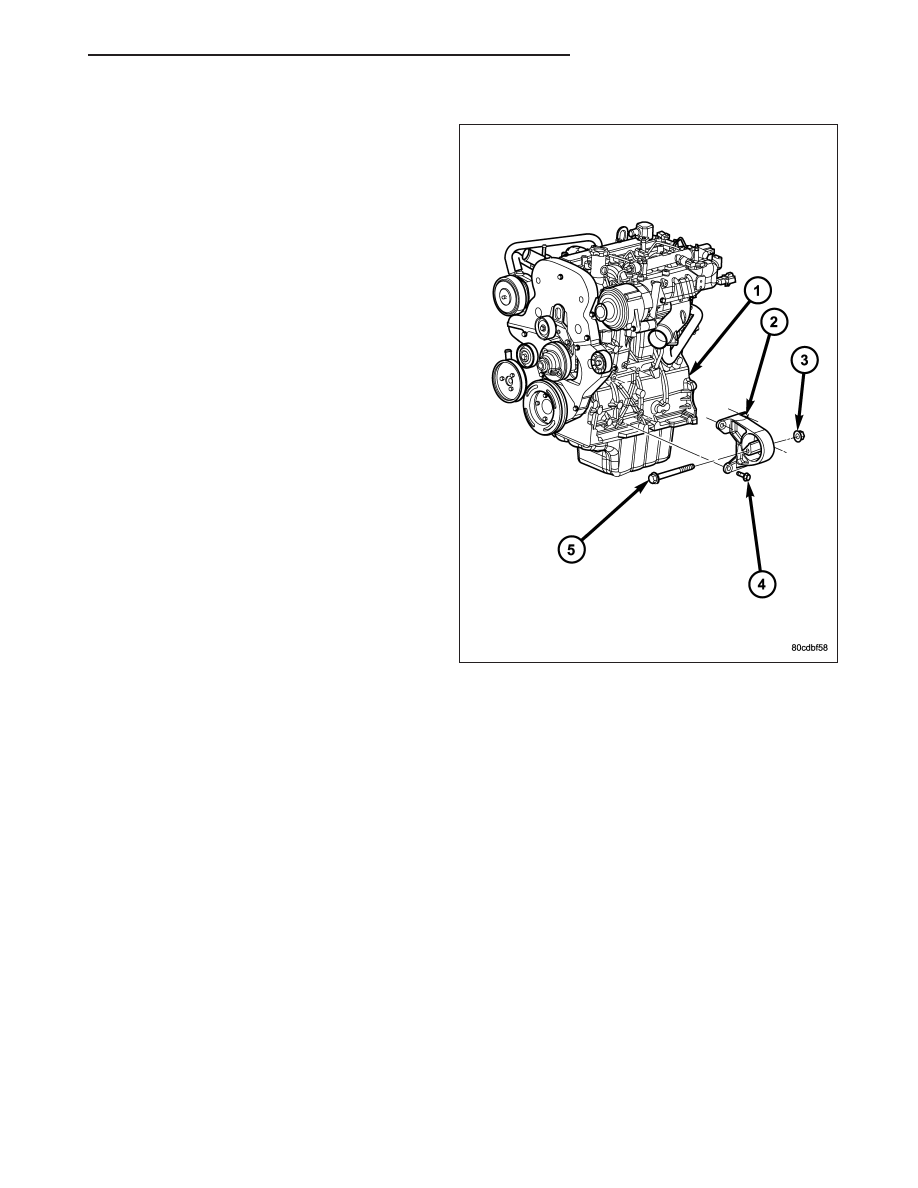

INSTALLATION

1. Position the engine mount and hand tighten the

retaining bolts.

2. Lower the engine mount and through bolts into the

engine mount support.

3. Lower the vehicle.

4. Install the left upper engine mount bolt.Tighten bolt

to 54 N·m (40 lbs. ft.).

5. Raise and support the vehicle.

6. Tighten remaining mount to engine bolts to 54 N·m

(40 lbs. ft.).

7. Tighten engine mount through bolts to 54 N·m (40

lbs. ft.).

8. Lower the vehicle.

9. Install the cooling fan and shroud (Refer to 7 -

COOLING/ENGINE/RADIATOR FAN - INSTALLA-
TION).

10. Connect the negative battery cable.

KJ

ENGINE - 2.8L DIESEL

9 - 1661
