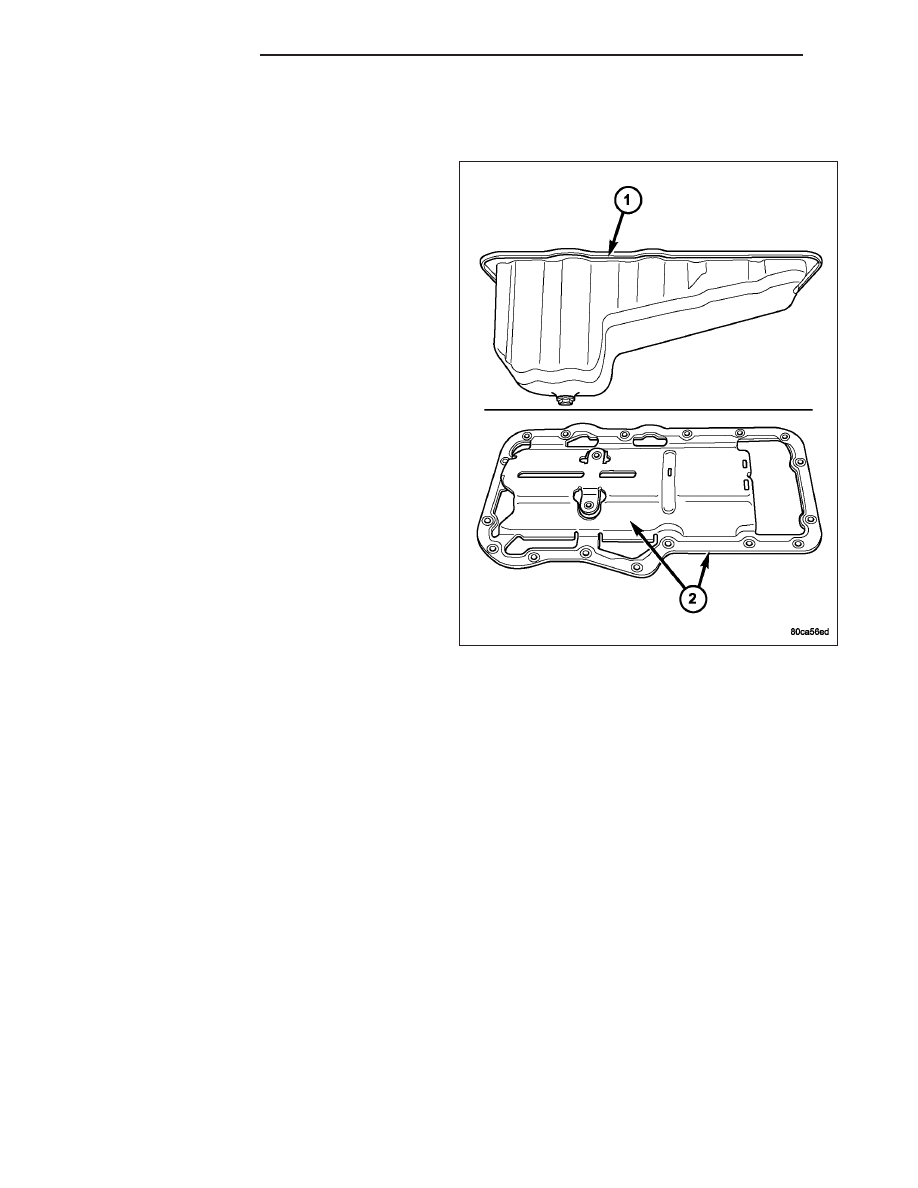

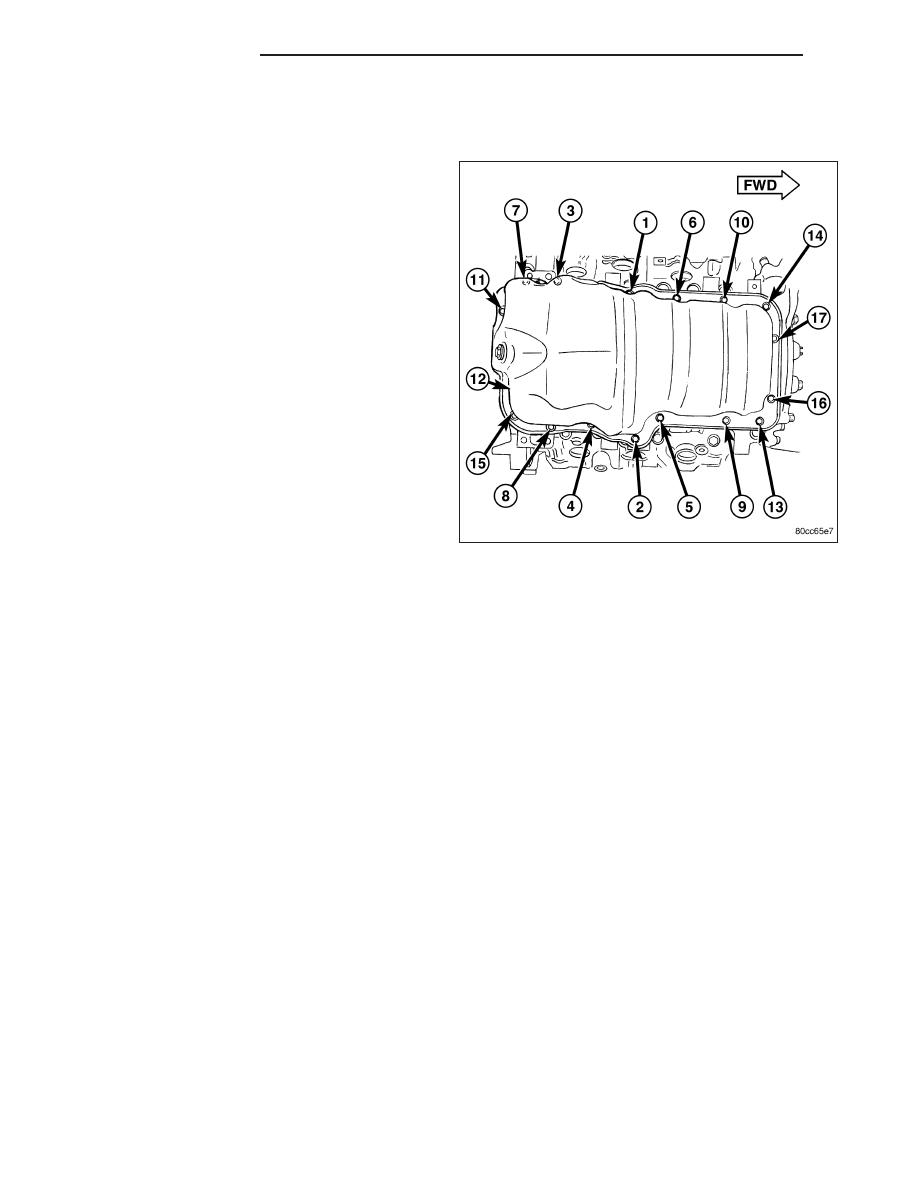

REMOVAL REMOVAL 1. Disconnect and isolate negative battery cable. 2. Install engine support fixture. 3. Raise and support vehicle. 4. Remove front wheel assemblies. 5. Remove skid plate (if equipped). (Refer to 13 - FRAME & BUMPERS/FRAME/FRONT SKID PLATE - REMOVAL) 6. Drain engine oil. 7. Mark adjustment cam position of front lower control arm bolts. 8. Remove front lower control arm bolts. (Refer to 2 - SUSPENSION/FRONT/LOWER CONTROL ARM - 9. Disconnect LH tie rod. (Refer to 19 - STEERING/ LINKAGE/TIE ROD END - REMOVAL) 10. Disconnect LH lower ball joint (Refer to 2 - SUS- PENSION/FRONT/LOWER BALL JOINT - REMOVAL) 11. Disconnect LH strut clevis (Refer to 2 - SUSPEN- SION/FRONT/CLEVIS BRACKET - REMOVAL) 12. Remove LH front axle (Refer to 3 - DIFFEREN- TIAL & DRIVELINE/HALF SHAFT - REMOVAL) 13. Remove front axle brace bolts. 14. Remove front prop shaft. (Refer to 3 - DIFFER- ENTIAL & DRIVELINE/PROPELLER SHAFT/ PROPELLER SHAFT - REMOVAL) 15. Drain front axle. 16. Using a transmission jack, support front axle. 17. Remove axle bracket bolts. (Refer to 3 - DIFFERENTIAL & DRIVELINE/FRONT AXLE - REMOVAL) 18. With RH axle still in place, remove front differential. 19. Remove transmission oil cooler line bracket. 20. Remove engine to transmission stiffening bracket. 21. Position Special Tool 8534 on fender lip and align the slots in the brackets with the fender mounting holes. 22. Secure brackets to the fender using four M6 X 1.0 X 25 MM flanged cap screws. 23. Tighten the thumbscrews to secure the sleeves to the support tube. 24. Secure the support tube in an upright position. 25. Assemble the flat washer, thrust bearing, hook and T handle. 26. Using the M10 X 1.75 mm flanged nut supplied with the support fixture, secure the chain to the front engine lifting stud. 27. Loosen engine mounts. 28. Remove oil pan bolts. 29. Seperate oil pan (1) from engine. 30. Move oil pan to one side, remove oils sump bolt and windage tray bolts, NOTE: Do not pry on oil pan or oil pan gasket. Gasket is integral to engine windage tray and does not come 31. Move the oil pan and windage tray (2) toward front of vehicle and remove from vehicle. 9 - 1554 ENGINE - 3.7L KJ |
