REMOVAL

NOTE: The cylinder heads must be removed in
order to perform this procedure.

1. Remove rocker arms and lash adjusters (Refer to 9

-

ENGINE/CYLINDER

HEAD/ROCKER

ARM

/

ADJUSTER ASSY - REMOVAL).

2. Remove the camshaft bearing caps and the cam-

shaft.

NOTE: All valve springs and valves are removed in
the same manner; this procedure only covers one
valve and valve spring.

3. Using Special Tool C-3422–B or C-3422–C Valve

Spring Compressor and Special tool 8519 Adapter,
compress the valve spring.

NOTE: It may be necessary to tap the top of the
valve spring to loosen the spring retainers locks
enough to be removed.

4. Remove the two spring retainer lock halves.

NOTE: the valve spring is under tension use care when releasing the valve spring compressor.

5. Remove the valve spring compressor.

6. Remove the spring retainer, and the spring.

NOTE: Check for sharp edges on the keeper grooves. Remove any burrs from the valve stem before remov-
ing the valve from the cylinder head.

7. Remove the valve from the cylinder head.

NOTE: The valve stem seals are common between intake and exhaust.

8. Remove the valve stem seal. Mark the valve for proper installation.

TESTING VALVE SPRINGS

NOTE: Whenever the valves are removed from the
cylinder head it is recommended that the valve
springs be inspected and tested for reuse.

Inspect the valve springs for physical signs of wear or
damage. Turn table of tool C-647 (1) until surface is in
line with the 40.12 mm (1.579 in.) mark on the
threaded stud and the zero mark on the front. Place
spring over the stud on the table and lift compressing
lever to set tone device. Pull on torque wrench until a
Ping is heard. Take reading on torque wrench at this
instant. Multiply this reading by two. This will give the
spring load at test length. Fractional measurements
are indicated on the table for finer adjustments. Refer
to Specifications Section to obtain specified height and
allowable tensions. Replace any springs that do not
meet specifications.

9 - 1486

ENGINE - 3.7L

KJ

INSTALLATION

1. coat the valve stem with clean engine oil and insert

it into the cylinder head.

2. Install the valve stem seal. make sure the seal is

fully seated and that the garter spring at the top of
the seal is intact.

3. Install the spring and the spring retainer.

4. Using the valve spring compressor, compress the

spring and install the two valve spring retainer
halves.

5. Release the valve spring compressor and make

sure the two spring retainer halves and the spring
retainer are fully seated.

6. lubricate the camshaft journal with clean engine oil

then Position the camshaft (with the sprocket dowel
on the left camshaft at 11 o’clock and the right
camshaft at 12 o’clock), then position the camshaft
bearing caps.

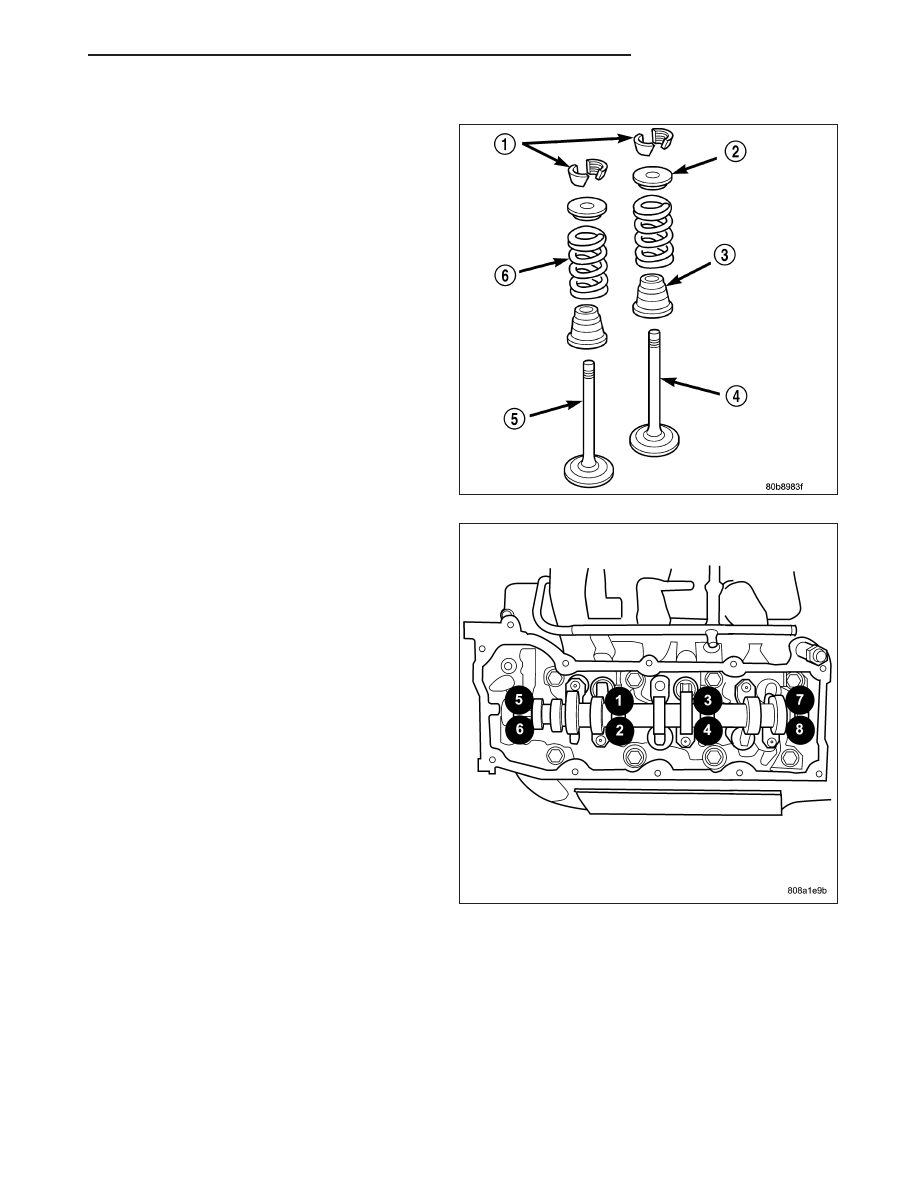

7. Install the camshaft bearing cap retaining bolts.

Tighten the bolts 9-13 N·m (100 in. lbs.) in 1/2 turn
increments in the sequence shown .

8. Position the hydraulic lash adjusters and rocker

arms (Refer to 9 - ENGINE/CYLINDER HEAD/
ROCKER

ARM

/

ADJUSTER

ASSY

-

INSTALLATION).

KJ

ENGINE - 3.7L

9 - 1487

ARM-VALVE ROCKER

DESCRIPTION

The rocker arms are steel stampings with an integral roller bearing. The rocker arms incorporate a 2.8 mm (0.11
inch) oil hole in the lash adjuster socket for roller and camshaft lubrication.

REMOVAL

NOTE: Disconnect the battery negative cable to
prevent accidental starter engagement.

1. Remove the cylinder head cover (Refer to 9 -

ENGINE/CYLINDER

HEAD/CYLINDER

HEAD

COVER(S) - REMOVAL).

2. For rocker arm removal on cylinder No. 4, Rotate

the crankshaft until cylinder No. 1 is at BDC intake
stroke.

3. For rocker arm removal on cylinder No. 1, Rotate

the crankshaft until cylinder No. 1 is at BDC com-
bustion stroke.

4. For rocker arm removal on cylinders No. 3 and No.

5, Rotate the crankshaft until cylinder No. 1 is at
TDC exhaust stroke.

5. For rocker arm removal on cylinders No. 2 and No.

6, Rotate the crankshaft until cylinder No. 1 is at
TDC ignition stroke.

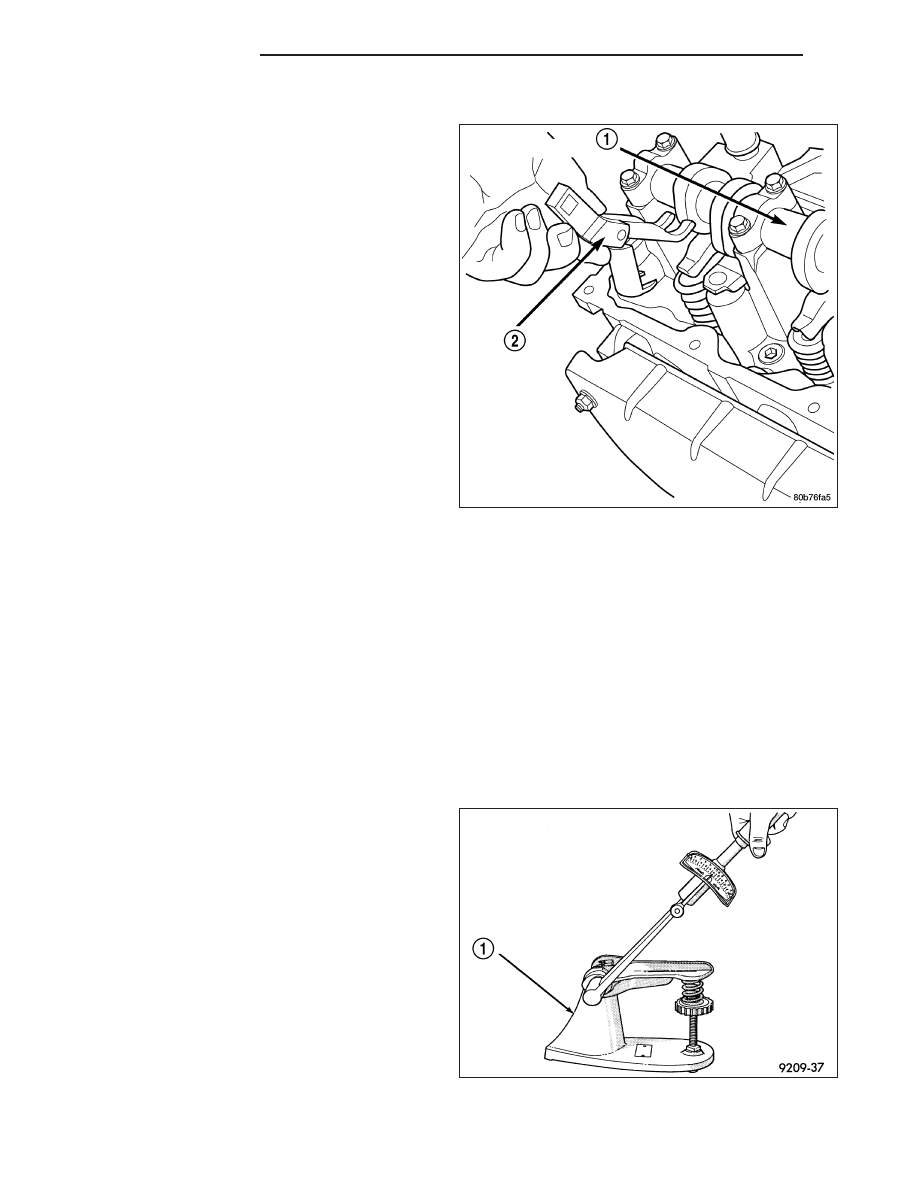

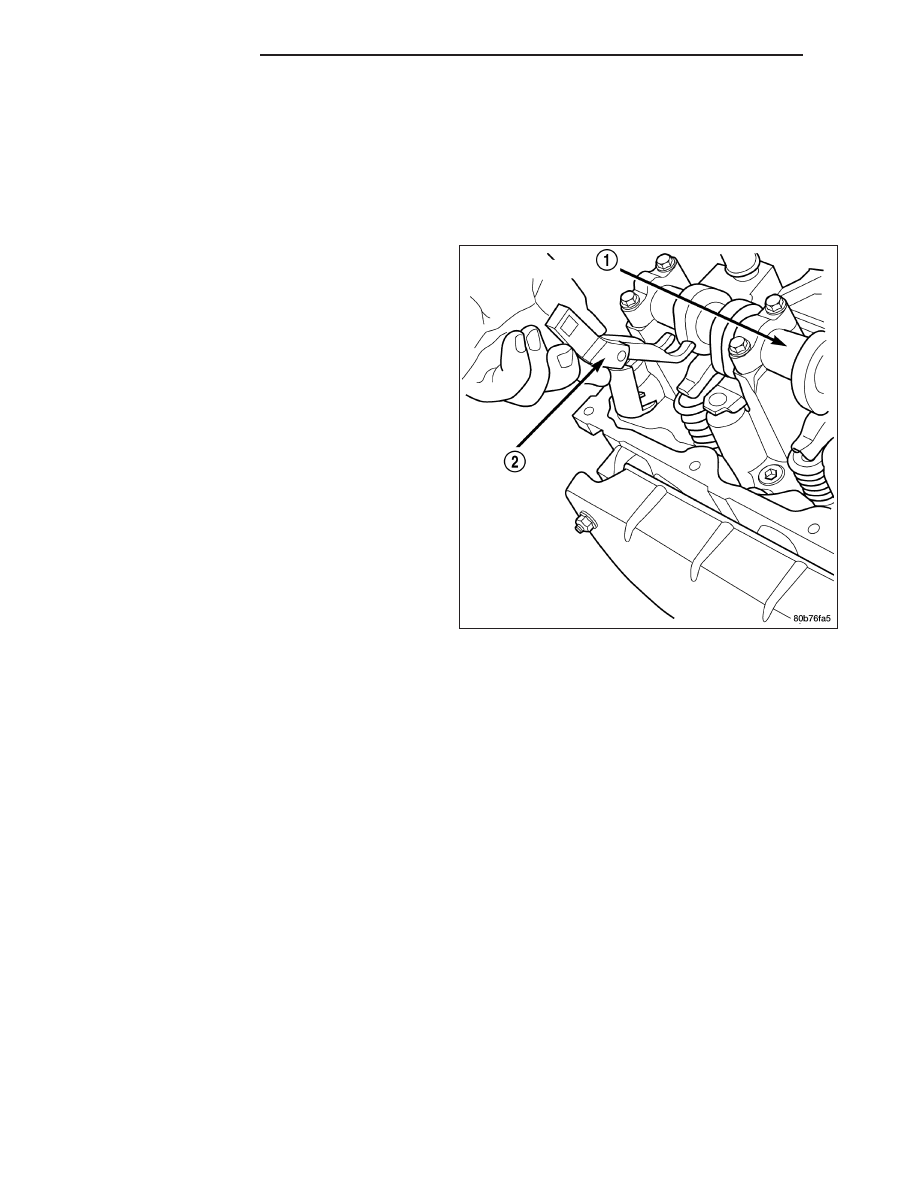

6. Using special tool 8516 Rocker Arm Remover (2) ,

press downward on the valve spring, remove
rocker arm.

9 - 1488

ENGINE - 3.7L

KJ

SEALS-VALVE GUIDE

DESCRIPTION

The valve guide seals are made of rubber and incorporate an integral steel valve spring seat. The integral garter
spring maintains consistent lubrication control to the valve stems.
