Jeep Liberty KJ. Manual - part 861

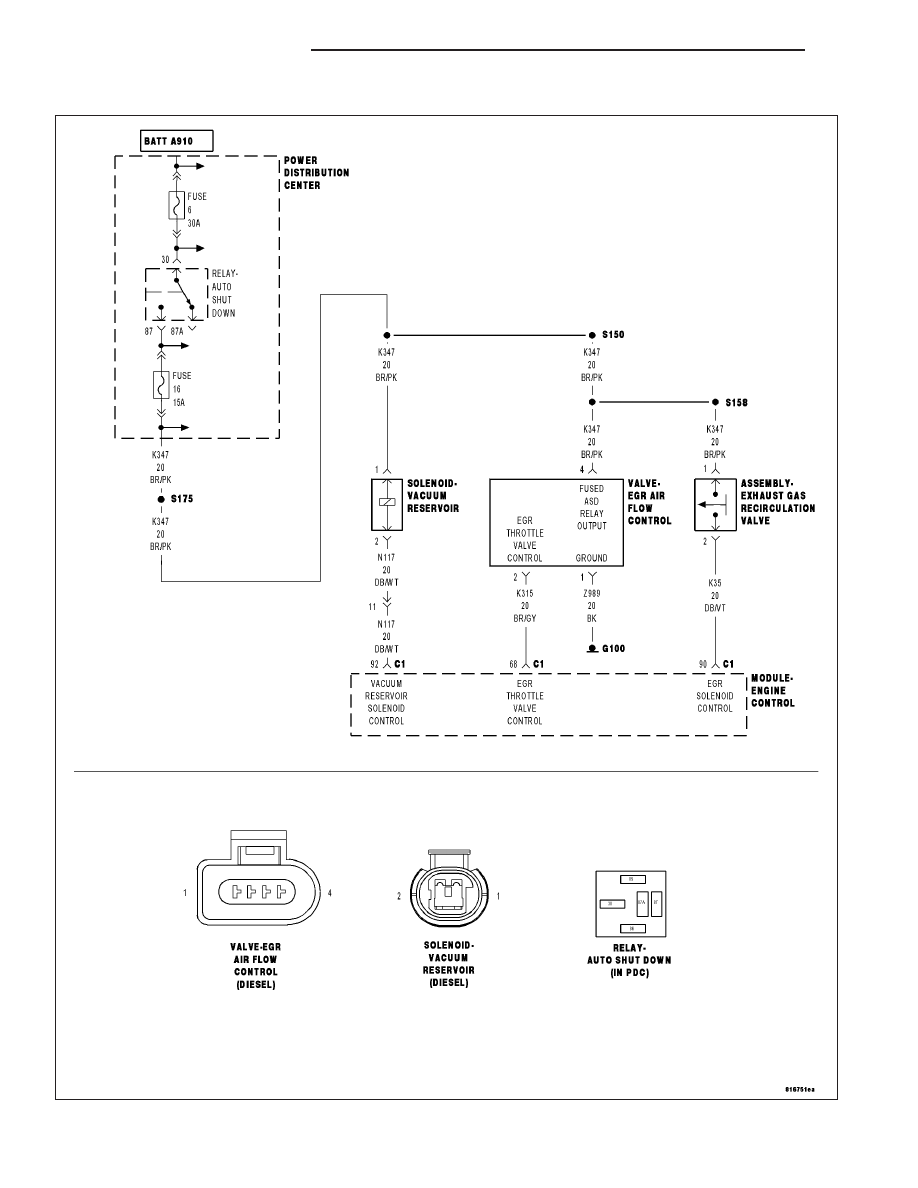

P2142-EGR AIR FLOW CONTROL VALVE SHORT CIRCUIT

For a complete wiring diagram Refer to Section 8W

9 - 1402

ENGINE DIESEL DIAG

KJ

When Monitored:
With the ignition on and the ECM EGR Air Flow Control Valve command on.

Set Condition:
The ECM detects excessive current on the EGR Air Flow Control Valve Control circuit for 0.5 second.

Possible Causes

INTERMITTENT CONDITION

EGR AIR FLOW CONTROL VALVE

EGR AIR FLOW CONTROL VALVE CONTROL SHORTED TO VOLTAGE

ENGINE CONTROL MODULE - INTERNAL SHORT TO VOLTAGE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the scan tool, erase ECM DTCs.

Test drive the vehicle and monitor the scan tool for ECM DTCs.

Did this DTC set again?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

EGR AIR FLOW CONTROL VALVE

Turn the ignition off.

Disconnect the EGR Air Flow Control Valve harness connector.

Turn the ignition on.

With the scan tool, erase ECM DTCs.

Monitor the scan tool for ECM DTCs.

Does the scan tool display P1140 EGR AIR FLOW CONTROL VALVE OPEN CIRCUIT?

Yes

>> Replace the EGR Air Flow Control Valve.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 3

KJ

ENGINE DIESEL DIAG

9 - 1403

3.

EGR AIR FLOW CONTROL VALVE SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the EGR Air Flow Control Valve harness connector.

Disconnect the ECM harness connectors.

Remove the ASD Relay from the PDC.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
Relay connector.

Turn the ignition on.

Measure the voltage of the EGR Air Flow Control Valve Control circuit.

Is the voltage below 1.0 volt?

Yes

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Repair the EGR Air Flow Control Valve Control circuit for a

short to voltage.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

9 - 1404

ENGINE DIESEL DIAG

KJ

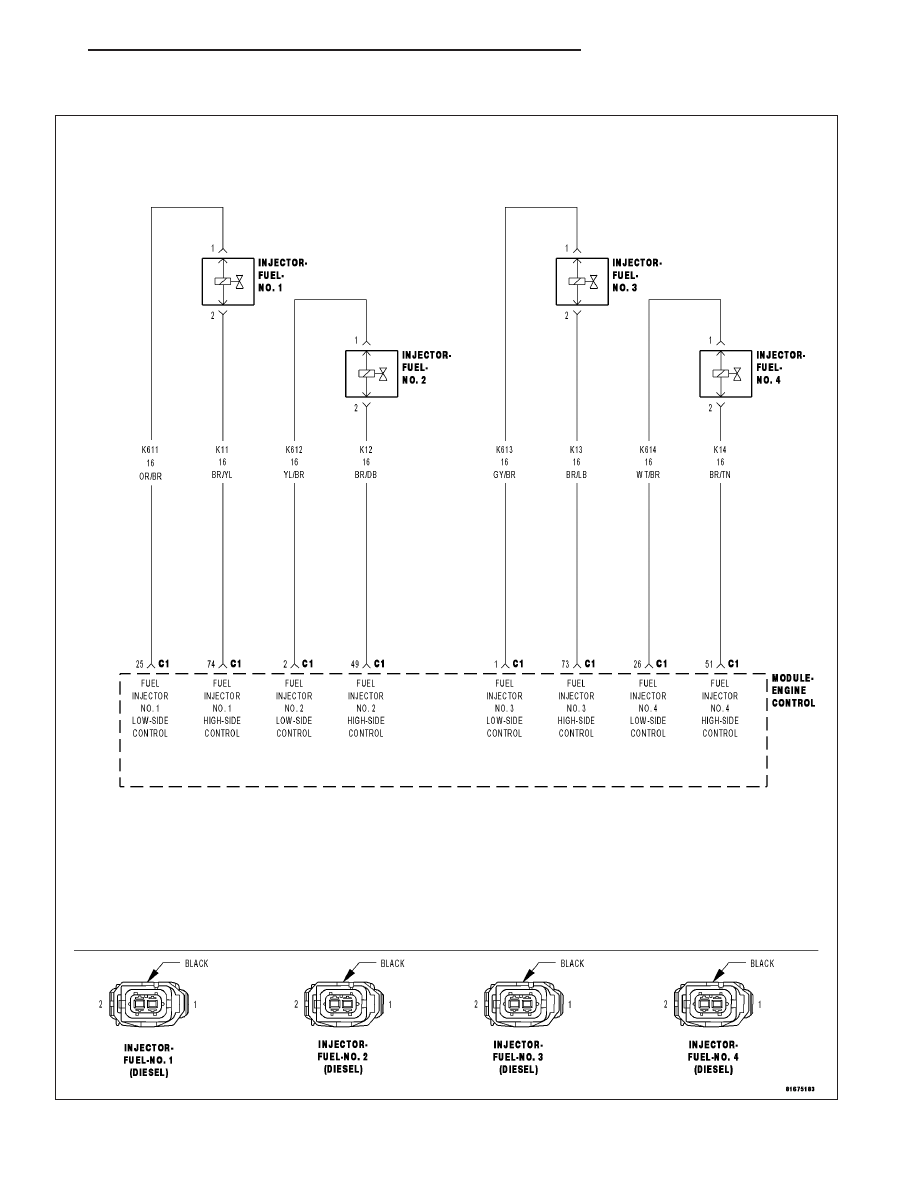

P2147 INJECTOR BANK 1 OPEN CIRCUIT

For a complete wiring diagram Refer to Section 8W

KJ

ENGINE DIESEL DIAG

9 - 1405
