P2141-EGR AIR FLOW CONTROL VALVE SHORT TO GROUND

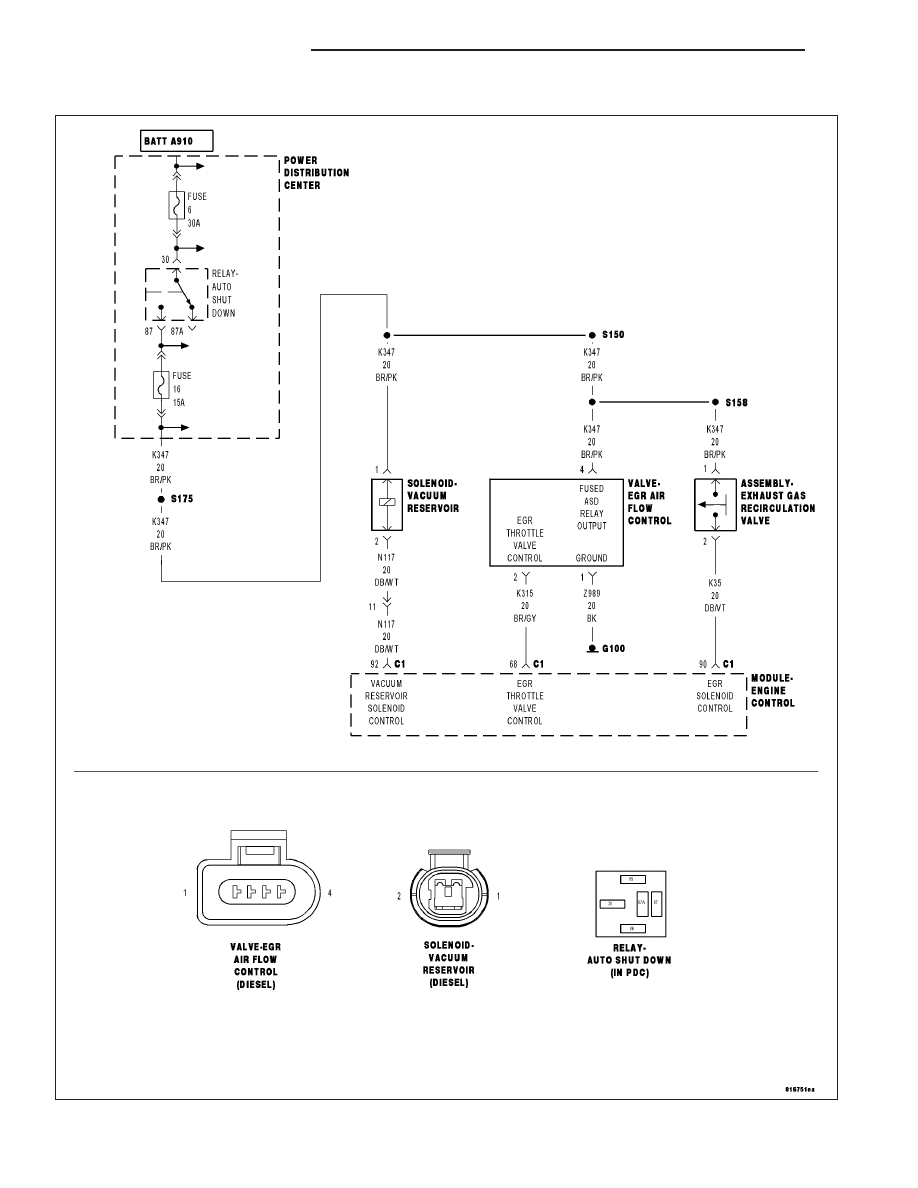

For a complete wiring diagram Refer to Section 8W

9 - 1398

ENGINE DIESEL DIAG

KJ

When Monitored:
With the ignition on and the ECM EGR Air Flow Control Valve command off.

Set Condition:
The ECM detect a short to ground on the EGR Air Flow Control Valve Control circuit for 0.5 second.

Possible Causes

INTERMITTENT CONDITION

ASD RELAY OUTPUT CIRCUIT OPEN

EGR AIR FLOW CONTROL VALVE CIRCUIT SHORTED TO GROUND

EGR AIR FLOW CONTROL VALVE CIRCUIT OPEN

EGR AIR FLOW CONTROL VALVE

ENGINE CONTROL MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the DRB at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the DRB, erase ECM DTCs.

Test drive the vehicle.

Monitor the DRB for ECM DTCs.

Did this DTC set again?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

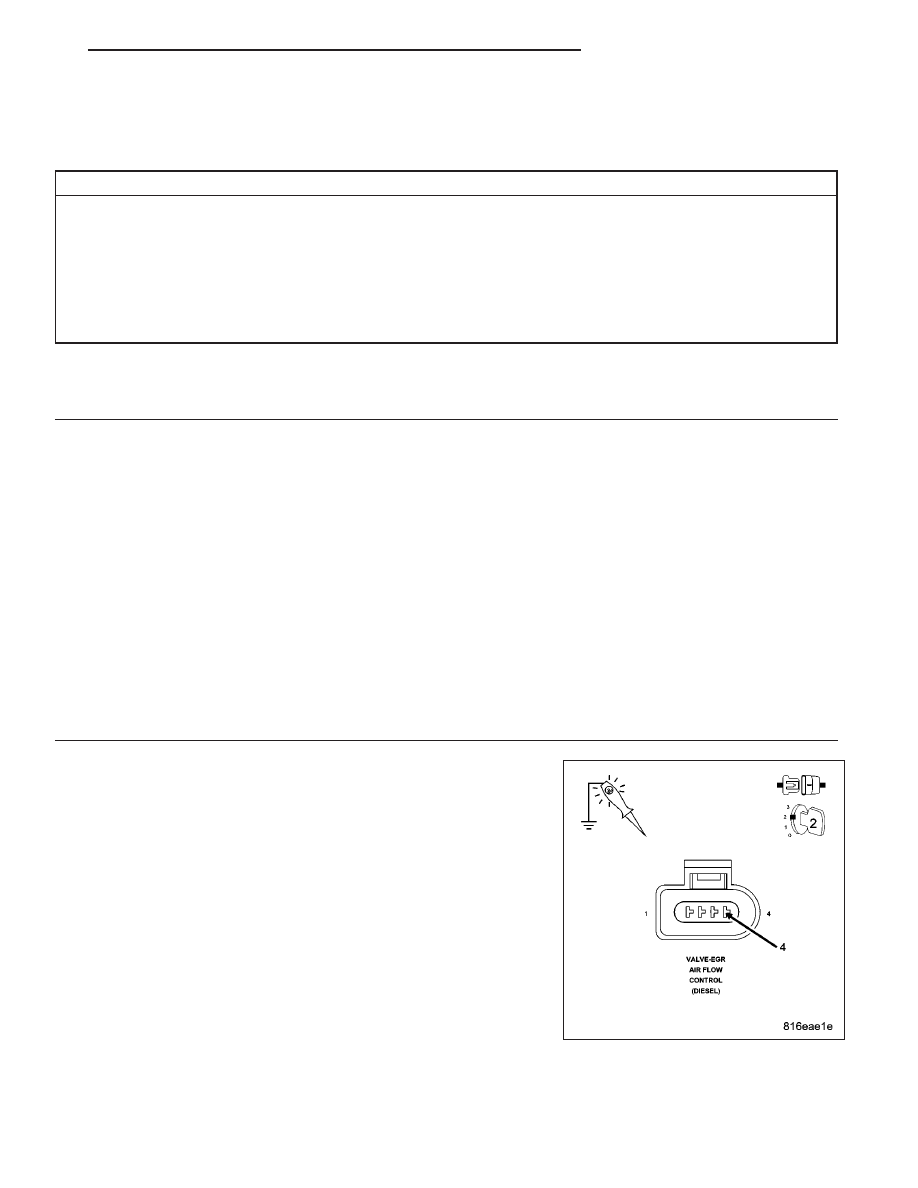

2.

ASD OUTPUT CKT OPEN

Turn the ignition off.

Disconnect the EGR Air Flow Control Valve harness connector.

Turn the ignition on.

Using a 12-volt test light connected to ground, check the ASD Relay
Output circuit.

Does the test light illuminate brightly?

Yes

>> Go To 3

No

>> Repair the ASD Relay Output circuit for an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

KJ

ENGINE DIESEL DIAG

9 - 1399

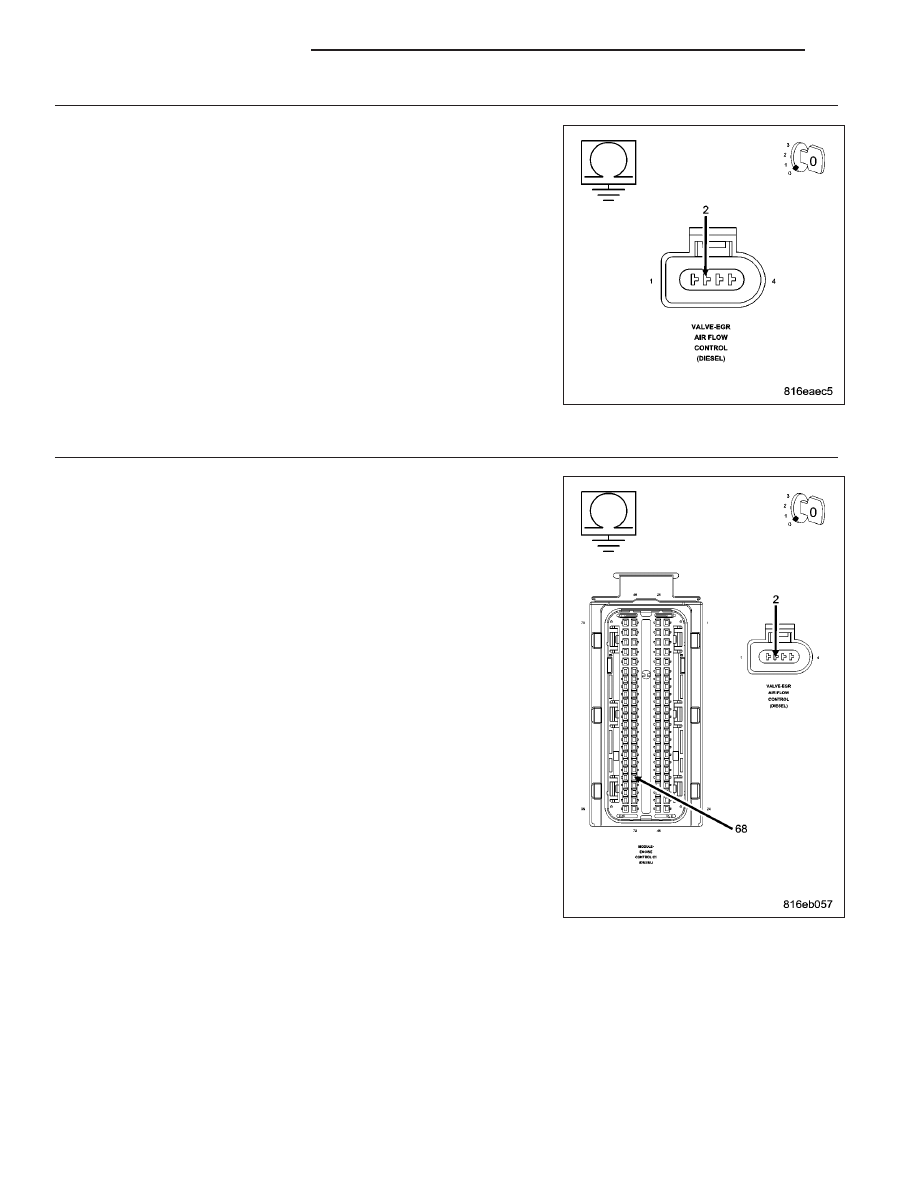

3.

EGR AIR FLOW CONTROL VALVE SHORTED TO GROUND

Turn the ignition off.

Disconnect the EGR Air Flow Control Valve harness connector.

Disconnect the ECM harness connectors.

Measure the resistance between ground and the EGR Air Flow Control
Valve Control circuit.

Is the resistance above 1000 ohms?

Yes

>> Go To 4

No

>> Repair the EGR Air Flow Control Valve circuit for a short to

ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

4.

EGR AIR FLOW CONTROL VALVE CIRCUIT OPEN

Turn the ignition off.

Disconnect the EGR Air Flow Control Valve harness connector.

Disconnect the ECM harness connectors.

Measure the resistance of the EGR Air Flow Control Valve Control cir-
cuit.

Is the resistance below 10.0 ohms?

Yes

>> Go To 5

No

>> Repair the EGR Air Flow Control Valve Control circuit for an

open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 1400

ENGINE DIESEL DIAG

KJ

5.

EGR AIR FLOW CONTROL VALVE

Turn the ignition off.

Install a substitute EGR Air Flow Control Valve in place of the vehicle’s EGR Air Flow Control Valve.

NOTE: Ensure the ECM and EGR Air Flow Control Valve harness connectors are connected.
Turn the ignition on.

With the DRB, check for this DTC to set again.

Did this DTC set again?

Yes

>> Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace the EGR Air Flow Control Valve.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

KJ

ENGINE DIESEL DIAG

9 - 1401
