Jeep Liberty KJ. Manual - part 844





When Monitored:
Continuously, with ignition on, until vehicle speed exceeds 20 km/h (12.4 m.p.h.) for the first time, but not if the
sensor voltage is out of range.
Or, during diagnostic mode.
Or, if the monitoring was inhibited by a corresponding diagnostics command.

Set Condition:
If the measured acceleration signal is higher than 0.8 g for longer than the specified detection time.

Possible Causes

WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE

DYNAMICS SENSOR INSTALLATION

DYNAMICS SENSOR

ANTI-LOCK BRAKES MODULE

Diagnostic Test

1.

VERIFY DTC IS ACTIVE

Turn the ignition on.

With the scan tool, read and record ABS DTCs.

With the scan tool, read and record Environmental Data (EV Data).

With the scan tool, erase ABS DTCs.

Cycle the ignition switch.

WARNING: Ensure brake capability is available before road testing.
Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and 20 km/hr
(6 and 12 m.p.h.).

Park the vehicle.

With the scan tool, read ABS DTCs.

Does this DTC reset?

Yes

>> Go To 2

No

>> Perform the ABS Intermittent Condition diagnostic procedure in this Section.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

2.

CHECK THE DYNAMICS SENSOR INSTALLATION

NOTE: Dynamics Sensor installation and mounting bolt torque is crucial for proper operation.
Turn the ignition off.

Check the Dynamics Sensor for damaged, modified, and bent mounting brackets.

Check the Dynamics Sensor mounting bolts for a loose or over tightened condition.

Were any problems found?

Yes

>> Repair as necessary.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Go To 3

5 - 136

BRAKES - ABS ELECTRICAL DIAGNOSTICS

KJ

3.

INSPECT RELATED WIRING HARNESS, TERMINALS, & CONNECTORS

Visually inspect the related wiring harness. Look for any pinched, chafed, pierced, and partially broken wires.

Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, and corroded terminals.

Were any problems found?

Yes

>> Repair as necessary.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Go To 4

4.

REPLACE DYNAMICS SENSOR & VERIFY IF DTC IS STILL ACTIVE

Replace the Dynamics Sensor in accordance with the Service Information.

Turn the ignition on.

With the scan tool, erase ABS DTCs.

WARNING: Ensure brake capability is available before road testing.
Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and 20 km/hr
(6 and 12 m.p.h.).

Park the vehicle.

With the scan tool, read ABS DTCs.

Does this DTC reset?

Yes

>> Replace the Anti-Lock Brakes Module in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

KJ

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 137

C1219–STEERING ANGLE SENSOR ERRATIC PERFORMANCE

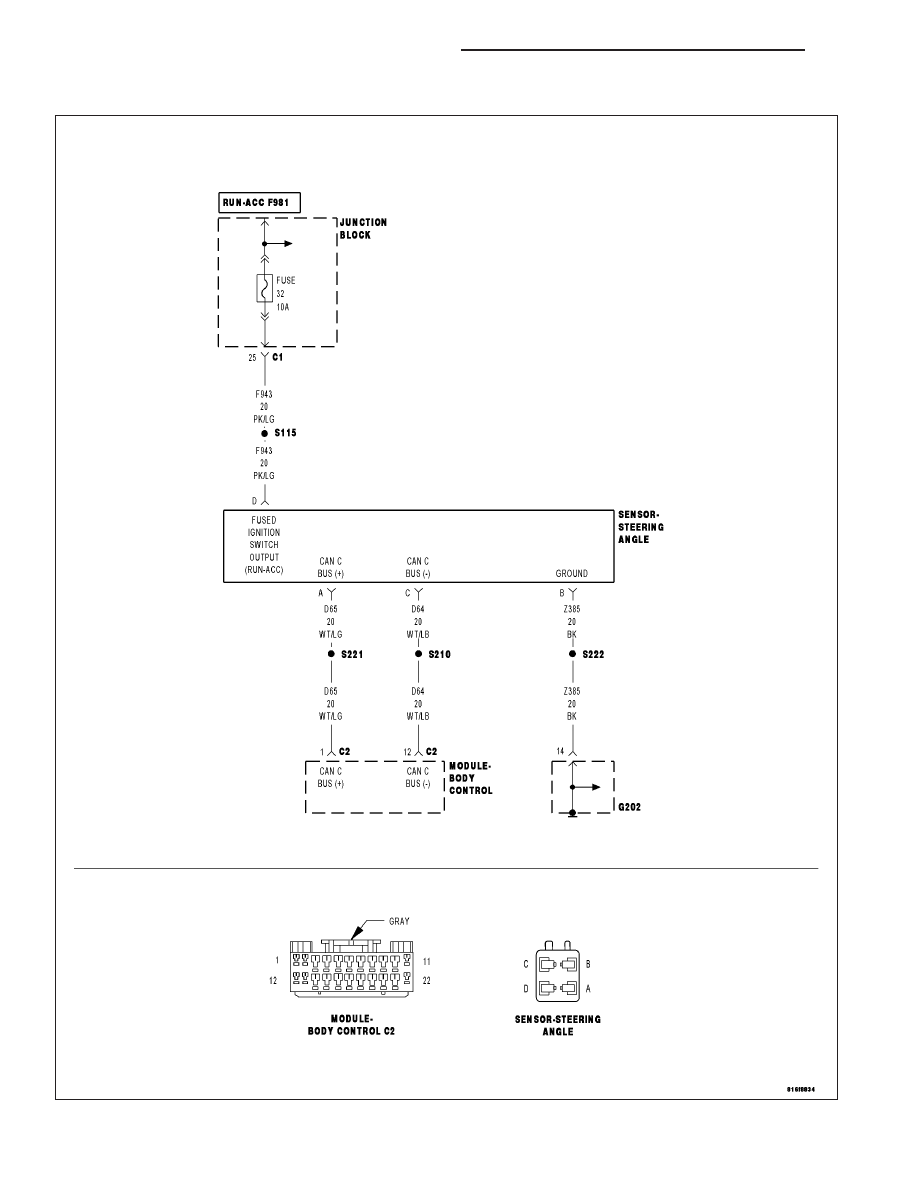

For a complete wiring diagram Refer to Section 8W.

5 - 138

BRAKES - ABS ELECTRICAL DIAGNOSTICS

KJ

When Monitored:
With the ignition on.

Set Condition:
If the Anti-Lock Brake Module detects that the calculated steering wheel angle exceeds what is physically pos-
sible.

Possible Causes

VEHICLE DAMAGE

STEERING COLUMN / INTERMEDIATE SHAFT DAMAGE

CLOCKSPRING IMPROPERLY INSTALLED

STEERING ANGLE SENSOR LOOSE

STEERING ANGLE SENSOR IMPROPERLY INSTALLED (WRONG MOUNTING POSITION)

WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE

(F943) FUSED IGNITION SWITCH OUTPUT (RUN-ACC) CIRCUIT HIGH RESISTANCE

(Z385) GROUND CIRCUIT HIGH RESISTANCE

STEERING ANGLE SENSOR

ANTI-LOCK BRAKES MODULE

Diagnostic Test

1.

PERFORM TEST DRIVE & VERIFY DTC IS STILL ACTIVE

Turn the ignition on.

With the scan tool, erase ABS DTCs.

Cycle the ignition switch.

WARNING: Ensure brake capability is available before road testing.
Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and 25 km/hr
(6 and 15 m.p.h.).

Park the vehicle.

With the scan tool, read ABS DTCs.

Does this DTC reset?

Yes

>> Go To 2

No

>> Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

2.

CHECK STEERING ANGLE SENSOR OUTPUT

Start the engine.

Center the steering wheel.

With the scan tool, read the Steering Angle Sensor Position.

Is the Steering Angle Sensor Position either +15° or more or

2

15° or more?

Yes

>> Go To 3

No

>> Go To 9

KJ

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 139
