9.

CHECK (B1) RIGHT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO (B2) RIGHT REAR WSS 12 VOLT
SUPPLY CIRCUIT

If not done so previously, remove all jumper wires.

Measure the resistance between the (B1) Right Rear WSS Signal circuit
and the (B2) Right Rear WSS 12 Volt Supply circuit.

Is the resistance below 10k ohms?

Yes

>> Repair the (B1) Right Rear WSS Signal circuit for a short to

the (B2) Right Rear WSS 12 Volt Supply circuit.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 10

10.

CHECK RIGHT REAR WSS

Reconnect the Anti-Lock Brakes Module harness connector.

Turn the ignition on.

Measure the voltage of the (B2) Right Rear WSS 12 Volt Supply circuit
while reconnecting the Right Rear WSS harness connector.

Did the voltage drop to 0 volts?

Yes

>> Replace the Right Rear WSS in accordance with the Ser-

vice Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 11

11.

CHECK RIGHT REAR WSS OUTPUT

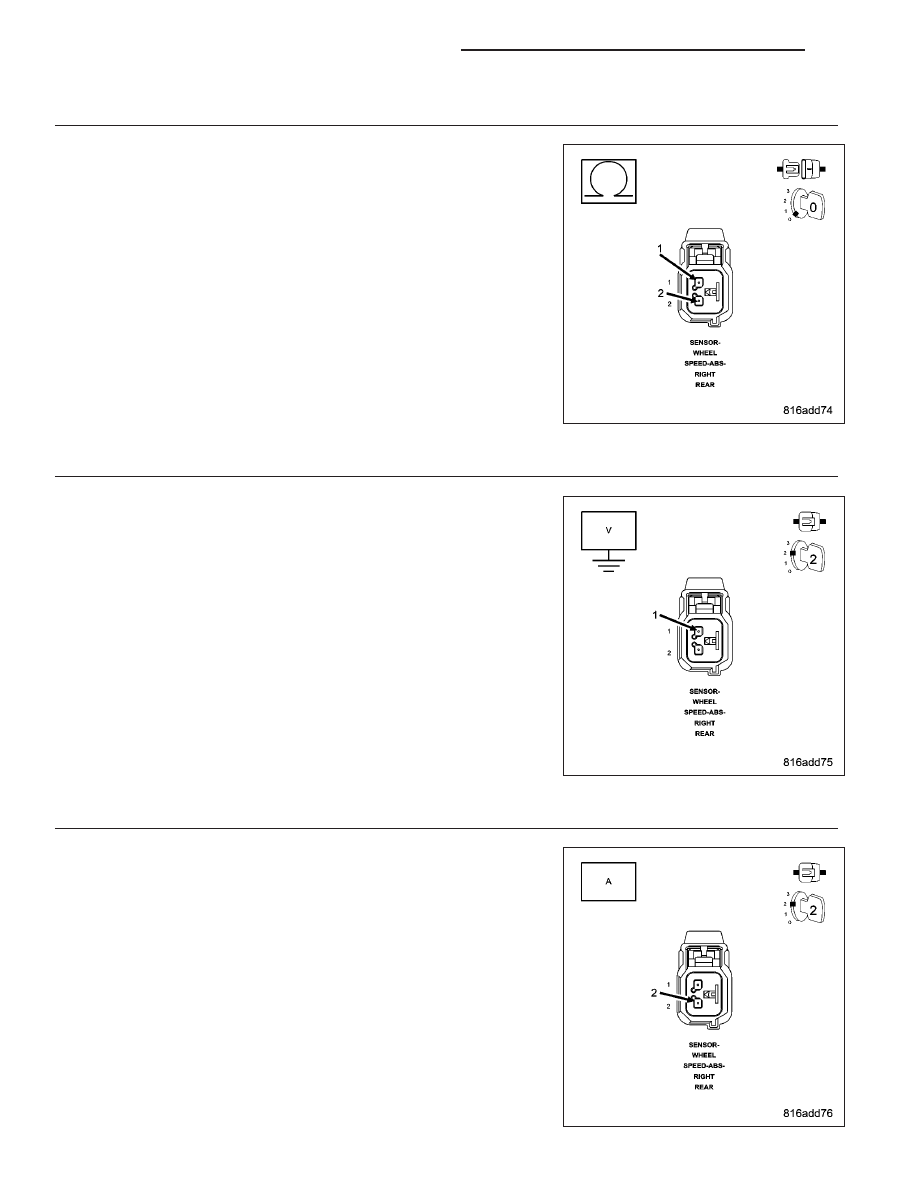

Backprobe the (B1) Right Rear WSS Signal circuit in the Right Rear
WSS harness connector with the positive lead of an ammeter.

Connect the ammeter negative lead to a good clean chassis ground.

Slowly rotate the right rear wheel.

Does the amperage toggle between 7 mA and 14 mA?

Yes

>> Replace the Anti-Lock Brakes Module in accordance with

the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Replace the Right Rear WSS in accordance with the Ser-

vice Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

5 - 124

BRAKES - ABS ELECTRICAL DIAGNOSTICS

KJ

C1073–ABS PUMP MOTOR CONTROL CIRCUIT

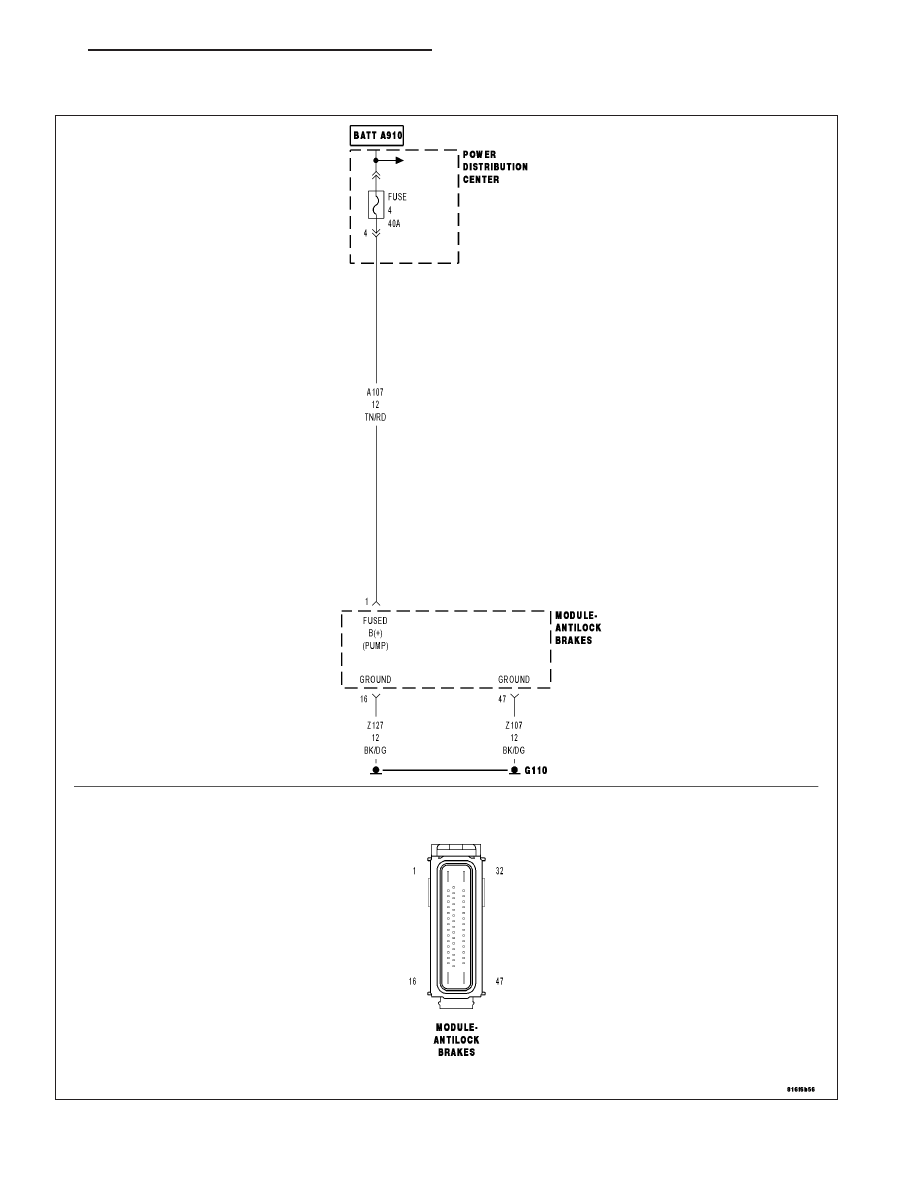

For a complete wiring diagram Refer to Section 8W.

KJ

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 125

When Monitored:
When the ABS Pump Motor is activated.

Set Condition:
If the Anti-Lock Brakes Module detects either an excessive voltage drop across the solid state pump switch
when the pump motor is activated or insufficient pump motor generator voltage at the end of ABS Pump Motor
activation.

Possible Causes

WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE

ABS PUMP MOTOR FUSE OPEN

(A107) FUSED B(+) CIRCUIT SHORTED TO GROUND, OPEN, OR HIGH RESISTANCE

(Z107) GROUND CIRCUIT OPEN, OR HIGH RESISTANCE

ANTI-LOCK BRAKES MODULE

PUMP MOTOR (HYDRAULIC CONTROL UNIT)

Diagnostic Test

1.

CHECK ABS PUMP MOTOR FOR CONTINUOUS OPERATION

NOTE: If present, diagnose and repair DTC C2116–ABS PUMP MOTOR SUPPLY LOW VOLTAGE before diag-
nosing this DTC.
Cycle the ignition from off to on.

Monitor the ABS Pump Motor for continuous operation.

Does the ABS Pump Motor run continuously?

Yes

>> Replace the Anti-Lock Brakes Module in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Go To 2

2.

REPLACE ANTI-LOCK BRAKES MODULE & VERIFY IF DTC IS STILL ACTIVE

Turn the ignition off.

Replace the Anti-Lock Brakes Module in accordance with the Service Information.

Turn the ignition on.

With the scan tool, actuate the ABS Pump Motor several times.

With the scan tool, read ABS DTCs.

Does this DTC reset?

Yes

>> Replace the Hydraulic Control Unit in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

5 - 126

BRAKES - ABS ELECTRICAL DIAGNOSTICS

KJ

C1078–TIRE REVOLUTIONS RANGE PERFORMANCE

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously.

Set Condition:
Programmed value for tire size is not within acceptable range.

Possible Causes

INCORRECT VALUE PROGRAMMED INTO BCM

Diagnostic Test

1.

VERIFY BCM IS PROGRAMMED WITH CORRECT TIRE/WHEEL INFORMATION

Verify the correct Tire/wheel information is programmed in the BCM.

Is the correct value programmed in the BCM?

Yes

>> Test complete.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Program the correct Tire/Wheel information in the BCM.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

KJ

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 127
