Jeep Liberty KJ. Manual - part 816





P1169- ECM A/D CONVERTER ERROR

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on.

Set Condition:
The ECM detects an internal failure.

Possible Causes

CHECKING FOR INJECTOR CODES

ENGINE CONTROL MODULE

INTERMITTENT CONDITION

Diagnostic Test

1.

CHECKING FOR INJECTOR CODES

Turn the ignition on.

With the scan tool, read the ECM DTCs.

Does the scan tool display any Injector Cylinder DTC?

Yes

>> Repair Fuel Injector related DTC’s before continuing.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 2

2.

ENGINE CONTROL MODULE

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.

NOTE: This DTC indicates an internal ECM problem.
Turn the ignition on.

With the scan tool, erase ECM DTCs.

Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle.

With the scan tool, read the ECM DTCs.

Did this DTC set again?

Yes

>> Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

9 - 1322

ENGINE DIESEL DIAG

KJ

P1167-CAPACITOR VOLTAGE 1

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the engine cranking or running.

Set Condition:
The ECM detects a capacitor voltage problem during injector actuation.

Possible Causes

CHECKING FOR INJECTOR CODES

ENGINE CONTROL MODULE

INTERMITTENT CONDITION

Diagnostic Test

1.

CHECKING FOR INJECTOR CODES

Turn the ignition on.

With the scan tool, read the ECM DTCs.

Does the scan tool display any Injector Cylinder DTC?

Yes

>> Repair Fuel Injector related DTC’s before continuing.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

ENGINE CONTROL MODULE

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.

NOTE: This DTC indicates an internal ECM problem.
Turn the ignition on.

With the scan tool, erase ECM DTCs.

Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle.

With the scan tool, read the ECM DTCs.

Did this DTC set again?

Yes

>> Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

KJ

ENGINE DIESEL DIAG

9 - 1323

P1167-CAPACITOR VOLTAGE 1

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the engine cranking or running.

Set Condition:
The ECM detects a capacitor voltage problem during injector actuation.

Possible Causes

CHECKING FOR INJECTOR CODES

ENGINE CONTROL MODULE

INTERMITTENT CONDITION

Diagnostic Test

1.

CHECKING FOR INJECTOR CODES

Turn the ignition on.

With the scan tool, read the ECM DTCs.

Does the scan tool display any Injector Cylinder DTC?

Yes

>> Repair Fuel Injector related DTC’s before continuing.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 2

2.

ENGINE CONTROL MODULE

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.

NOTE: This DTC indicates an internal ECM problem.
Turn the ignition on.

With the scan tool, erase ECM DTCs.

Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle.

With the scan tool, read the ECM DTCs.

Did this DTC set again?

Yes

>> Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

9 - 1324

ENGINE DIESEL DIAG

KJ

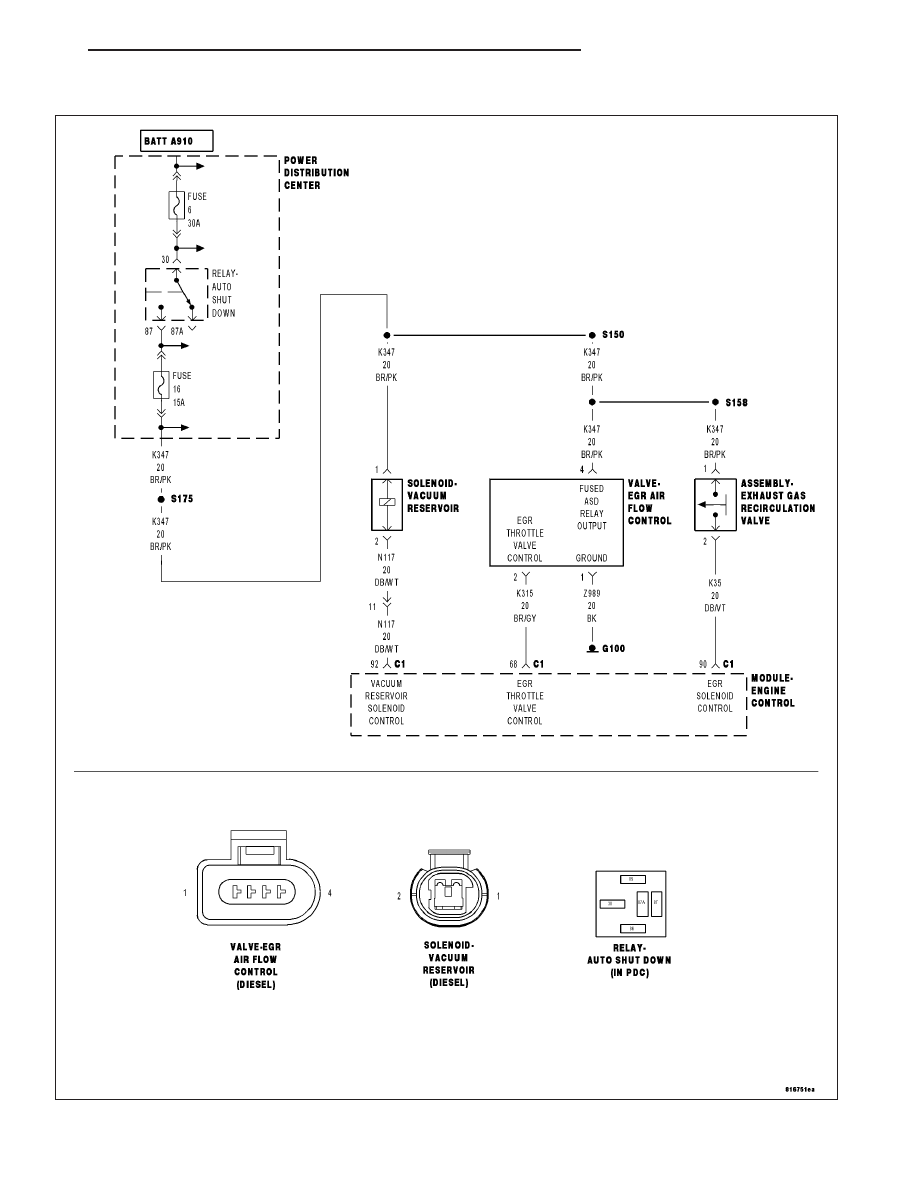

P1250-VACUUM RESERVOIR SOLENOID OPEN CIRCUIT

For a complete wiring diagram Refer to Section 8W

KJ

ENGINE DIESEL DIAG

9 - 1325
