3.

ASD RELAY

Turn the ignition off.

Install a substitute relay in place of the ASD Relay.

Turn the ignition on.

With the scan tool, erase ECM DTCs.

Perform several ignition key cycles, pausing for at least 10 seconds between each cycle.

Turn the ignition on.

With the scan tool, read ECM DTCs.

Did this DTC set again?

Yes

>> Go To 4

No

>> Replace the ASD Relay.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

4.

ASD RELAY CONTROL CIRCUIT OPEN INTERMITTENTLY

Turn the ignition off.

Remove the ASD Relay from the PDC.

Disconnect the ECM harness connectors.

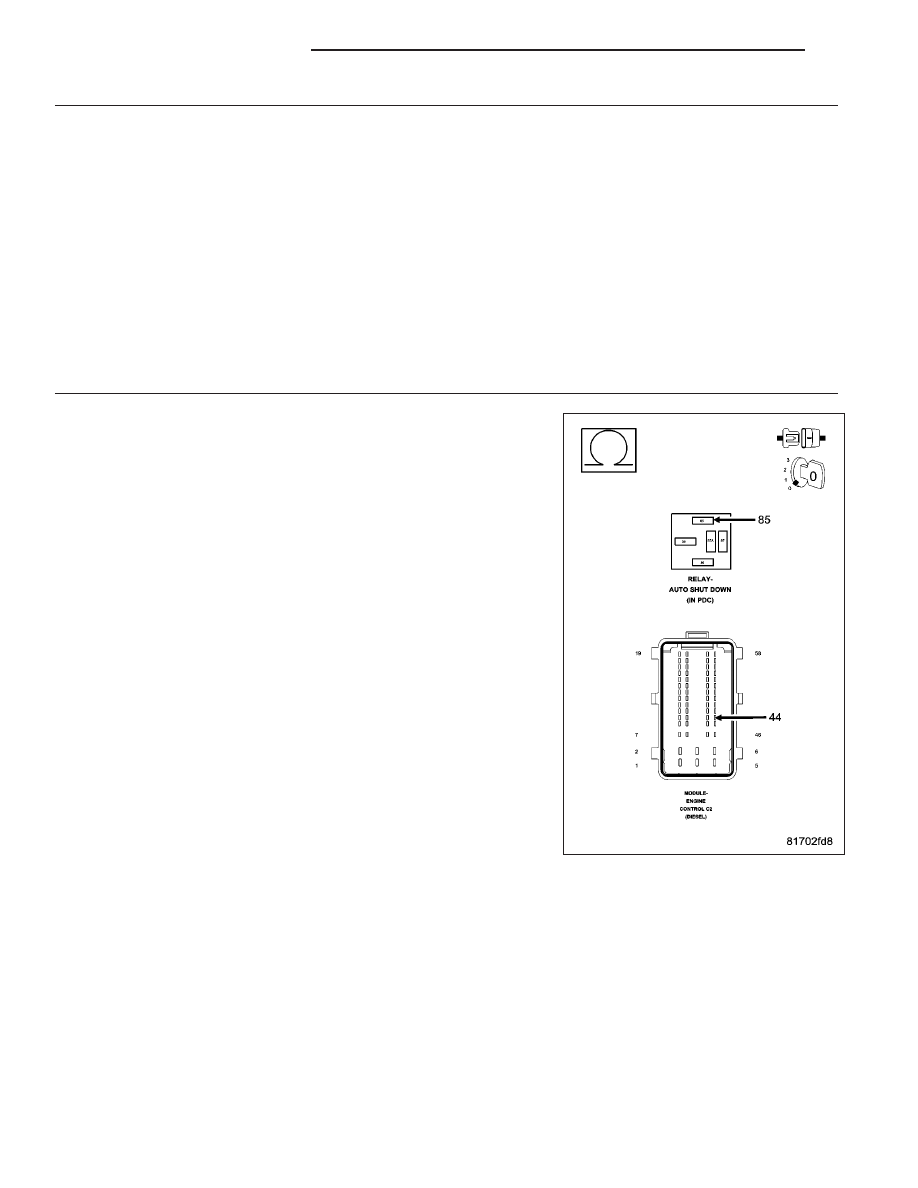

Measure the resistance of the ASD Relay Control circuit while wiggling
the wiring harness and connectors between the ECM and the PDC.

Was the resistance above 10.0 ohms at any time while wiggling
the wiring harness and connectors?

Yes

>> Repair the ASD Relay Control circuit for an intermittent

open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 1178

ENGINE DIESEL DIAG

KJ

P0685-ASD RELAY CONTROL CIRCUIT SHUTS OFF TOO LATE

For a complete wiring diagram Refer to Section 8W

When Monitored:
During after-run.

Set Condition:
The internal ECM timer determines that the ASD Relay did not shut off after the AFTER-RUN mode of oper-
ation has been completed.

Possible Causes

CHECK FOR OTHER DTCS

INTERMITTENT CONDITION

SUBSTITUTE ASD RELAY

ASD RELAY CONTROL CIRCUIT OPEN INTERMITTENTLY

ENGINE CONTROL MODULE

Diagnostic Test

1.

CHECK FOR OTHER DTCS

Turn the ignition on.

With the scan tool, check for additional DTCs.

Are other DTCs present?

Yes

>> Refer to the Symptom List for diagnosis of the other DTCs before continuing.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 2

2.

CLEAR CODE AND CHECK IF THE DTC RESETS

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the scan tool, erase ECM DTCs.

Perform several ignition key cycles, pausing for at least 20 seconds between each cycle.

Turn the ignition on.

With the scan tool, read ECM DTCs.

Did this DTC set again?

Yes

>> Go To 3

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

KJ

ENGINE DIESEL DIAG

9 - 1179

3.

ASD RELAY

Turn the ignition off.

Install a substitute relay in place of the ASD Relay.

Turn the ignition on.

With the scan tool, erase ECM DTCs.

Perform several ignition key cycles, pausing for at least 10 seconds between each cycle.

Turn the ignition on.

With the scan tool, read ECM DTCs.

Did this DTC set again?

Yes

>> Go To 4

No

>> Replace the ASD Relay.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

4.

ASD RELAY CONTROL CIRCUIT OPEN INTERMITTENTLY

Turn the ignition off.

Remove the ASD Relay from the PDC.

Disconnect the ECM harness connectors.

Measure the resistance of the ASD Relay Control circuit while wiggling
the wiring harness and connectors between the ECM and the PDC.

Was the resistance above 10.0 ohms at any time while wiggling
the wiring harness and connectors?

Yes

>> Repair the ASD Relay Control circuit for an intermittent

open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 1180

ENGINE DIESEL DIAG

KJ

P0686-ECM VOLTAGE ERROR LOW

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on or the engine running.

Set Condition:
The ECM detects low battery voltage.

Possible Causes

CHECKING ECM POWER AND GROUNDS

ECM

INTERMITTENT CONDITION

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the scan tool, erase ECM DTCs.

NOTE: This DTC may be caused by a charging system problem. Refer to the Service Information and verify
proper charging system operation before continuing.
Test drive the vehicle.

Turn the ignition on.

With the scan tool, read ECM DTCs.

Did this DTC set again?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

CHECK POWER AND GROUNDS

Refer to the symptom list and perform the Checking the ECM Power and Ground test.

Were any problem found with the ECM powers and grounds?

Yes

>> Repair as necessary.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

KJ

ENGINE DIESEL DIAG

9 - 1181
