Jeep Liberty KJ. Manual - part 703





When Monitored:
With the ignition on.

Set Condition:
The Boost Pressure Sensor signal voltage is below 0.29 volt for 0.5 seconds.

Possible Causes

BOOST PRESSURE SENSOR 5-VOLT SUPPLY CIRCUIT OPEN

BOOST PRESSURE/INTAKE AIR TEMPERATURE SENSOR

BOOST PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

BOOST PRESSURE SENSOR SIGNAL AND GROUND CIRCUITS SHORTED TOGETHER

BOOST PRESSURE SENSOR SIGNAL CIRCUIT OPEN

ENGINE CONTROL MODULE

Diagnostic Test

1.

READ THE BOOST PRESSURE SENSOR VOLTAGE ON THE SCAN TOOL

NOTE: If DTC P0641, P0651 or P0697 is present with this DTC,
diagnose DTCs P0641, P0651 or P0697 before diagnosing this DTC.
Turn the ignition on.

With the scan tool, read the Boost Pressure Sensor voltage.

Is the voltage below 0.2 volt?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC

Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS
AND TESTING)

9 - 870

ENGINE DIESEL DIAG

KJ

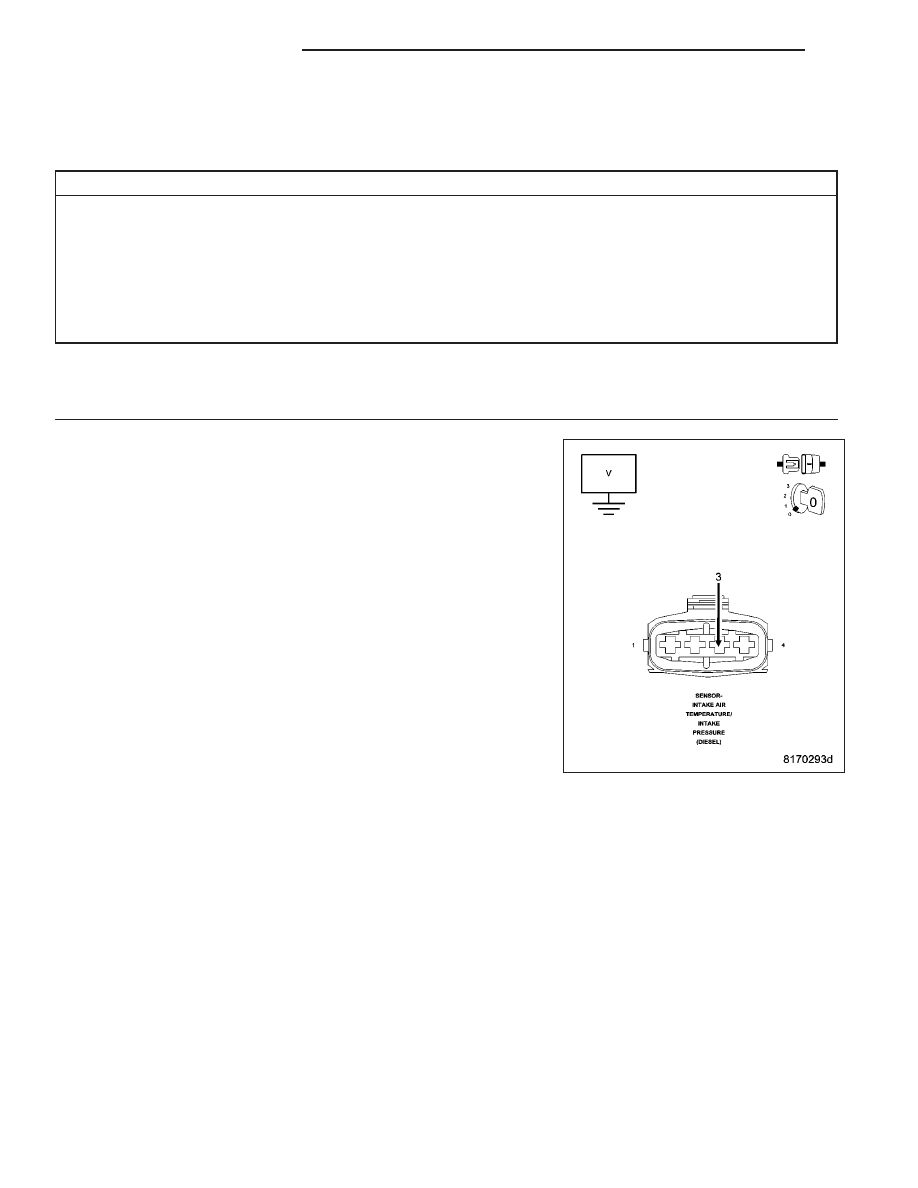

2.

SENSOR REFERENCE VOLTAGE B CIRCUIT OPEN

Turn the ignition off.

Disconnect the Boost Pressure/IAT Sensor harness connector.

Turn the ignition on.

Measure the voltage between ground and the Boost Pressure Sensor
5-Volt Supply circuit.

Is the voltage above 4.9 volts?

Yes

>> Go To 3

No

>> Repair the Boost Pressure Sensor 5-Volt Supply circuit for

an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

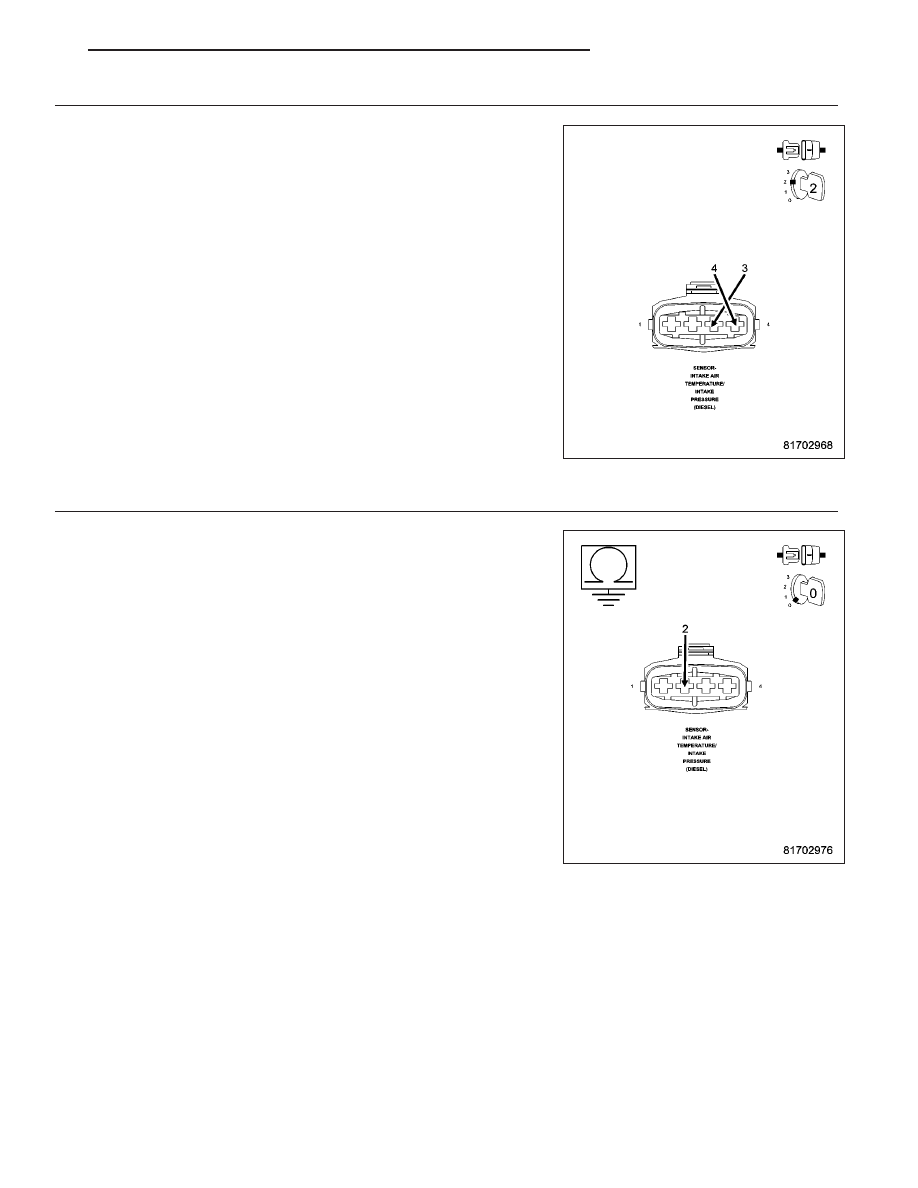

3.

BOOST PRESSURE/INTAKE AIR TEMPERATURE SENSOR

Turn the ignition off.

Disconnect the Boost Pressure/IAT Sensor harness connector.

Turn the ignition on.

Connect a jumper wire between the Boost Pressure Sensor Signal and
Boost Pressure Sensor 5-Volt Supply circuits.

With the scan tool, read the Boost Pressure Sensor voltage.

Is the Boost Pressure Sensor voltage above 4.5 volts?

Yes

>> Replace the Boost Pressure/Intake Air Temperature Sensor.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 4

KJ

ENGINE DIESEL DIAG

9 - 871

4.

BOOST PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the ECM harness connectors.

Measure the resistance between ground and the Boost Pressure Sen-
sor Signal circuit.

Is the resistance above 1000 ohms?

Yes

>> Go To 5

No

>> Repair the Boost Pressure Sensor Signal circuit for a short

to ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

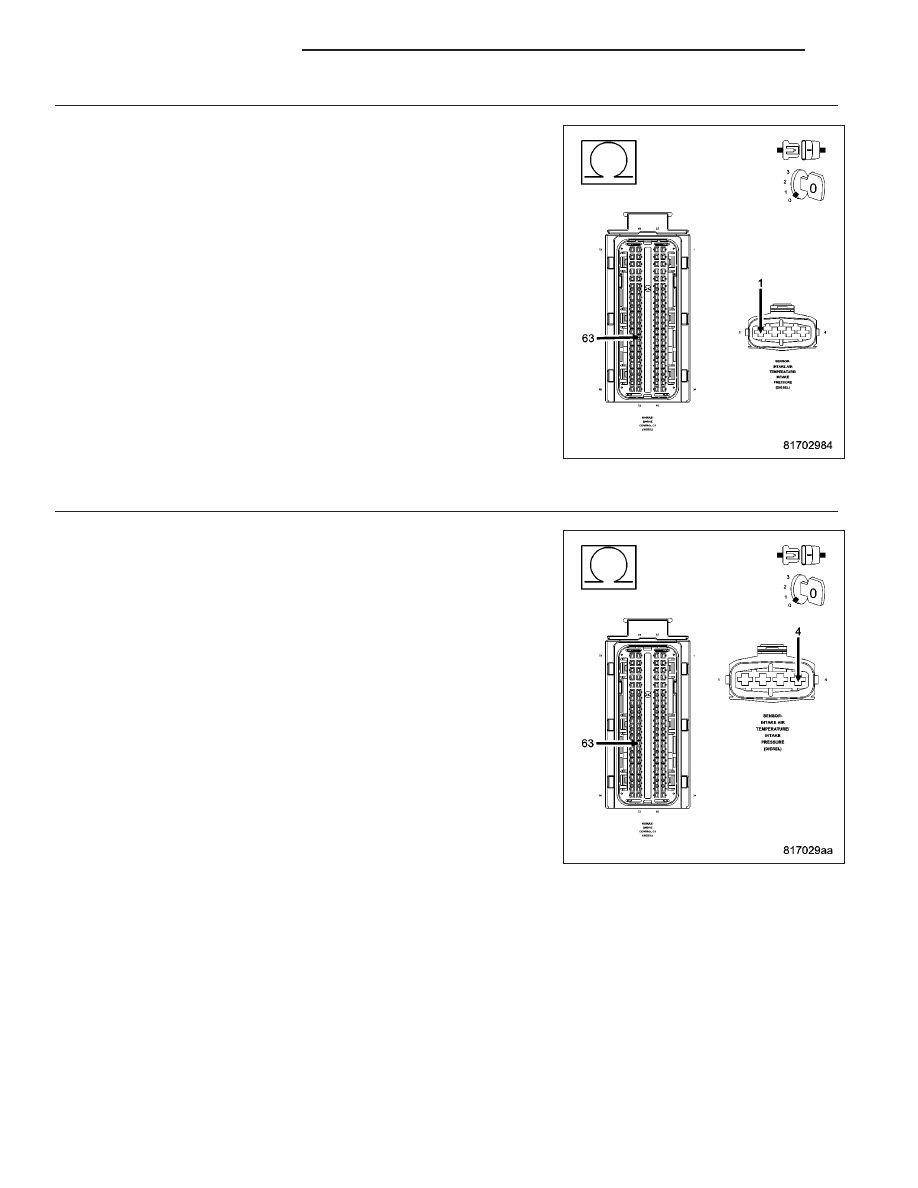

5.

BOOST PRESSURE SENSOR SIGNAL AND GROUND CIRCUITS SHORTED TOGETHER

Measure the resistance between the Boost Pressure Sensor Signal cir-
cuit and Sensor Ground circuit.

Is the resistance above 1000 ohms?

Yes

>> Go To 6

No

>> Repair the Boost Pressure Sensor Signal circuit for a short

to the Sensor Ground circuit.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 872

ENGINE DIESEL DIAG

KJ

6.

BOOST PRESSURE SENSOR SIGNAL CIRCUIT OPEN

Measure the resistance of the Boost Pressure Sensor Signal circuit.

Is the resistance below 10.0 ohms?

Yes

>> Go To 7

No

>> Repair the Boost Pressure Sensor Signal circuit for an

open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

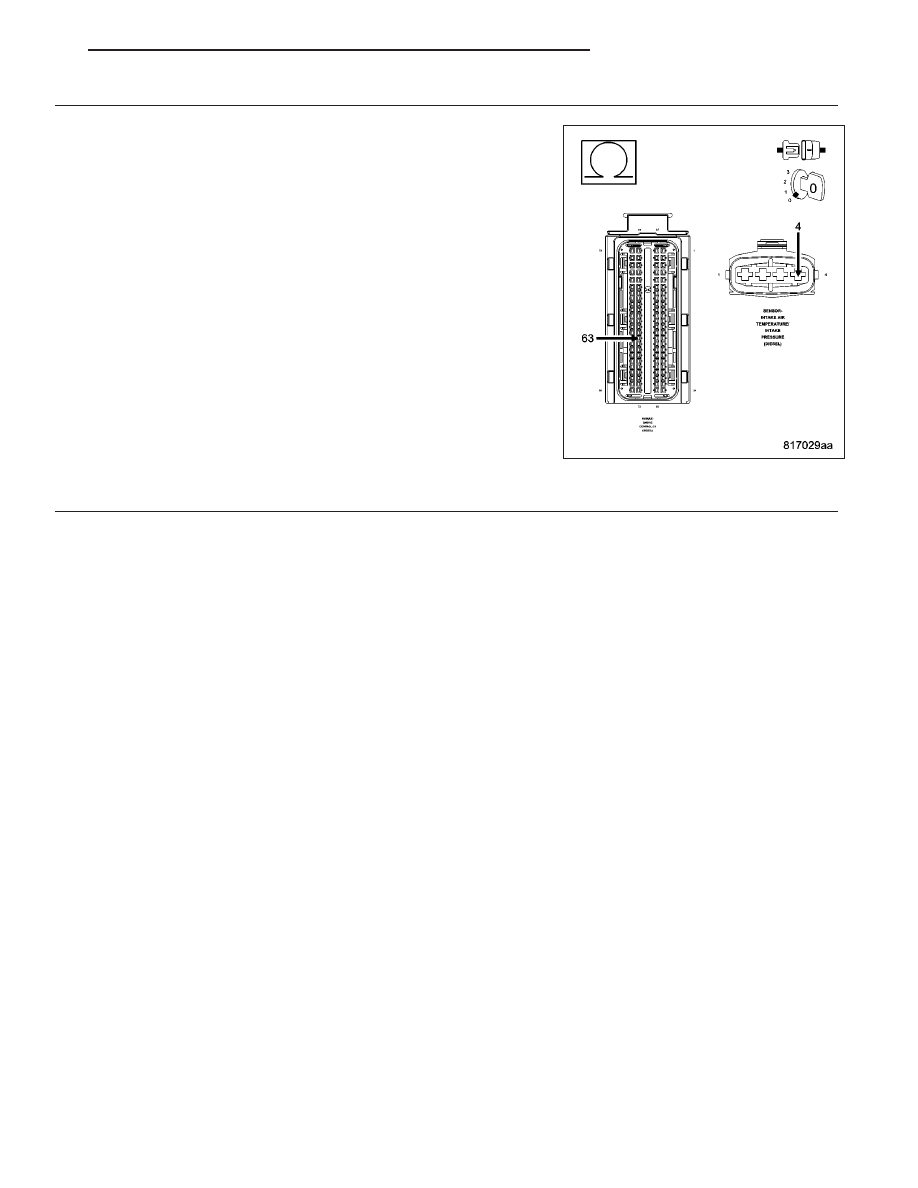

7.

ENGINE CONTROL MODULE

If there are no possible causes remaining, view repair.

Repair

Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

KJ

ENGINE DIESEL DIAG

9 - 873
