Jeep Liberty KJ. Manual - part 683





P0180-FUEL TEMPERATURE SENSOR SIGNAL VOLTAGE TOO LOW

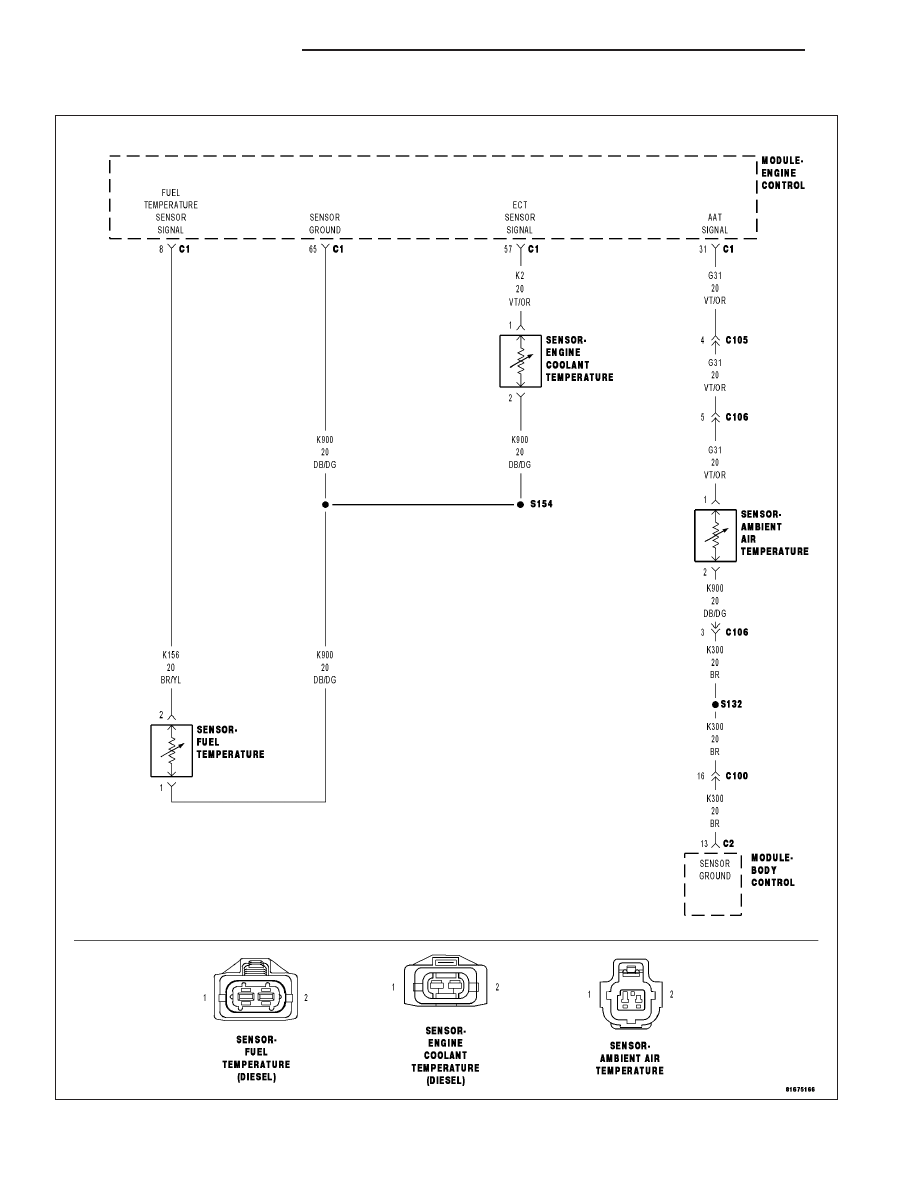

For a complete wiring diagram Refer to Section 8W

9 - 790

ENGINE DIESEL DIAG

KJ

When Monitored:
With the ignition on.

Set Condition:
The Fuel Temperature Sensor signal is below 0.12 volt for 0.5 seconds.

Possible Causes

INTERMITTENT CONDITION

FUEL TEMPERATURE SENSOR

FUEL TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

FUEL TEMPERATURE SENSOR SIGNAL AND GROUND CIRCUITS SHORTED TOGETHER

ENGINE CONTROL MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the scan tool, monitor the Fuel Temperature Sensor voltage.

Is the Fuel Temperature Sensor voltage below 0.20 volt?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

FUEL TEMPERATURE SENSOR

Turn the ignition off.

Disconnect the Fuel Temperature Sensor harness connector.

Turn the ignition on.

With the scan tool, read the Fuel Temperature Sensor voltage.

Is the voltage above 4.0 volts?

Yes

>> Replace the Fuel Temperature Sensor in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> 3

KJ

ENGINE DIESEL DIAG

9 - 791

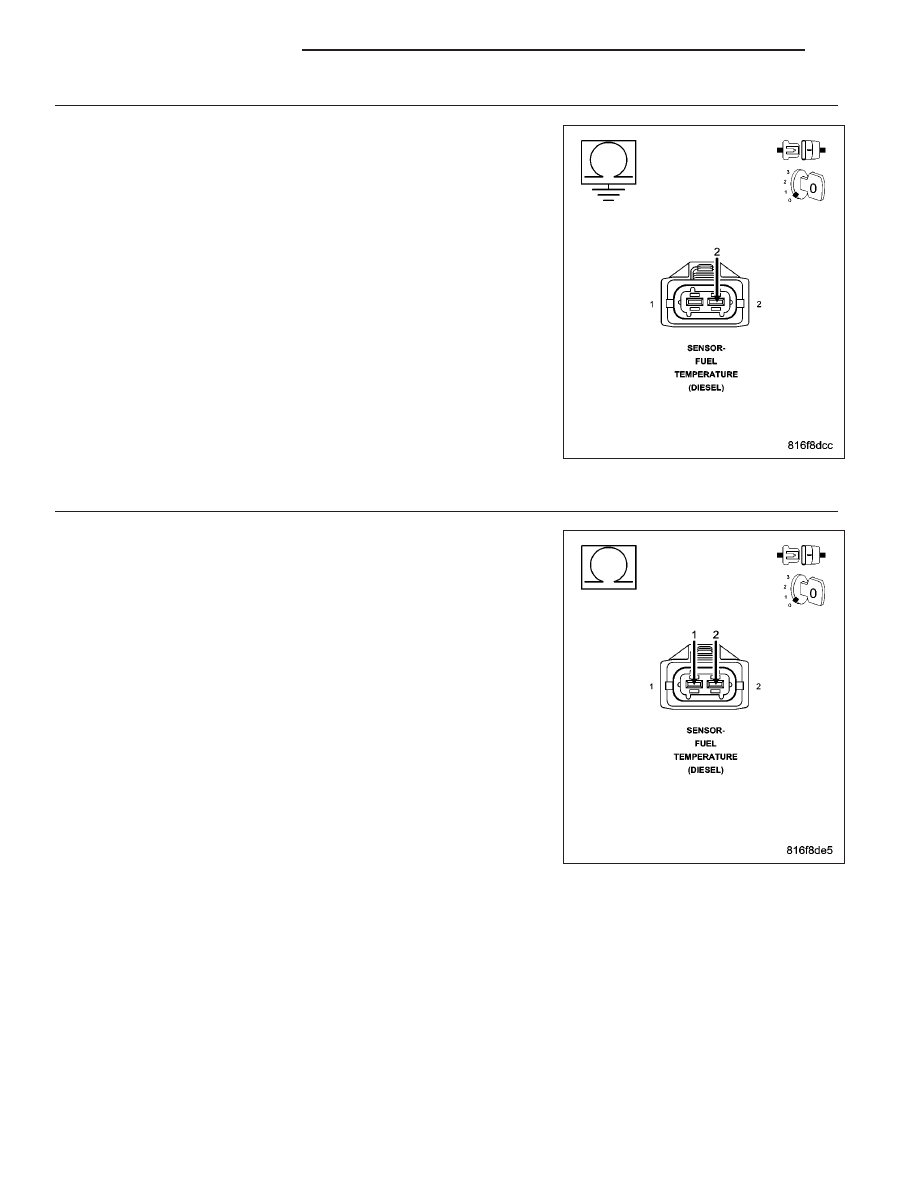

3.

FUEL TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the ECM harness connectors.

Disconnect the Fuel Temperature Sensor harness connector.

Measure the resistance between ground and the Fuel temperature Sen-
sor Signal circuit.

Is the resistance above 1000 ohms?

Yes

>> Go To 4

No

>> Repair the Fuel Temperature Sensor Signal circuit for a

short to ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

4.

FUEL TEMPERATURE SENSOR SIGNAL AND GROUND CIRCUITS SHORTED TOGETHER

Turn the ignition off.

Disconnect the ECM harness connectors.

Disconnect the Fuel Temperature Sensor harness connector.

Measure the resistance between the Fuel Temperature Sensor Signal
circuit and Sensor Ground circuit.

Is the resistance above 1000 ohms?

Yes

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Repair the Fuel Temperature Sensor Signal and Ground cir-

cuits for a short together.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 792

ENGINE DIESEL DIAG

KJ

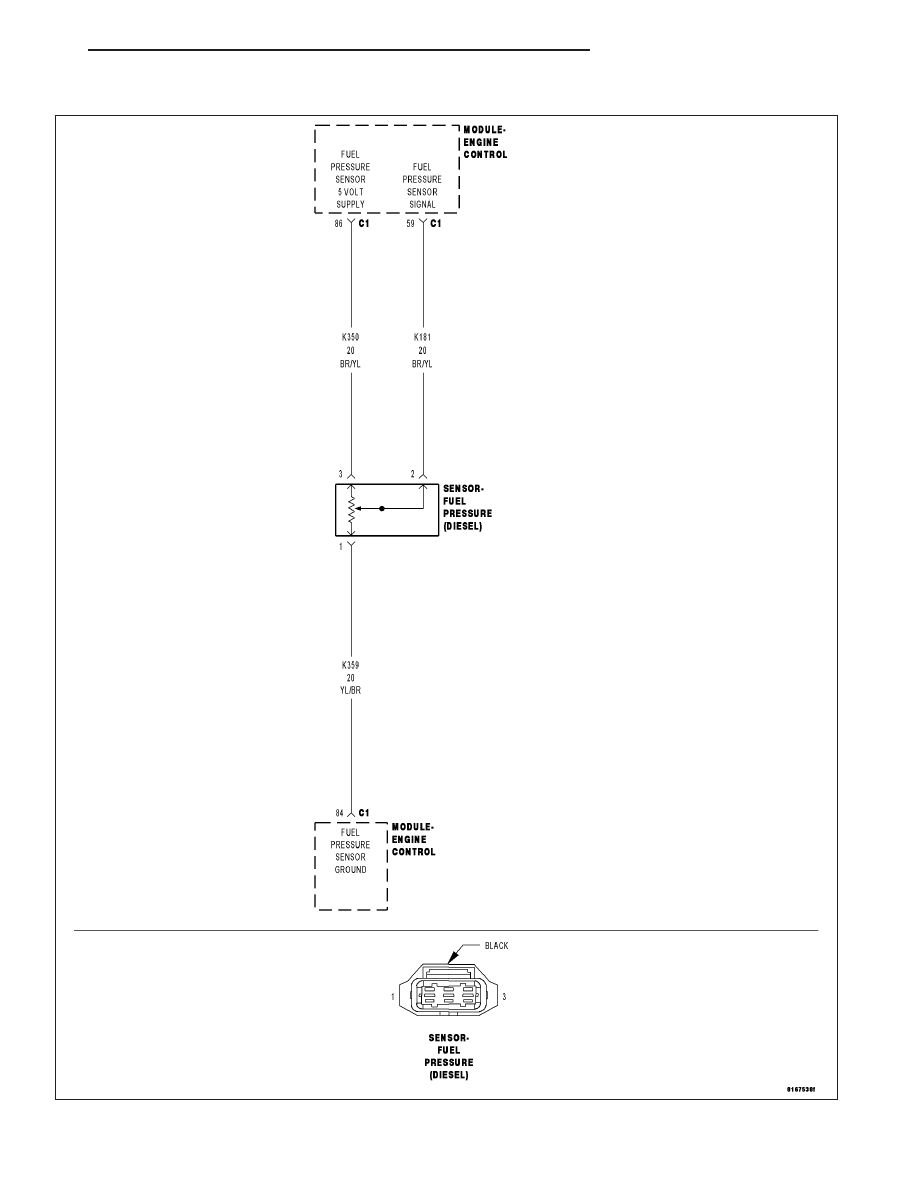

P0190-FUEL PRESS SENSOR SIGNAL VOLTAGE TOO HIGH

For a complete wiring diagram Refer to Section 8W

KJ

ENGINE DIESEL DIAG

9 - 793
