Jeep Liberty KJ. Manual - part 604





When Monitored:
With the ignition on. Engine running.

Set Condition:
When the PCM tries to regulate the generator field with no result during monitoring for more than 2.7 seconds.
One Trip Fault. Three good trips to turn off the MIL.

Possible Causes

(K125) GEN FIELD CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE

(K125) GEN FIELD CONTROL CIRCUIT OPEN

(K125) GEN FIELD CONTROL CIRCUIT SHORTED TO GROUND

(Z932) GROUND CIRCUIT OPEN

GENERATOR

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

ACTIVE DTC

Ignition on, engine not running.

With a scan tool, read DTCs.

Is the DTC active at this time?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

2.

GENERATOR OPERATION

Turn the ignition off.

Disconnect the Generator Field harness connector.

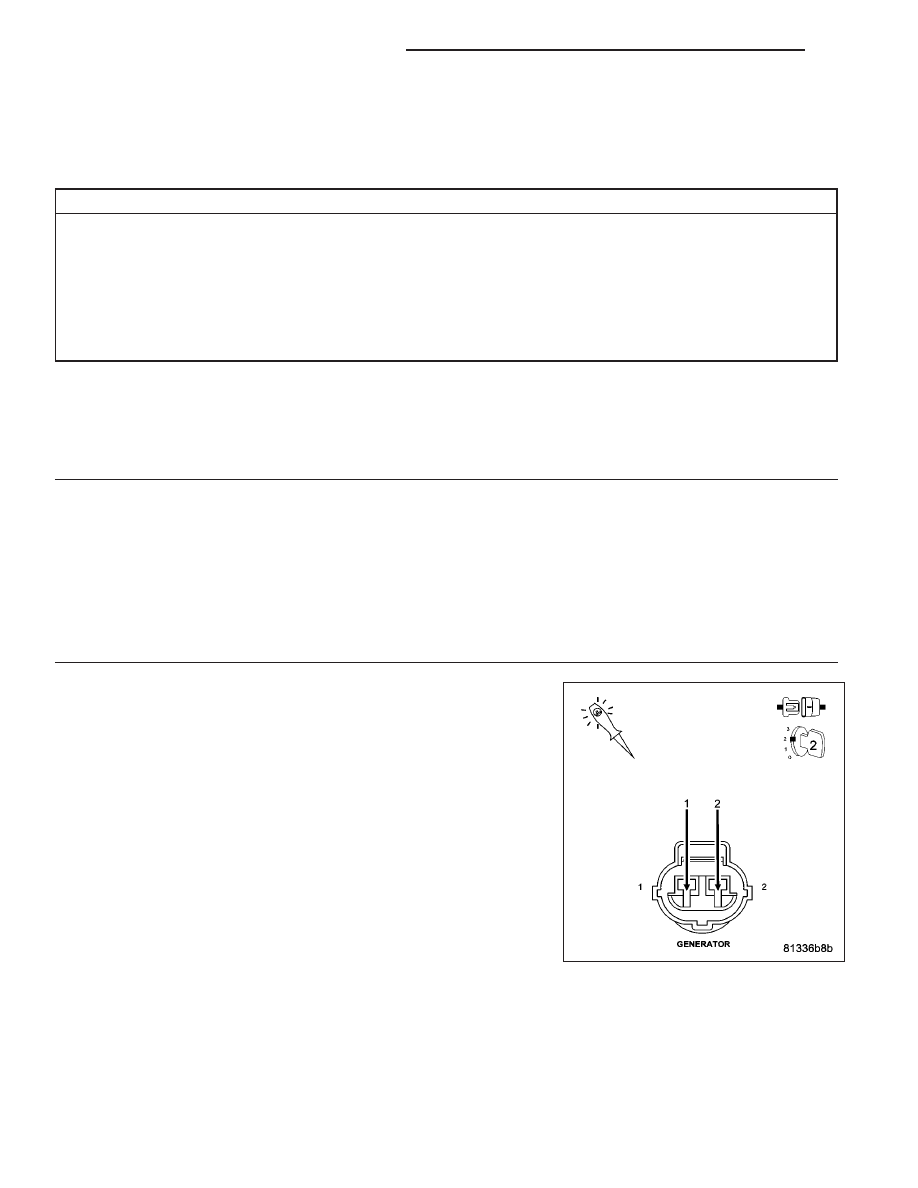

Using a 12-volt test light, jump it across the Generator Field harness
connector.

Ignition on, engine not running.

With the scan tool, actuate the Generator Field Control circuit.

Does the test light illuminate brightly and flash on and off?

Yes

>> Replace the Generator.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 3

9 - 474

ENGINE ELECTRICAL DIAGNOSTICS

KJ

3.

(K125) GEN FIELD CIRCUIT SHORTED BATTERY VOLTAGE

Turn the ignition off.

Disconnect the C2 PCM harness connector.

Ignition on, engine not running.

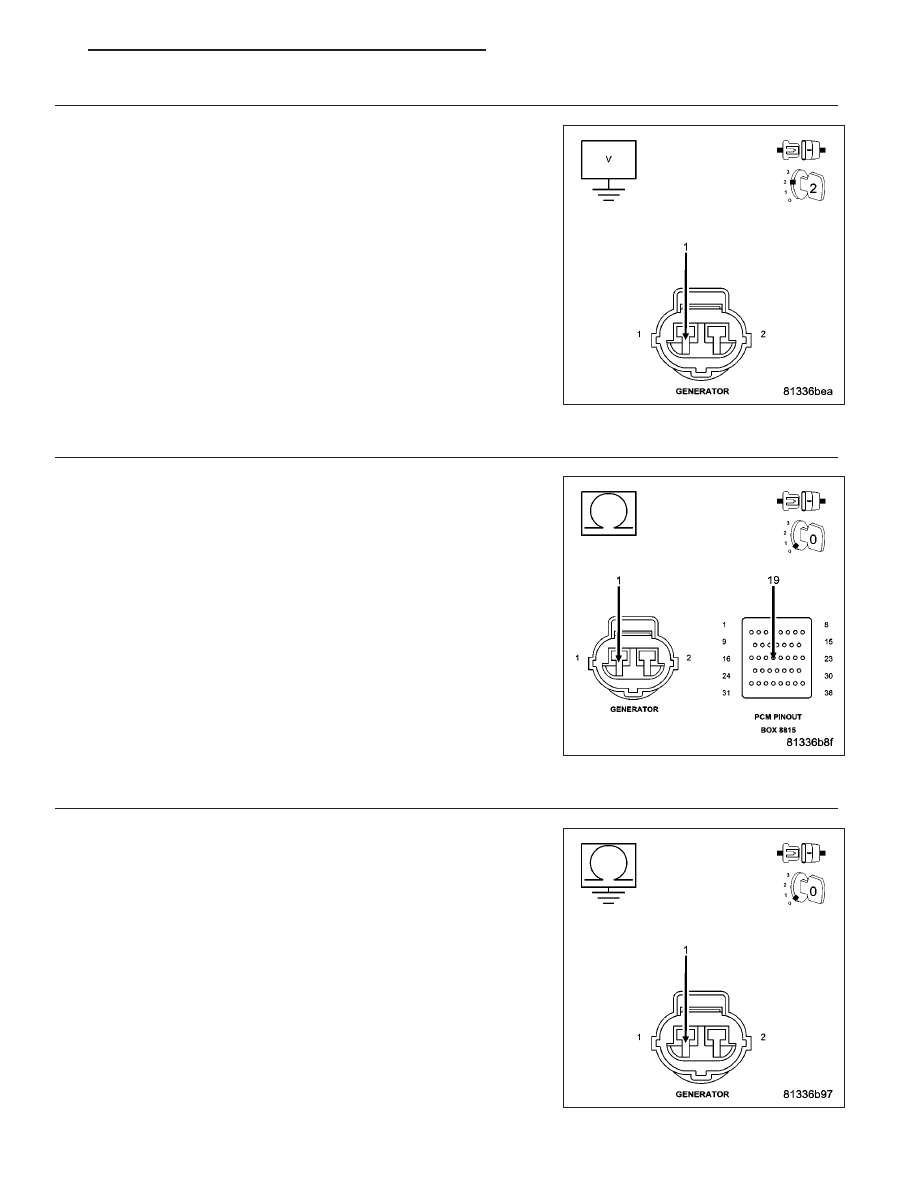

Measure the voltage on the (K125) Gen Field Control circuit in the Gen-
erator Field harness connector.

Is the voltage above 1.0 volt?

Yes

>> Repair the short to battery voltage in the (K125) Gen Field

Control circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 4

4.

(K125) GEN FIELD CIRCUIT OPEN

Turn the ignition off.

CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin connection. Install Miller Special Tool #8815
to perform diagnosis.
Measure the resistance of the (K125) Gen Field Control circuit from the
Generator Field harness connector to appropriate terminal of the special
tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Repair the open in the (K125) Gen Field Control circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

5.

(K125) GEN FIELD CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (K125) Gen Field Con-
trol circuit in the Generator Field harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (K125) Gen Field Control

circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 6

KJ

ENGINE ELECTRICAL DIAGNOSTICS

9 - 475

6.

(Z932) GROUND CIRCUIT OPEN

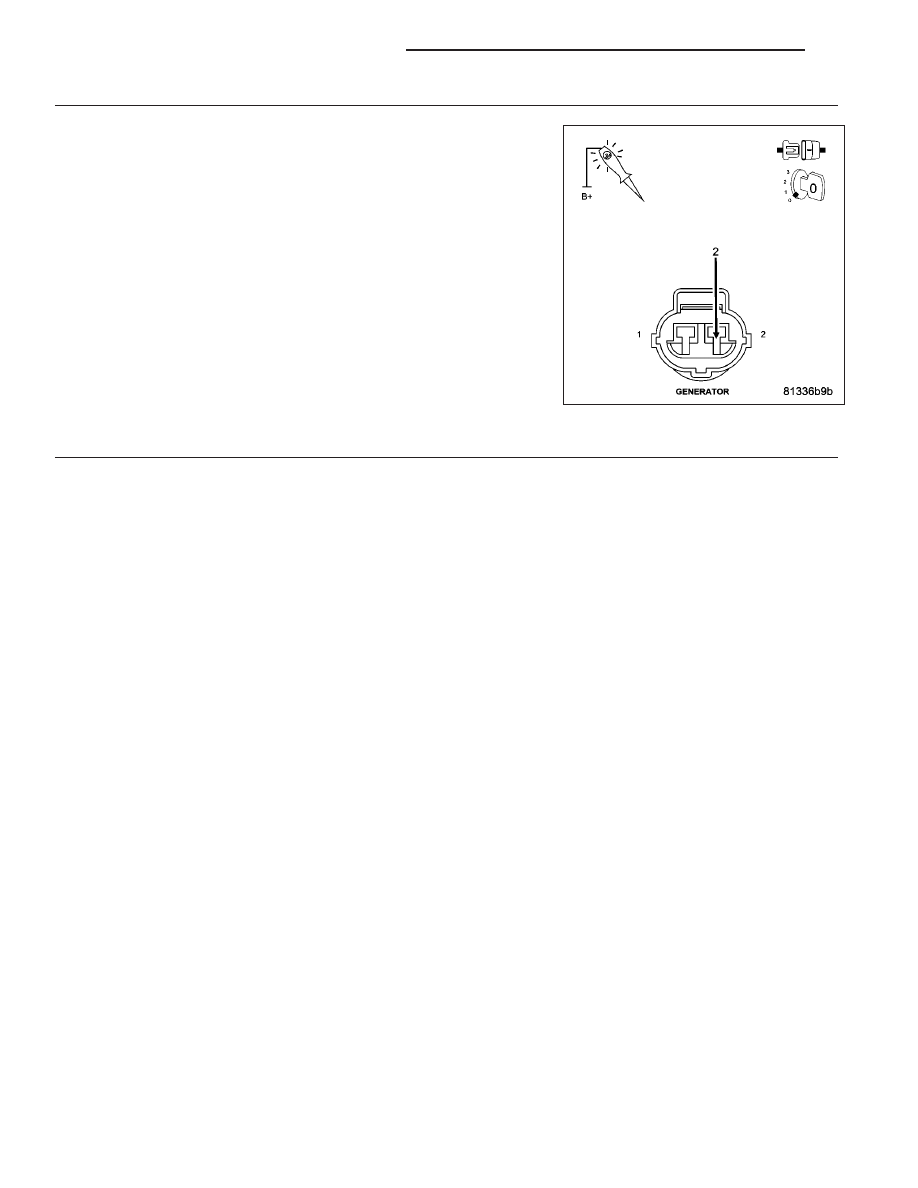

Using a 12-volt test light connected to battery voltage, probe the (Z932)
Ground circuit in the Gen Field harness connector.

Does the test light illuminate brightly?

Yes

>> Go To 7

No

>> Repair the open in the (Z932) Ground circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

7.

PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Replace and program the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

9 - 476

ENGINE ELECTRICAL DIAGNOSTICS

KJ

P0627-FUEL PUMP CONTROL CIRCUIT

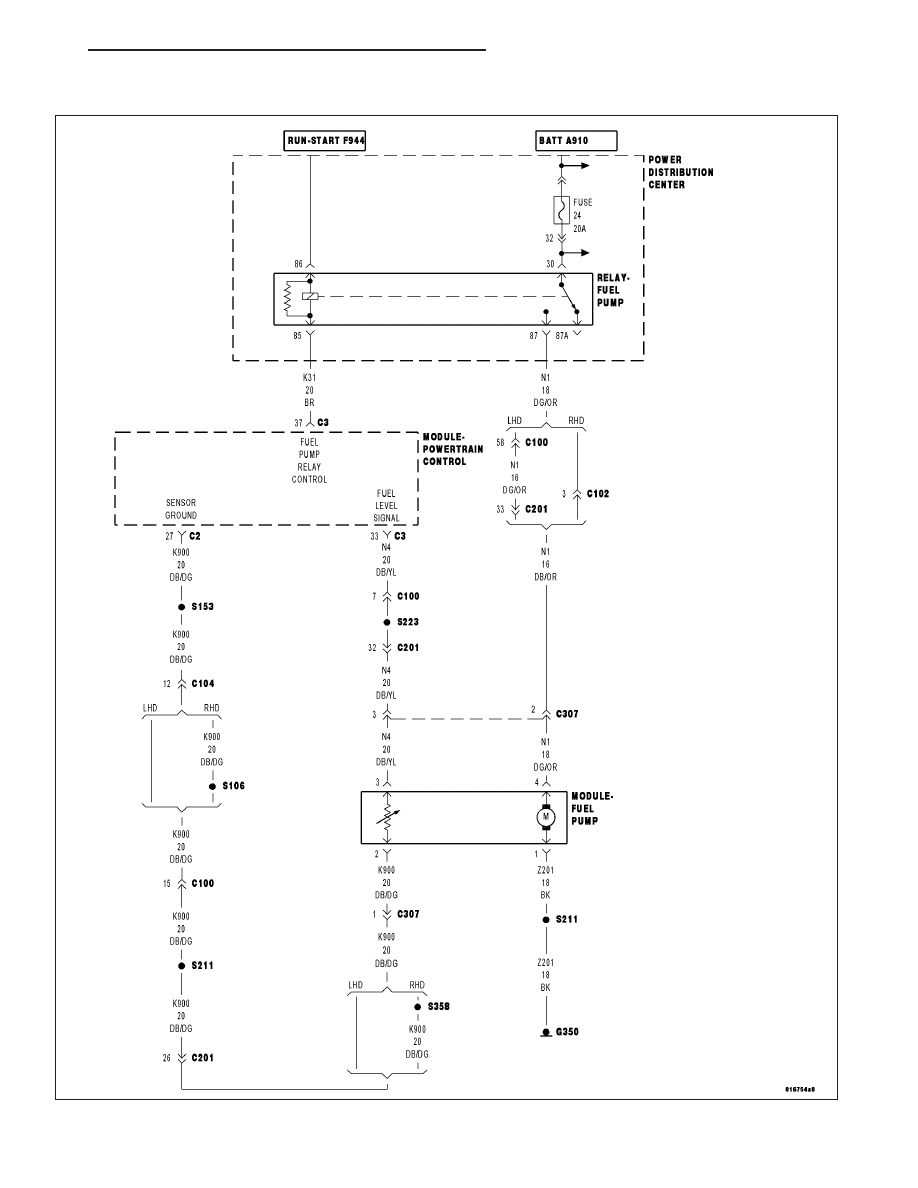

For a complete wiring diagram Refer to Section 8W.

KJ

ENGINE ELECTRICAL DIAGNOSTICS

9 - 477
