Jeep Liberty KJ. Manual - part 580





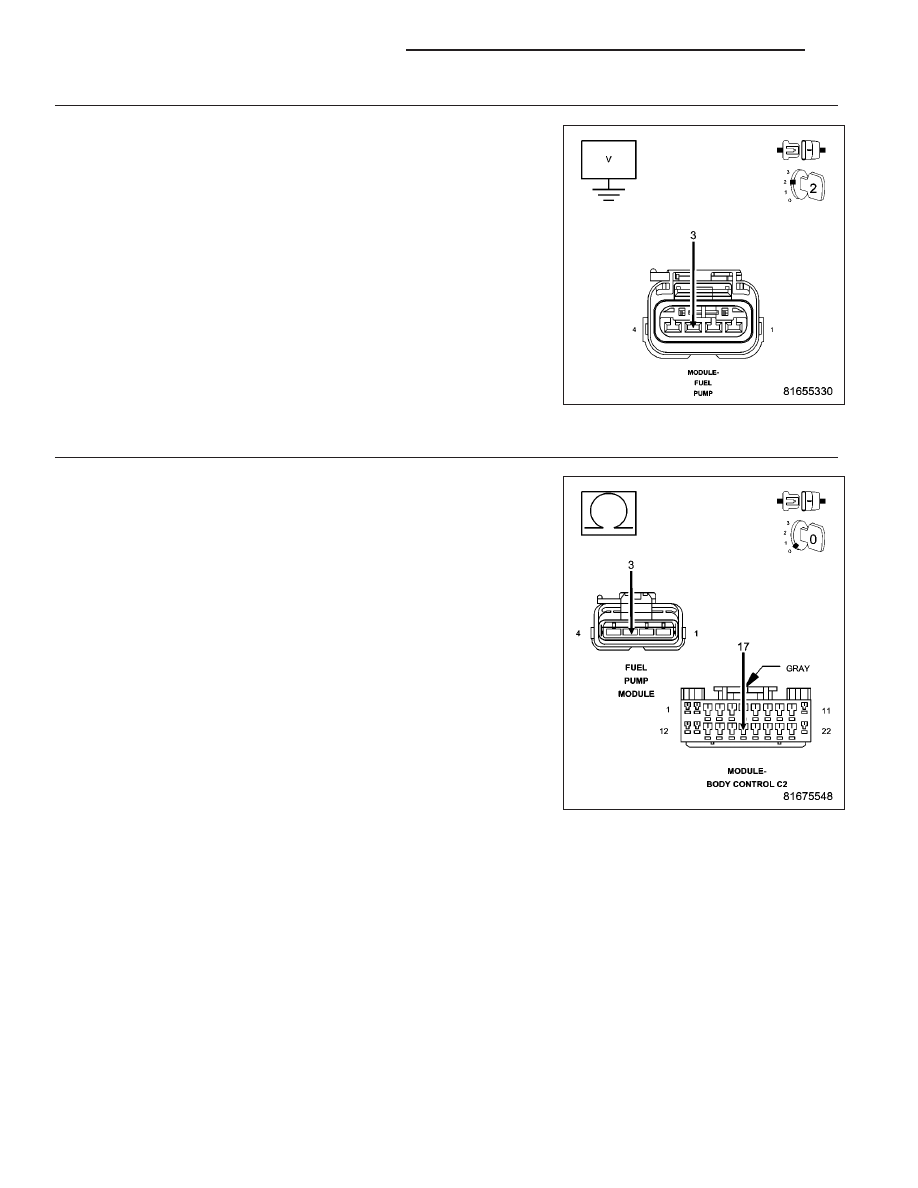

3.

(N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO VOLTAGE

Disconnect the Fuel Pump Module harness connector.

Ignition on, engine not running.

Measure the voltage on the (N4) Fuel Level Signal circuit in the Fuel
Pump Module harness connector.

Is the voltage above 0.5 of a volt?

Yes

>> Repair the short to voltage in the (N4) Fuel Level Signal cir-

cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 4

4.

(N4) FUEL LEVEL SIGNAL CIRCUIT OPEN

Turn the ignition off.

Disconnect the C2 BCM harness connector.

Measure the resistance of the (N4) Fuel Level Signal circuit from the
Fuel Pump Module harness connector to the C2 BCM harness connec-
tor.

Is the resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Repair the open in the (N4) Fuel Level Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

9 - 378

ENGINE ELECTRICAL DIAGNOSTICS

KJ

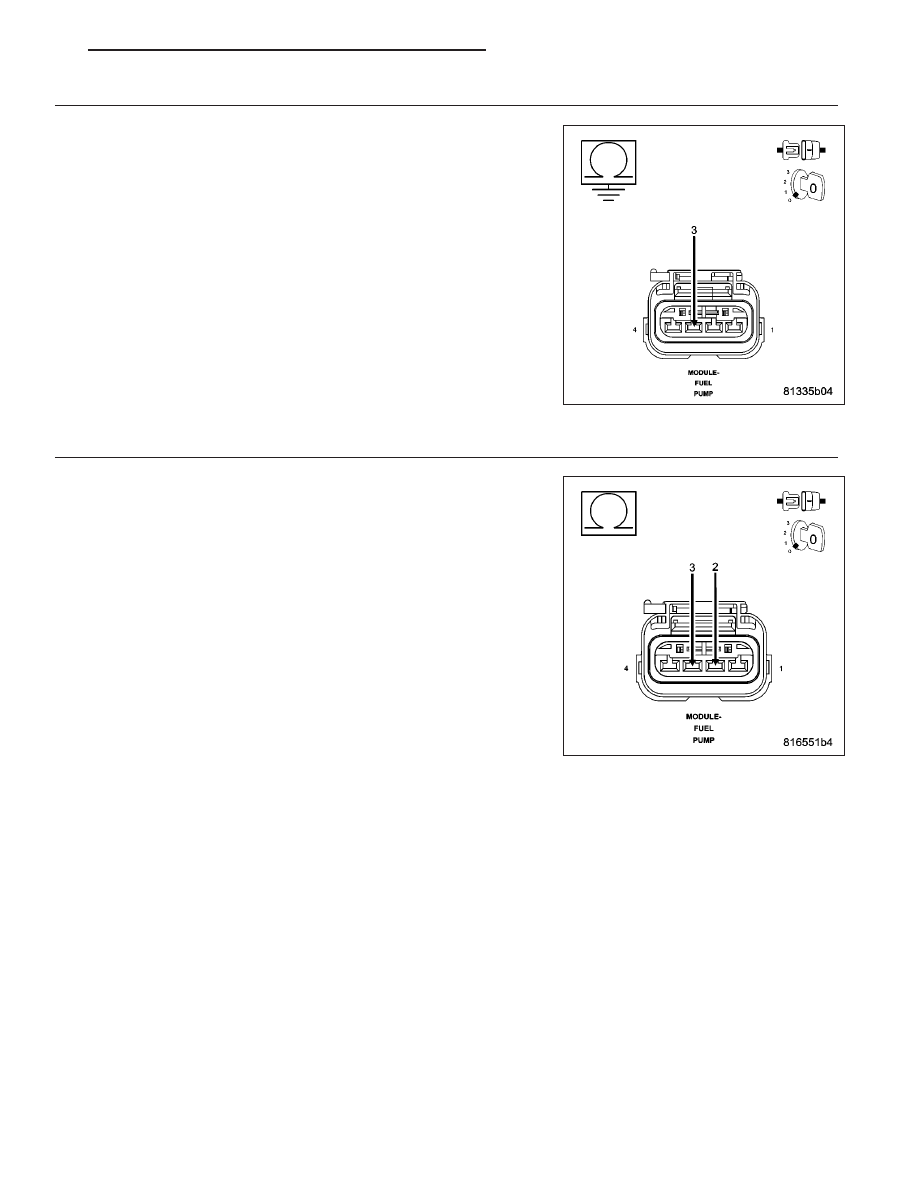

5.

(N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (N4) Fuel Level Signal
circuit in the Fuel Pump Module harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (N4) Fuel Level Signal cir-

cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 6

6.

(N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO THE (K310) SENSOR GROUND CIRCUIT

Measure the resistance between the (K310) Sensor ground circuit and
the (N4) Fuel Level Signal circuit in the Fuel Pump Module harness
connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short between the (K310) Sensor ground circuit

and the (N4) Fuel Level Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 7

KJ

ENGINE ELECTRICAL DIAGNOSTICS

9 - 379

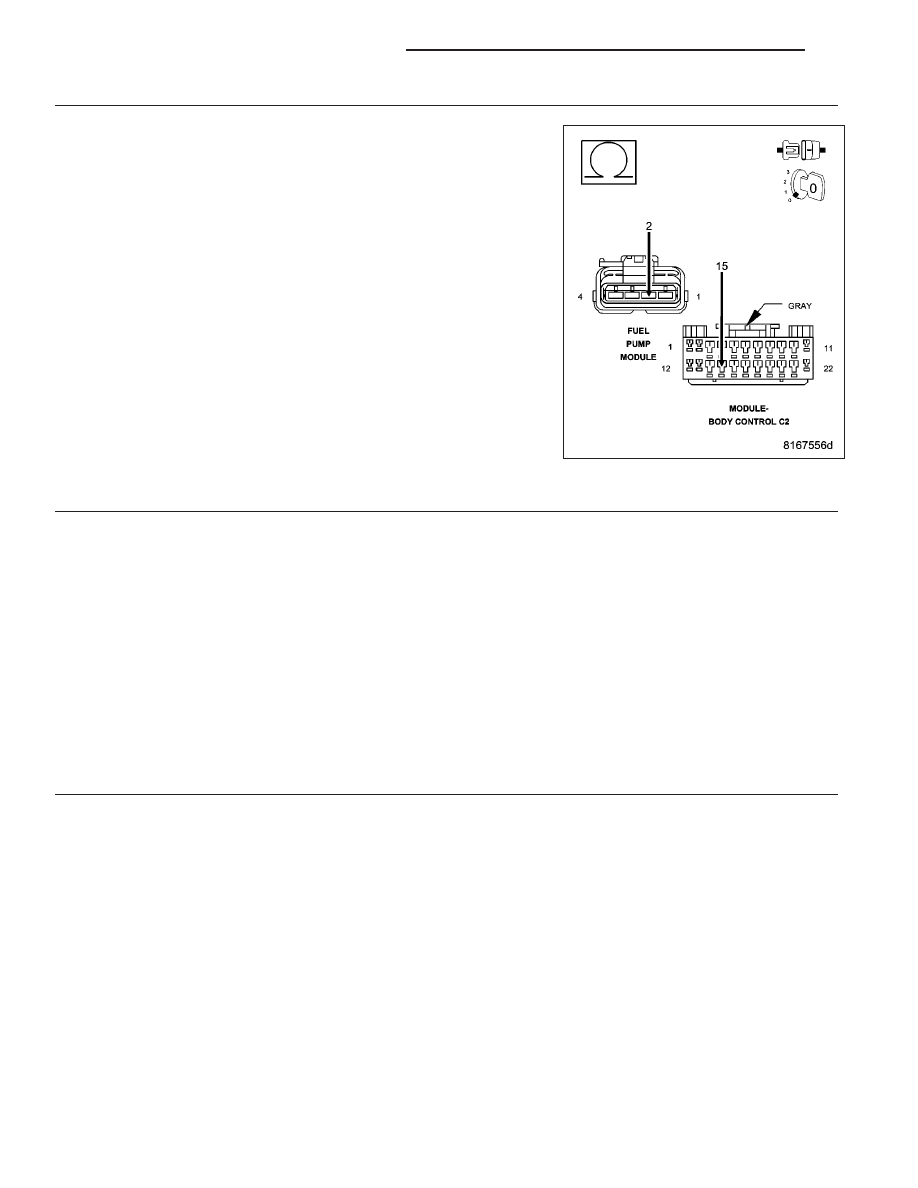

7.

(K310) SENSOR GROUND CIRCUIT OPEN

Measure the resistance of the (K310) Sensor ground circuit from the
Fuel Pump Module harness connector to the C2 BCM harness connec-
tor.

Is the resistance below 5.0 ohms?

Yes

>> Go To 8

No

>> Repair the open in the (K310) Sensor ground circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

8.

INTERNAL INSPECTION OF THE FUEL TANK

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Remove the Fuel Tank per Service Information.

Remove the Fuel Pump Module.

Visually inspect the inside of the Fuel Tank for any obstructions or deformities.

Inspect the Fuel Pump Module Float arm for damage.

Were any problems found?

Yes

>> Repair or replace as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 9

9.

FUEL LEVEL SENSOR

If there are no possible causes remaining, view repair.

Repair

Replace the Fuel Level Sensor.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

9 - 380

ENGINE ELECTRICAL DIAGNOSTICS

KJ

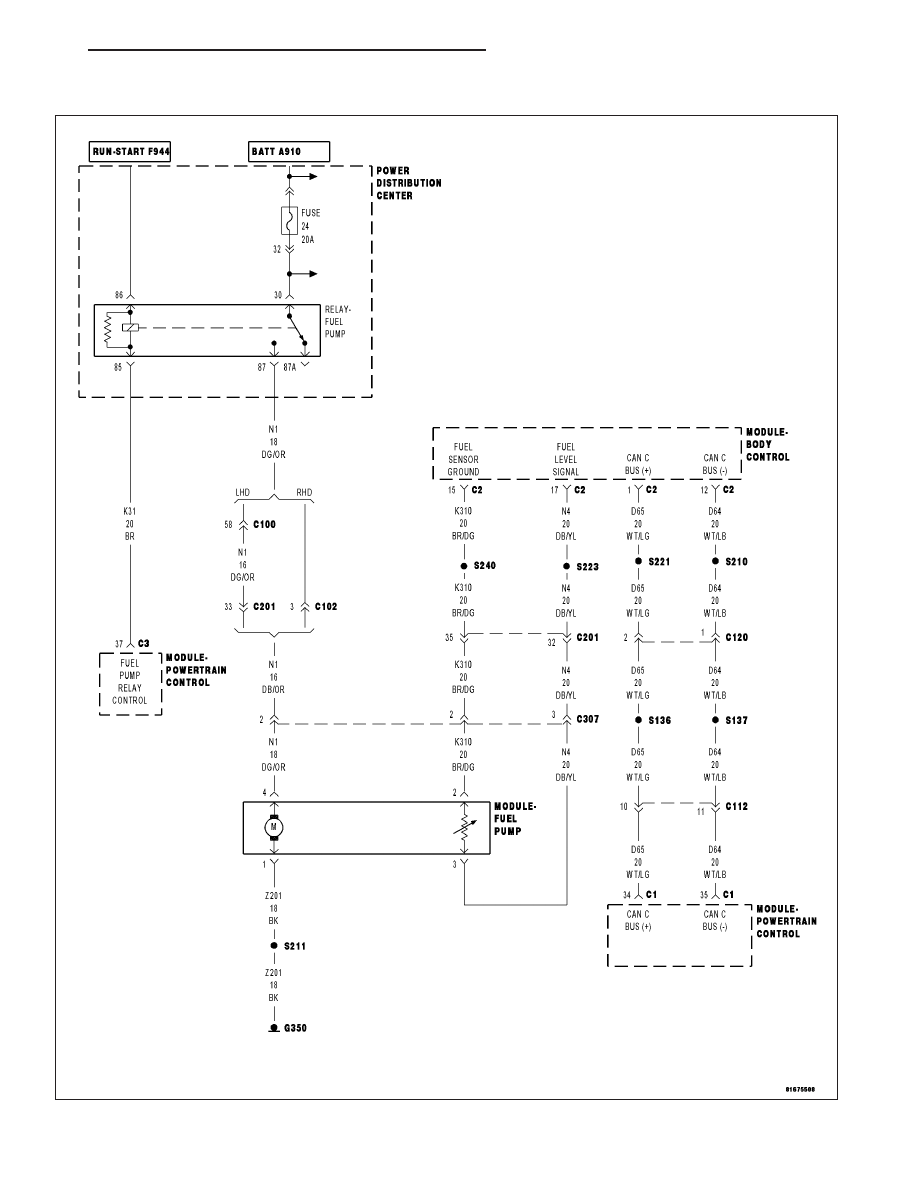

P0462-FUEL LEVEL SENSOR 1 CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

KJ

ENGINE ELECTRICAL DIAGNOSTICS

9 - 381
