ISO FLARING

A preformed metal brake tube is recommended and
preferred for all repairs. However, double-wall steel
tube can be used for emergency repair when factory
replacement parts are not readily available.

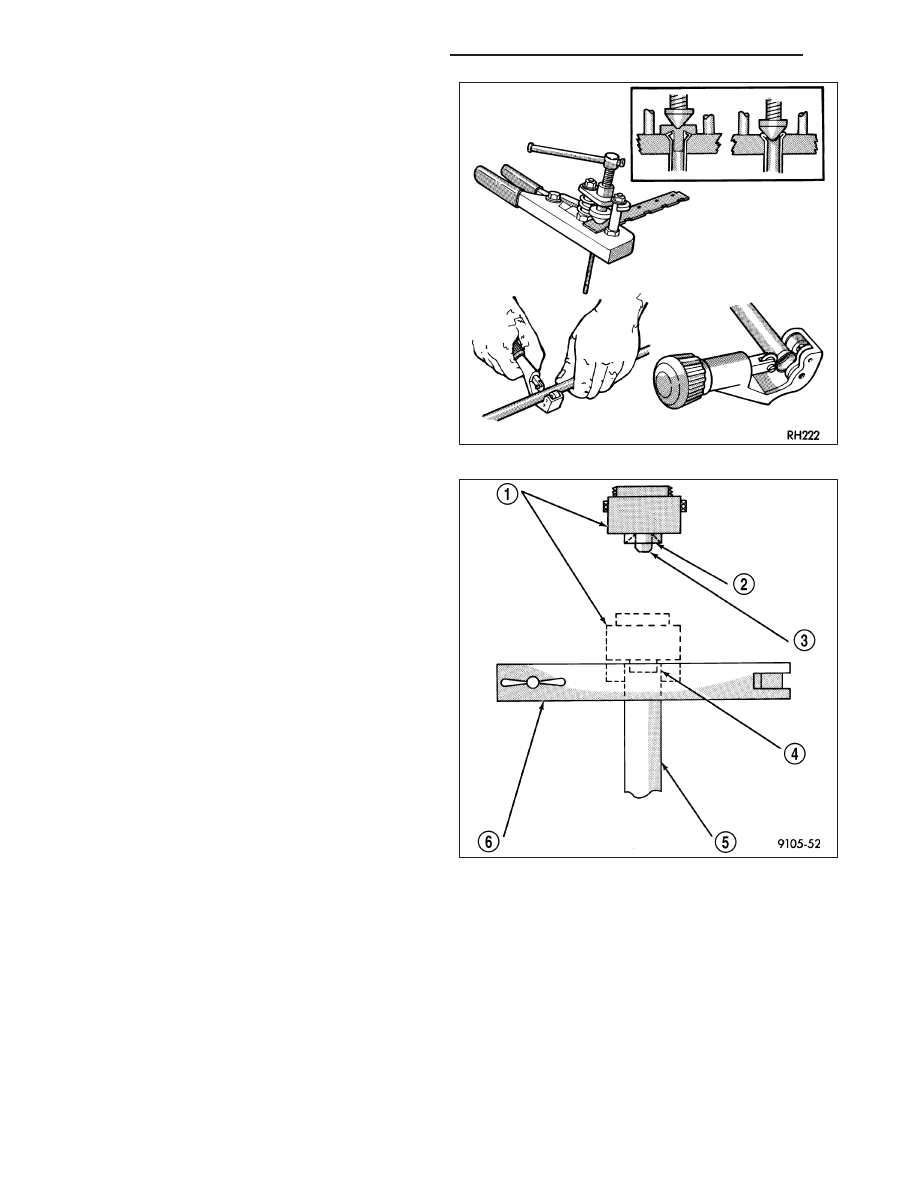

To make a ISO flare use a Flaring Tool kit.

1. Cut off damaged tube with Tubing Cutter.

2. Remove any burrs from the inside of the tube.

3. Install tube nut on the tube.

4. Position the tube in the flaring tool flush with the

top of the tool bar. Then tighten the tool bar on the
tube.

5. Install the correct size adaptor on the flaring tool

yoke screw.

6. Lubricate the adaptor.

7. Align the adaptor and yoke screw over the tube.

8. Turn the yoke screw in until the adaptor is squarely

seated on the tool bar.

5 - 12

BRAKES - BASE - SERVICE INFORMATION

KJ

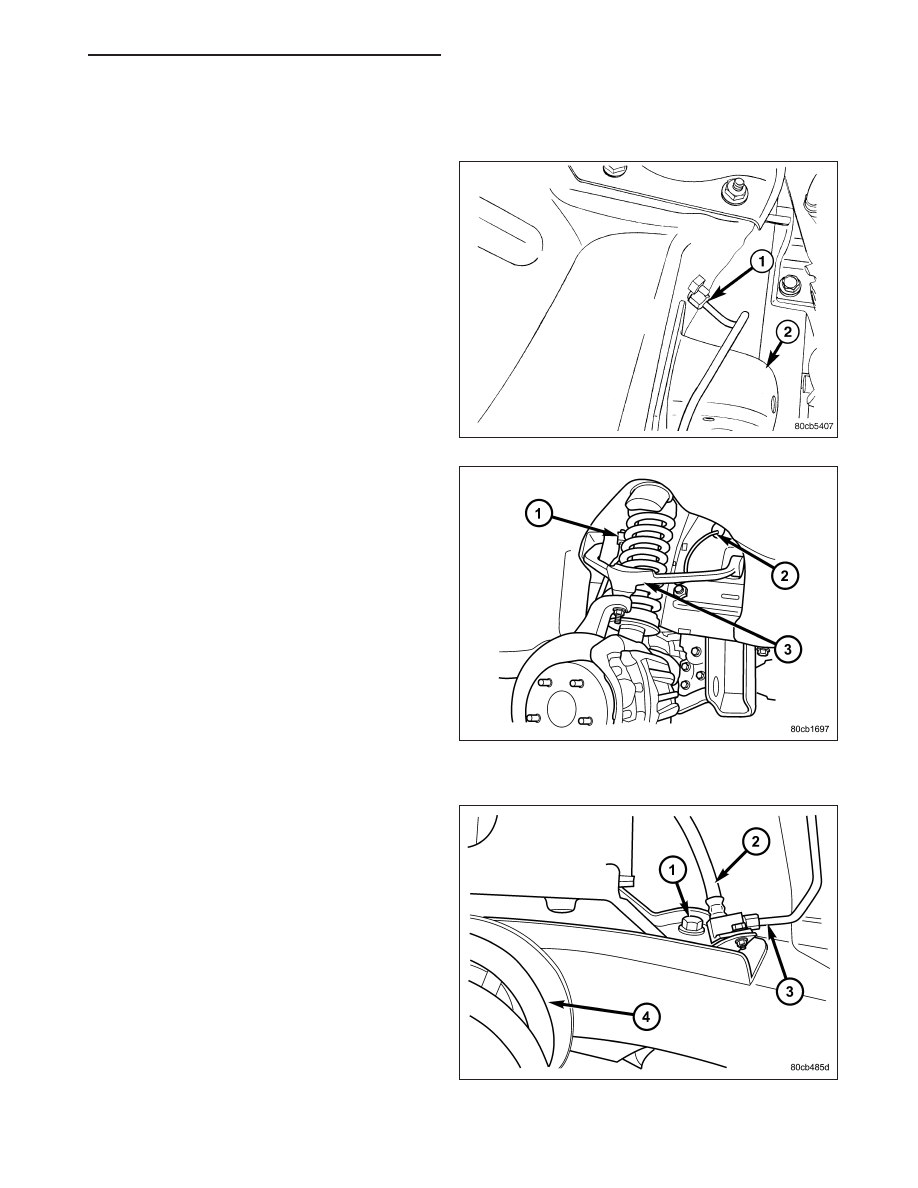

REMOVAL

FRONT BRAKE CALIPER HOSE

1. Install prop rod on the brake pedal to keep pres-

sure on the brake system.

2. Remove the brake line (1) from the brake hose

inside the engine compartment by the front control
arm bolt (2).

3. Raise and support vehicle.

4. Remove the brake hose banjo bolt at the caliper.

5. Remove the mounting bolt for the top of the brake

hose (1) at the vehicle.

6. Remove the hose.

REAR BRAKE HOSE

1. Install prop rod on the brake pedal to keep pres-

sure on the brake system.

2. Raise and support the vehicle.

3. Remove the brake line (3) from the hose (2) at the

body.

4. Remove the brake hose mounting bolt (1) at the

top of the hose located at the body.

KJ

BRAKES - BASE - SERVICE INFORMATION

5 - 13

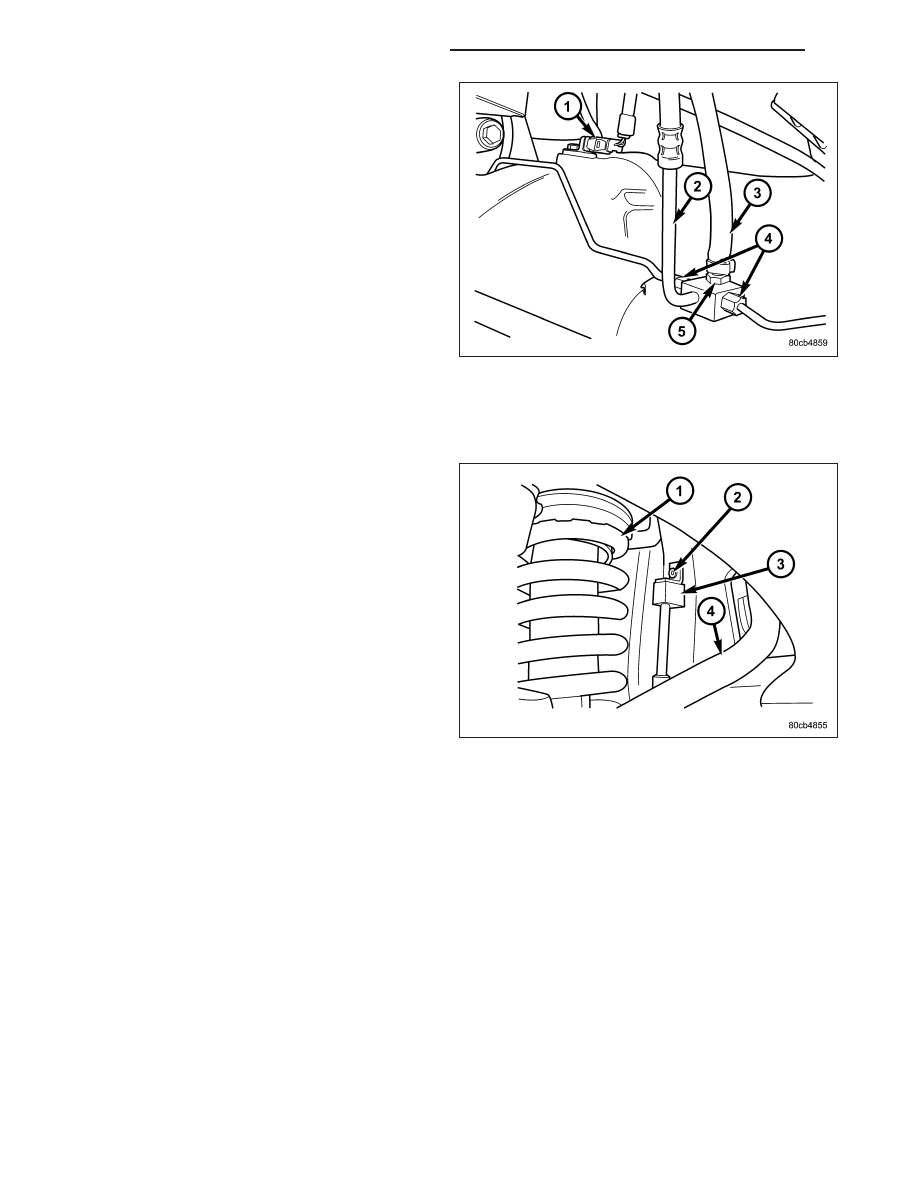

5. Remove the vent tube (3).

6. Remove the two brake lines (4) at the bottom of

the hose located at the axle.

7. Remove the mounting bolt (5) for the brake hose

(2) at the axle.

8. Remove the hose (2).

INSTALLATION

FRONT BRAKE CALIPER HOSE

1. Install the hose (3).

2. Install the mounting bolt (2) for the top of the brake

hose (3) at the vehicle.

3. Install the brake hose banjo bolt at the caliper.

4. Lower the vehicle and remove the support.

5. Install the brake line to the brake hose inside the

engine compartment by the front control arm bolt
(4).

6. Remove the prop rod from the brake pedal.

7. Bleed the brake system (Refer to 5 - BRAKES -

STANDARD PROCEDURE).

REAR BRAKE HOSE

1. Install the hose.

2. Install the mounting bolt for the brake hose at the axle.

3. Install the two brake lines at the bottom of the hose located at the axle.

4. Install the vent tube.

5. Install the brake hose mounting bolt at the top of the hose located at the body.

6. Install the brake line to the hose at the body.

7. Lower the vehicle and remove the support.

8. Remove the prop rod.

9. Bleed the brake system (Refer to 5 - BRAKES - STANDARD PROCEDURE).

5 - 14

BRAKES - BASE - SERVICE INFORMATION

KJ

BRAKE PADS / SHOES

REMOVAL

FRONT

1. Raise and support the vehicle.

2. Remove the front wheel and tire assembly.

3. Drain a small amount of fluid from the master cylinder brake reservoir with a clean suction gun.

4. Bottom the caliper pistons into the caliper by prying the caliper over.

5. Remove the caliper mounting bolts.

6. Remove the disc brake caliper from the mount.

CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose will
result. Provide a suitable support to hang the caliper securely.

7. Remove the inboard and outboard pads.

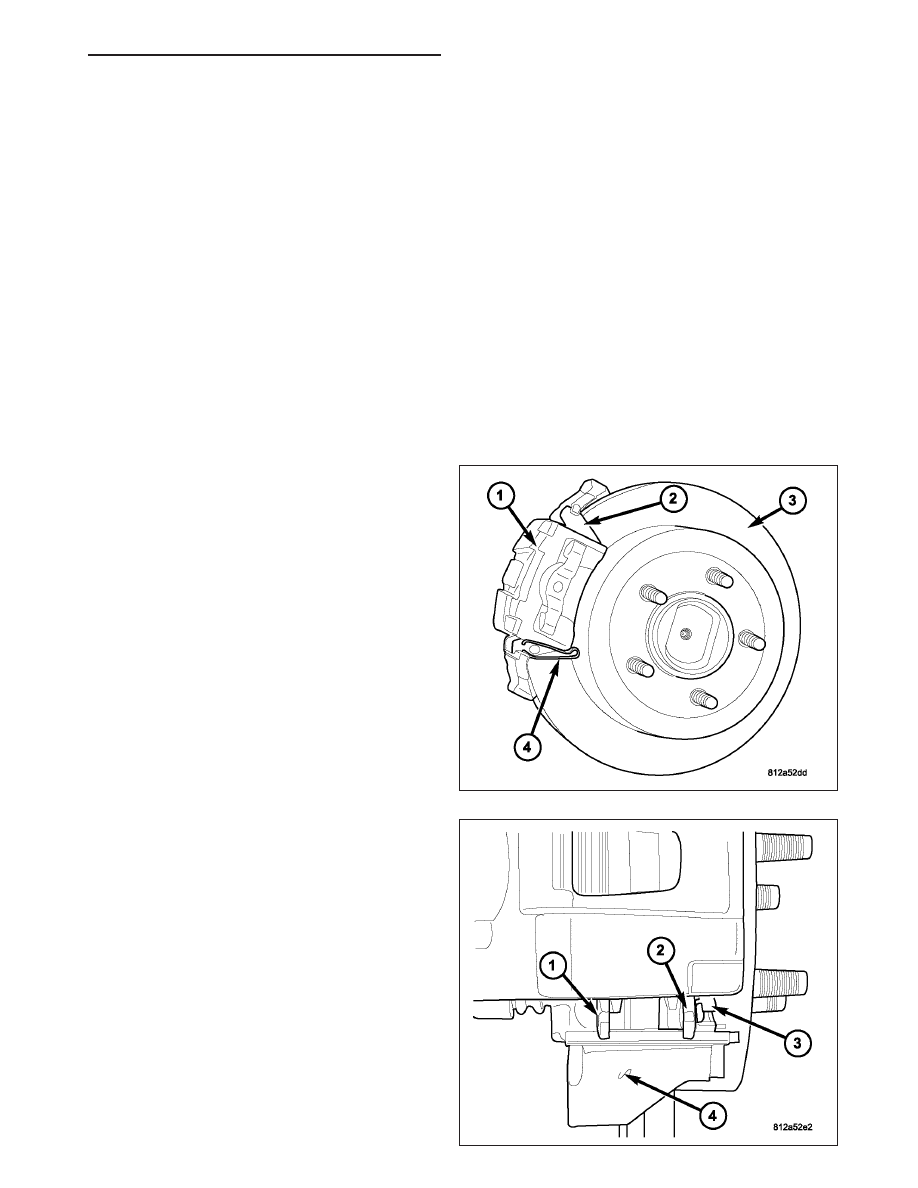

REAR

1. Raise and support vehicle.

2. Remove the wheel and tire assemblies.

3. Compress the caliper (1).

4. Remove the caliper slide pin bolts, (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/DISC
BRAKE CALIPERS - REMOVAL).

NOTE: Do not allow brake hose to support caliper
assembly.

5. Remove the caliper by tilting the top up and off the

caliper adapter.

6. Support and hang the caliper.

7. Remove the inboard brake pad (1) from the caliper.

8. Remove the outboard brake pad (2) from the

caliper.

KJ

BRAKES - BASE - SERVICE INFORMATION

5 - 15
