Jeep Liberty KJ. Manual - part 444

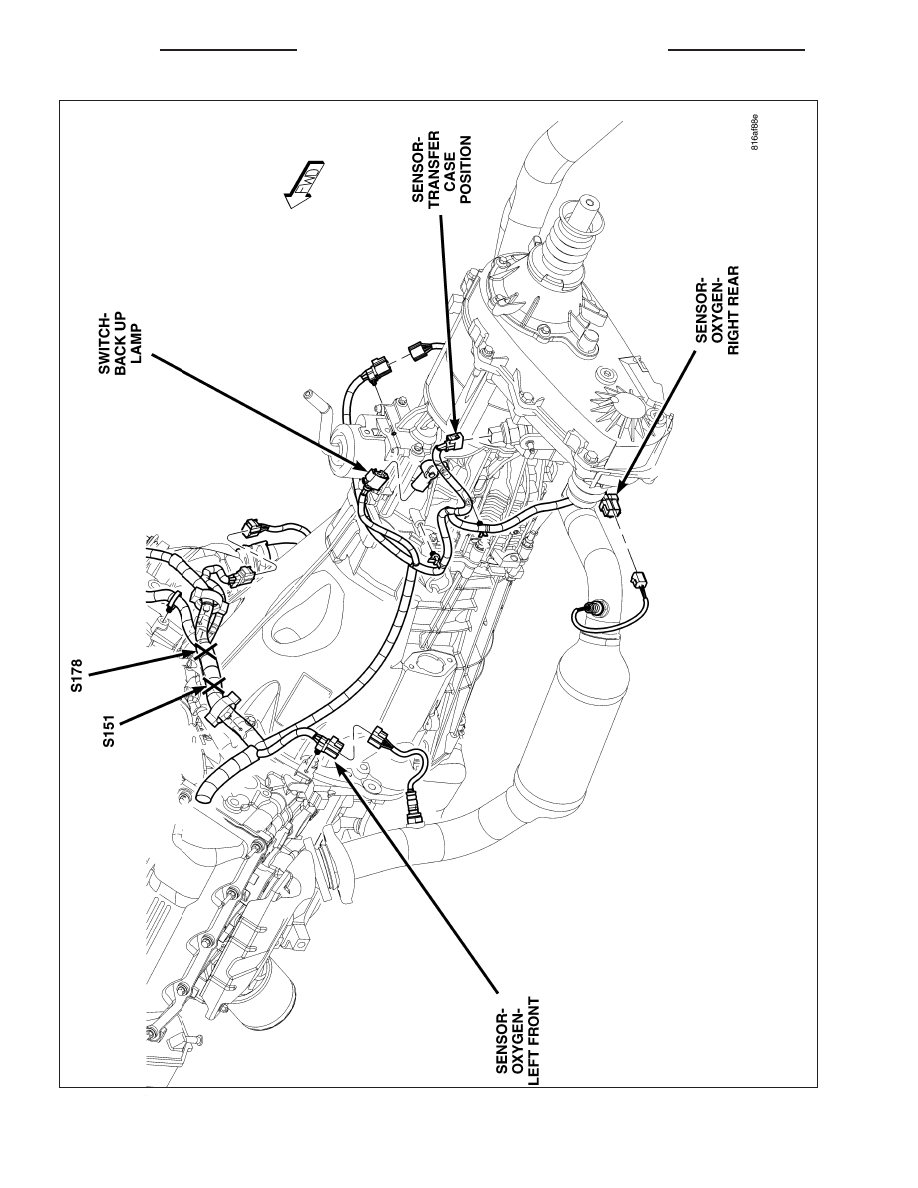

Fig.

7

MANUAL

TRANSMISSION

3.7L

8W - 91 - 22

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

KJ

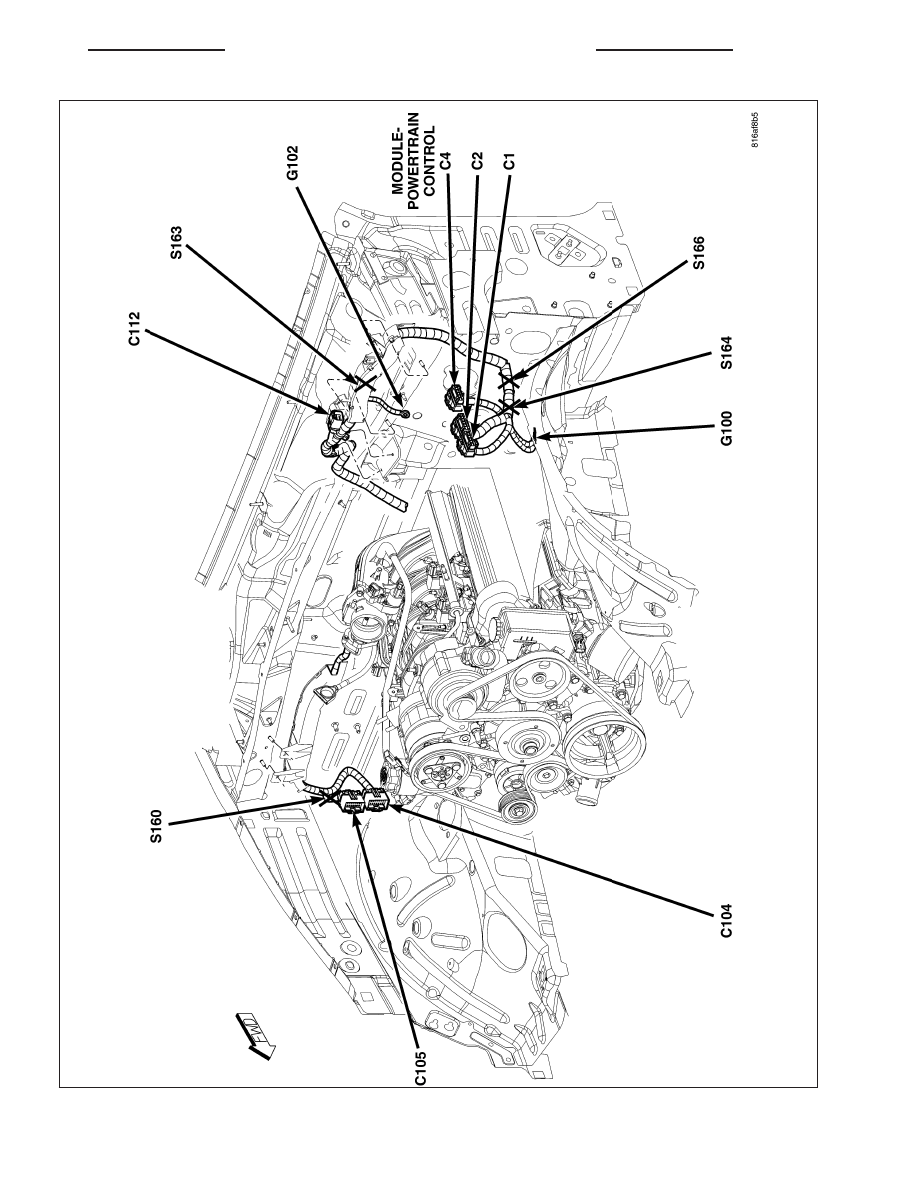

Fig.

8

RIGHT

SIDE

ENGINE

COMP

AR

TMENT

3.7L

KJ

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 23

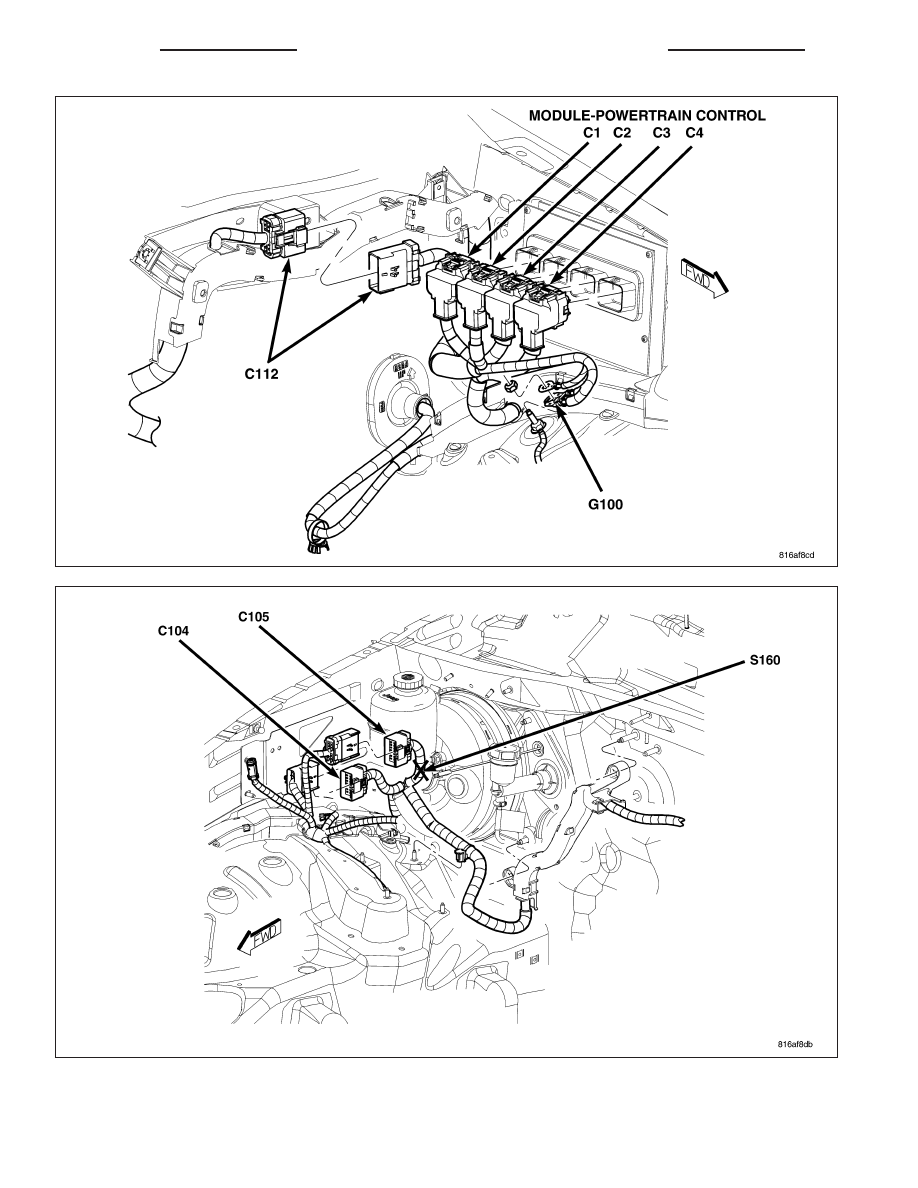

Fig. 9 LEFT SIDE ENGINE COMPARTMENT 3.7L

Fig. 10 RIGHT SIDE ENGINE COMPARTMENT 3.7L RHD

8W - 91 - 24

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

KJ

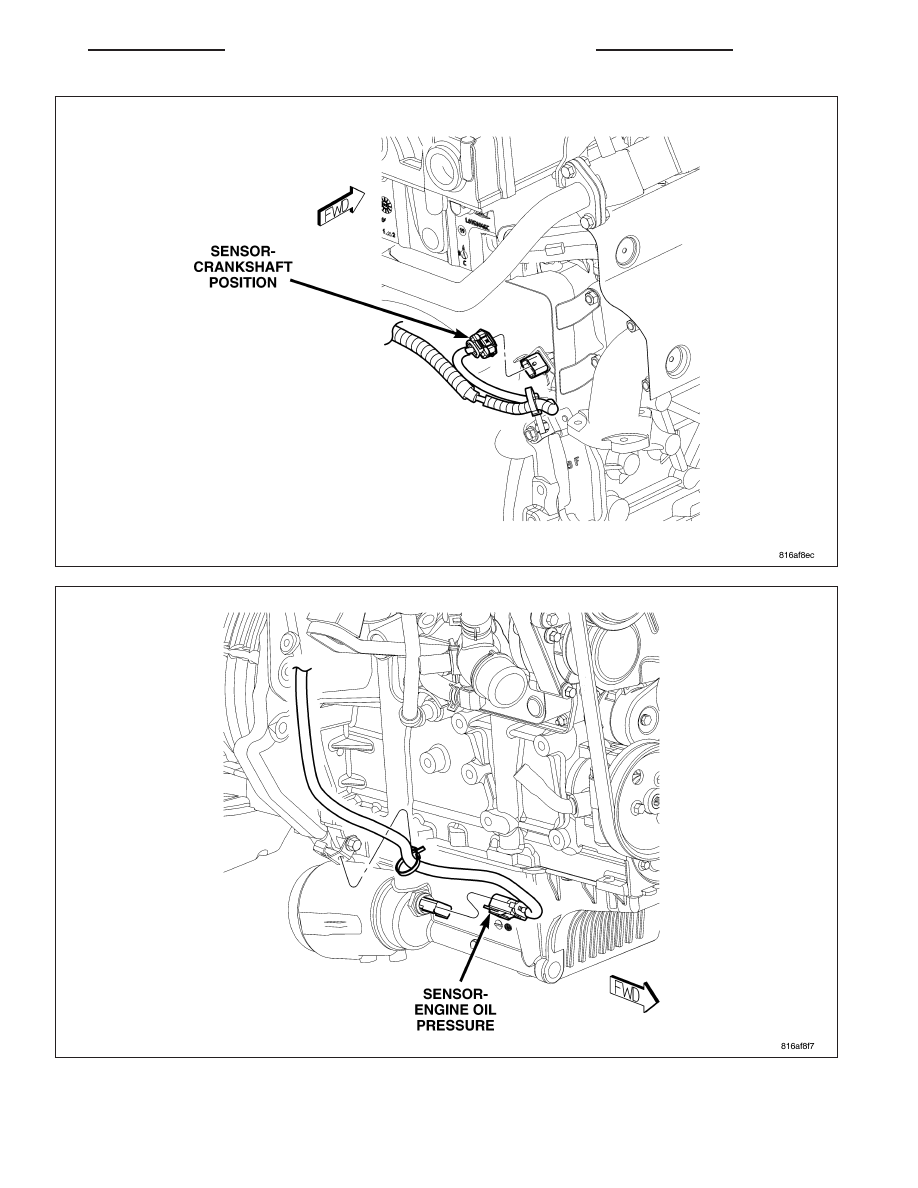

Fig. 11 DIESEL ENGINE

Fig. 12 LOWER RIGHT FRONT DIESEL ENGINE

KJ

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 25
