Jeep Liberty KJ. Manual - part 396

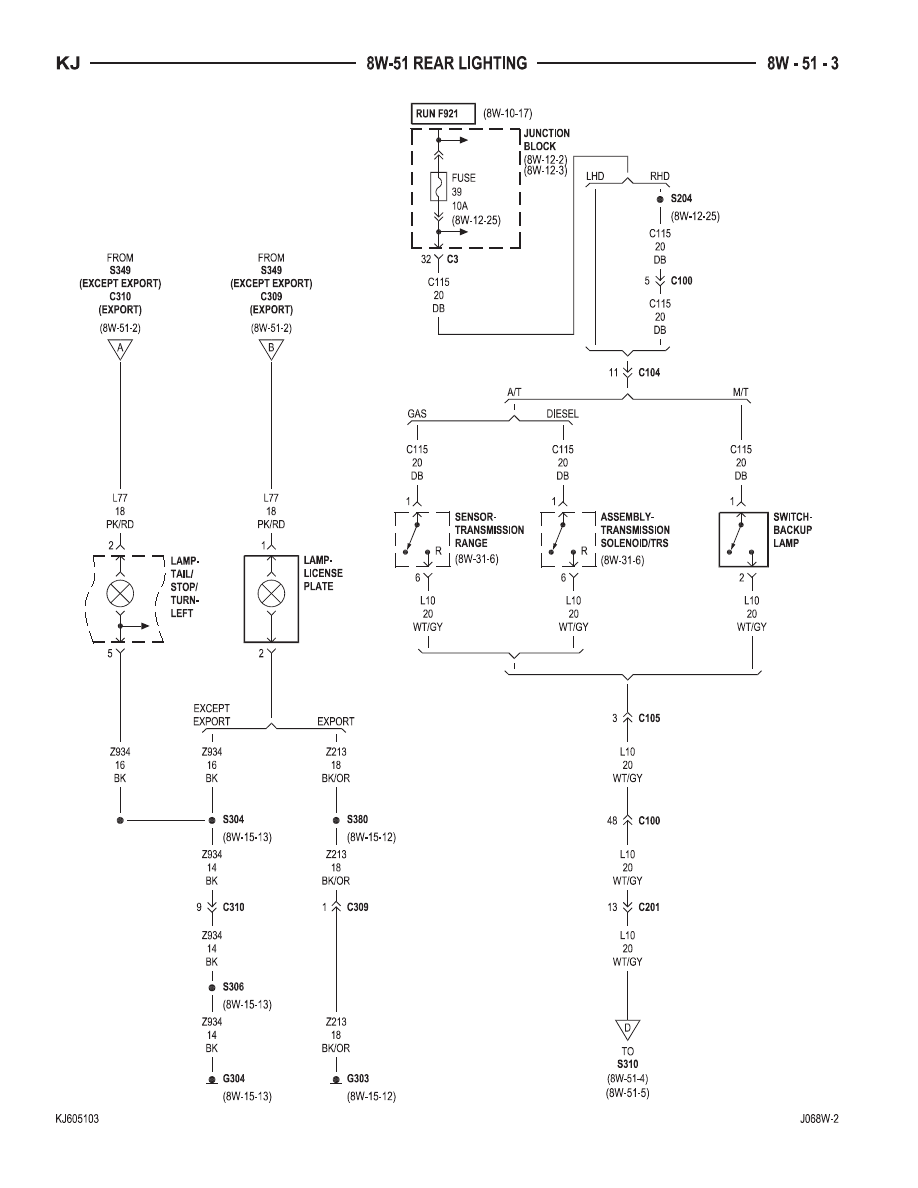

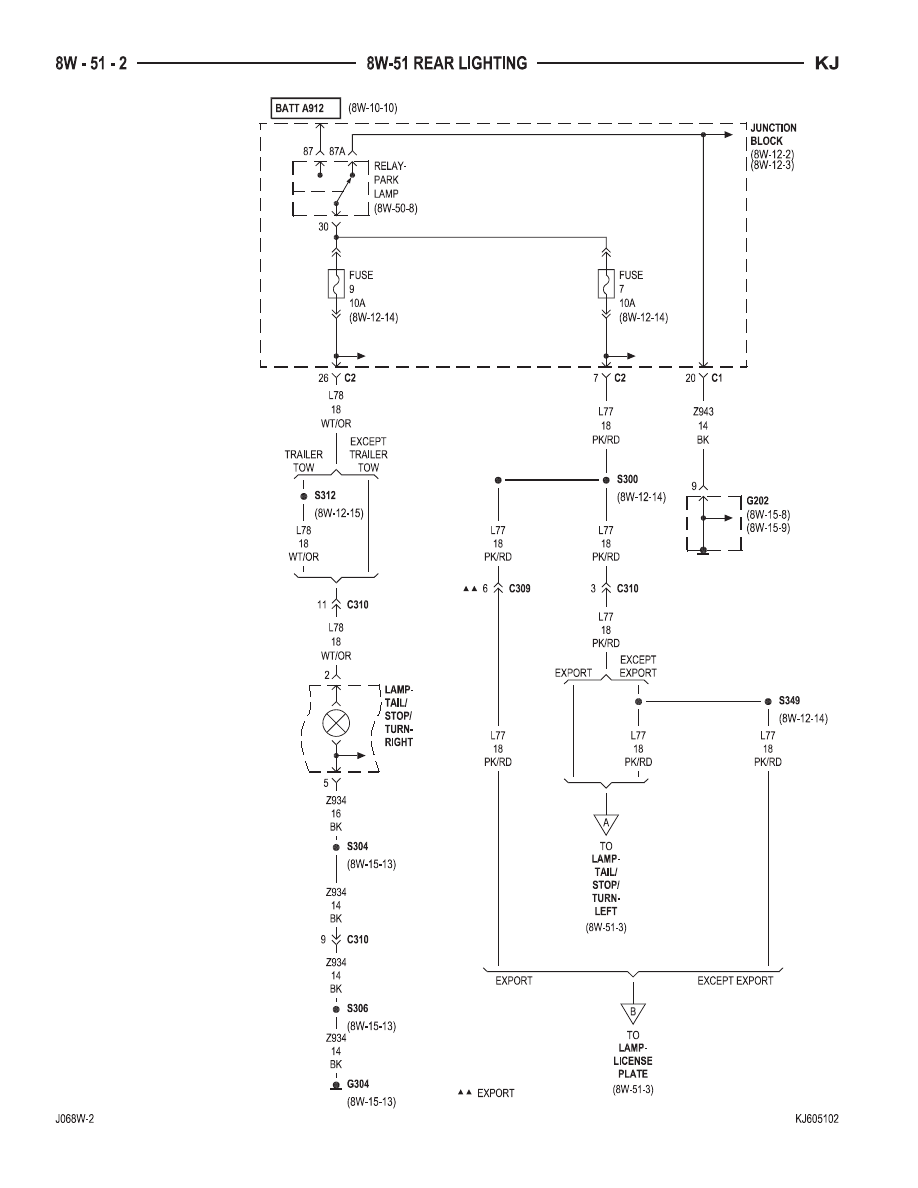

8W-51 REAR LIGHTING

Component

Page

Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-51-4, 5
Fuse 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-51-6
Fuse 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-51-3
Fuse 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-51-2
Fuse 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-51-2
G202 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-51-2
G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-51-3, 4
G304 . . . . . . . . . . . . . . . . . . . . . . . . 8W-51-2, 3, 4, 5
Junction Block . . . . . . . . . . . . . . . . . . 8W-51-2, 3, 6
Lamp-High Mounted Stop . . . . . . . . . . . . . 8W-51-4

Component

Page

Lamp-License Plate . . . . . . . . . . . . . . . . 8W-51-2, 3
Lamp-Tail/Stop/Turn-Left . . . . . . . . 8W-51-2, 3, 5, 6
Lamp-Tail/Stop/Turn-Right . . . . . . . . . 8W-51-2, 4, 6
Module-Body Control . . . . . . . . . . . . . . . . . 8W-51-6
Relay-Fog Lamp-Rear . . . . . . . . . . . . . . . . . 8W-51-6
Relay-Park Lamp . . . . . . . . . . . . . . . . . . . . 8W-51-2
Relay-Trailer Tow-Left . . . . . . . . . . . . . . . . 8W-51-5
Relay-Trailer Tow-Right . . . . . . . . . . . . . . . 8W-51-4
Sensor-Transmission Range . . . . . . . . . . . . 8W-51-3
Switch-Backup Lamp . . . . . . . . . . . . . . . . . 8W-51-3

KJ

8W-51 REAR LIGHTING

8W - 51 - 1
