Jeep Liberty KJ. Manual - part 392





8W-50 FRONT LIGHTING

Component

Page

Fuse 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-15
Fuse 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-15
Fuse 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-9

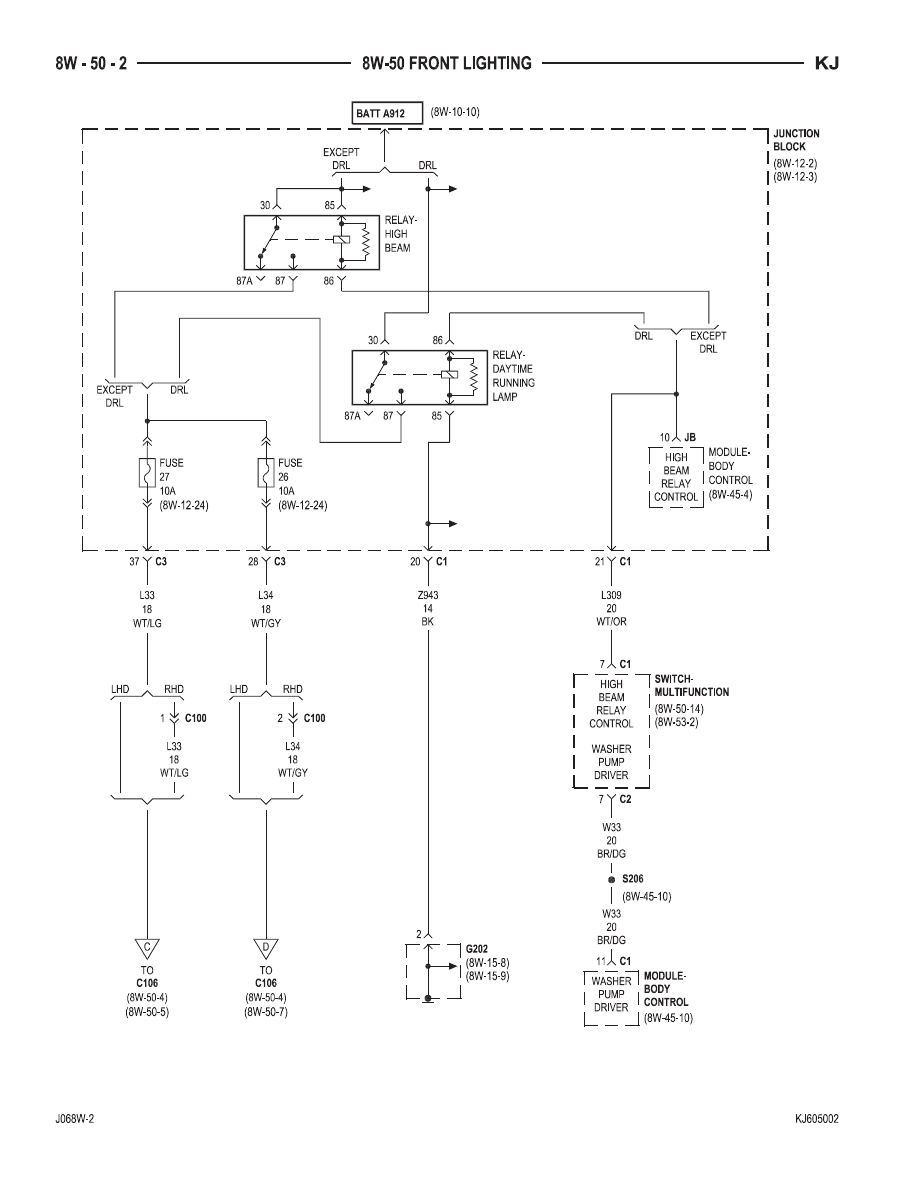

Fuse 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-2
Fuse 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-2

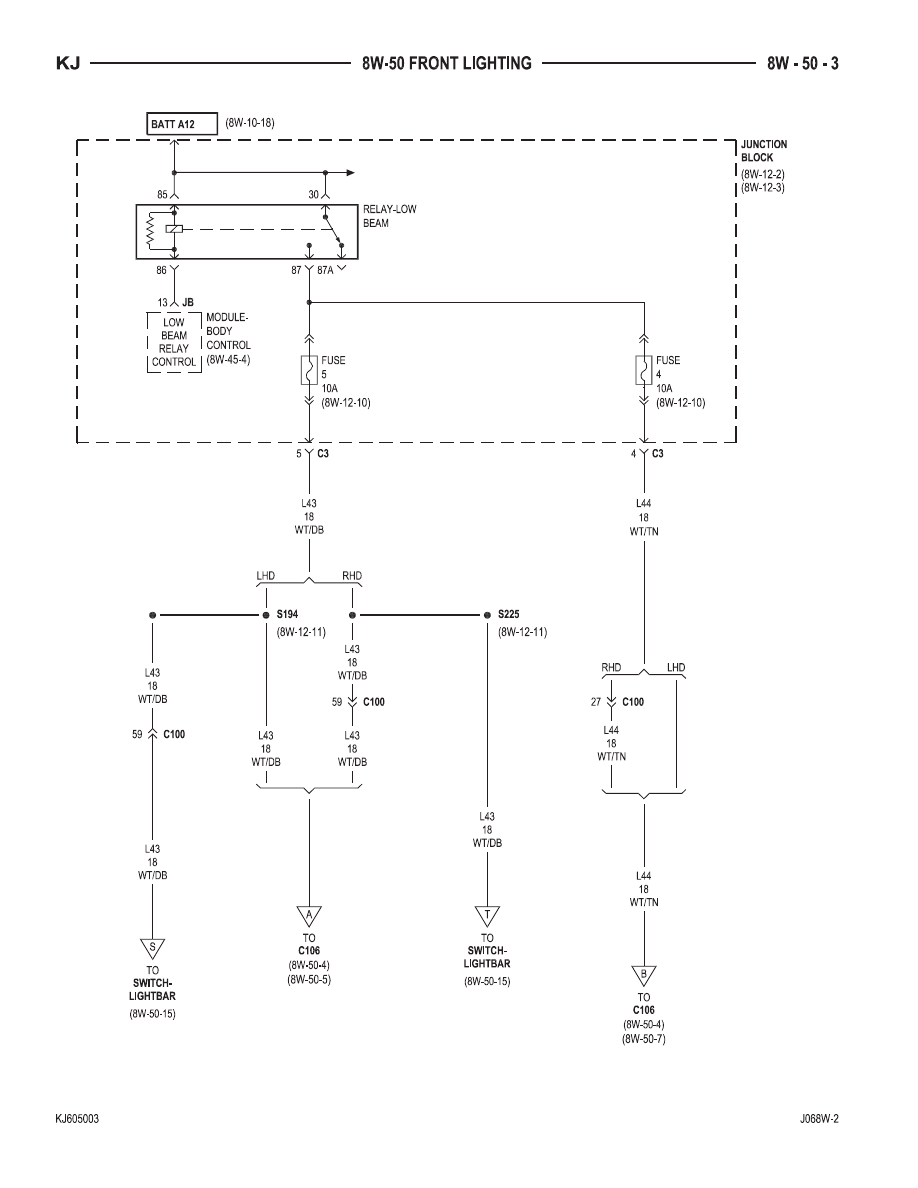

Fuse 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-3
Fuse 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-3
Fuse 7 . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-6, 8
Fuse 9 . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-6, 8, 15
G111 . . . . . . . . . . . . . . 8W-50-4, 5, 7, 10, 11, 12, 13
G200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-16
G202 . . . . . . . . . . . . . . . . . . . . . . . . . 8W-50-2, 6, 15
Junction Block . . . . . . . . . . 8W-50-2, 3, 4, 5, 6, 7, 8,

9, 11, 14, 15

Lamp-Fog-Left Front . . . . . . . . . . . 8W-50-9, 10, 13
Lamp-Fog-Right Front . . . . . . . . . . 8W-50-9, 11, 13
Lamp-Headlamp-Left . . . . . . . . . . . . . . . 8W-50-4, 5
Lamp-Headlamp-Right . . . . . . . . . . . . . . 8W-50-4, 7
Lamp-Lightbar-No. 1 . . . . . . . . . . . . . . . . 8W-50-16
Lamp-Lightbar-No. 2 . . . . . . . . . . . . . . . . 8W-50-16

Component

Page

Lamp-Lightbar-No. 3 . . . . . . . . . . . . . . . . 8W-50-16
Lamp-Lightbar-No. 4 . . . . . . . . . . . . . . . . 8W-50-16
Lamp-Park/Turn-Left Front . . . 8W-50-9, 10, 12, 13
Lamp-Park/Turn-Right Front . . . . 8W-50-11, 12, 13
Lamp-Side Marker-Left Front . . . . . . . . . 8W-50-10
Lamp-Side Marker-Right Front . . . . . . . . 8W-50-11
Module-Body Control . . . . . . 8W-50-2, 3, 8, 9, 14, 15
Motor-Headlamp Leveling-Left . . . . . . . . 8W-50-5, 7
Motor-Headlamp Leveling-Right . . . . . . . 8W-50-5, 7
Power Distribution Center . . . . . . . . . . . . 8W-50-15
Relay-Daytime Running Lamp . . . . . . . . . . 8W-50-2
Relay-Fog Lamp-Front . . . . . . . . . . . . . . . . 8W-50-9
Relay-High Beam . . . . . . . . . . . . . . . . . 8W-50-2, 14
Relay-Low Beam . . . . . . . . . . . . . . . . . . . . 8W-50-3
Relay-Park Lamp . . . . . . . . . . . . . . . 8W-50-6, 8, 15
Switch-Hazard/Combination Flasher . . . . . 8W-50-9
Switch-Headlamp Leveling . . . . . . . . . . . . . 8W-50-6
Switch-Lightbar . . . . . . . . . . . . . . . 8W-50-3, 15, 16
Switch-Multifunction . . . . . . . . . . . . . . 8W-50-2, 14

KJ

8W-50 FRONT LIGHTING

8W - 50 - 1
