Jeep Liberty KJ. Manual - part 341





8W - 01 - 6

8W-01 WIRING DIAGRAM INFORMATION

KJ

TERMINOLOGY

This is a list of terms and definitions used in the wiring diagrams.

LHD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Left Hand Drive Vehicles
RHD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Right Hand Drive Vehicles
ATX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Automatic Transmissions-Front Wheel Drive
MTX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Transmissions-Front Wheel Drive
AT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Automatic Transmissions-Rear Wheel Drive
MT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Transmissions-Rear Wheel Drive
SOHC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Single Over Head Cam Engine
DOHC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Double Over Head Cam Engine
Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Vehicles Built For Sale In Markets Other Than North America
Except Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Vehicles Built For Sale In North America

DESCRIPTION - CIRCUIT INFORMATION

Each wire shown in the diagrams contains a code which identifies the main circuit, a specific part of the main circuit,
gage of wire, and color. An example would be A 2 18 LB/YL. This is a Battery Feed circuit, level two, eighteen
gauge, light blue with a yellow tracer.

WIRE COLOR CODE CHART

COLOR CODE

COLOR

BL

BLUE

BK

BLACK

BR

BROWN

DB

DARK BLUE

DG

DARK GREEN

GY

GRAY

LB

LIGHT BLUE

LG

LIGHT GREEN

OR

ORANGE

PK

PINK

RD

RED

TN

TAN

VT

VIOLET

WT

WHITE

YL

YELLOW

*

WITH TRACER

DESCRIPTION - CIRCUIT FUNCTIONS

All circuits in the diagrams use an alpha/numeric code to identify the wire and it’s function. To identify which circuit
code applies to a system, refer to the Circuit Identification Code Chart. This chart shows the main circuits only and
does not show the secondary codes that may apply to some models.

KJ

8W-01 WIRING DIAGRAM INFORMATION

8W - 01 - 7

CIRCUIT IDENTIFICATION CODE CHART

CIRCUIT

FUNCTION

A

BATTERY FEED

B

BRAKE CONTROLS

C

CLIMATE CONTROLS

D

DIAGNOSTIC CIRCUITS

E

DIMMING ILLUMINATION
CIRCUITS

F

FUSED CIRCUITS

G

MONITORING CIRCUITS
(GAUGES)

H

MULTIPLE

I

NOT USED

J

OPEN

K

POWERTRAIN CONTROL
MODULE

L

EXTERIOR LIGHTING

M

INTERIOR LIGHTING

N

MULTIPLE

O

NOT USED

P

POWER OPTION (BATTERY
FEED)

Q

POWER OPTIONS (IGNITION
FEED)

R

PASSIVE RESTRAINT

S

SUSPENSION/STEERING

T

TRANSMISSION/TRANSAXLE/
TRANSFER CASE

U

OPEN

V

SPEED CONTROL, WIPER/
WASHER

W

WIPERS

X

AUDIO SYSTEMS

Y

TEMPORARY

Z

GROUNDS

DESCRIPTION - SECTION IDENTIFICATION AND INFORMATION

The wiring diagrams are grouped into individual sections. If a component is most likely found in a particular group,
it will be shown complete (all wires, connectors, and pins) within that group. For example, the Auto Shutdown Relay
is most likely to be found in Group 30, so it is shown there complete. It can, however, be shown partially in another
group if it contains some associated wiring.

Splice diagrams in Section 8W-70 show the entire splice and provide references to other sections the splices
serves. Section 8W-70 only contains splice diagrams that are not shown in their entirety somewhere else in the
wiring diagrams.

Section 8W-80 shows each connector and the circuits involved with that connector. The connectors are identified
using the name/number on the diagram pages.

8W - 01 - 8

8W-01 WIRING DIAGRAM INFORMATION

KJ

DESCRIPTION - CONNECTOR, GROUND AND SPLICE INFORMATION

CAUTION: Not all connectors are serviced. Some connectors are serviced only with a harness. A typical
example might be the Supplemental Restraint System connectors. Always check parts availability before
attempting a repair.

IDENTIFICATION

In-line connectors are identified by a number, as follows:

In-line connectors located in the engine compartment are C100 series numbers.

In-line connectors located in the instrument panel area are C200 series numbers.

In-line connectors located in the body are C300 series numbers.

Jumper harness connectors are C400 series numbers.

Grounds and ground connectors are identified with a “G” and follow the same series numbering as the in-line
connectors.

Splices are identified with an “S” and follow the same series numbering as the in-line connectors. In addition,
S001–S099 numbers are located in the engine compartment.

Component connectors are identified by the component name instead of a number. Multiple connectors on a
component use a C1, C2, etc. identifier.

LOCATIONS

Section 8W-91 contains connector/ground/splice location illustrations. The illustrations contain the connector name
(or number)/ground number/splice number and component identification. Connector/ground/splice location charts in
section 8W-91 reference the figure numbers of the illustrations.

The abbreviation T/O is used in the component location section to indicate a point in which the wiring harness
branches out to a component. The abbreviation N/S means Not Shown in the illustrations

WARNING

WARNINGS - GENERAL

WARNINGS provide information to prevent personal injury and vehicle damage. Below is a list of general warnings
that should be followed any time a vehicle is being serviced.

WARNING: Always wear safety glasses for eye protection.

WARNING: Use safety stands anytime a procedure requires being under a vehicle.

WARNING: Be sure that the ignition switch always is in the off position, unless the procedure requires it to
be on.

WARNING: Set the parking brake when working on any vehicle. An automatic transmission should be in
park. A manual transmission should be in neutral.

WARNING: Operate the engine only in a well-ventilated area.

WARNING: Keep away from moving parts when the engine is running, especially the fan and belts.

WARNING: To prevent serious burns, avoid contact with hot parts such as the radiator, exhaust manifold(s),
tail pipe, catalytic converter and muffler.

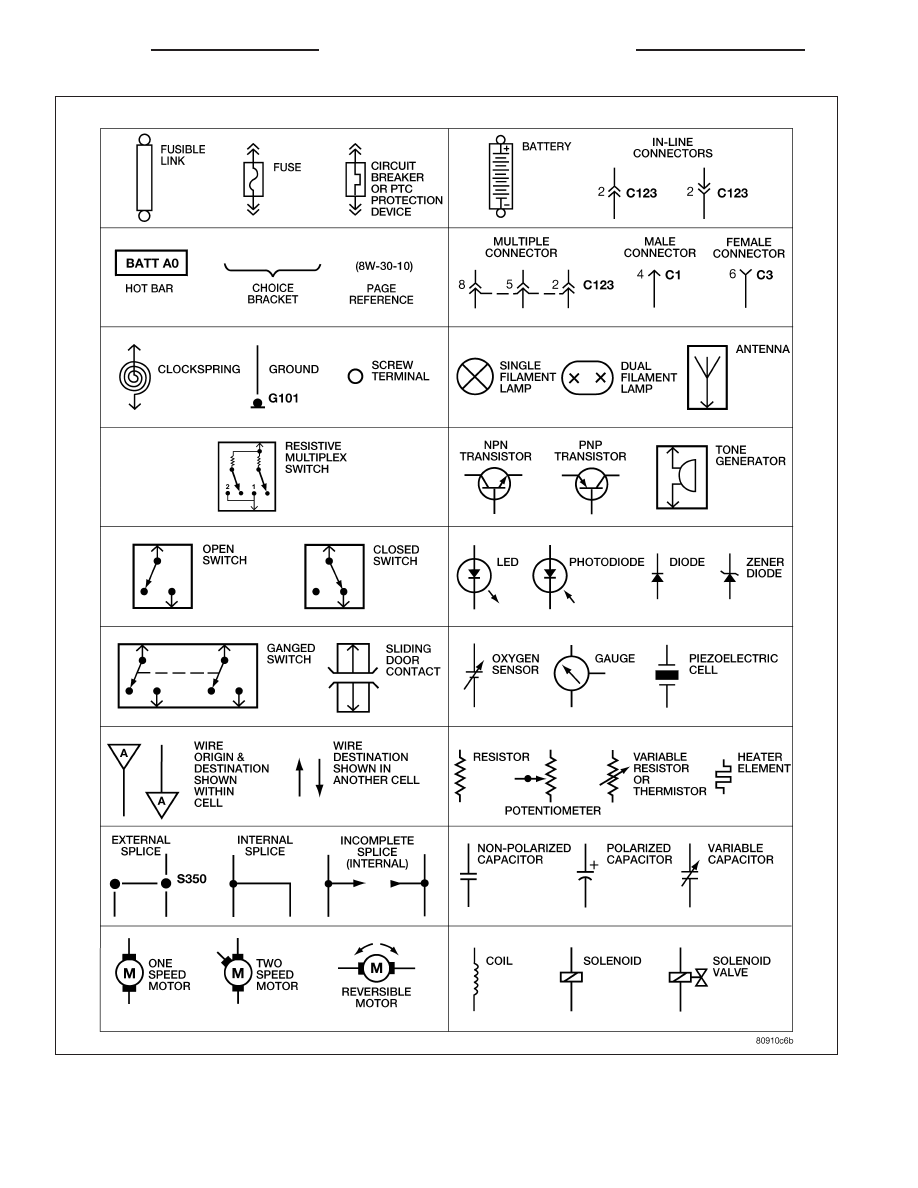

KJ

8W-01 WIRING DIAGRAM INFORMATION

8W - 01 - 9
