Jeep Liberty KJ. Manual - part 335





ROM CHECKSUM ERROR

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module detects a fault during an internal diagnostic check.

Possible Causes

HANDS FREE MODULE

Diagnostic Test

1.

ERASE DTC AND ATTEMPT TO RESET

Turn the ignition on.

With the scan tool, read and record the HFM DTC’s and then erase the DTC’s.

Perform 5 ignition key cycles, leaving the ignition key on for a minimum of 90 seconds per cycle.

With the scan tool, read the HFM DTC’s.

Did this DTC reset?

Yes

>> Replace and program the Hands Free Module in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> The condition that set this DTC is no longer present. Using the wiring diagram/schematic as a guide,

inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness con-
nectors for broken, bent, pushed out, and corroded terminals.

8T - 62

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

KJ

RPM MESSAGE NOT RECEIVED

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module does not detect a Bus message indicating current engine RPM.

Possible Causes

LOST COMMUNICATION WITH PCM

HANDS FREE MODULE

Diagnostic Test

1.

ATTEMPT TO COMMUNICATE WITH THE PCM

Start and idle the engine.

With the scan tool, select Engine and read the Engine RPM.

Was the scan tool able to communicate with the PCM and read engine RPM?

Yes

>> Go To 2

No

>> (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) and

perform the related symptom.

2.

ERASE DTC AND ATTEMPT TO RESET

With the scan tool, erase the HFM DTC’s.

Cycle the ignition switch from off to on and wait approximately 1 minute.

With the scan tool, read the HFM DTC’s.

Did this DTC reset?

Yes

>> Replace and program the Hands Free Module in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> The condition that set this DTC is no longer present. Using the wiring diagram/schematic as a guide,

inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness con-
nectors for broken, bent, pushed out, and corroded terminals.

KJ

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 63

VIN MESSAGE NOT RECEIVED

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module does not receive the VIN message from the PCM.

Possible Causes

LOST COMMUNICATION WITH PCM

PCM NOT ACTIVE ON THE BUS NETWORK

HANDS FREE MODULE

Diagnostic Test

1.

ATTEMPT TO COMMUNICATE WITH THE PCM

Turn the ignition on.

With the scan tool, attempt to communicate with the PCM.

Was the scan tool able to communicate with the PCM?

Yes

>> Go To 2

No

>> (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) and

perform the related symptom.

2.

CHECK PCM ACTIVITY ON THE BUS NETWORK

With the scan tool, select System Monitors then J1850 Module Scan.

Does the scan tool indicate that the PCM is present or active on the bus network?

Yes

>> Go To 3

No

>> (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) and

perform the related symptom.

3.

ERASE DTC AND ATTEMPT TO RESET

With the scan tool, erase the HFM DTC’s.

Cycle the ignition switch from off to on and wait approximately 1 minute.

With the scan tool, read the HFM DTC’s.

Did this DTC reset?

Yes

>> Replace and program the Hands Free Module in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> The condition that set this DTC is no longer present. Using the wiring diagram/schematic as a guide,

inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness con-
nectors for broken, bent, pushed out, and corroded terminals.

8T - 64

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

KJ

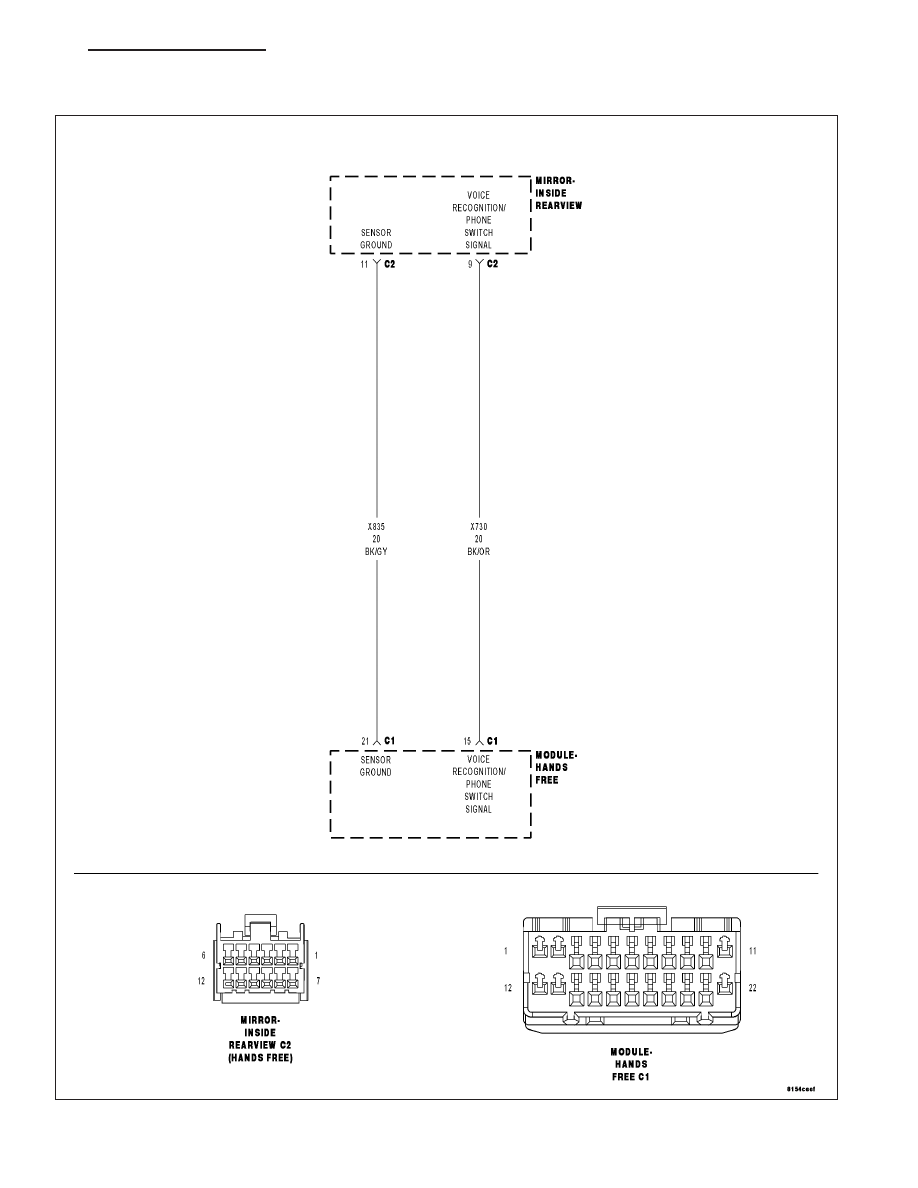

VOICE RECOGNITION SWITCH STUCK

For a complete wiring diagram Refer to Section 8W.

KJ

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 65
