MIRROR POWER CIRCUIT SHORT TO GROUND

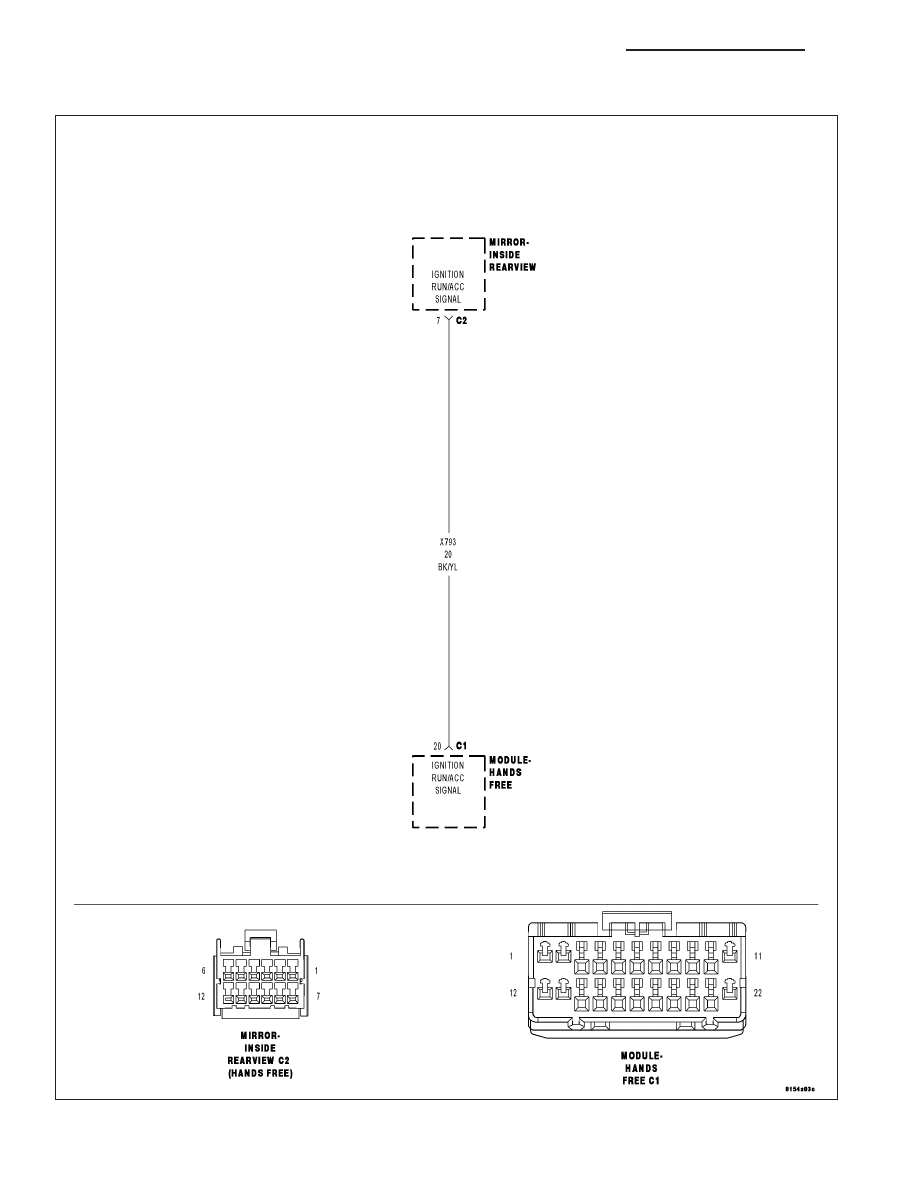

For a complete wiring diagram Refer to Section 8W.

8T - 30

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

KJ

When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module detects low voltage on the (X793) Microphone Feed circuit.

Possible Causes

(X793) MICROPHONE FEED CIRCUIT OPEN

(X793) MICROPHONE FEED CIRCUIT SHORT TO GROUND

AUTOMATIC DAY/NIGHT MIRROR

HANDS FREE MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

Turn the ignition on.

With the scan tool, erase the HFM DTCs.

Attempt to make a phone call using the system.

With the scan tool, read the HFM DTCs.

Did this DTC reset?

Yes

>> Go To 2

No

>> The condition that set this DTC is no longer present. Using the wiring diagram/schematic as a guide,

inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness con-
nectors for broken, bent, pushed out, and corroded terminals.

2.

(X793) MICROPHONE FEED CIRCUIT OPEN

Turn the ignition off.

Disconnect the Hands Free Module C1 harness connector.

Disconnect the Automatic Day/Night Mirror C2 harness connector.

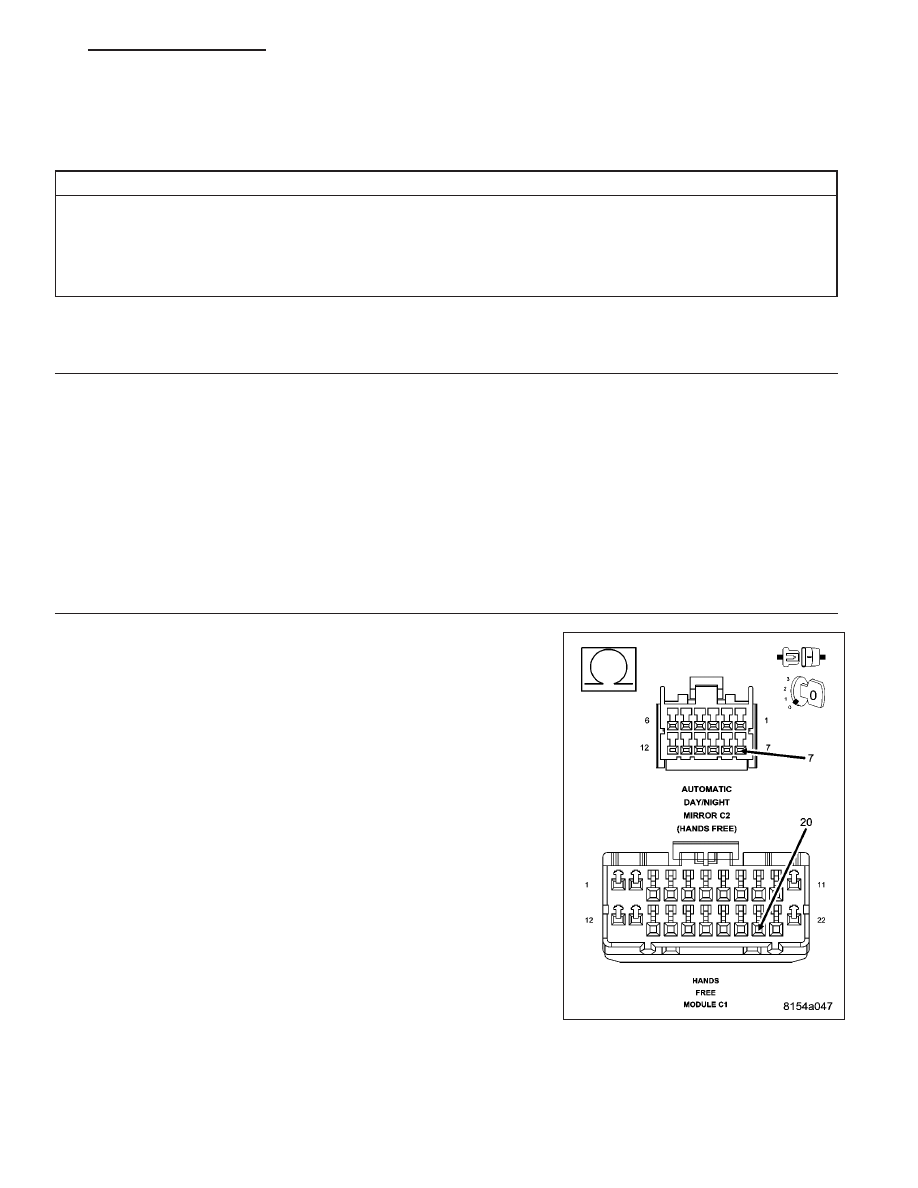

Measure the resistance of the (X793) Microphone Feed circuit between
the HFM connector and the Automatic Day/Night Mirror connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 3

No

>> Repair the (X793) Microphone Feed circuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL MODULES

-

STANDARD PROCEDURE).

KJ

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 31

3.

(X793) MICROPHONE FEED CIRCUIT SHORT TO GROUND

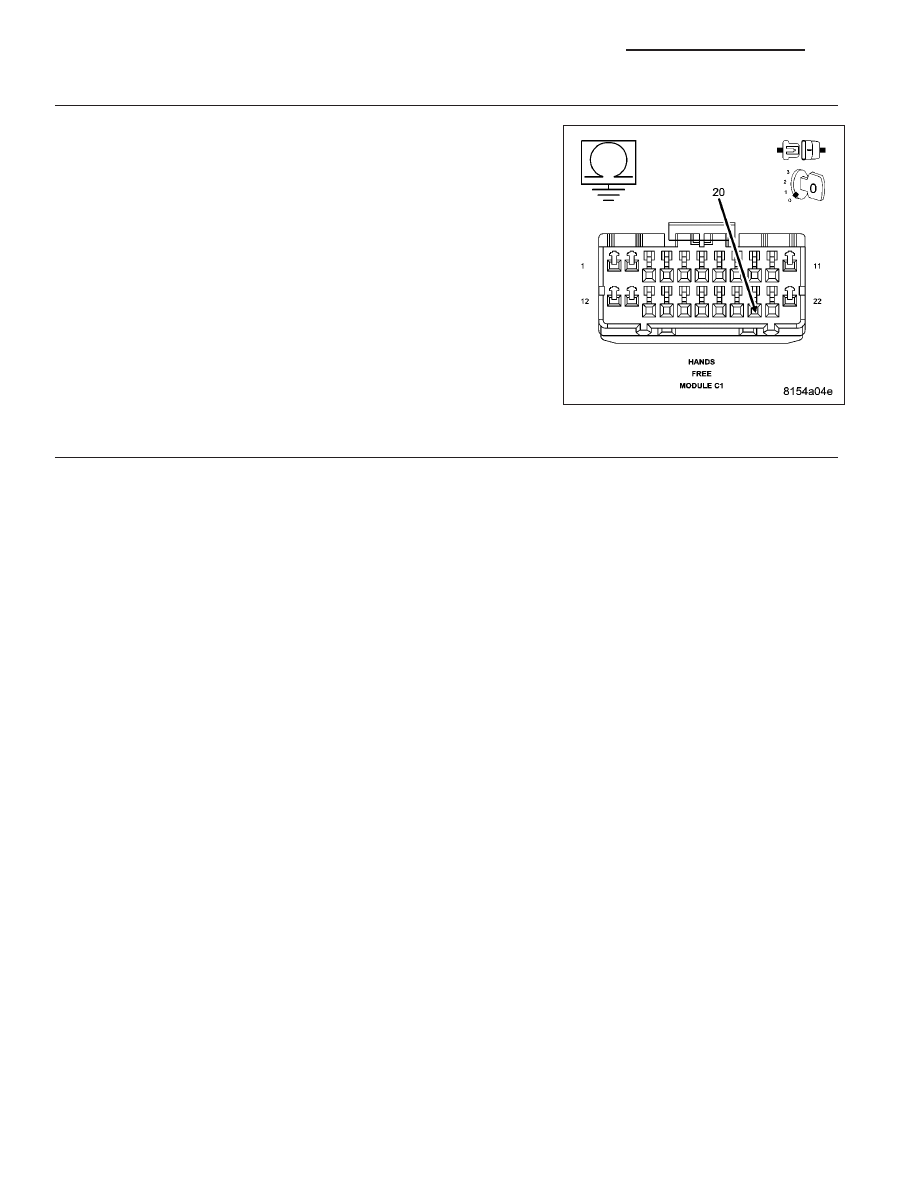

Measure the resistance between ground and the (X793) Microphone
Feed circuit

Is the resistance below 100.0 ohms?

Yes

>> Repair the (X793) Microphone Feed circuit for short to

ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL MODULES

-

STANDARD PROCEDURE).

No

>> Go To 4

4.

AUTOMATIC DAY/NIGHT MIRROR

Replace the Inside Automatic Day/Night Mirror in accordance with the service information.

Turn the ignition on.

With the scan tool, erase the HFM DTCs.

Attempt to make a phone call using the system.

With the scan tool, read the HFM DTCs.

Did this DTC reset?

Yes

>> Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Hands

Free Module in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> Repair is complete.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

8T - 32

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

KJ

MIRROR POWER CIRCUIT SHORT TO VOLTAGE

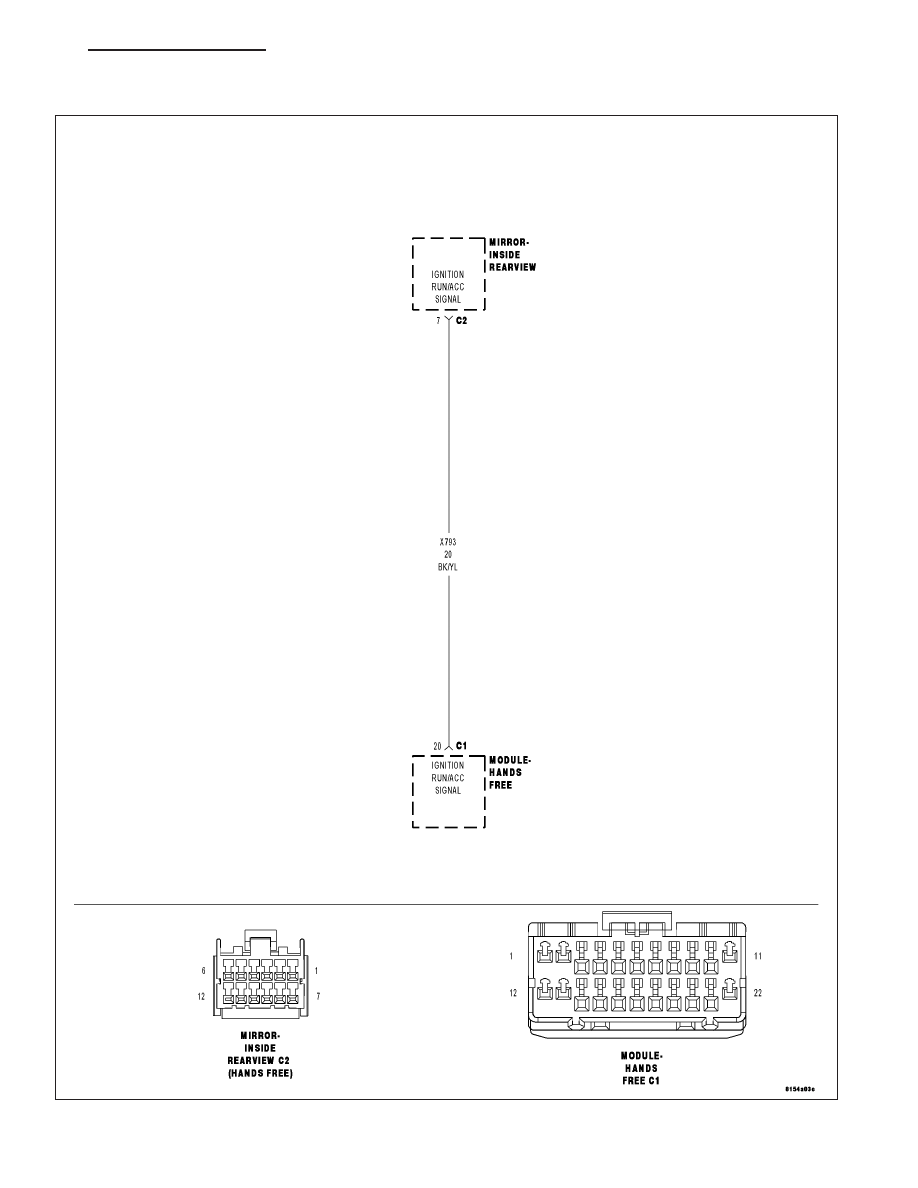

For a complete wiring diagram Refer to Section 8W.

KJ

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 33
