Jeep Liberty KJ. Manual - part 297





SEAL-AXLE SHAFT

REMOVAL

1. Remove axle shaft.

2. Remove axle shaft seal (1) from axle tube (2) with

a seal pick.

INSTALLATION

1. Remove any old sealer/burrs from axle tube.

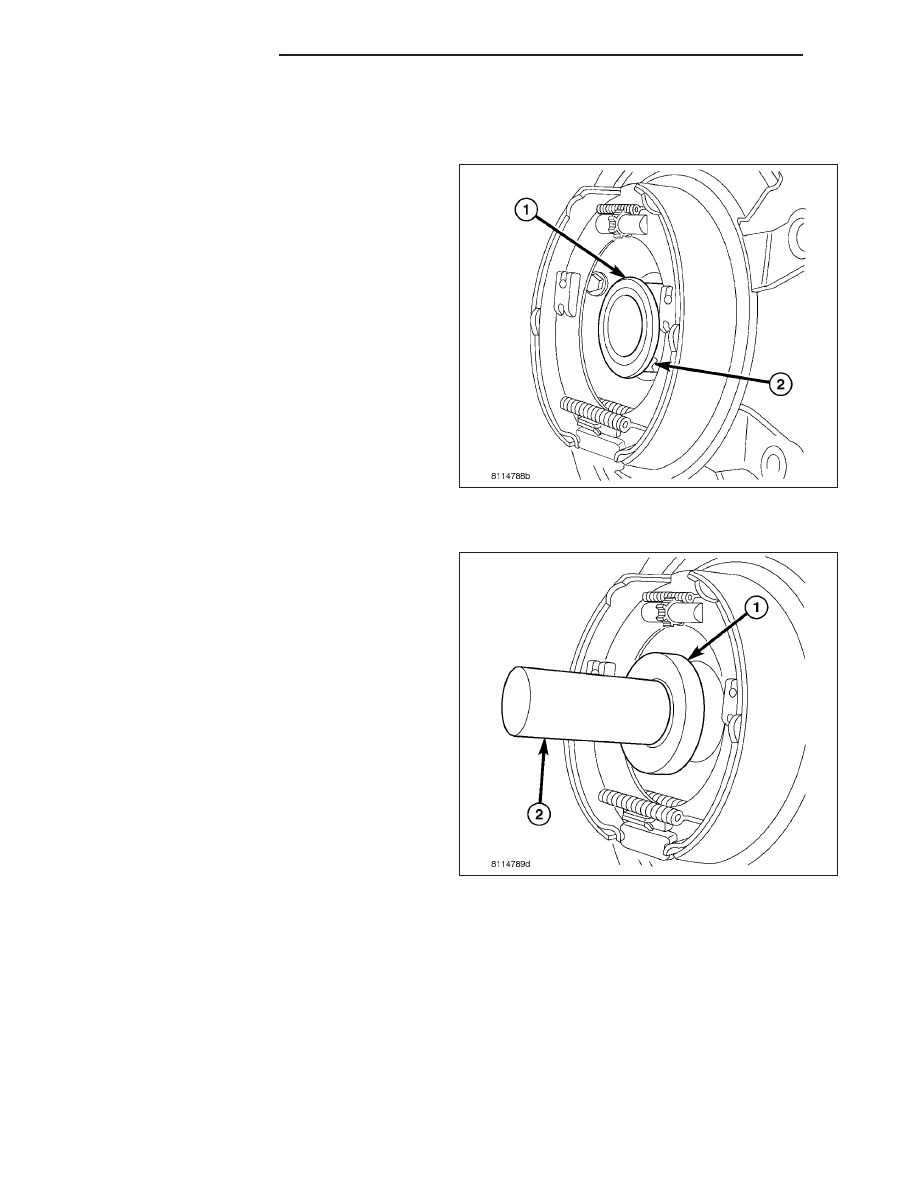

2. Coat new seal lip with axle lubricant and install

seal with Installer C-4198 (1) and Handle C-4171
(1).

3. Install axle shaft.

3 - 92

REAR AXLE - 8 1/4

KJ

BEARING-AXLE

REMOVAL

NOTE: Remove bearing with Bearing Remover
6310 and Foot 6310-9.

1. Remove axle shaft.

2. Remove axle seal with seal pick.

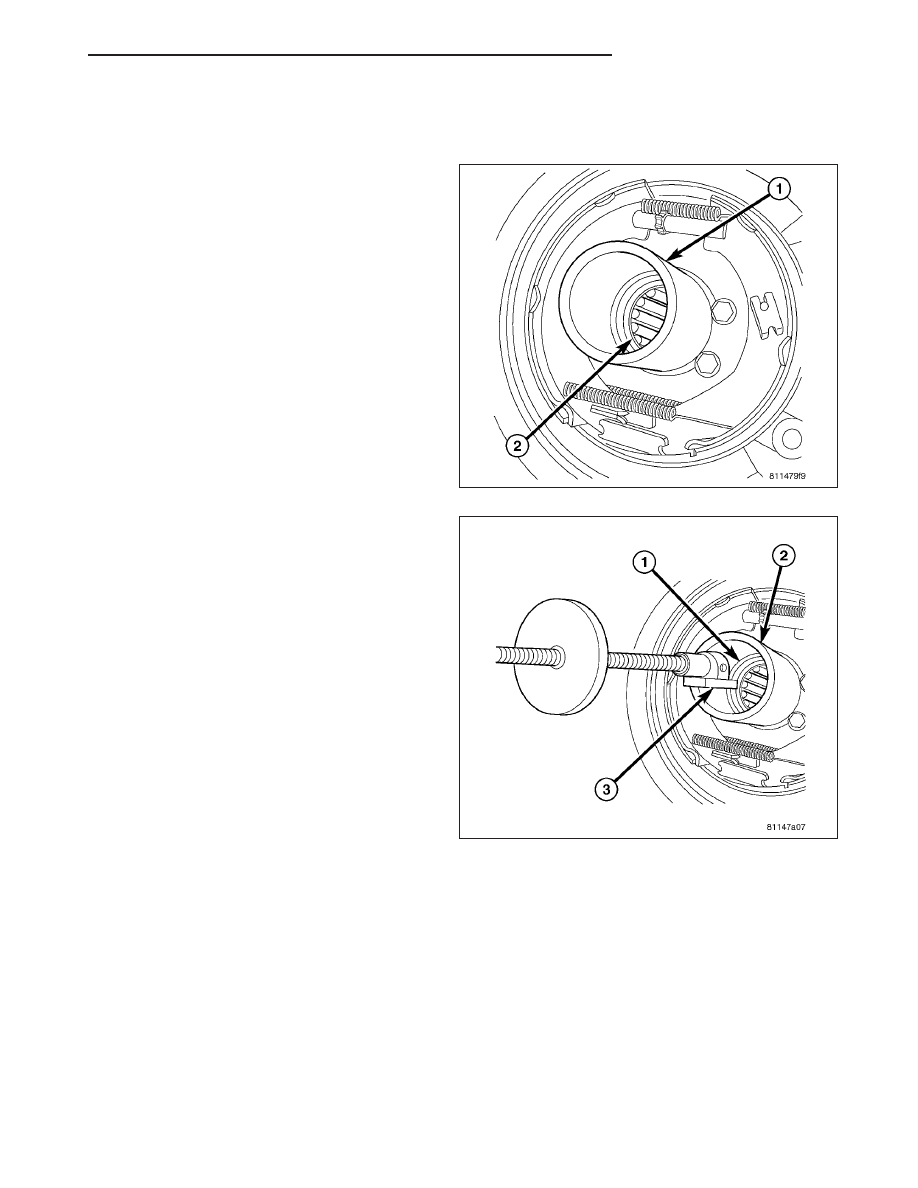

3. Position bearing (2) receiver (1) on axle tube.

4. Insert bearing remover Foot 6310-9 (3) through

receiver (2) and bearing (1).

KJ

REAR AXLE - 8 1/4

3 - 93

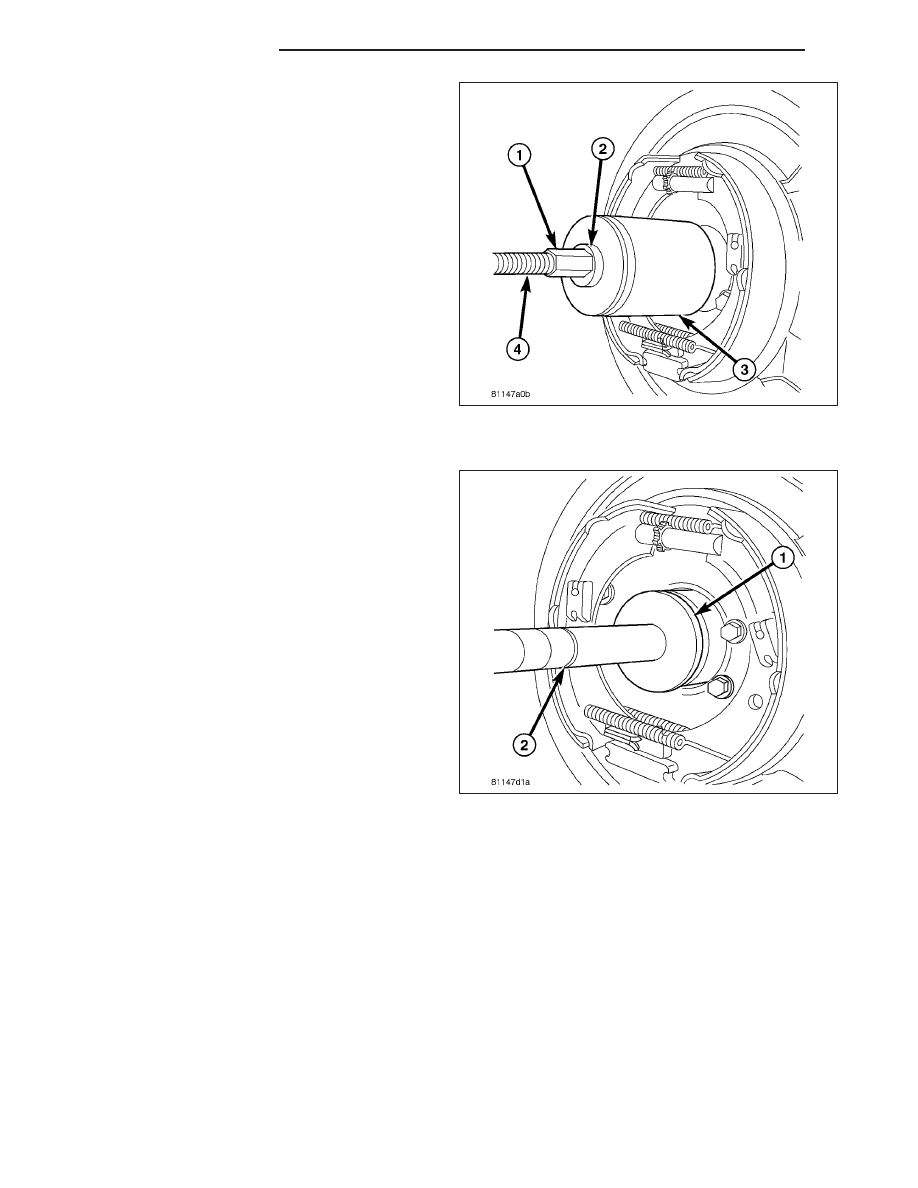

5. Tighten remove nut (1) on the shaft (4) to pull bear-

ing into the receiver (3).

INSTALLATION

1. Remove any old sealer/burrs from axle tube.

2. Install axle shaft bearing with Installer C-4198 (1)

and Handle C-4171 (2). Drive bearing in until tool
contacts the axle tube.

NOTE: Bearing is installed with the bearing part
number against installer.

3. Coat new axle seal lip with axle lubricant. Install

seal with Installer C-4198 and Handle C-4171.

4. Install axle shaft.

3 - 94

REAR AXLE - 8 1/4

KJ

SEAL-PINION

REMOVAL

1. With vehicle in neutral, position vehicle on hoist.

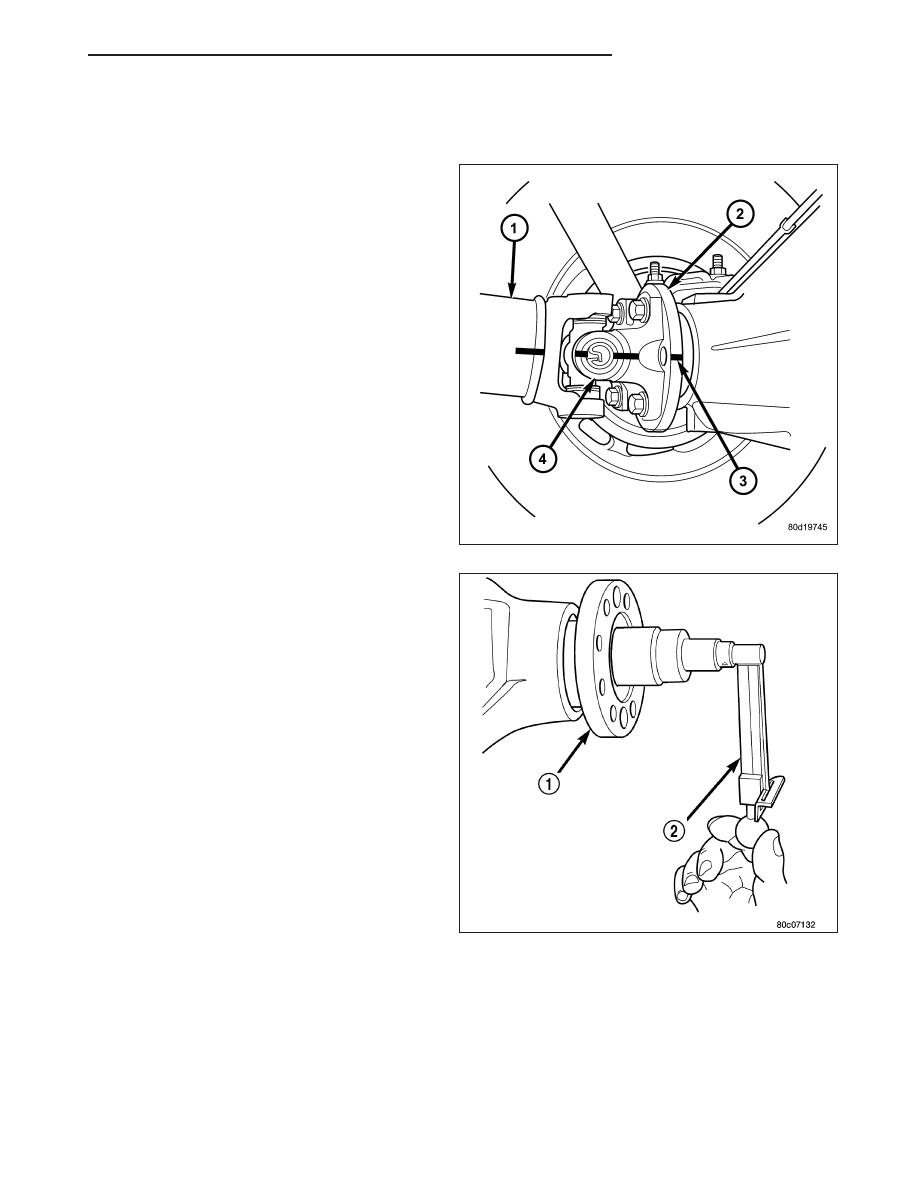

2. Mark a reference line (3) across the axle compan-

ion flange (2) and propeller shaft flange yoke (4).

3. Remove companion flange bolts and remove pro-

peller shaft

4. Remove wheel and tire assemblies.

5. Remove brake calipers and rotors to prevent any

drag.

6. Rotate companion flange three or four times and

verify flange rotates smoothly.

7. Measure rotating torque of the pinion (1) with a

inch pound torque wrench (2) and record reading
for installation reference.

8. Install bolts into two of the threaded holes in the

companion flange 180 degrees apart.

9. Position Holder 6719A against the companion

flange and install a bolt and washer into one of the
remaining threaded holes. Tighten the bolts so the
Holder 6719A is held to the flange.

10. Remove the pinion nut and washer.

KJ

REAR AXLE - 8 1/4

3 - 95
