1. Disconnect and isolate the battery negative cable.

Wait two minutes for the system capacitor to dis-
charge before further service.

2. Remove the top cover from the instrument panel.

(Refer to 23 - BODY/INSTRUMENT PANEL/IN-
STRUMENT PANEL TOP COVER - REMOVAL).

3. Remove the passenger side bezel from the upper

glove box opening of the instrument panel. (Refer
to 23 - BODY/INSTRUMENT PANEL/IP PASSEN-
GER SIDE BEZEL - REMOVAL).

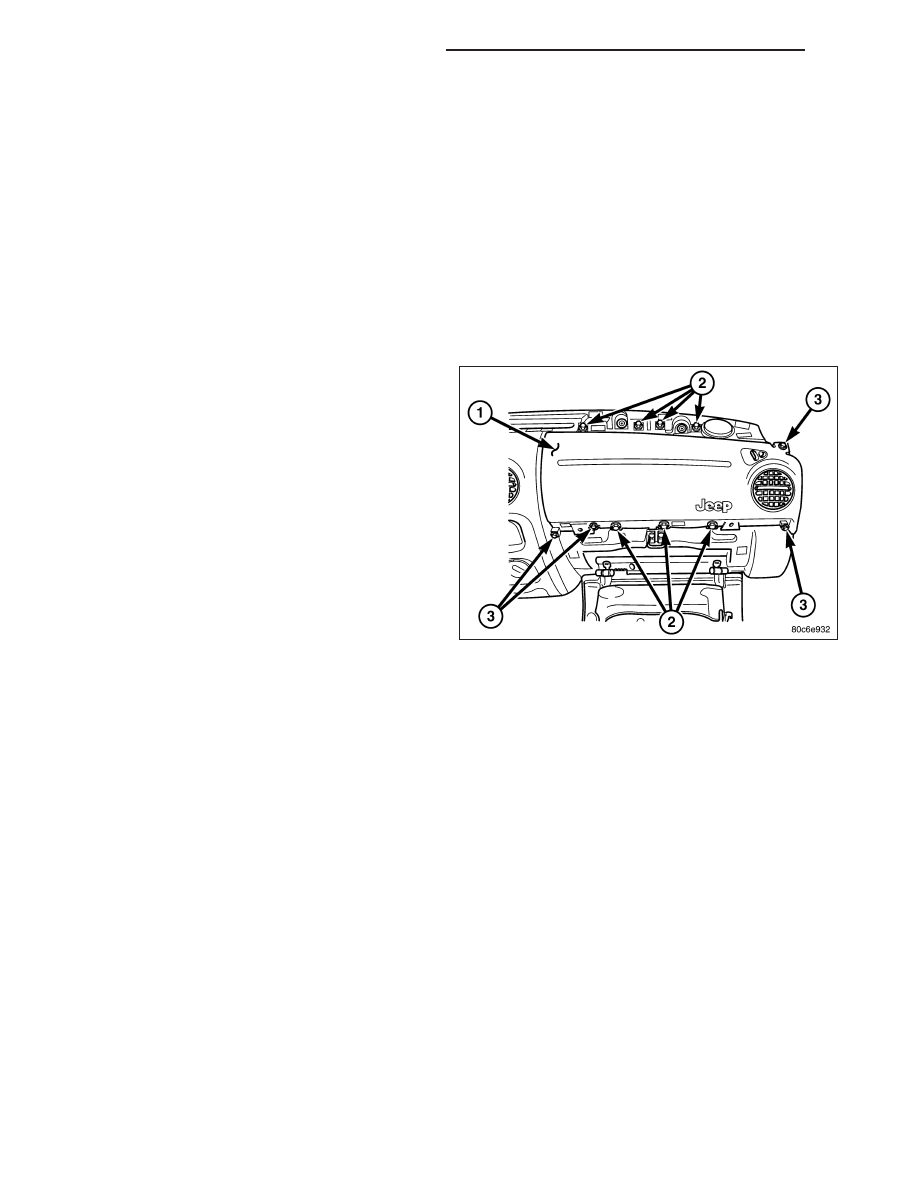

4. Remove the three small screws that secure the

passenger airbag door to the glove box opening
upper reinforcement.

5. Remove the three large screws (3) that secure the

passenger airbag door (1) to the glove box opening
upper reinforcement.

6. Remove the one small screw (3) that secures the passenger airbag door to the top of the instrument panel.

7. Remove the four large screws (2) that secure the passenger airbag door to the top of the instrument panel.

8. Remove the passenger airbag door from the instrument panel.

BRACKETS

WARNING: To avoid personal injury or death on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, driver airbag, passenger airbag,
occupant classification system, seat belt tensioner, front impact sensor, side impact sensor, side curtain
airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative
(ground) cable, then wait two minutes for the system capacitor to discharge before performing further diag-
nosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the
proper precautions could result in accidental airbag deployment.

NOTE: The passenger airbag mounting brackets cannot be repaired. They must be replaced if faulty or dam-
aged, or if the passenger airbag has been deployed.

1. Remove the passenger airbag from the instrument

panel. (Refer to 8 - ELECTRICAL/RESTRAINTS/
PASSENGER AIRBAG - REMOVAL).

2. Remove the two screws (4 or 5) that secure the

inboard (1) and/or outboard passenger airbag
mounting bracket (3) to the instrument panel sup-
port structure (2).

3. Remove the inboard and/or outboard passenger

airbag mounting bracket(s) from the instrument
panel support structure.

8O - 290

RESTRAINTS - SERVICE INFORMATION

KJ

INSTALLATION

AIRBAG

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, airbag, occupant classification sys-
tem, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge
before performing further diagnosis or service. This is the only sure way to disable the supplemental
restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

WARNING: To avoid personal injury or death, use extreme care to prevent any foreign material from enter-
ing the passenger airbag, or becoming entrapped between the passenger airbag cushion and the passenger
airbag door. Failure to observe this warning could result in occupant injuries upon airbag deployment.

NOTE: The following procedure is for replacement of a faulty or damaged passenger airbag. If the airbag is
faulty or damaged, but not deployed, review the recommended procedures for handling non-deployed sup-
plemental restraints. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - HANDLING NON-
DEPLOYED SUPPLEMENTAL RESTRAINTS). If the passenger airbag has been deployed, review the
recommended procedures for service after a supplemental restraint deployment before removing the airbag
from the vehicle. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - SERVICE AFTER A
SUPPLEMENTAL RESTRAINT DEPLOYMENT).

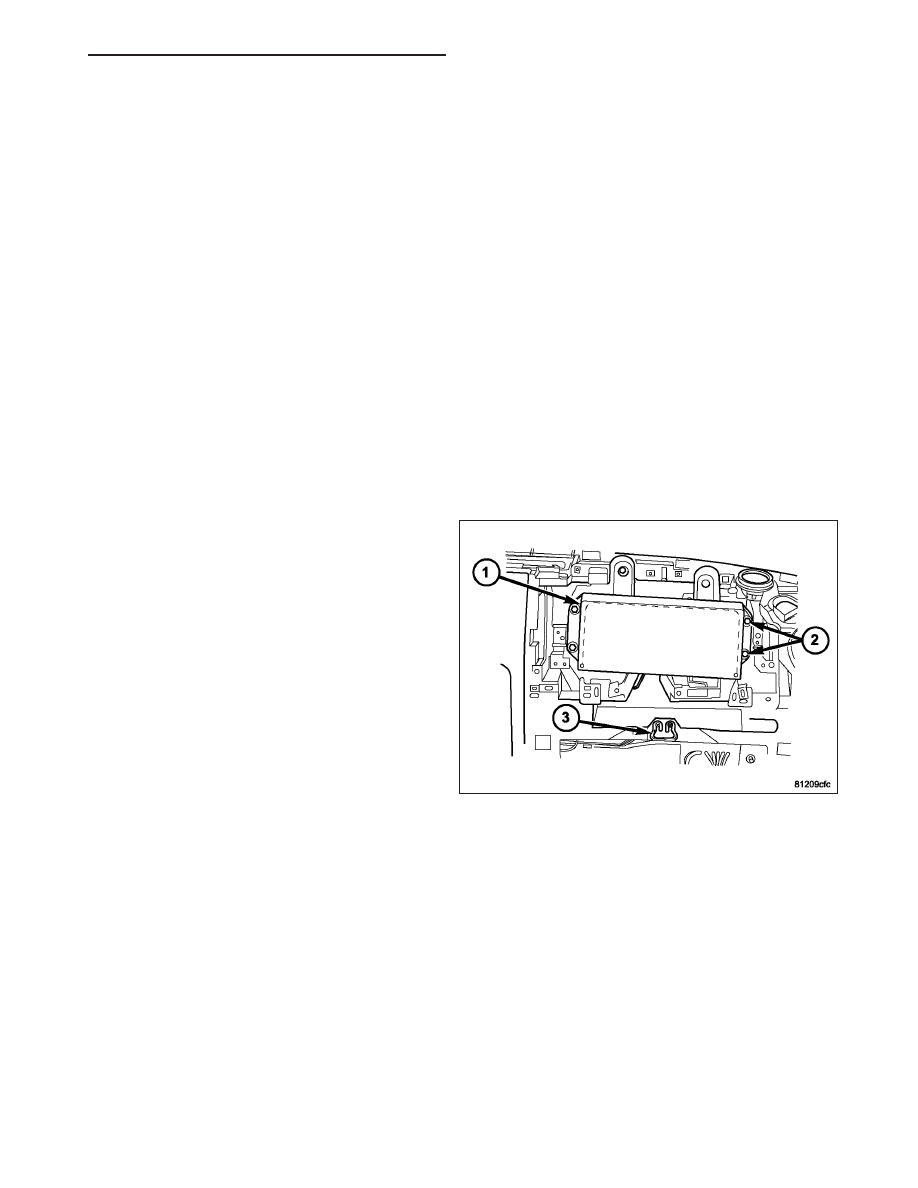

1. Position

the

passenger

airbag

unit

(1)

close

enough to the instrument panel to reconnect the
electrical connections on each side of the airbag
housing.

2. When installing the passenger airbag, reconnect

the two instrument panel wire harness connectors
to the airbag inflator connector receptacles by
pressing straight in on the connectors. Be certain
to engage each keyed and color-coded connector
to the matching connector receptacle. You can be
certain that each connector is fully engaged in its
receptacle by listening carefully for a distinct, audi-
ble click as the connector latches snap into place.

3. Carefully position the passenger airbag unit onto

the two metal brackets on the instrument panel
support structure. Be certain that the alignment pin
features on each side of the airbag are engaged in the alignment holes in the metal brackets.

4. Install and tighten the two screws (2) on each side of the passenger airbag housing that secure the passenger

airbag to the metal brackets on the instrument panel support structure. Tighten the screws to 6 N·m (55 in. lbs.).

5. Reinstall the passenger airbag door onto the instrument panel. (Refer to 8 - ELECTRICAL/RESTRAINTS/PAS-

SENGER AIRBAG DOOR - INSTALLATION).

6. Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test pro-

cedure should be performed following service of any supplemental restraint system component. (Refer to 8 -
ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - VERIFICATION TEST).

KJ

RESTRAINTS - SERVICE INFORMATION

8O - 291

DOOR

WARNING: To avoid personal injury or death on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, driver airbag, passenger airbag,
occupant classification system, seat belt tensioner, front impact sensor, side impact sensor, side curtain
airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative
(ground) cable, then wait two minutes for the system capacitor to discharge before performing further diag-
nosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the
proper precautions could result in accidental airbag deployment.

WARNING: To avoid personal injury or death on vehicles equipped with airbags, the passenger airbag door
must never be painted. Replacement passenger airbag doors are serviced in the original colors. Paint may
change the way in which the material of the airbag door responds to an airbag deployment. Failure to
observe this warning could result in occupant injuries upon airbag deployment.

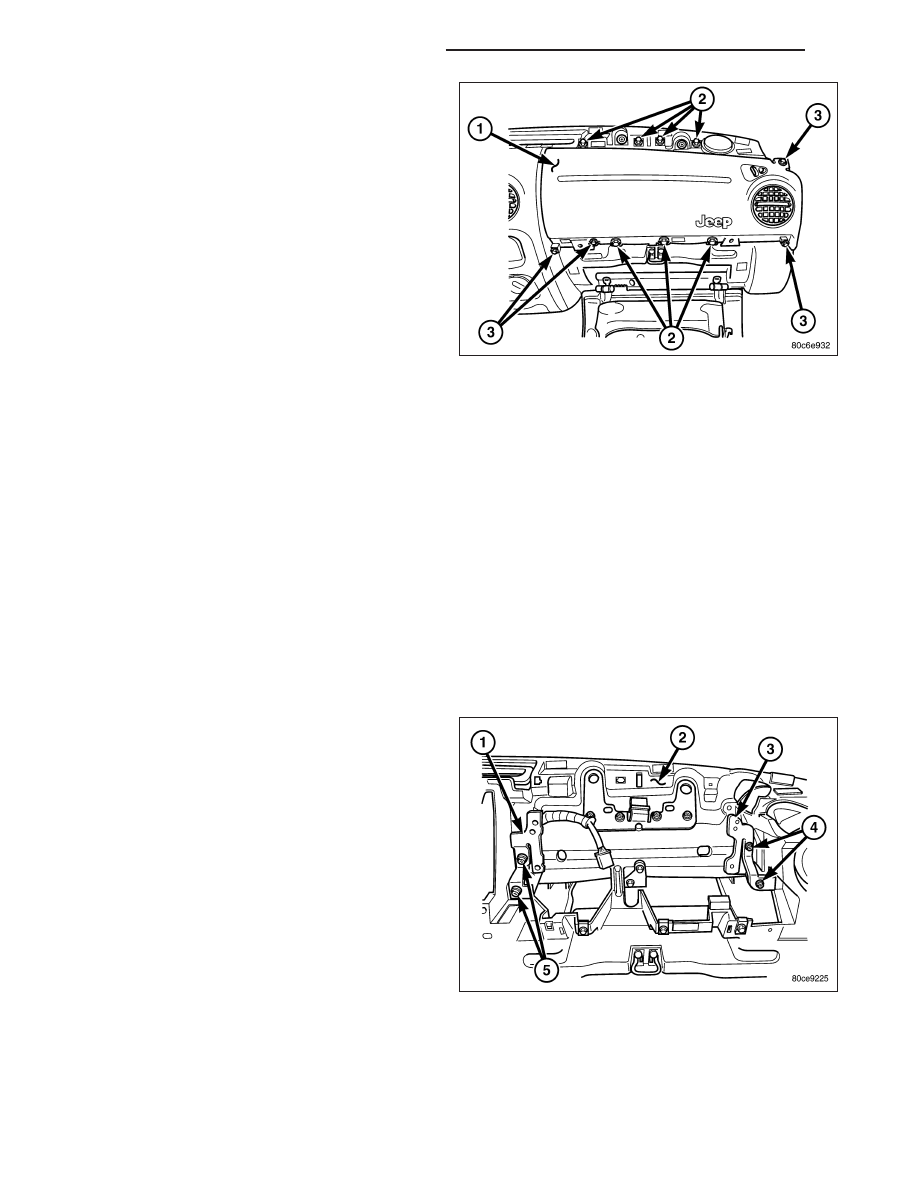

1. Position the passenger airbag door (1) onto the

instrument panel.

2. Install and tighten the four large screws (2) that

secure the passenger airbag door to the top of the
instrument panel. Tighten the screws to 4 N·m (35
in. lbs.).

3. Install and tighten the one small screw (3) that

secures the passenger airbag door to the top of the
instrument panel. Tighten the screw to 2 N·m (20
in. lbs.).

4. Install and tighten the three large screws (2) that

secure the passenger airbag door to the glove box
opening upper reinforcement. Tighten the screws to
4 N·m (35 in. lbs.).

5. Install and tighten the three small screws (3) that

secure the passenger airbag door to the glove box opening upper reinforcement. Tighten the screws to 2 N·m
(20 in. lbs.).

6. Reinstall the passenger side bezel onto the upper glove box opening of the instrument panel. (Refer to 23 -

BODY/INSTRUMENT PANEL/IP PASSENGER SIDE BEZEL - INSTALLATION).

7. Reinstall the top cover onto the instrument panel. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT

PANEL TOP COVER - INSTALLATION).

8. Reconnect the battery negative cable.

BRACKETS

WARNING: To avoid personal injury or death on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, driver airbag, passenger airbag,
occupant classification system, seat belt tensioner, front impact sensor, side impact sensor, side curtain
airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative
(ground) cable, then wait two minutes for the system capacitor to discharge before performing further diag-
nosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the
proper precautions could result in accidental airbag deployment.

NOTE: The passenger airbag mounting brackets cannot be repaired. They must be replaced if faulty or dam-
aged, or if the passenger airbag has been deployed.

8O - 292

RESTRAINTS - SERVICE INFORMATION

KJ

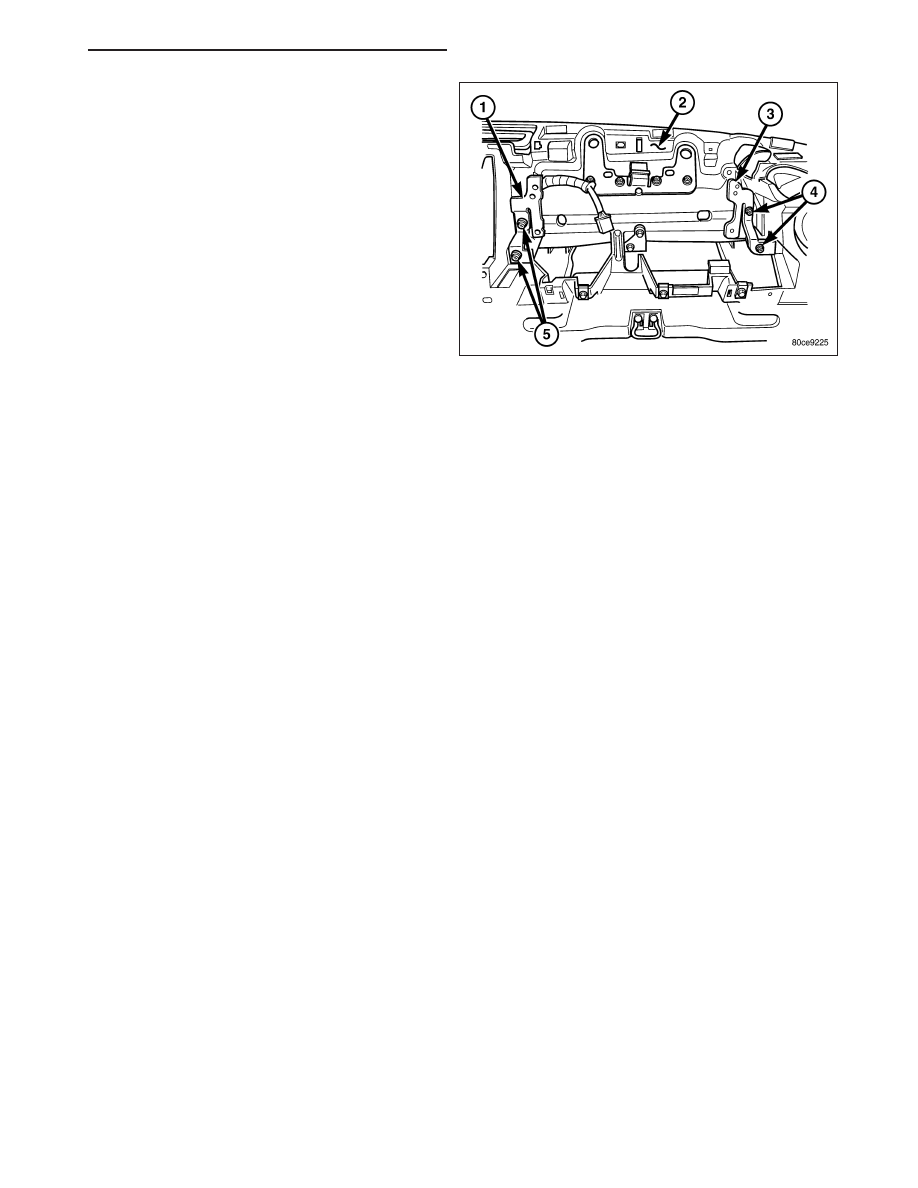

1. Position the inboard (1) and/or outboard passenger

airbag mounting bracket (3) to the instrument panel
support structure (2).

2. Install and tighten the two screws (4 or 5) that

secure the inboard and/or outboard passenger air-
bag mounting bracket(s) to the instrument panel
support structure. Tighten the screws to 2 N·m (20
in. lbs.).

3. Reinstall the passenger airbag to the instrument

panel. (Refer to 8 - ELECTRICAL/RESTRAINTS/
PASSENGER AIRBAG - INSTALLATION).

KJ
