When Monitored:
With the ignition on.

Set Condition:
The Occupant Restraint Controller (ORC) monitors the resistance of the Passenger Squib 1 circuits. The ORC
will set this DTC if it detects low resistance between the Passenger Squib 1 circuits.

Possible Causes

PASSENGER SQUIB 1 LINE 2 CIRCUIT SHORTED TO PASSENGER SQUIB 1 LINE 1 CIRCUIT

PASSENGER AIRBAG

ORC

Diagnostic Test

1.

DETERMINE ACTIVE OR STORED DTC

NOTE: Ensure that the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following
test.
Turn the ignition on.

SELECT ACTIVE or STORED DTC:

ACTIVE DTC

Go To 2

STORED DTC

Go To 4

2.

CHECK FOR SHORTED SQUIB CIRCUITS IN PASSENGER AIRBAG

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the Passenger Airbag Squib connector.

NOTE: Check connectors - Clean and repair as necessary.

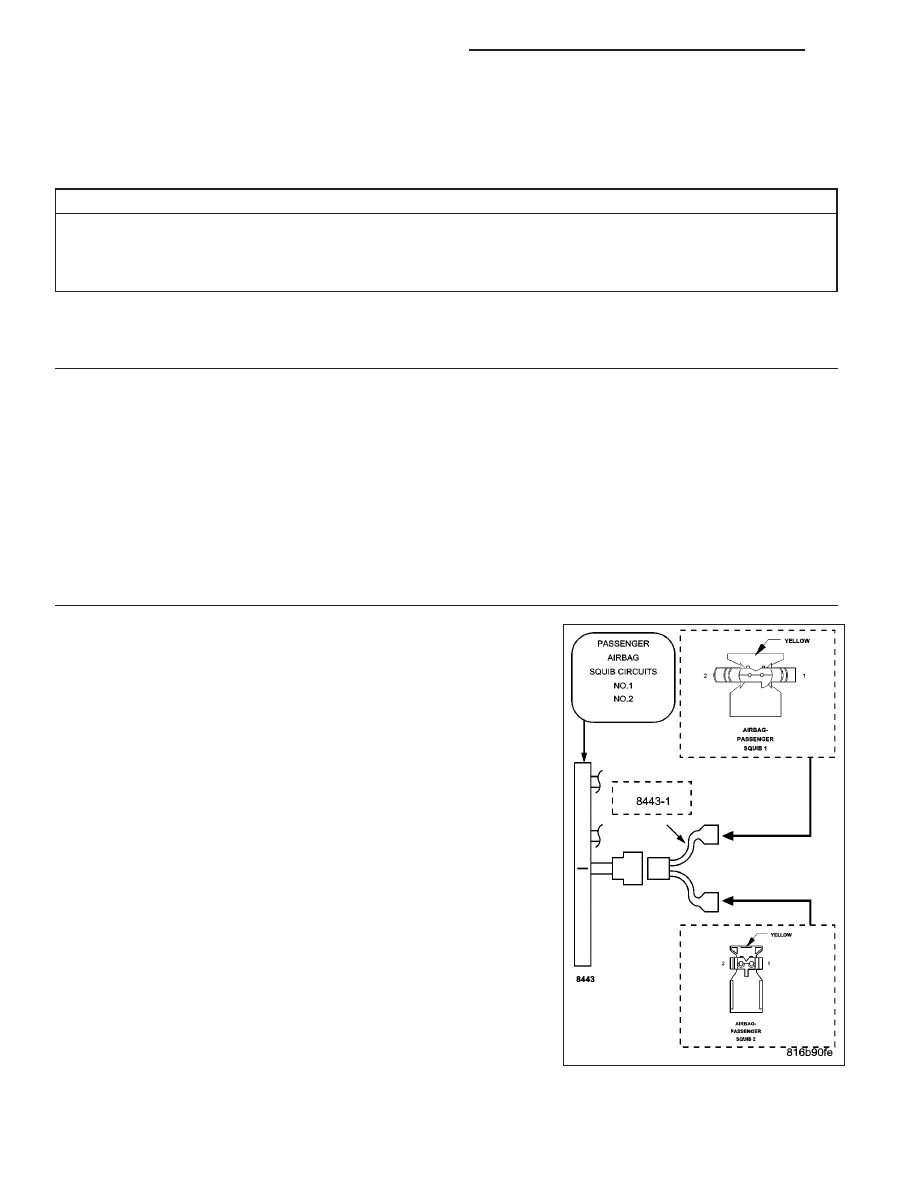

Connect the 8443 Load Tool to the Passenger Airbag Squib connector.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
With the scan tool, read the active ORC DTCs.

Does the scan tool display: PASSENGER SQUIB 1 CIRCUIT
SHORT?

Yes

>> Go To 3

No

>> Replace the Passenger Airbag in accordance with the Ser-

vice Information.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

8O - 162

RESTRAINTS - ELECTRICAL DIAGNOSTICS

KJ

3.

CHECK PASSENGER SQUIB 1 LINE 2 CIRCUIT FOR A SHORT TO PASSENGER SQUIB 1 LINE 1 CIRCUIT

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the 8443 Load Tool from the Passenger Airbag Squib con-
nector.

Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.

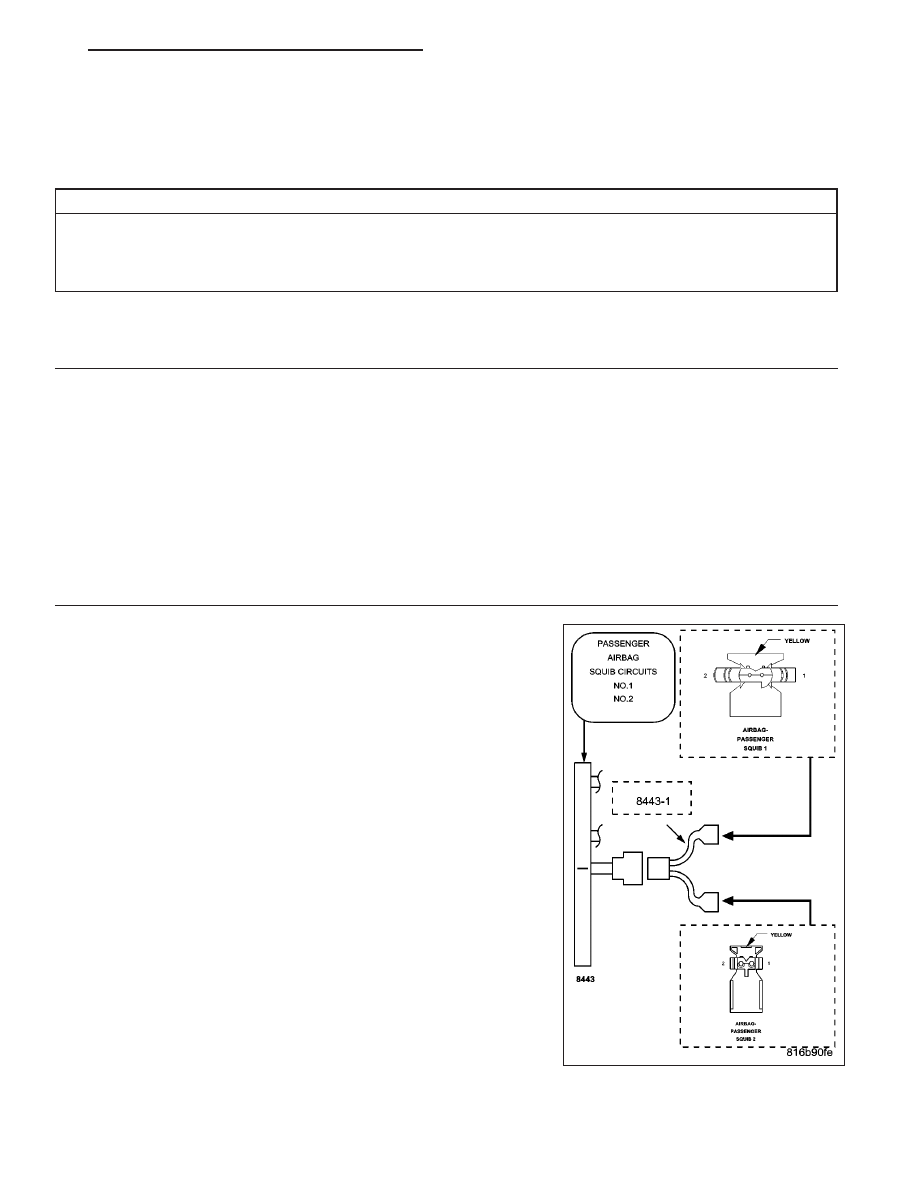

Connect the 8443 Load Tool ORC Adaptor to the ORC connector.

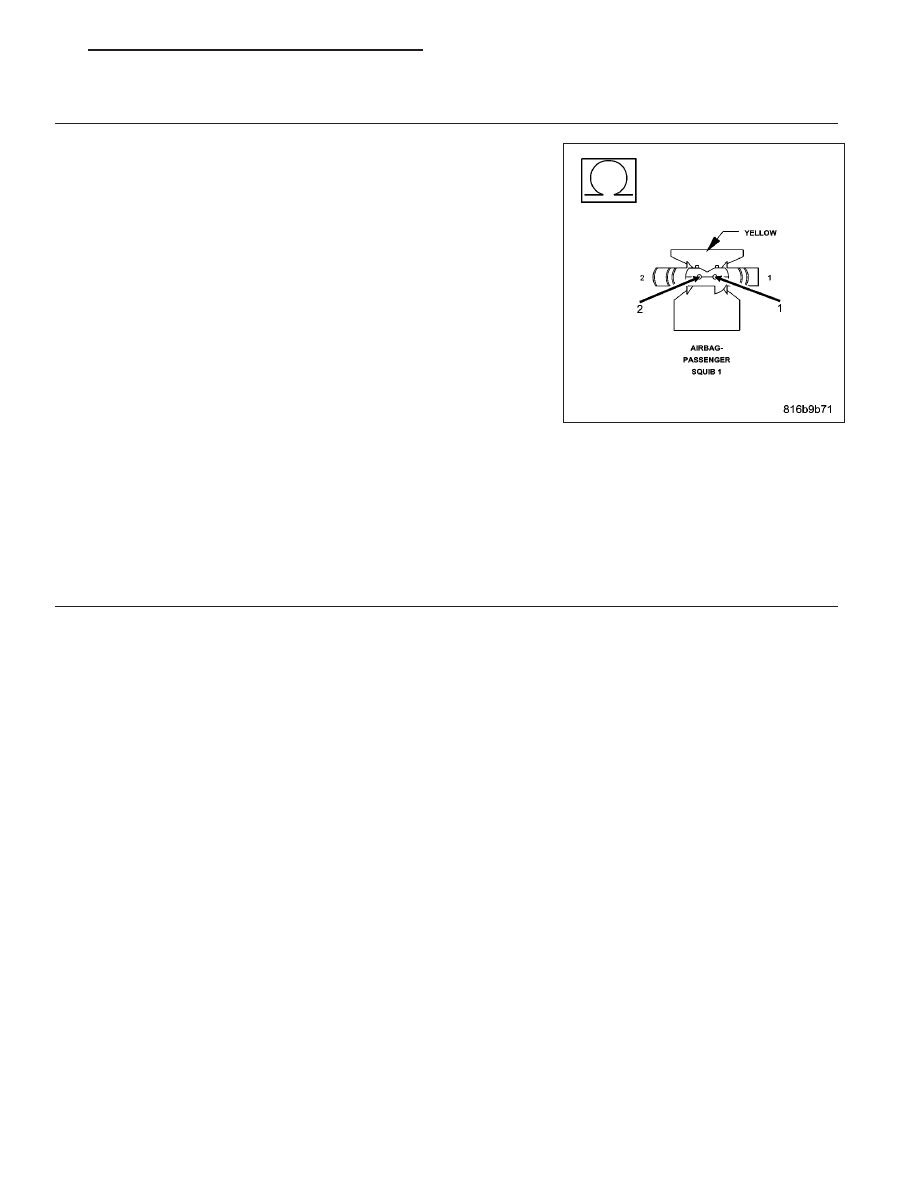

Measure the resistance between the Passenger Squib 1 Line 2 circuit
and the Passenger Squib 1 Line 1 circuit at the Passenger Airbag Squib
connector.

Is the resistance below 10K ohms?

Yes

>> Repair the Passenger Squib 1 Line 2 circuit for a short to

the Passenger Squib 1 Line 1 circuit.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

No

>>

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to
take the proper precautions can result in accidental airbag deployment and personal injury or death.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.

Replace the ORC in accordance with the Service Information.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

4.

CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents
in this Section for a complete list of airbag system diagnostic procedures.
With the scan tool, record and erase all Airbag System Module DTCs.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced,
pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair
as necessary.

Reconnect all disconnected components and harness connectors.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, monitor for active codes while performing the following:

Wiggle the wiring harness and connectors of the related airbag circuit.

Continue the test until either a code becomes active or the problem area is isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question /
causing the intermittent condition.

Are any ACTIVE DTCs present?

Yes

>> Select the appropriate diagnostic procedure from the Table of Contents in this section.

No

>> No problem found at this time. Erase all codes before returning the vehicle to the customer.

KJ

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 163

PASSENGER SQUIB 1 SHORT TO BATTERY

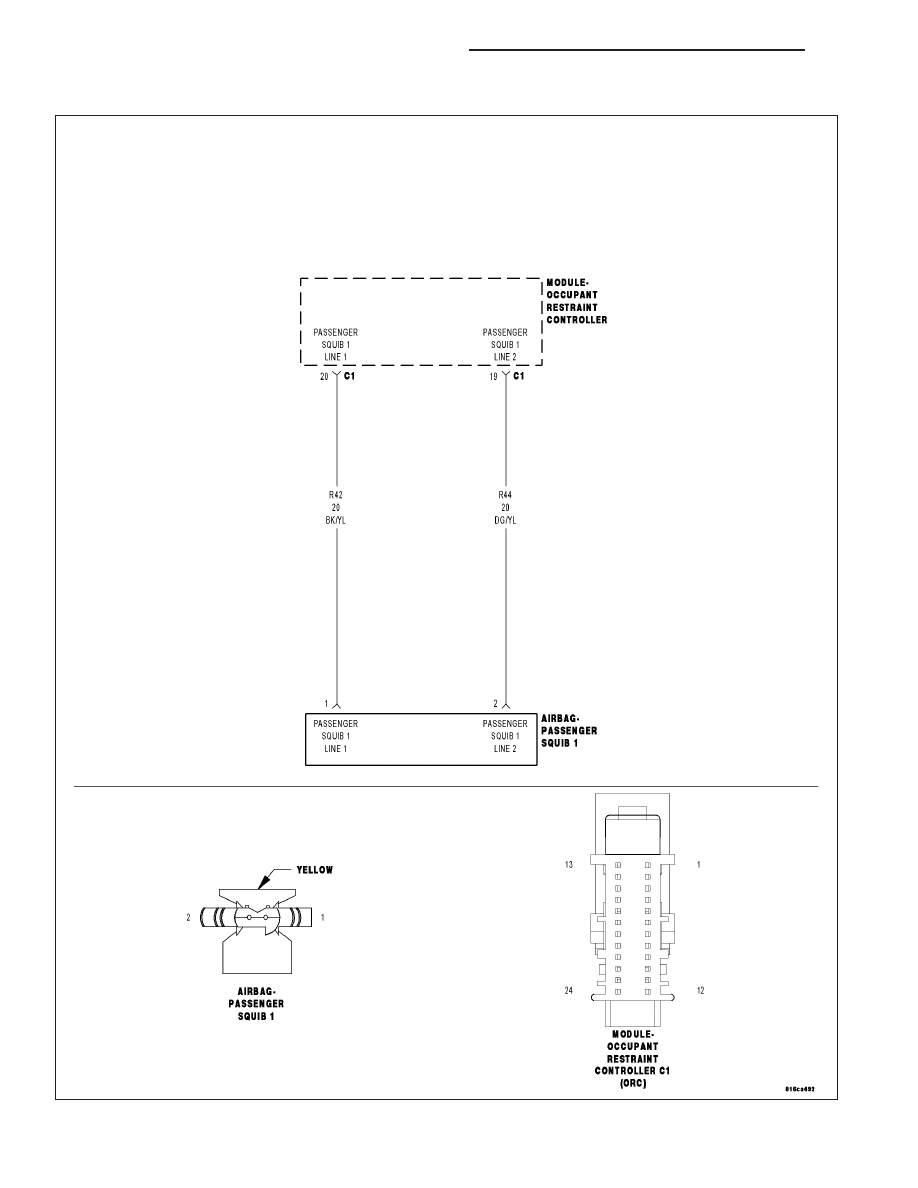

For a complete wiring diagram Refer to Section 8W.
