3.

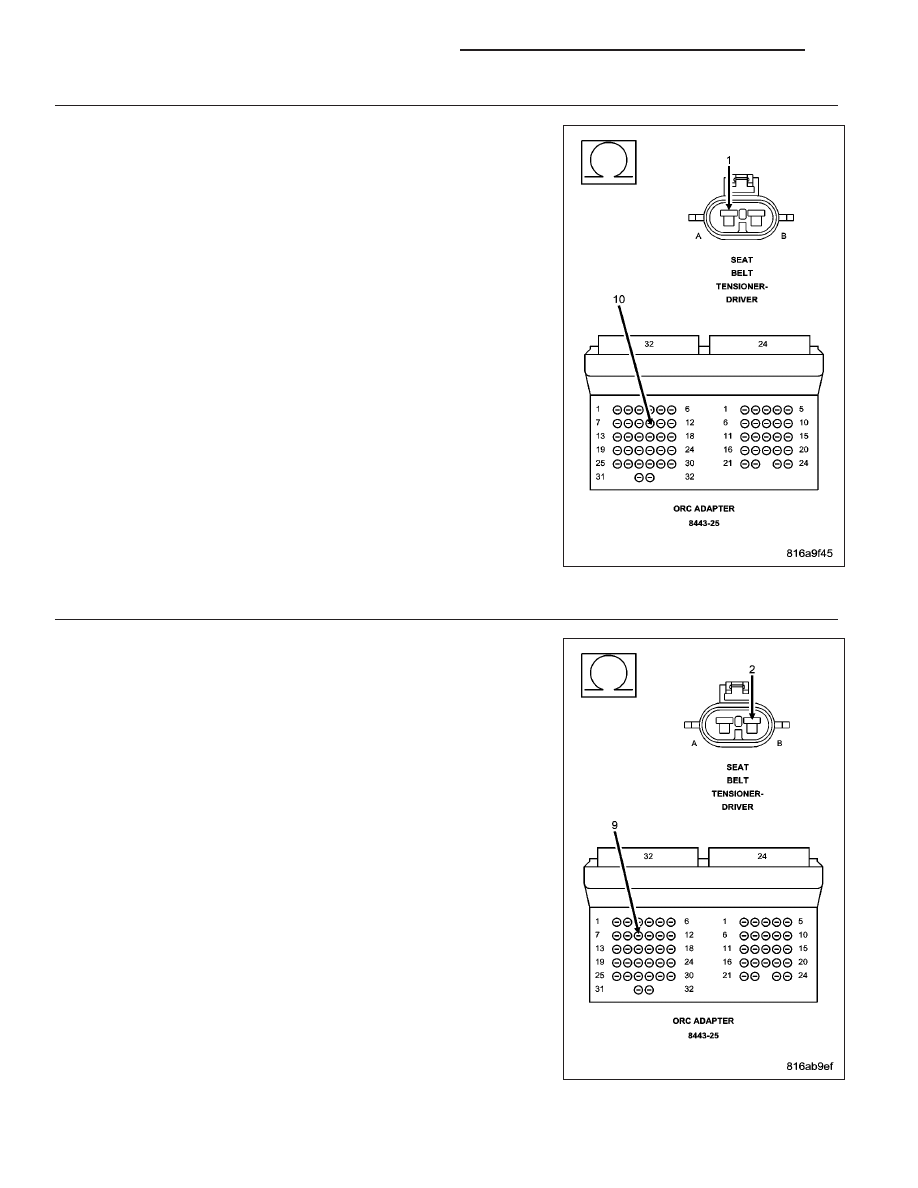

CHECK (R55) DRIVER SEAT BELT TENSIONER LINE 1 CIRCUIT FOR AN OPEN

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the 8443 Load Tool and Jumper from the Driver Seat Belt
Pretensioner connector.

Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.
Connect the 8443 Load Tool ORC Adaptor to the ORC connector.

Measure the resistance of the (R55) Driver Seat Belt Tensioner Line 1
circuit between the Driver Seat Belt Pretensioner connector and the
8443 ORC Adaptor.

Is the resistance below 1.0 ohm?

Yes

>> Go To 4

No

>> Repair the (R55) Driver Seat Belt Tensioner Line 1 circuit

for an open.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

4.

CHECK (R53) DRIVER SEAT BELT TENSIONER LINE 2 CIRCUIT FOR AN OPEN

Measure the resistance of the (R53) Driver Seat Belt Tensioner Line 2
circuit between the Driver Seat Belt Pretensioner connector and the
8443 ORC Adaptor.

Is the resistance below 1.0 ohm?

Yes

>>

WARNING: If the Occupant Restraint Controller (ORC) is dropped
at any time, it must be replaced. Failure to take the proper precau-
tions can result in accidental airbag deployment and personal
injury or death.

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.

Replace the ORC in accordance with Service Information.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

No

>> Repair the (R53) Driver Seat Belt Tensioner Line 2 circuit

for an open.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

8O - 14

RESTRAINTS - ELECTRICAL DIAGNOSTICS

KJ

5.

CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents
in this Section for a complete list of airbag system diagnostic procedures.
With the scan tool, record and erase all Airbag System Module DTCs.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced,
pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair
as necessary.

Reconnect all disconnected components and harness connectors.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, monitor for active codes while performing the following:

Wiggle the wiring harness and connectors of the related airbag circuit.

Continue the test until either a code becomes active or the problem area is isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question /
causing the intermittent condition.

Are any ACTIVE DTCs present?

Yes

>> Select the appropriate diagnostic procedure from the Table of Contents in this section.

No

>> No problem found at this time. Erase all codes before returning the vehicle to the customer.

KJ

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 15

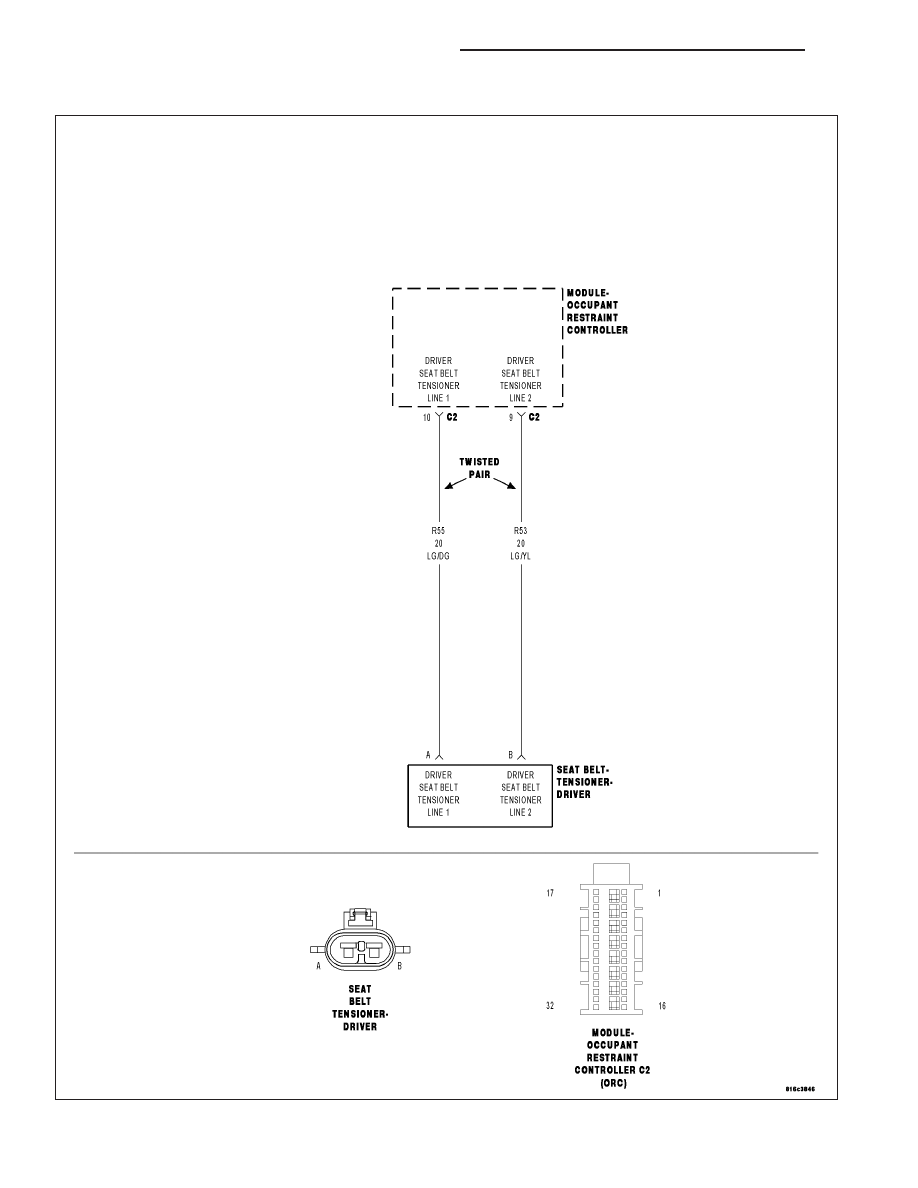

DRIVER SEAT BELT TENSIONER CIRCUIT SHORT

For a complete wiring diagram Refer to Section 8W.

8O - 16

RESTRAINTS - ELECTRICAL DIAGNOSTICS

KJ

When Monitored:
With the ignition on.

Set Condition:
The Occupant Restraint Controller (ORC) monitors the resistance of the Driver Seat Belt Tensioner circuits.
The ORC will set this DTC if it detects low resistance between the Driver Seat Belt Tensioner circuits.

Possible Causes

(R55) DRIVER SEAT BELT TENSIONER LINE 1 CIRCUIT SHORTED TO (R53) DRIVER SEAT BELT
TENSIONER LINE 2 CIRCUIT

DRIVER SEAT BELT PRETENSIONER

ORC

Diagnostic Test

1.

SELECT ACTIVE OR STORED DTC

NOTE: Ensure that the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following
test.
Turn the ignition on.

SELECT ACTIVE or STORED DTC:

ACTIVE DTC

Go To 2

STORED DTC

Go To 4

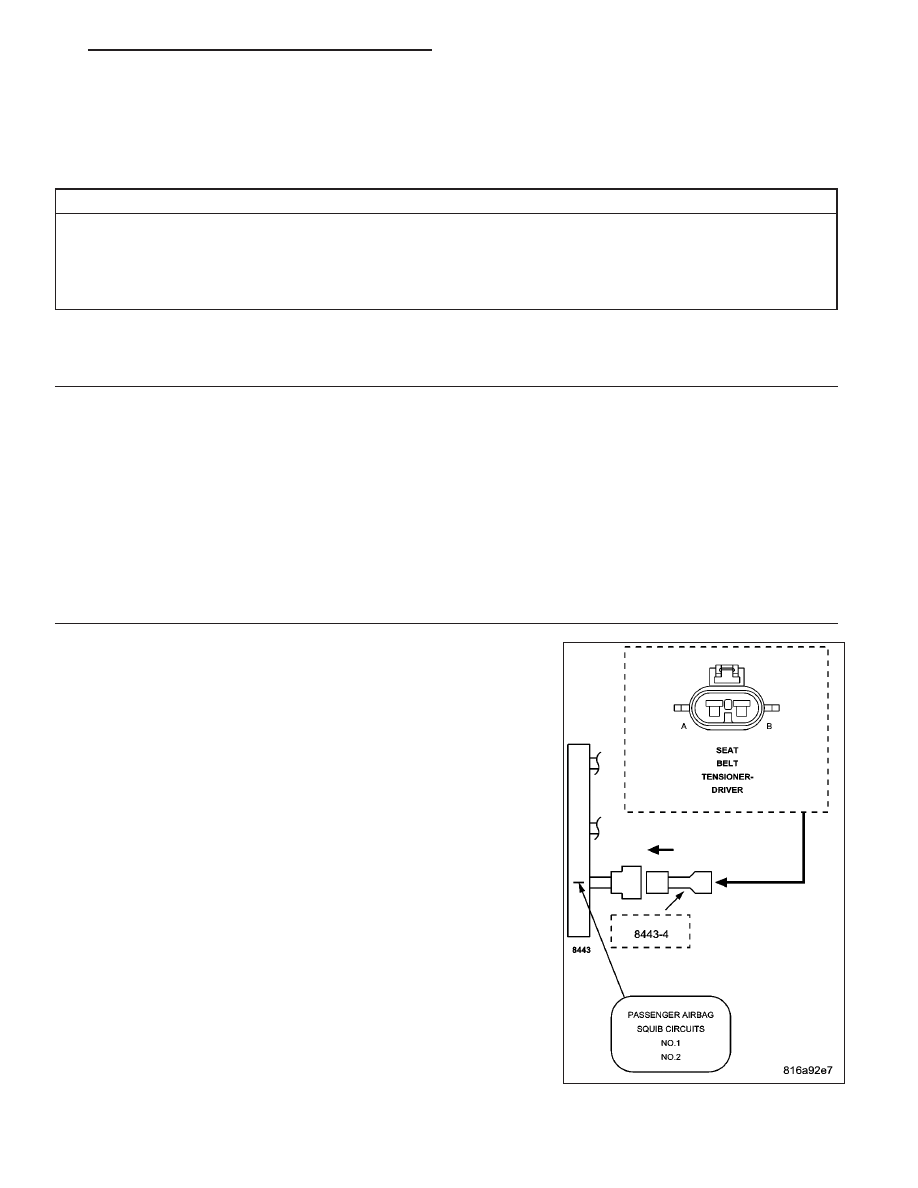

2.

CHECK FOR SHORTED DRIVER SEAT BELT PRETENSIONER

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the Driver Seatbelt Pretensioner connector.

NOTE: Check connectors - Clean and repair as necessary.
Connect the 8443 Load Tool and appropriate Jumper to the Driver Seat
Belt Pretensioner connector.

WARNING: To avoid personal injury or death, turn the ignition on
then reconnect the battery.
With the scan tool, read the active ORC DTCs.

Does the scan tool display: DRIVER SEAT BELT TENSIONER
CIRCUIT SHORT?

Yes

>> Go To 3

No

>> Replace the Driver Seat Belt Pretensioner in accordance

with the Service Information.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

KJ

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 17
