POWER SEAT TRACK

DESCRIPTION

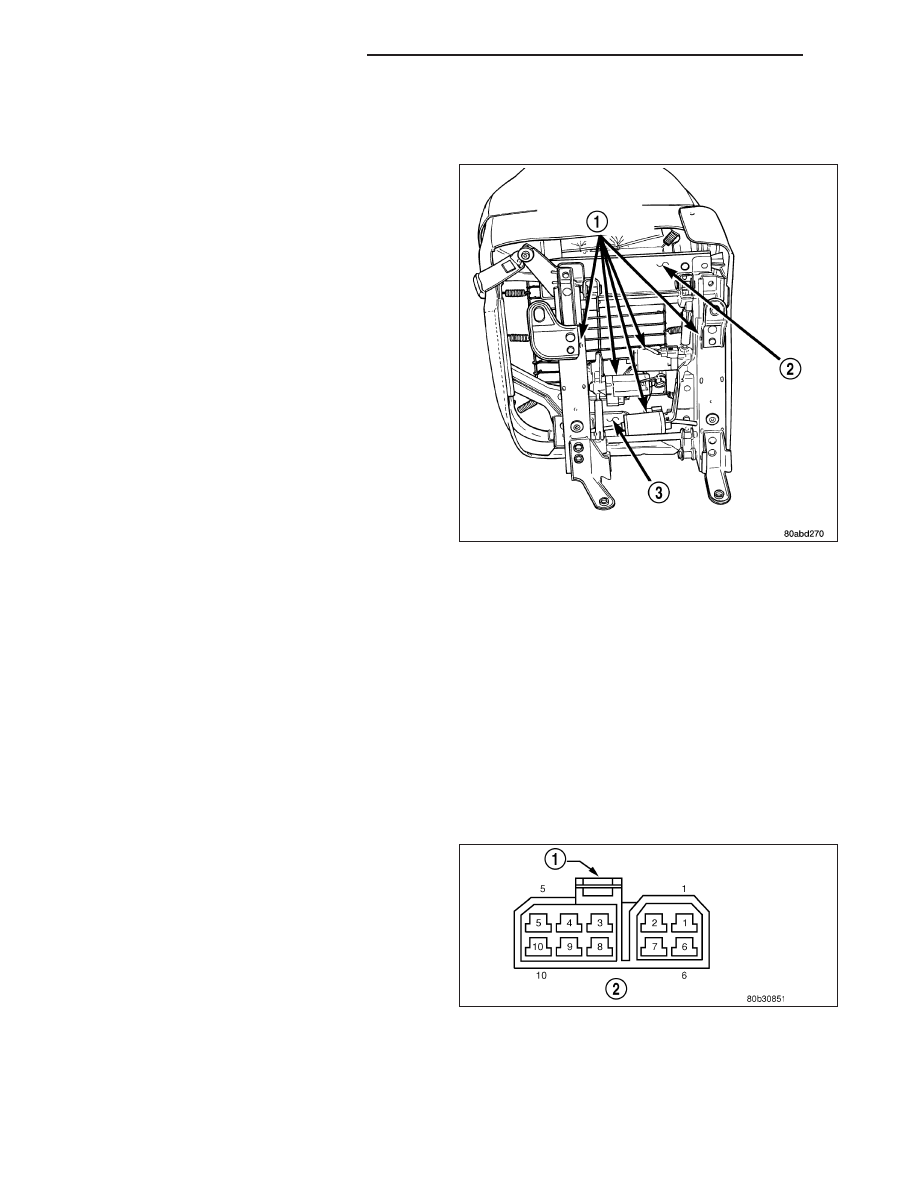

The six-way power seat option includes a power seat
track assembly (3) located under each front seat cush-
ion frame (2). The power seat track assembly replaces
the standard manually operated seat tracks. The lower
half of the power seat track is secured at the front with
two bolts to the floor panel seat cross member, and at
the rear with one bolt and one nut to the floor panel.
Four bolts secure the bottom of the seat cushion
frame to the upper half of the power seat track unit.

The power seat track assembly cannot be repaired,
and is serviced only as a complete assembly. If any
component in this assembly is faulty or damaged, the
entire power seat track must be replaced.

OPERATION

The power seat track unit includes three reversible electric motors that are secured to the upper half of the track
unit. Each motor moves the seat adjuster through a combination of worm-drive gearboxes and screw-type drive
units. Each of the three driver side power seat track motors also has a position potentiometer integral to the motor
assembly, which electronically monitors the motor position.

The front and rear of the seat are operated by two separate vertical adjustment motors. These motors can be oper-
ated independently of each other, tilting the entire seat assembly forward or rearward; or, they can be operated in
unison by selecting the proper power seat switch functions, which will raise or lower the entire seat assembly. The
third motor is the horizontal adjustment motor, which moves the seat track in the forward and rearward directions.

DIAGNOSIS AND TESTING - POWER SEAT TRACK

1. Remove the power seat switch from the seat (Refer to 8 - ELECTRICAL/POWER SEATS/DRIVER SEAT

SWITCH - REMOVAL).

2. Checking the body harness side of the power seat

switch electrical connector, check Pin 1 for ground
and Pin 5 for battery voltage. If either of these two
are not present repair the body harness as
required.

To test the seat motors and verify proper seat

responses, refer to the SEAT TRACK MOTOR
TEST TABLE . Using two jumper wires, connect
one to a battery supply and the second to a
ground. Connect the other ends to the seat wire
harness connector as described in the SEAT
TRACK MOTOR TEST TABLE .

8N - 98

POWER SEATS-SERVICE INFO

SEAT TRACK MOTOR TEST TABLE

SEAT SWITCH CONNECTOR

CONNECT JUMPER

SEAT ACTION

B(+)

B(–)

LEFT SIDE

RIGHT SIDE

PIN 9

PIN 8

FRONT
RISER UP

FRONT
RISER
DOWN

PIN 8

PIN 9

FRONT
RISER
DOWN

FRONT
RISER UP

PIN 3

PIN 6

FORWARD

PIN 6

PIN 3

REARWARD

PIN 10

PIN 7

REAR
RISER UP

REAR RISER
DOWN

PIN 7

PIN 10

REAR
RISER
DOWN

REAR RISER
UP

REMOVAL

1. Remove the appropriate seat from the vehicle. (Refer to 23 - BODY/SEATS/SEAT - REMOVAL).

2. Remove the seat cushion side shield from the seat (Refer to 23 - BODY/SEATS/SEAT CUSHION SIDE COVERS

- REMOVAL).

3. Remove four seat track mounting bolts from cushion pan.

4. Disconnect the power seat electrical and remove the seat track from the seat cushion.

INSTALLATION

1. Position the seat track and install the retaining bolts in the seat cushion pan. Torque the bolts to 45-60 N·m.

2. Route and connect the power seat electrical on the seat track and cushion pan.

3. Install the seat cushion side shield on the seat. Refer to the Body section for the procedure.

4. Install the seat in the vehicle (Refer to 23 - BODY/SEATS/SEAT - INSTALLATION).

5. Connect the negative battery cable.

POWER SEATS-SERVICE INFO

8N - 99

POWER TOP - SUNROOF

TABLE OF CONTENTS

page

POWER TOP - SUNROOF

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
DIAGNOSIS AND TESTING

SUNROOF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

MOTOR/MODULE - SUNROOF

DIAGNOSIS AND TESTING - . . . . . . . . . . . . . . . . . . 104
STANDARD PROCEDURE

STANDARD PROCEDURE - POWER

SUNROOF TIMING

. . . . . . . . . . . . . . . . . . . . . . . . . 104

STANDARD PROCEDURE - RE-

INITIALIZATION.. . . . . . . . . . . . . . . . . . . . . . . . . . . 105

STANDARD PROCEDURE - INITIALIZATION . 105

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

SWITCH - SUNROOF

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
DIAGNOSIS AND TESTING

SUNROOF SWITCH . . . . . . . . . . . . . . . . . . . . . . . . 107

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

8N - 100

POWER TOP - SUNROOF

DESCRIPTION

WARNING: Keep fingers and other body parts out of sunroof opening at all times.

The power sunroof system allows the sunroof to be opened, closed or placed in the vent position electrically by
actuating a switch located in the overhead console in between the two reading lamps. The sunroof system receives
battery feed through a 30 amp circuit breaker in the junction block. The sunroof system power is supplied when the
ignition switch is in the RUN and ACCESSORY positions. The sunroof will continue to operate normally with the key
in the OFF position or with the key removed while the Accessory Delay System is active.

The sunroof glass panel tilts upward at the rear for ventilation and slides rearward under the roof when open. The
panel seals flush with the roof in the closed position to eliminate wind noise. The sunroof includes a manual-sliding
sunshade to cover the deep-tinted glass panel.

The sunroof is electrically operated from a combination push-button/rocker style switch located in the overhead con-
sole in between the two reading lamps. The “VENT” switch is a push button type switch and opens the sunroof to
the vent position only. The other switch “OPEN/CLOSED” is a rocker type switch for opening and closing the sun-
roof. Pressing and releasing the open button once, the sunroof will express open and the wind deflector will raise.
If the button is pressed a second time the sunroof will stop in that position. Pressing and holding the close button
will close the sunroof. If the close button is released the sunroof will stop in that position.

OPERATION

This vehicle has a vent, tilt and slide power sunroof system with express (one-touch) open feature. The sunroof
system receives battery feed through the “sunroof” relay and a 20 amp mini fuse located in the junction block. The
sunroof system power is supplied when the ignition switch is in the RUN and ACCESSORY positions. The sunroof
will operate normally with the key in any position while the Accessory Delay system is active.

The sunroof is electrically operated from two switches located in the overhead console in between the two reading
lamps. The “VENT” switch is a push button type switch and opens the sunroof to the vent position only. The other
switch “OPEN/CLOSED” is a rocker type switch for opening and closing the sunroof. Pressing and releasing the
open button once, the sunroof will express open and the wind deflector will raise. If the button is pressed a second
time the sunroof will stop in that position. Pressing and holding the close button will close the sunroof. If the close
button is released the sunroof will stop in that position.

DIAGNOSIS AND TESTING

SUNROOF

Refer to SUNROOF DIAGNOSIS CHART for possible causes. Before beginning sunroof diagnostics verify that all
other power accessories are in proper operating condition. If not, a common electrical problem may exist.

Check the condition of the circuit protection and inspect all wiring connector pins for proper engagement and con-
tinuity. For complete circuit diagrams, refer to the appropriate wiring information. The wiring information includes
wiring diagrams, proper wire and connector repair procedures, details of wire harness routing and retention, con-
nector pin-out information and location views for the various wire harness connectors, splices and grounds.

POWER TOP - SUNROOF

8N - 101
