SIDEVIEW MIRROR

REMOVAL

1. For removal procedures, (Refer to 23 - BODY/EXTERIOR/SIDE VIEW MIRROR - REMOVAL).

8N - 90

POWER MIRRORS

KJ

POWER SEATS-SERVICE INFO

TABLE OF CONTENTS

page

page

POWER SEATS-SERVICE INFO

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
DIAGNOSIS AND TESTING - POWER SEATS . . . 92

POWER SEAT SWITCH

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
DIAGNOSIS AND TESTING

POWER SEAT SWITCH . . . . . . . . . . . . . . . . . . . . . 94

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

POWER SEAT TRACK

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
DIAGNOSIS AND TESTING - POWER SEAT

TRACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

KJ

POWER SEATS-SERVICE INFO

8N - 91

POWER SEATS-SERVICE INFO

DESCRIPTION

Individually controlled, electrically powered front seats
are available as factory-installed equipment on this
model. Vehicles with this option can be visually identi-

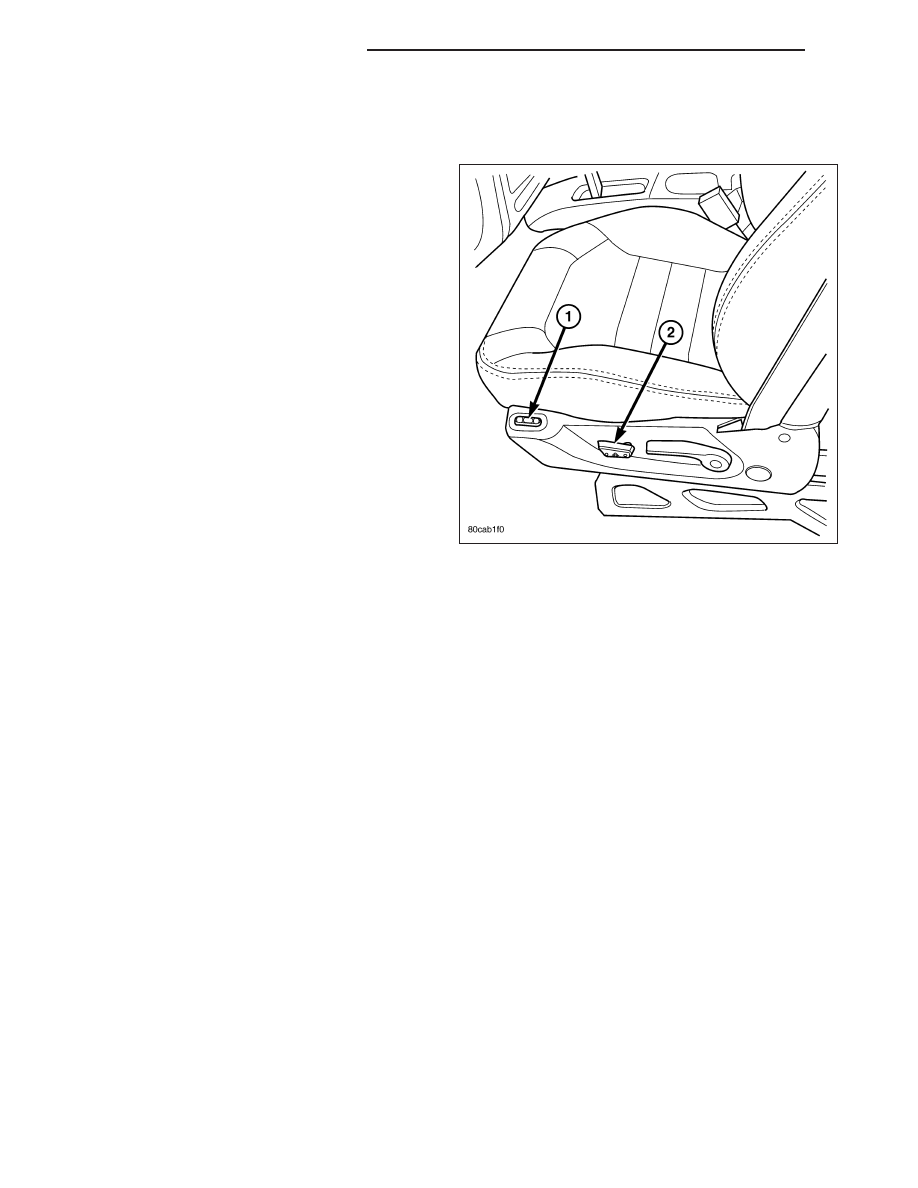

fied by the power seat switches (2), mounted on each
of the front seat cushion side shields. The power seat
system option allows the front seating positions to be
electrically adjusted for optimum vehicle control and
comfort. The power seat cushion can be adjusted for-
ward, rearward, front up, front down, rear up, or rear
down. The power seat system for this vehicle includes
the following major components:

Power

Seat

Switches

-

Two

power

seat

switches are used per vehicle, one for the driver
and one for the front seat passenger. Refer to
the left and right power seat switch information
later in this section.

Power Seat Tracks - Two power seat tracks are
used per vehicle, one for the driver and one for
the front seat passenger seats. Refer to the
power seat track information later in this section.

Circuit Breaker - An automatic resetting circuit
breaker is located in the Junction Block and is
used to protect the power seat system from current overload.

Hard wired circuitry connects the power seat system components to each other through the electrical system of the
vehicle. These hard wired circuits are integral to several wire harnesses, which are routed throughout the vehicle
and retained by many different methods. These circuits may be connected to each other, to the vehicle electrical
system and to the power seat system components through the use of a combination of soldered splices, splice
block connectors and many different types of wire harness terminal connectors and insulators. Refer to the Wiring
section of this manual for more information. The wiring information includes wiring diagrams, proper wire and con-
nector repair procedures, further details on wire harness routing and retention, as well as pin-out and location views
for the various wire harness connectors, splices and grounds.

OPERATION

The power seat system receives battery current through a fuse in the Power Distribution Center (PDC) and a circuit
breaker in the Junction Block, regardless of the ignition switch position.

When a power seat switch control knob or knobs are actuated, a battery feed and a ground path are applied
through the switch contacts to the appropriate power seat track adjuster motor. The selected adjuster motor oper-
ates to move the seat track through its drive unit in the selected direction until the switch is released, or until the
travel limit of the seat track is reached. When the switch is moved in the opposite direction, the battery feed and
ground path to the motor are reversed through the switch contacts. This causes the adjuster motor to run in the
opposite direction.

Refer to the owner’s manual in the vehicle glove box for more information on the features, use and operation of the
power seat system.

DIAGNOSIS AND TESTING - POWER SEATS

Before any testing of the power seat system is attempted, the battery should be fully-charged and all wire harness
connections and pins cleaned and tightened to ensure proper continuity and grounds. Refer to the appropriate wir-
ing information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, fur-
ther details on wire harness routing and retention, as well as pin-out and joint connector location views for the
various wire harness connectors, splices and grounds.

1. If all power seats are inoperative, check the automatic resetting circuit breaker in the Junction Block. (Refer to 8

- ELECTRICAL/POWER DISTRIBUTION/CIRCUIT BREAKER - DIAGNOSIS AND TESTING).

8N - 92

POWER SEATS-SERVICE INFO

KJ

2. With the dome lamp on, apply the power seat switch in the direction of the failure.

3.

If the dome lamp dims, the seat or the power seat track may be jammed. Check under and behind the seat for

binding or obstructions.

4. If the dome lamp does not dim, proceed with testing of the individual power seat system components and cir-

cuits.
