Jeep Liberty KJ. Manual - part 1444

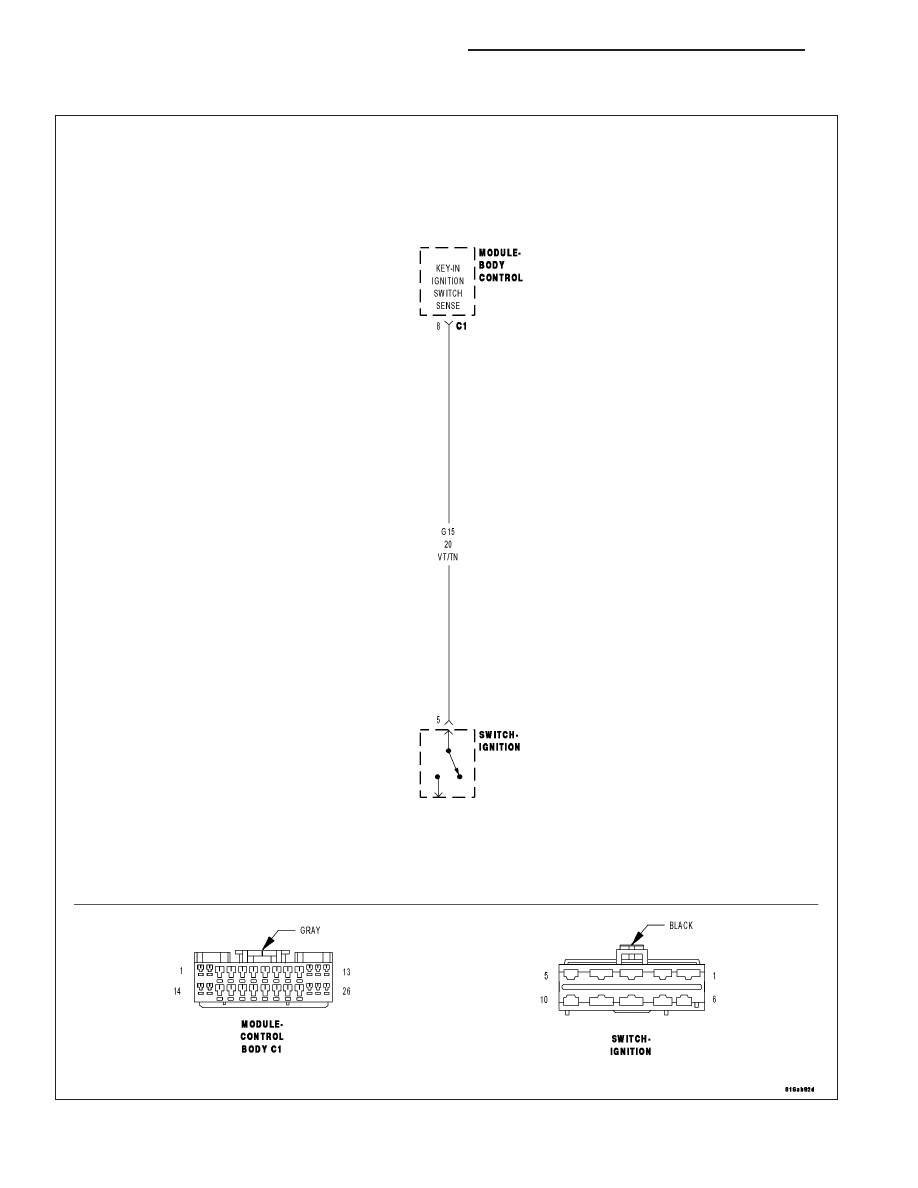

*CHIME SOUNDS WITH DRIVER DOOR OPEN & KEY REMOVED

For a complete wiring diagram Refer to Section 8W.

8B - 4

CHIME/BUZZER - ELECTRICAL DIAGNOSTICS

KJ

Possible Causes

(G15) KEY-IN IGNITION SWITCH SENSE CIRCUIT SHORTED TO GROUND

IGNITION LOCK CYLINDER

IGNITION SWITCH

BODY CONTROL MODULE (BCM)

Diagnostic Test

1.

CHECK THE KEY IN IGNITION STATUS WITH THE KEY REMOVED

NOTE: Ensure the exterior lamps turn on and off properly and are off before continuing this test.
Turn the ignition on.

With the scan tool in BCM, select Input Output.

Remove the key from the ignition switch.

With the scan tool, read the Key In Ignition status.

Does the scan tool display: Key Not In Ignition?

Yes

>> Refer to the Service Information for other possible causes.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> Go To 2

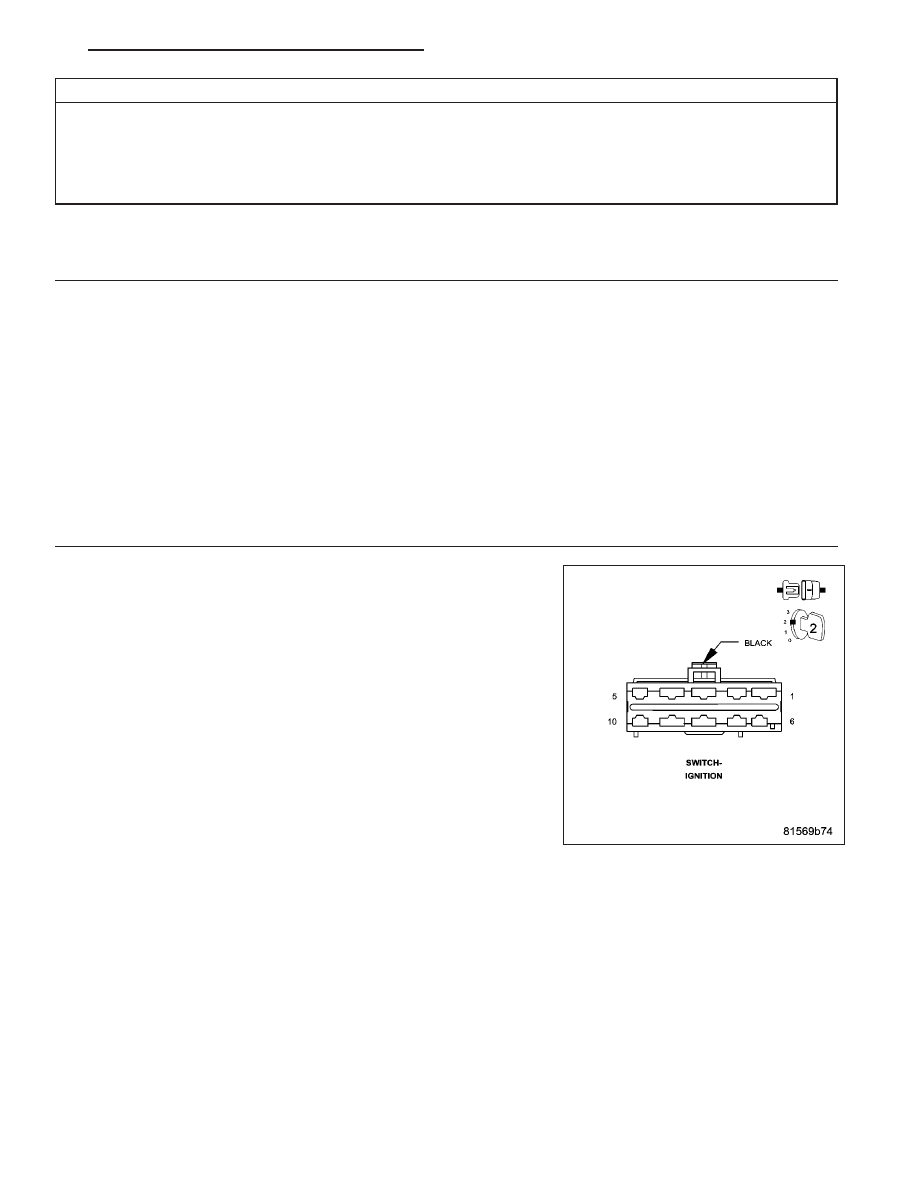

2.

CHECK FOR A SHORTED IGNITION LOCK CYLINDER / IGNITION SWITCH

Disconnect the Ignition Switch harness connector.

Does the chime turn off?

Yes

>> Inspect the Ignition Lock Cylinder for damage and repair as

necessary. If OK, replace the Ignition Switch in accordance
with the Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE).

No

>> Go To 3

KJ

CHIME/BUZZER - ELECTRICAL DIAGNOSTICS

8B - 5

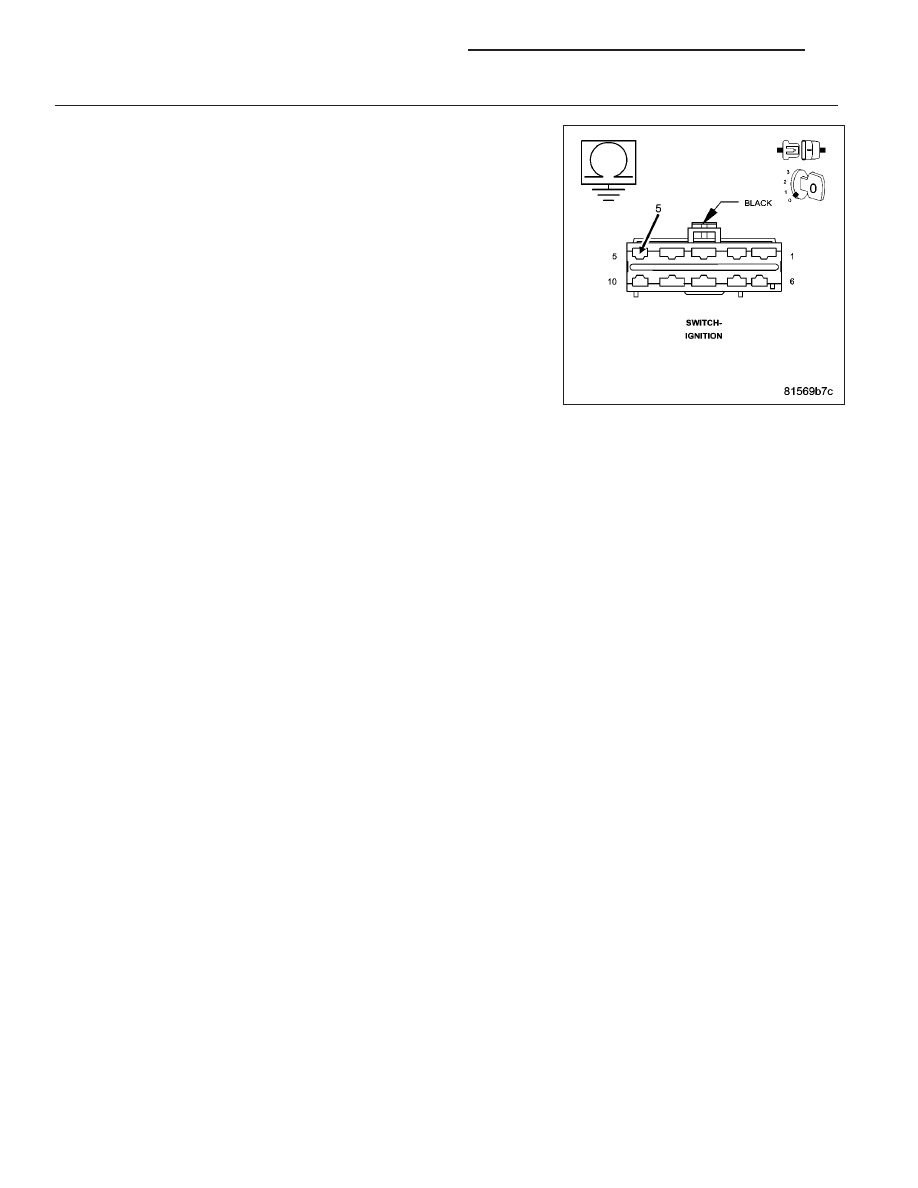

3.

CHECK THE (G15) KEY-IN IGNITION SWITCH SENSE CIRCUIT FOR A SHORT TO GROUND

Disconnect the BCM C1 harness connector.

Measure the resistance of the (G15) Key-In Ignition Switch Sense circuit
between ground and the Ignition Switch harness connector.

Is the resistance below 100.0 ohms?

Yes

>> Repair the (G15) Key-In Ignition Switch Sense circuit for a

short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE).

No

>> Replace and program the BCM in accordance with the Ser-

vice Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE).

8B - 6

CHIME/BUZZER - ELECTRICAL DIAGNOSTICS

KJ

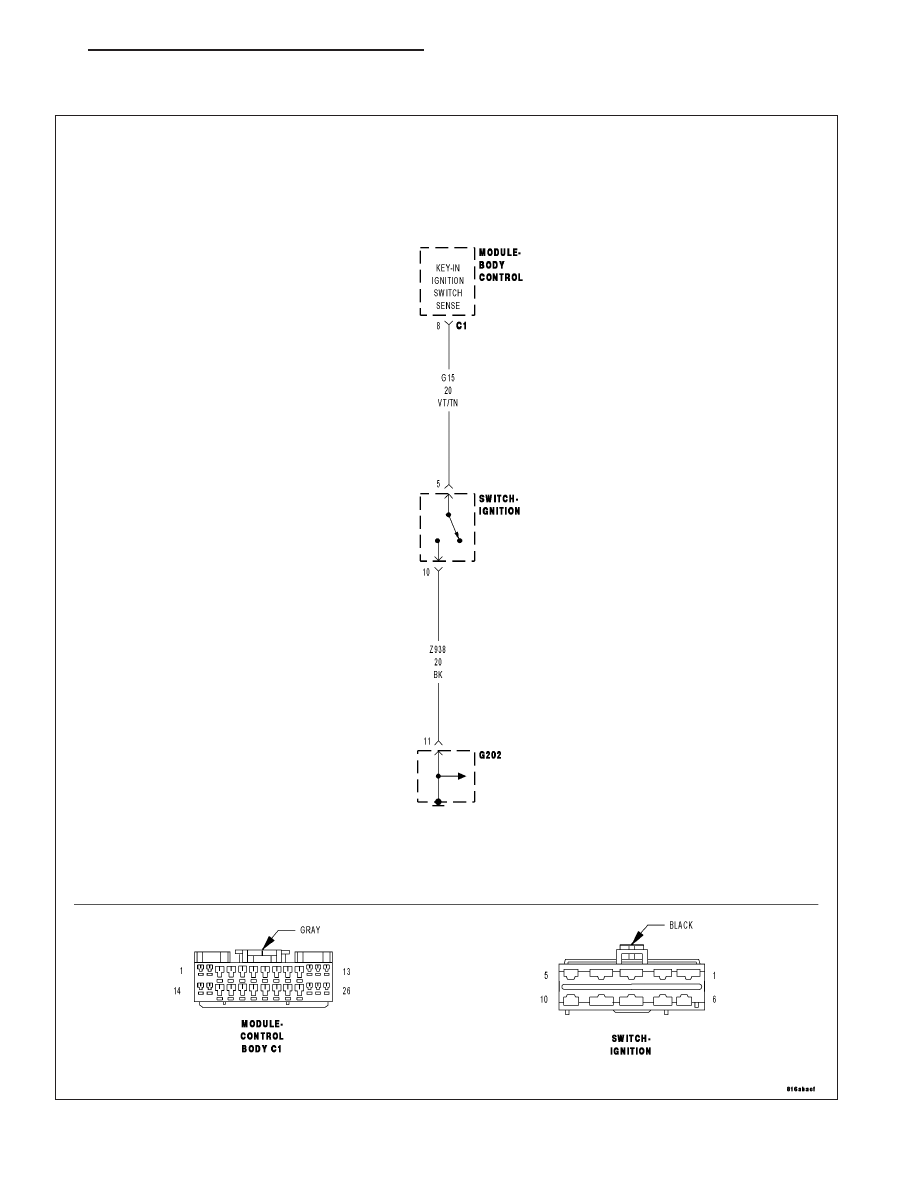

*CHIME INOPERATIVE WITH KEY IN IGNITION & DRIVER DOOR OPEN

For a complete wiring diagram Refer to Section 8W.

KJ

CHIME/BUZZER - ELECTRICAL DIAGNOSTICS

8B - 7
