Jeep Liberty KJ. Manual - part 1406





CAUTION: The snap ring must be fully and prop-
erly seated in the groove or it will vibrate out,
resulting in a clutch failure and severe damage to
the A/C compressor.

NOTE: A new snap ring must be used to secure
the pulley and bearing assembly to the A/C com-
pressor. The bevel side of the snap ring must face
outward.

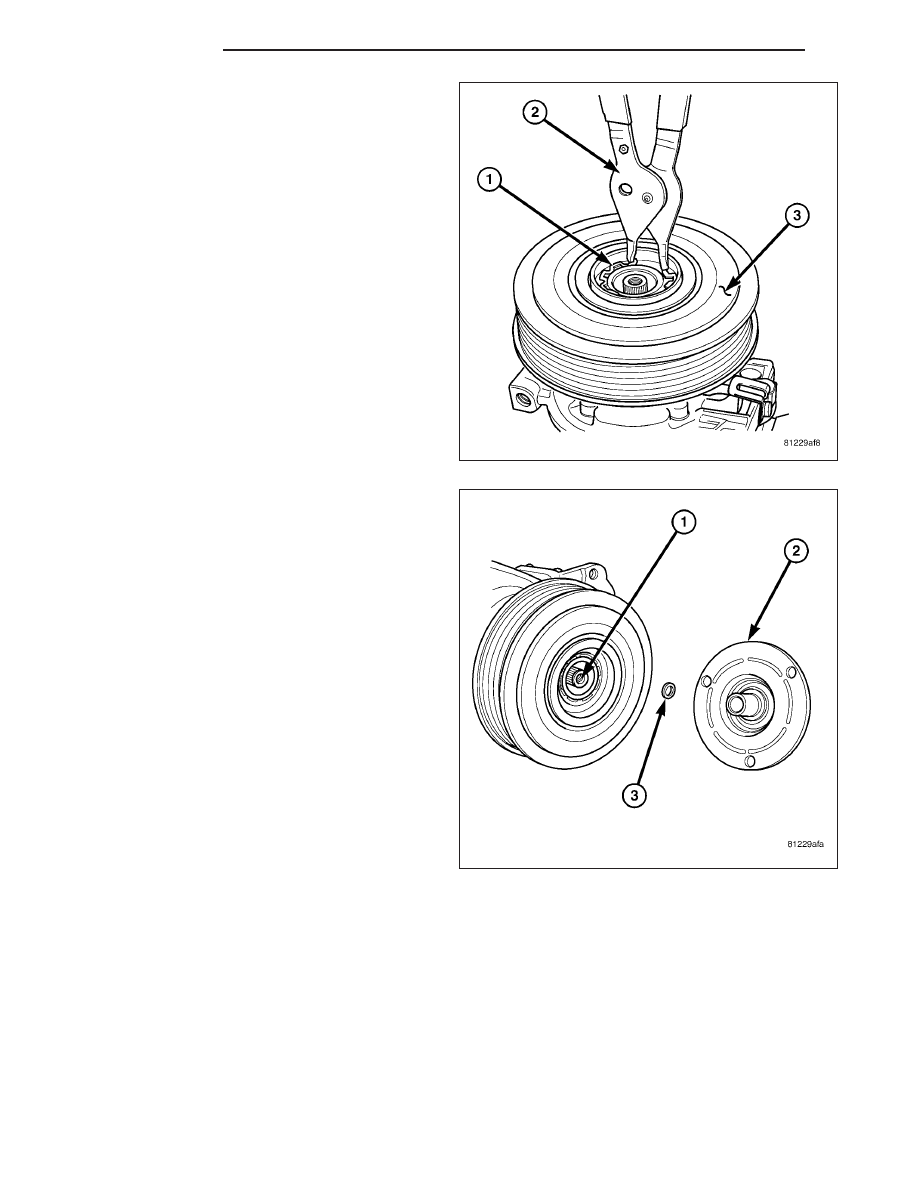

4. Using snap ring pliers (2), install the snap ring (1)

that secures the pulley and bearing assembly (3) to
the front of the A/C compressor. Be certain that the
snap ring is fully and properly seated in the groove.

5. If the original clutch plate (2) and pulley and bear-

ing assembly are to be reused, reinstall the original
shim(s) (3) onto the compressor shaft (1). If a new
clutch plate and pulley and bearing assembly are
being used, install a trial stack of shims 2.54 mm
(0.010 in.) thick onto the compressor shaft.

24 - 26

CONTROLS

KJ

6. Install the clutch plate (4) onto the front of the A/C

compressor (5).

7. Install the compressor shaft bolt (3). Tighten the

bolt to 19 N·m (168 in. lbs.).

NOTE: The shims may compress after tightening
the shaft bolt. Check the air gap in four or more
places to verify the air gap is correct. Spin the pul-
ley before performing a final check of the air gap.

NOTE: On models with the clutch plate recessed
into the pulley, use a 90° wire gap gauge to mea-
sure the clutch air gap. On other models, use a
blade type feeler gauge to measure the air gap.

8. With the clutch plate assembled tight against the

shim(s), measure the air gap between the clutch
plate and the pulley and bearing assembly. The air
gap should be between 0.35 - 0.60 mm (0.014 -
0.024 in.). If the air gap is not between specifica-
tions, add or subtract shims as needed until the
correct air gap is obtained.

CAUTION: Be certain that the compressor clutch field coil wire lead is routed so that it is not pinched
between the A/C compressor and the field coil connector bracket.

9. Carefully route the compressor clutch field coil wire lead behind the connector bracket (2).

10. Install the compressor clutch field coil connector (1) onto the connector bracket and connect the engine wire

harness to the field coil connector.

11. Install the front skid plate (Refer to 13 - FRAME & BUMPERS/FRAME/FRONT SKID PLATE - INSTALLATION).

12. Lower the vehicle.

13. Install the accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/BELTS-DRIVE - INSTALLATION).

14. Reconnect the negative battery cable.

VISTEON A/C COMPRESSOR

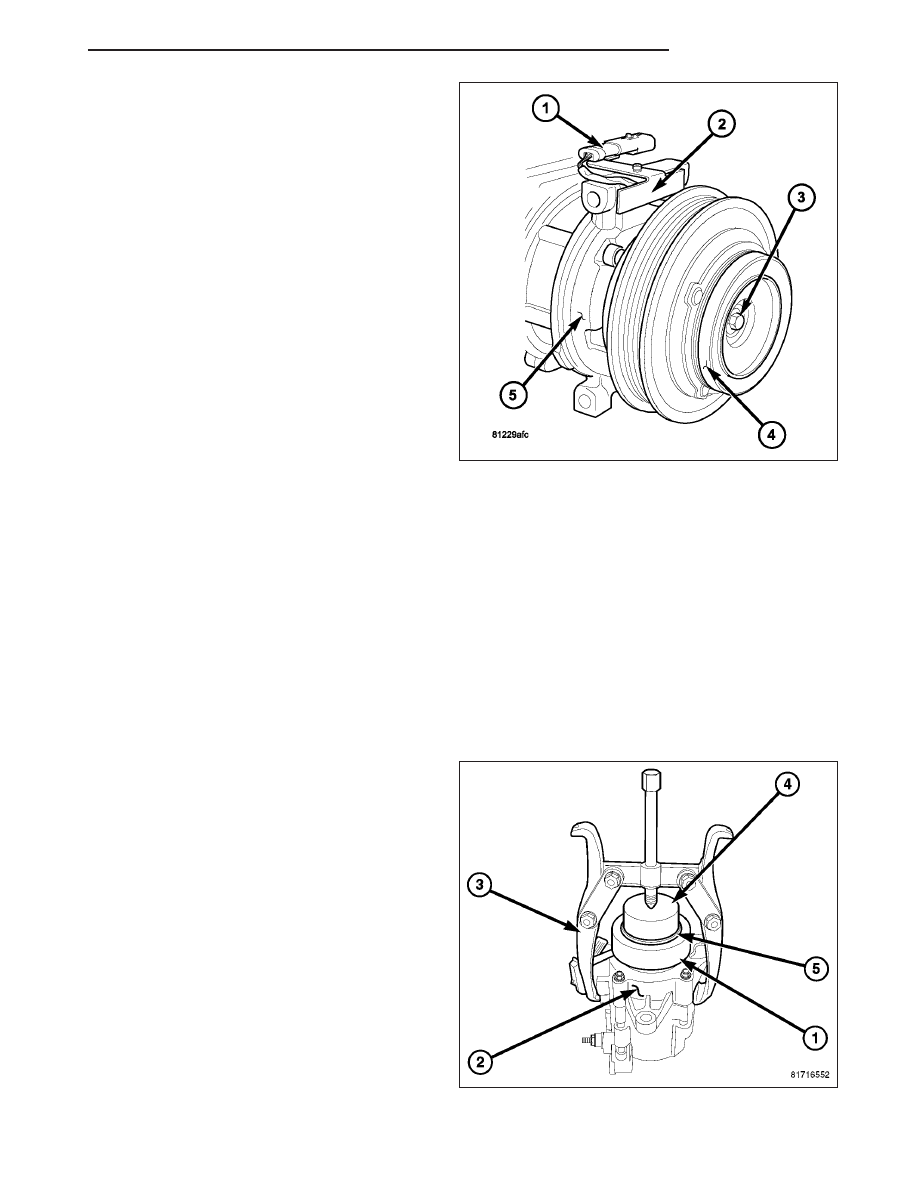

1. Position the A/C clutch field coil (1) squarely onto

the front of the A/C compressor (2).

CAUTION: Position the A/C clutch field coil so that
the coil positioning tabs and the wire harness lead
are oriented in the correct direction. Failure to cor-
rectly position the field coil on the A/C compres-
sor will result in field coil damage.

2. Align the field coil positioning tabs to the recessed

area at the front of the A/C compressor and install
the clutch field coil onto the compressor using a
two jaw puller (3), compressor field coil installer
(Special Tool 9352 in Kit 9349) (4) and the com-
pressor field coil installer spacer (Special Tool 9353
in Kit 9349) (5).

KJ

CONTROLS

24 - 27

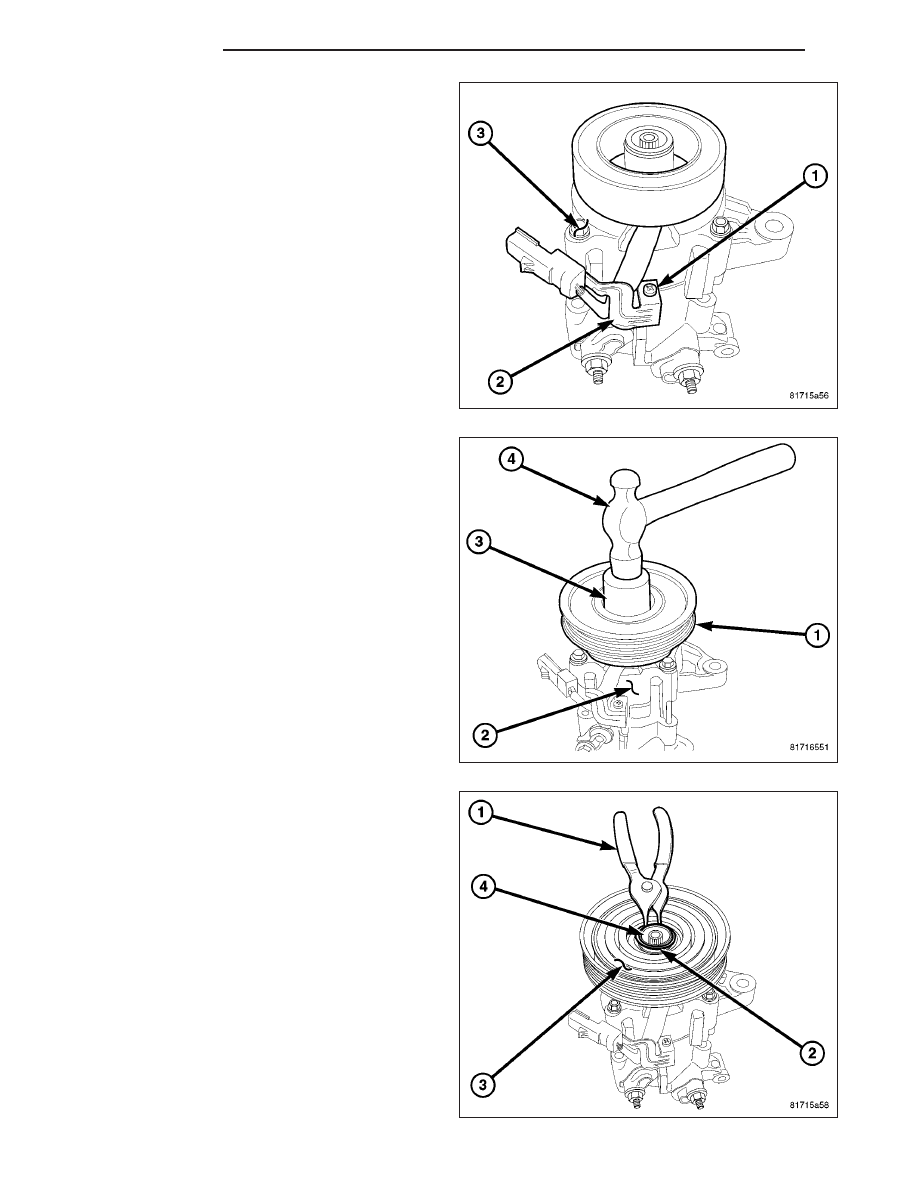

3. Position the clutch field coil wire lead and bracket

(2) to the A/C compressor (3) and install the screw
(1) that secures the bracket to the compressor.
Tighten the screw to 4 N·m (35 in. lbs.).

4. Align the pulley and bearing assembly (1) squarely

onto the front of the A/C compressor (2).

NOTE: A distinct change of sound during the
clutch pulley tapping process indicates that the
pulley and bearing assembly has bottomed out
against the compressor housing.

5. Using clutch pulley installer (Special Tool 9355 in

Kit 9349) (3) and a hammer (4), install the pulley
and bearing assembly onto the front of the A/C
compressor. Tap the installer with a hammer until
the pulley and bearing assembly has bottomed
against the compressor housing.

CAUTION: If the snap ring is not fully seated in the
groove it will vibrate out, resulting in clutch failure
and severe damage to the A/C compressor.

NOTE: Install the snap ring with the beveled side
of the snap ring facing outward.

6. Using snap ring pliers (1), install the snap ring (2)

that secures the pulley and bearing assembly (3) to
the front of the A/C compressor (4). Make sure the
snap ring is properly seated in the groove.

24 - 28

CONTROLS

KJ

7. Verify that there is adequate clearance for the

clutch field coil wire lead (1) between the housing
of the A/C compressor (2) and the pulley and bear-
ing assembly (3).

NOTE: When installing an original or a new clutch
assembly, try the original shims first. When install-
ing a clutch onto a compressor that previously did
not have a clutch, use the 1.0, 0.50 and 0.13 milli-
meter (0.040, 0.020 and 0.005 inch) shims from the
clutch hardware package which is provided with
the new clutch.

8. Install the clutch shims onto the compressor shaft.

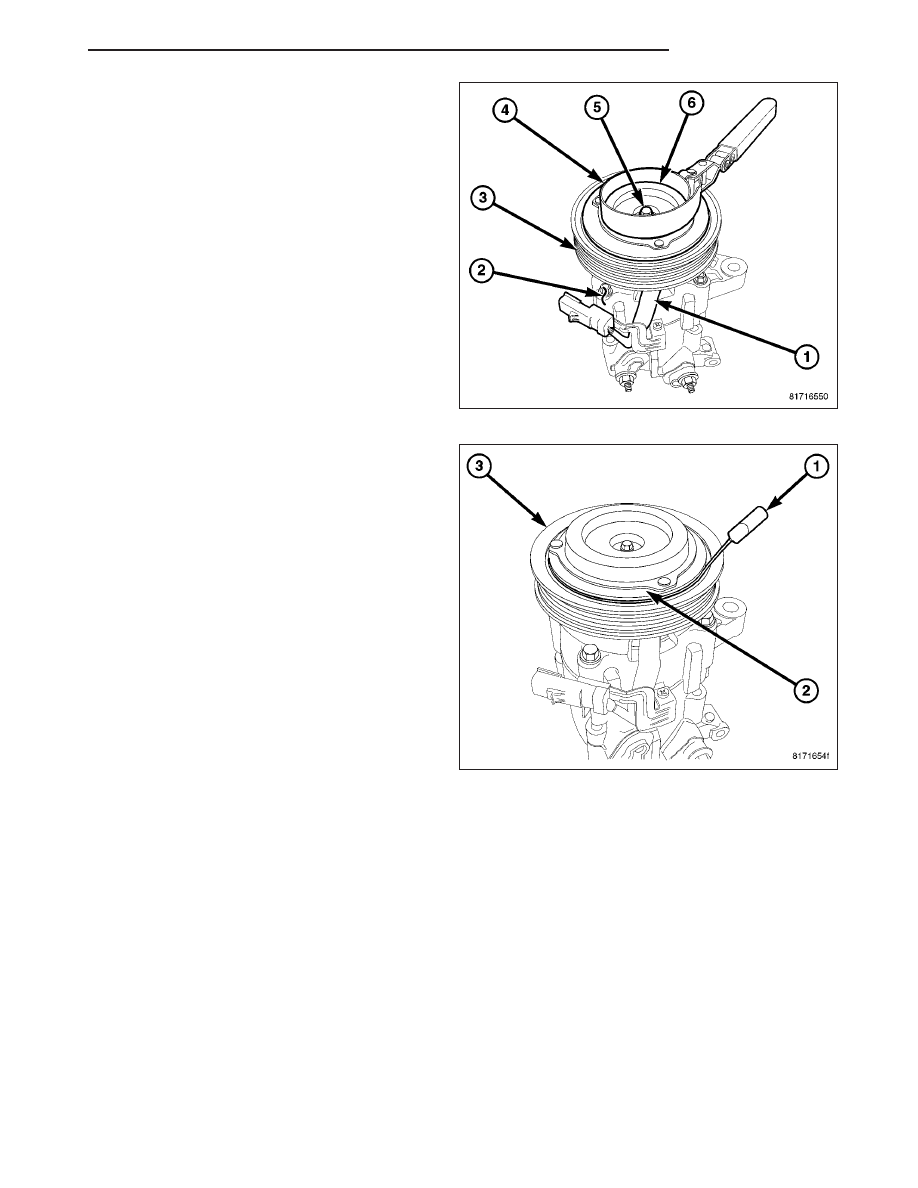

9. Using a strap wrench (4), install the bolt (5) that

secures the clutch plate (6) to the A/C compressor.
Hold the clutch plate stationary with the strap
wrench and tighten the bolt to 15 N·m (133 in.
lbs.).

10. Using 90° wire gauges (1), check the air gap

between the clutch plate (2) and the pulley and
bearing assembly (3). If the air gap is not
between 0.35 to 0.65 millimeter (0.014 to 0.025
inch), add or subtract shims as required.

11. Position the A/C compressor onto the mounting

bracket.

12. Install the bolts that secure the A/C compressor to

the mounting bracket (Refer to 24 - HEATING &
AIR

CONDITIONING/PLUMBING/COMPRES-

SOR-A/C - 3.7L ENGINE - INSTALLATION).

13. Connect the engine wire harness to the compres-

sor clutch field coil connector.

14. Install the accessory drive belt (Refer to 7 -

COOLING/ACCESSORY DRIVE/DRIVE BELTS -
INSTALLATION).

15. Reconnect the negative battery cable.

16. Perform the Clutch Break-in Procedure (Refer to

24 - HEATING & AIR CONDITIONING/CONTROLS/A/C COMPRESSOR CLUTCH - STANDARD PROCE-
DURE).

KJ

CONTROLS

24 - 29
