Jeep Liberty KJ. Manual - part 1400





3.

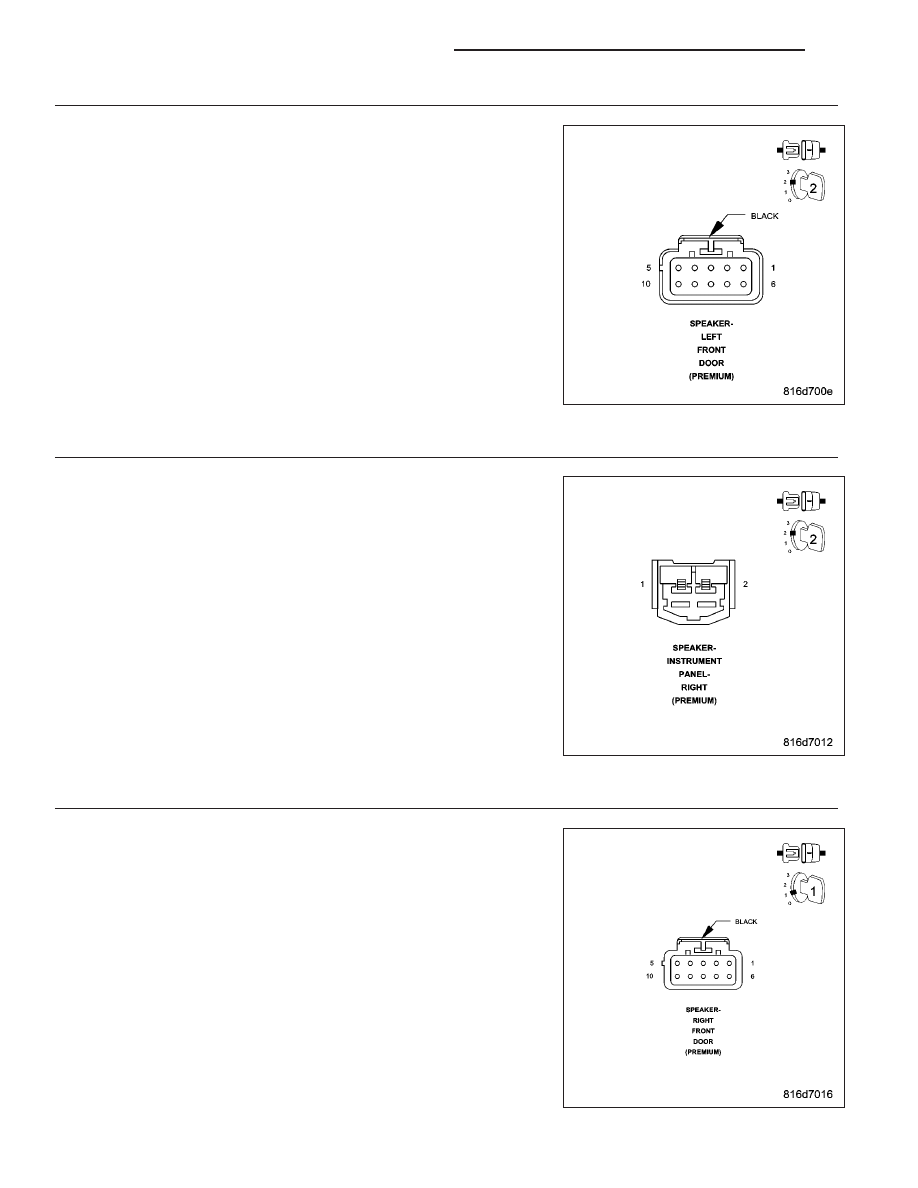

LEFT FRONT DOOR SPEAKER

Turn the ignition off.

Disconnect the Left Front Door Speaker harness connector.

Turn the ignition on.

Turn the radio on.

With the Scan Tool , erase the audio DTCs.

Cycle the ignition switch from off to on and wait 10 seconds.

With the Scan Tool , read DTC’s.

Does the Scan Tool display ALL OUTPUTS SHORT?

Yes

>> Go To 4

No

>> Replace the Left Front Door Speaker.

Perform BODY VERIFICATION TEST - VER 1.

4.

RIGHT I/P SPEAKER

Turn the ignition off.

Disconnect the Right I/P Speaker harness connector.

Turn the ignition on.

Turn the radio on.

With the Scan Tool , erase the audio DTCs.

Cycle the ignition switch from off to on and wait 10 seconds.

With the Scan Tool, read DTC’s.

Does the Scan Tool display ALL OUTPUTS SHORT?

Yes

>> Go To 5

No

>> Replace the Right I/P Speaker.

Perform BODY VERIFICATION TEST - VER 1.

5.

RIGHT FRONT DOOR SPEAKER

Turn the ignition off.

Disconnect the Right Front Door Speaker harness connector.

Turn the ignition on.

Turn the radio on.

With the Scan Tool , erase the audio DTCs.

Cycle the ignition switch from off to on and wait 10 seconds.

With the Scan Tool, read DTC’s.

Does the Scan Tool display ALL OUTPUTS SHORT?

Yes

>> Go To 6

No

>> Replace the Right Front Door Speaker.

Perform BODY VERIFICATION TEST - VER 1.

8A - 4

AUDIO/VIDEO - ELECTRICAL DIAGNOSTICS

KJ

6.

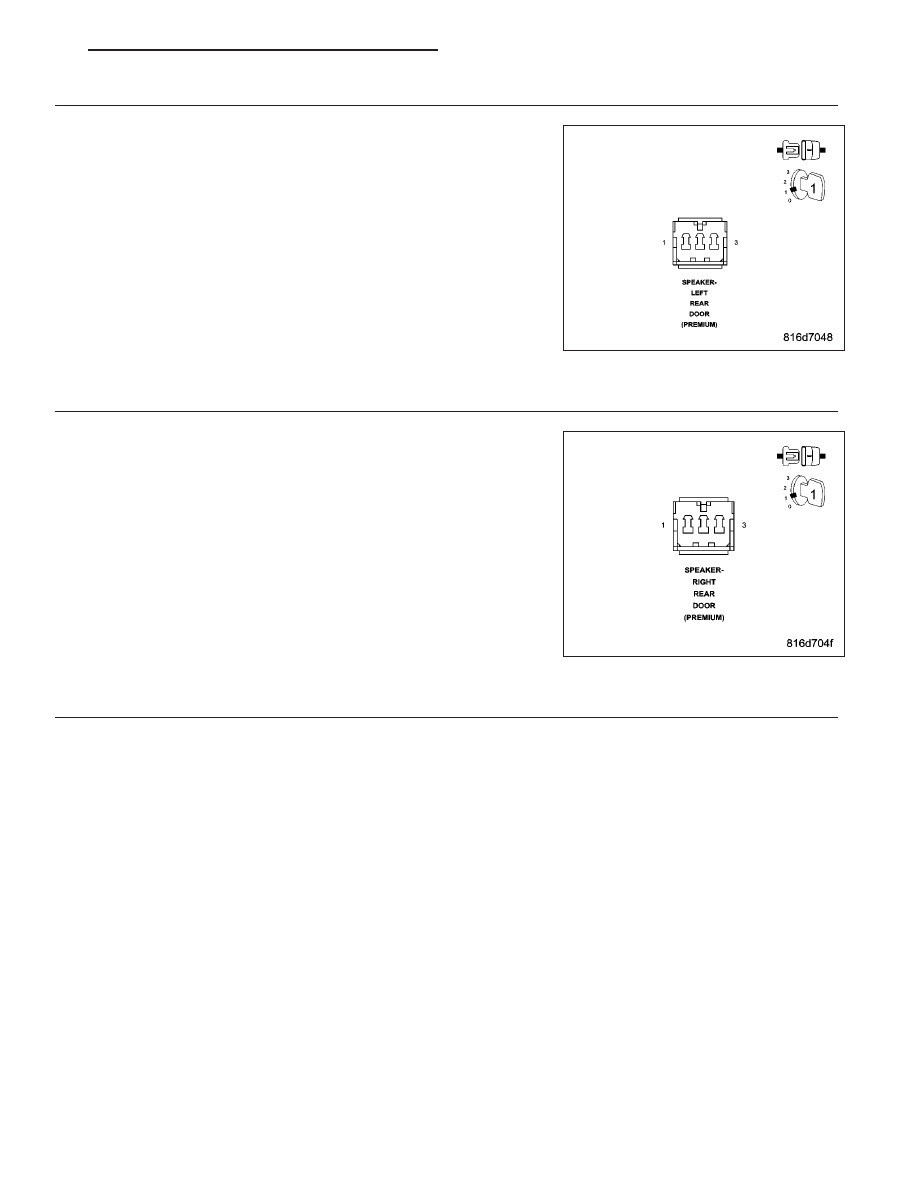

LEFT REAR SPEAKER

Turn the ignition off.

Disconnect the Left Rear Speaker harness connector.

Turn the ignition on.

Turn the radio on.

With the Scan Tool , erase the audio DTCs.

Cycle the ignition switch from off to on and wait 10 seconds.

With the Scan Tool, read DTC’s.

Does the Scan Tool display ALL OUTPUTS SHORT?

Yes

>> Go To 7

No

>> Replace the Left Rear Speaker.

Perform BODY VERIFICATION TEST - VER 1.

7.

RIGHT REAR SPEAKER

Turn the ignition off.

Disconnect the Right Rear Speaker harness connector.

Turn the ignition on.

Turn the radio on.

With the Scan Tool, erase the audio DTCs.

Cycle the ignition switch from off to on and wait 10 seconds.

With the Scan Tool, read DTC’s.

Does the Scan Tool display ALL OUTPUTS SHORT?

Yes

>> Go To 8

No

>> Replace the Right Rear Speaker.

Perform BODY VERIFICATION TEST - VER 1.

8.

(+) CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the Left Front Door Speaker harness connector.

Disconnect the Left I/P Speaker harness connector.

Disconnect the Right Front Door Speaker harness connector.

Disconnect the Right I/P Speaker harness connector.

Disconnect the Left Rear Speaker harness connector.

Disconnect the Right Rear Speaker harness connector.

Disconnect the Radio C1 harness connector.

Measure the resistance between ground and each speaker (+) circuit.

Is the resistance below 1000.0 (1K) ohms?

Yes

>> Repair the speaker (+) circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 9

KJ

AUDIO/VIDEO - ELECTRICAL DIAGNOSTICS

8A - 5

9.

(-) CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the Left Front Door Speaker harness connector.

Disconnect the Left I/P Speaker harness connector.

Disconnect the Right Front Door Speaker harness connector.

Disconnect the Right I/P Speaker harness connector.

Disconnect the Left Rear Speaker harness connector.

Disconnect the Right Rear Speaker harness connector.

Disconnect the Radio C1 harness connector.

Measure the resistance between ground and each speaker (-) circuit.

Is the resistance below 1000.0 (1K) ohms?

Yes

>> Repair the speaker (-) circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 10

10.

SPEAKER (+) & (-) CIRCUITS SHORTED TOGETHER

Turn the ignition off.

Disconnect the Left Front Door Speaker harness connector.

Disconnect the Left I/P Speaker harness connector.

Disconnect the Right Front Door Speaker harness connector.

Disconnect the Right I/P Speaker harness connector.

Disconnect the Left Rear Speaker harness connector.

Disconnect the Right Rear Speaker harness connector.

Disconnect the Radio C1 harness connector.

Measure the resistance between each speaker (+) circuit and each speaker (-) circuit.

Is the resistance below 1000.0 (1K) ohms for any of the measurements?

Yes

>> Repair the shorted together speaker circuits.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 11

11.

SPEAKER SECTION OF RADIO

If there are no possible causes remaining, view repair.

Repair

Replace the Radio.

Perform BODY VERIFICATION TEST - VER 1.

8A - 6

AUDIO/VIDEO - ELECTRICAL DIAGNOSTICS

KJ

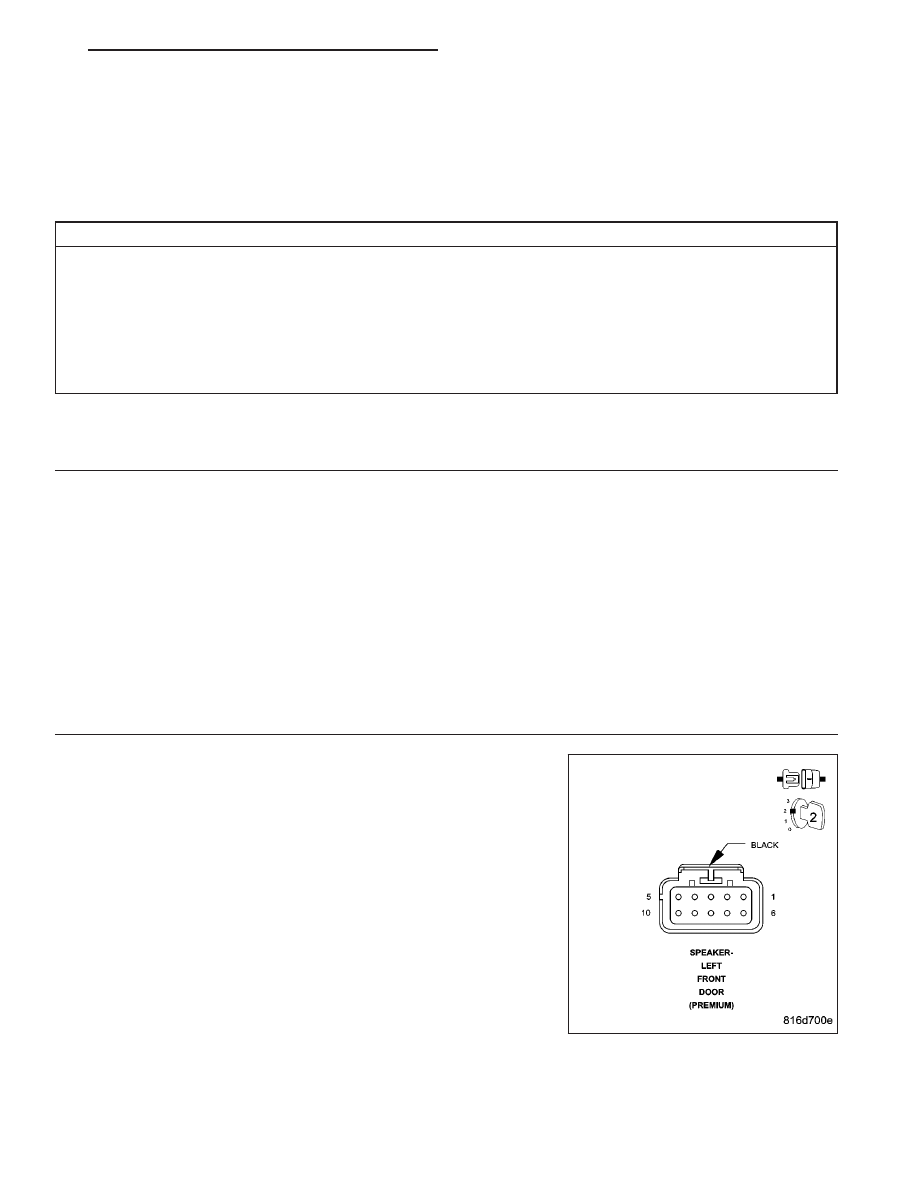

ALL OUTPUTS SHORT - PREMIUM AUDIO SYSTEM

For a complete wiring diagram Refer to Section 8W

When Monitored:
Ignition in RUN and IOD fuse installed.

Set Condition:
The radio has sensed a short on the output for more than 10 seconds.

Possible Causes

LEFT FRONT DOOR SPEAKER

RIGHT FRONT DOOR SPEAKER

(+) CIRCUIT SHORTED TO GROUND

(-) CIRCUIT SHORTED TO GROUND

SPEAKER (+) & (-) CIRCUITS SHORTED TOGETHER

SPEAKER SECTION OF RADIO

Diagnostic Test

1.

DETERMINE FAULT

Turn the ignition on.

Turn the Radio on.

With the Scan Tool , erase the audio DTC’s.

Cycle the ignition switch from off to on and wait 10 seconds.

With the Scan Tool , read the audio DTC’s.

Does the Scan Tool display ALL OUTPUTS SHORT?

Yes

>> Go To 2

No

>> Refer to the wiring diagrams located in the service information to help isolate a possible intermittent

short.

Perform BODY VERIFICATION TEST - VER 1.

2.

LEFT FRONT DOOR SPEAKER

Turn the ignition off.

Disconnect the Left Front Door Speaker harness connector.

Turn the ignition on.

Turn the radio on.

With the Scan Tool , erase the audio DTCs.

Cycle the ignition switch from off to on and wait 10 seconds.

With the Scan Tool , read DTC’s.

Does the Scan Tool display ALL OUTPUTS SHORT?

Yes

>> Go To 3

No

>> Replace the Left Front Door Speaker.

Perform BODY VERIFICATION TEST - VER 1.

KJ

AUDIO/VIDEO - ELECTRICAL DIAGNOSTICS

8A - 7
