TRANSMISSION

STANDARD PROCEDURE - TRANSMISSION COOLER LINE QUICK CONNECT
FITTING DISASSEMBLY/ASSEMBLY

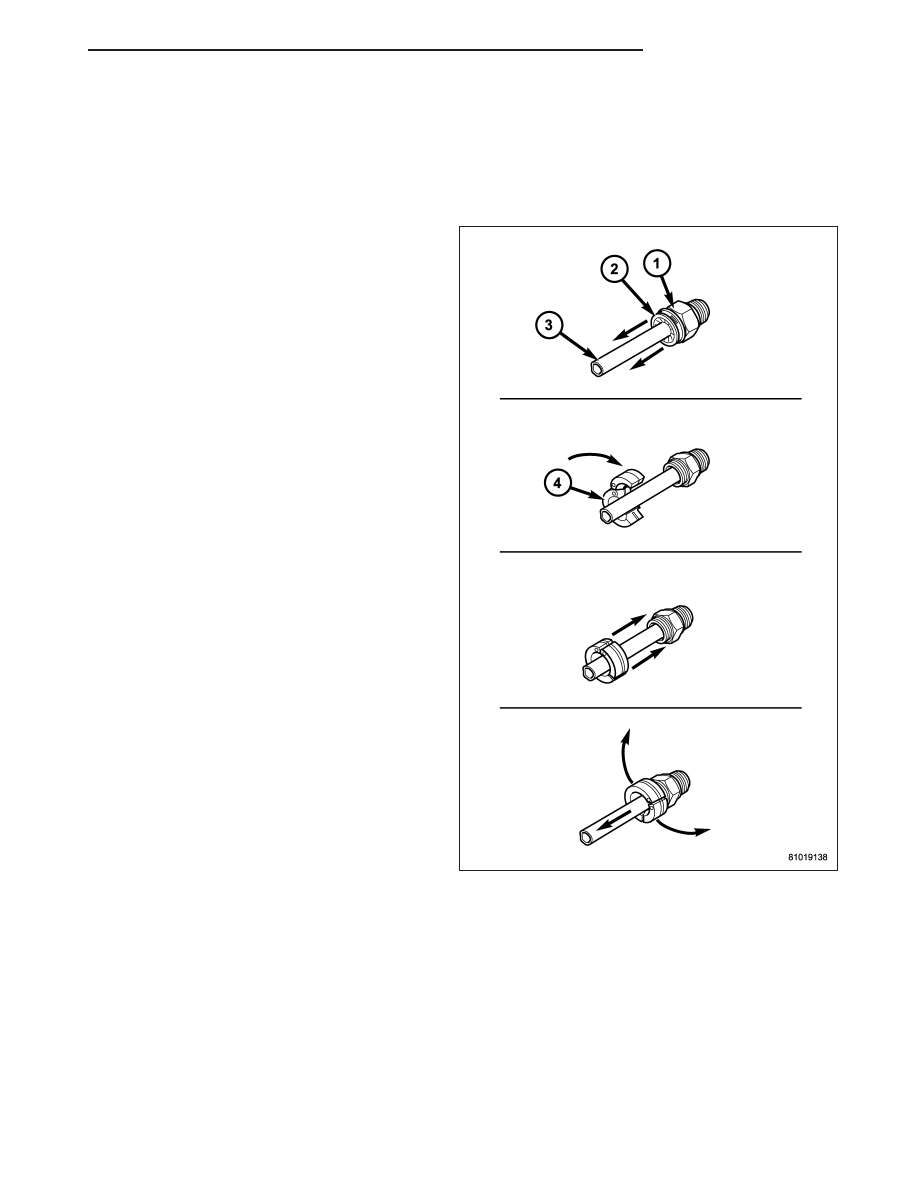

DISCONNECT

1. Remove dust cap by pulling it straight back off of

quick connect fitting (1).

2. Place disconnect tool Release Tool 8875A (4) onto

transmission cooler line with the fingers of the tool
facing the quick connect fitting.

3. Slide disconnect tool down the transmission line

and engage the fingers of the tool into the retaining
clip. When properly engaged in the clip, the tool
will fit flush against the quick connect fitting.

4. Rotate the disconnect tool 60° to expand the

retaining clip.

5. While holding the disconnect tool against the quick

connect fitting, pull back on the transmission cooler
line to remove.

KJ

TRANSMISSION

7 - 71

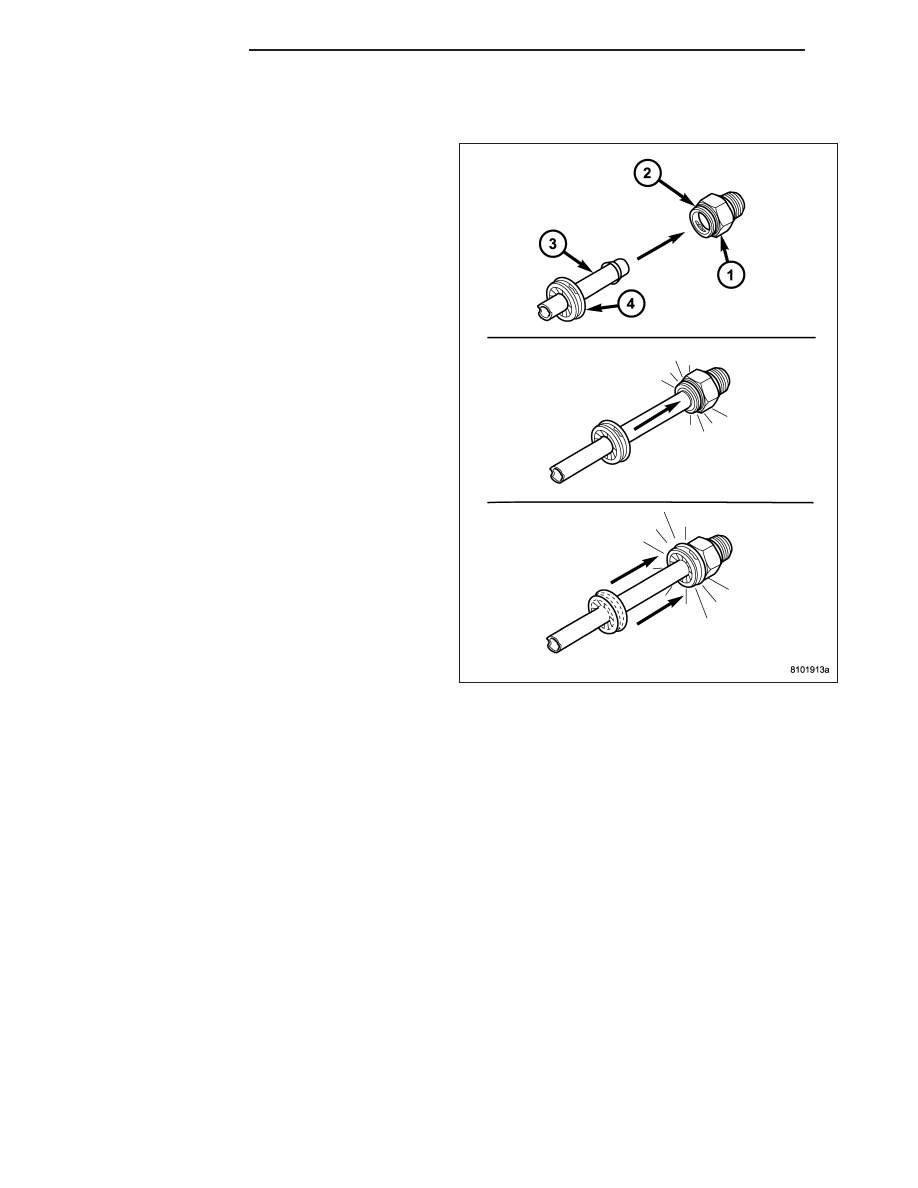

CONNECT

1. Align transmission cooler line (3) with quick con-

nect fitting while pushing straight into the fitting.

2. Push in on transmission cooler line until a “click” is

heard or felt.

3. Slide dust cap (4) down the transmission cooler

line and snap it over the quick connect fitting until it
is fully seated and rotates freely. Dust cap will only
snap over quick connect fitting when the transmis-
sion cooler line is properly installed.

NOTE: If dust cap will not snap into place, repeat
assembly step #2.

7 - 72

TRANSMISSION

KJ

TRANS COOLER

DESCRIPTION

The automatic transmission cooler is located in the front of the condenser and behind the front fascia. The trans-
mission cooler is a heat exchanger that allows heat in the transmission fluid to be transferred to the air passing over
the cooler fins.

The transmission oil cooler for the 2.8L Diesel with automatic transmission integrated into the A/C condenser.

The Transmission oil cooler assembly is equipped with quick connect fitting for the transmission oil cooler lines.

REMOVAL

1. Remove electric cooling fan (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - REMOVAL).

2. Position cooling fan out of the way.

3. Using Tool 8875A, disconnect transmission cooler tube from the transmission cooler (Refer to 7 - COOLING/

TRANSMISSION - STANDARD PROCEDURE).

4. Remove the transmission cooler mounting bolts.

5. Remove transmission cooler from vehicle.

INSTALLATION

1. Position transmission cooler in vehicle.

2. Install transmission mounting bolts. Tighten to 14 N·m (123 in. lbs.)

3. Install transmission cooler lines into cooler (Refer to 7 - COOLING/TRANSMISSION - STANDARD PROCE-

DURE).

4. Install electric cooling fan (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - INSTALLATION).

KJ

TRANSMISSION

7 - 73
