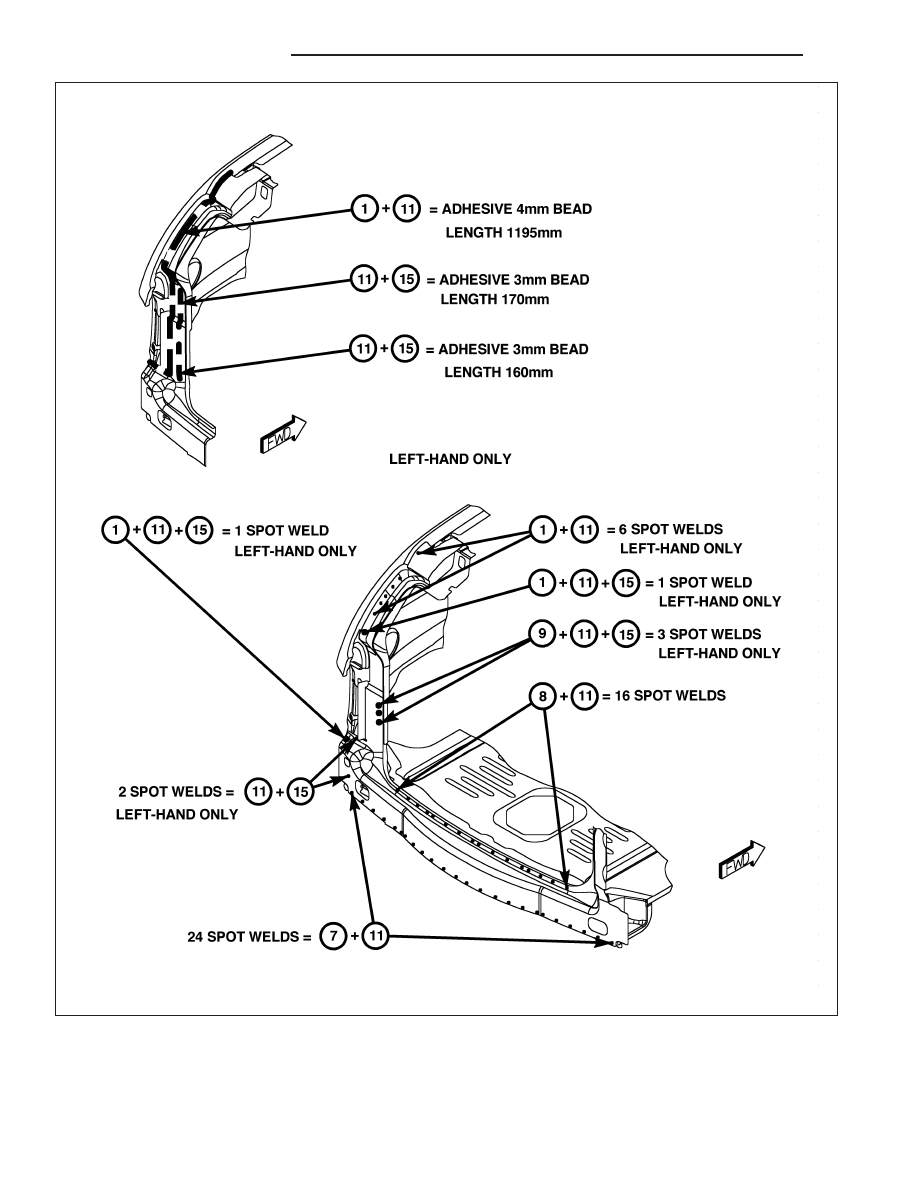

Fig. 77 REAR FLOOR PAN AND CROSSMEMBER; TAIL LAMP MOUNTING; SWING GATE OPENING PANEL

23 - 368

BODY STRUCTURE

KJ

SEALER LOCATIONS

SPECIFICATIONS

INDEX

DESCRIPTION

FIGURE

SEALER APPLICATION METHODS

( 78 )

REAR FLOOR PAN AND FUEL TANK ACCESS DOOR

( 79 )

FLOOR PANS; BODY SIDE SILLS; DASH PANEL; COWL AND PLENUM ASSEMBLY

( 80 )

FRONT FLOOR PAN; DASH; BODY SIDE SILL AND COWL PANELS

( 81 )

FLOOR PANS AND SIDE SILLS

( 82 )

BODY SIDE, PLENUM AND DASH PANELS ASSEMBLIES

( 83 )

A-PILLAR AND DASH PANEL

( 84 )

PLENUM AND DASH PANEL

( 85 )

BODY SIDE PANEL ASSEMBLIES

( 86 )

BODY SIDE SILL; WHEELHOUSE; B-PILLAR

( 87 )

TAIL LAMP MOUNTING AND SWING GATE STRIKER REINFORCEMENT ASSEMBLIES

( 88 )

ROOF PANEL; SWING GATE OPENING ASSEMBLIES

( 89 )

ROOF PANEL; SWING GATE OPENING

( 90 )

ROOF PANEL; SWING GATE OPENING

( 91 )

BODY SIDE PANEL; SWING GATE OPENING; FLOOR PAN ASSEMBLY

( 92 )

SWING GATE OPENING

( 93 )

WHEELHOUSES

( 94 )

BODY SIDE PANEL; FLOOR PAN; SWING GATE OPENING ASSEMBLIES

( 95 )

WHEELHOUSES

( 96 )

WHEELHOUSES

( 97 )

WHEELHOUSE

( 98 )

ROOF PANEL ASSEMBLY

( 99 )

REAR ROOF HEADER AND ROOF PANEL

( 100 )

KJ

BODY STRUCTURE

23 - 369

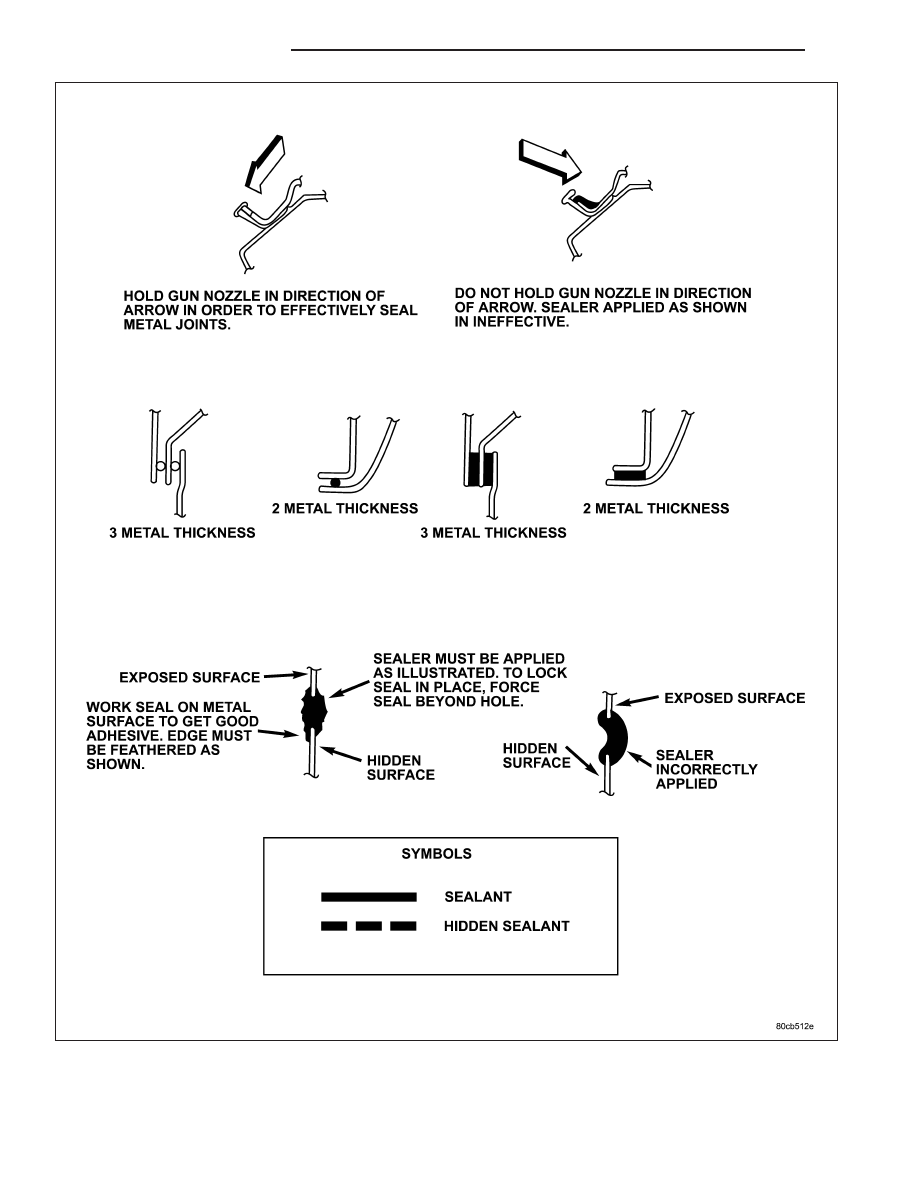

Fig. 78 APPLICATION METHODS

23 - 370

BODY STRUCTURE

KJ

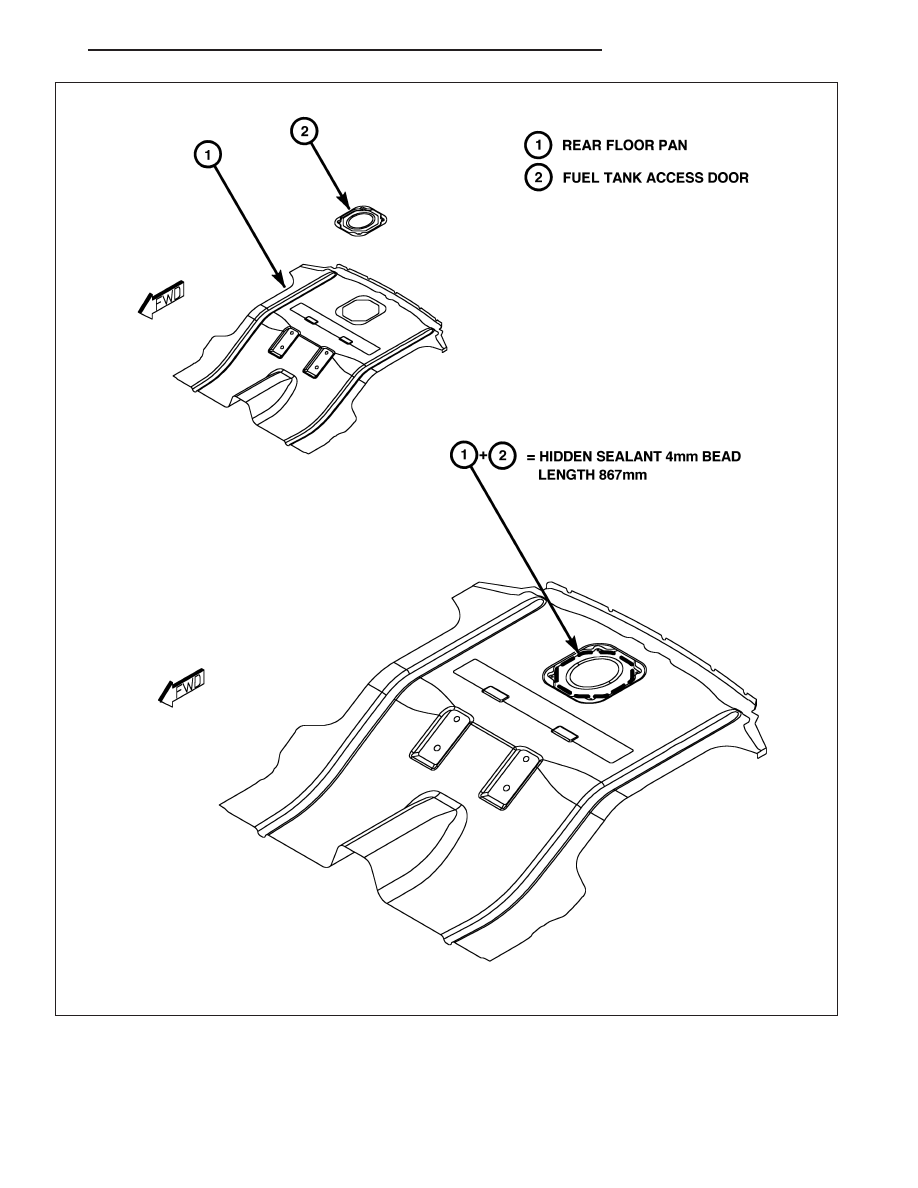

Fig. 79 REAR FLOOR PAN

KJ

BODY STRUCTURE

23 - 371
