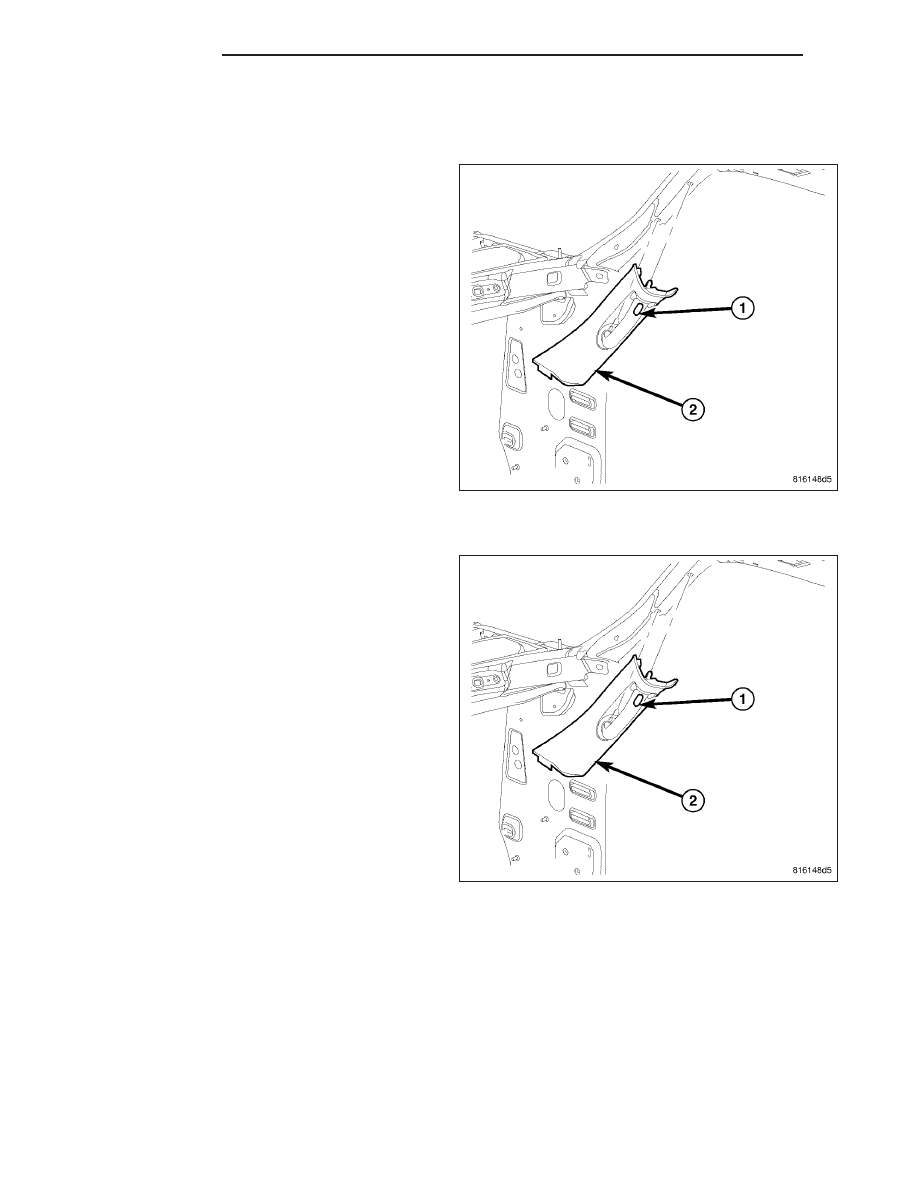

A-PILLAR TRIM AND GRAB HANDLE

REMOVAL

1. Using a small pry tool or equivalent, remove the

grab handle trim plugs (1).

2. Remove the two grab handle screws.

3. Remove the grab handle and A-pillar trim (2) from

the A-pillar.

INSTALLATION

1. Snap A-pillar trim (2) and grab handle into the

A-pillar.

2. Install the two screws and install the grab handle

trim plugs (1).

23 - 184

INTERIOR

KJ

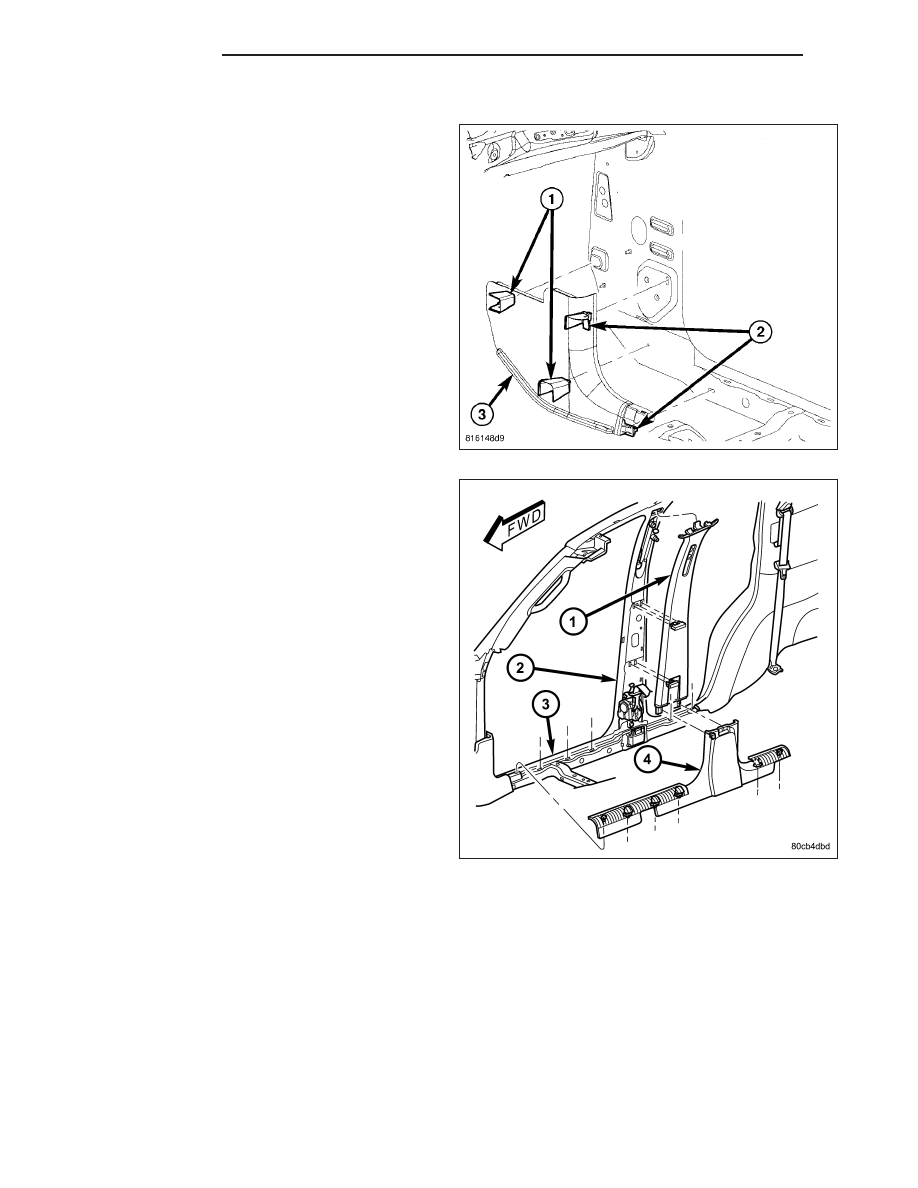

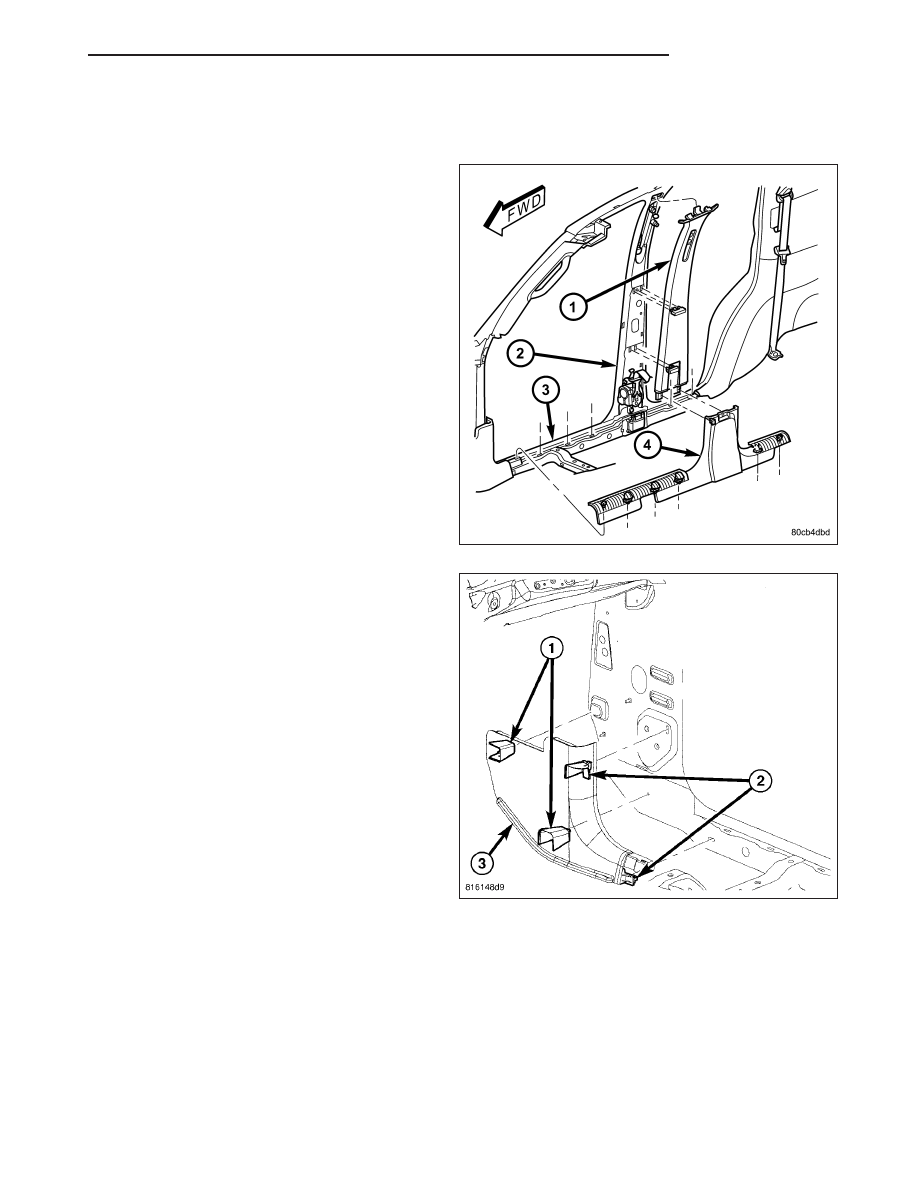

COWL TRIM COVER

REMOVAL

1. Using a trim stick C-4755 or equivalent, lift up the

front edge of the lower B-pillar trim (4) and position
aside. (Refer to 23 - BODY/INTERIOR/B-PILLAR
LOWER TRIM - REMOVAL)

2. Remove the cowl trim cover (3) by pulling it away

from the A-pillar and releasing the clips (1 and 2).

KJ

INTERIOR

23 - 185

INSTALLATION

1. Install the cowl trim cover (3) and seat the retaining

clips (1 and 2).

2. Position the B-pillar trim panel (4) and seat the

retaining clips.

23 - 186

INTERIOR

KJ

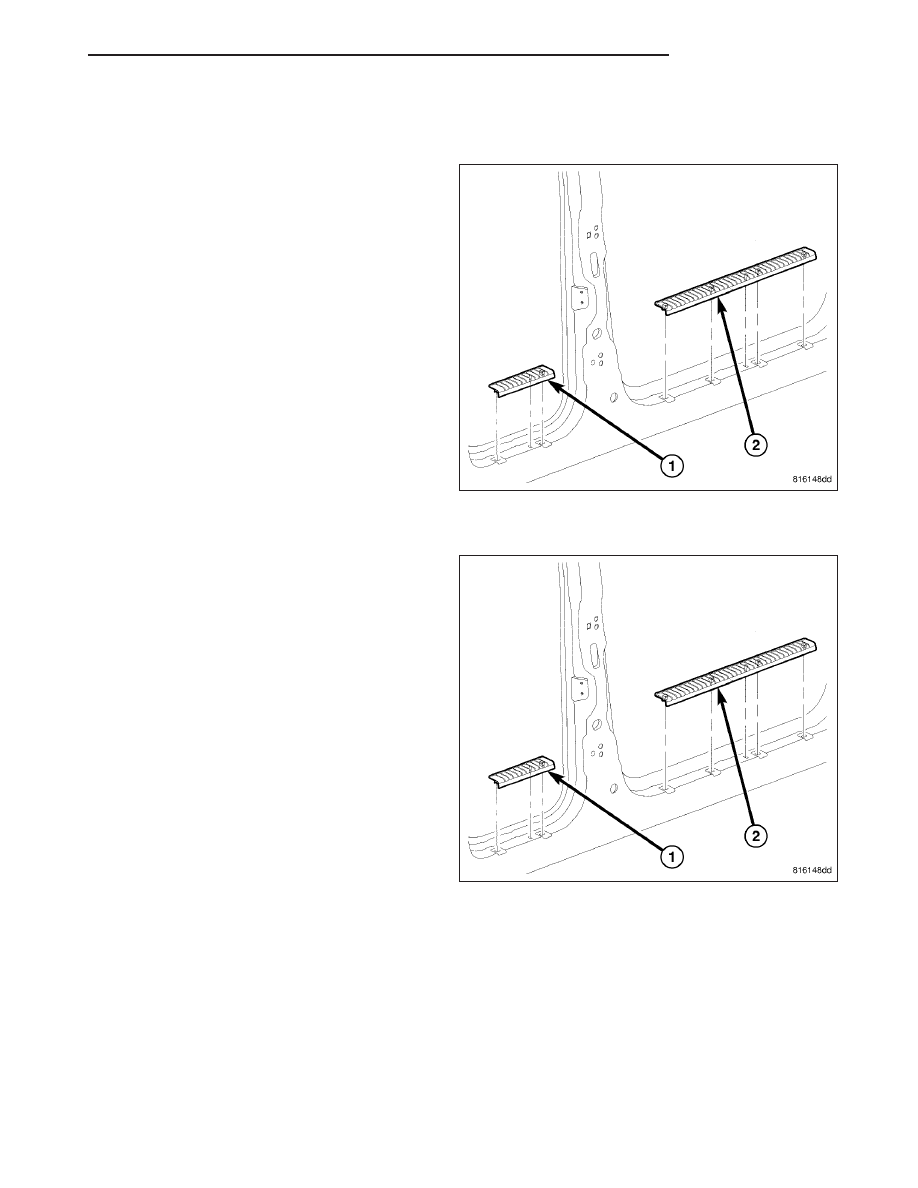

DOOR SILL SCUFF PLATE

REMOVAL

1. Using a trim stick C-4755 or equivalent, pry up the

scuff plate releasing the retaining clips.

INSTALLATION

1. Position the scuff plate and seat the retaining clips.

KJ

INTERIOR

23 - 187
