ROCK RAIL

REMOVAL

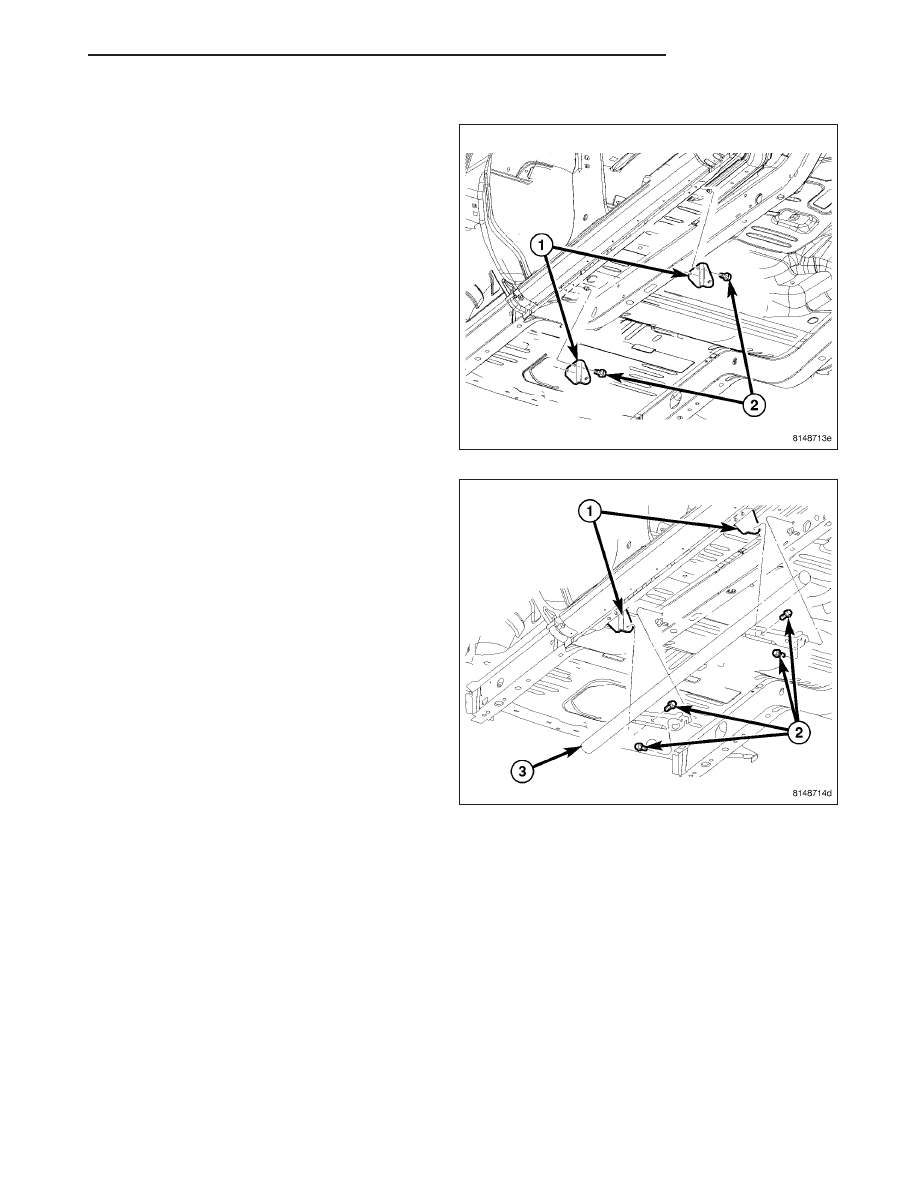

1. Remove the bolts (2) and remove the rock rail.

2. Remove the bolts (2) and remove the brackets.

23 - 148

EXTERIOR

KJ

INSTALLATION

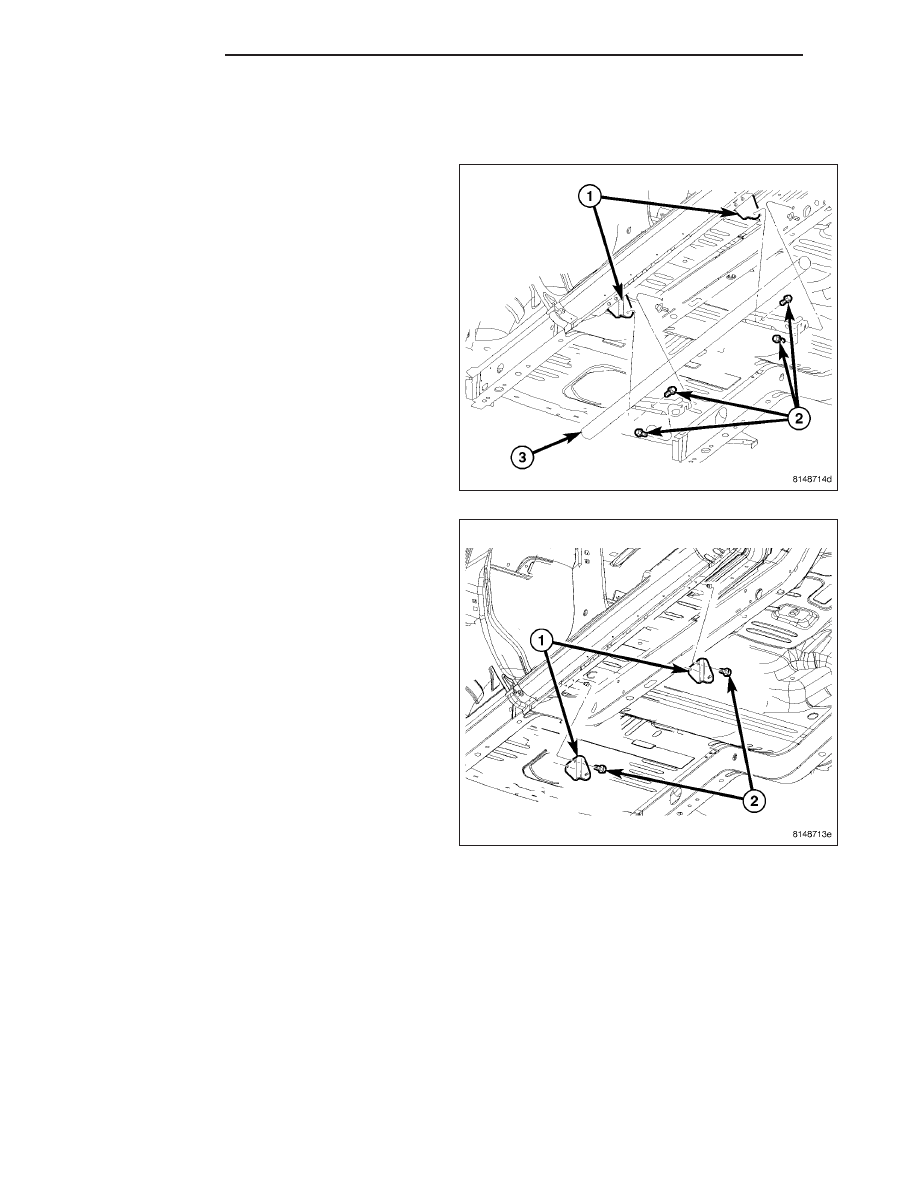

1. Install the brackets (1) and install the bolts (2).

2. Tighten the bolts to 23 N·m (200 in. lbs.).

3. Install the rock rails (3) and install the bolts (2).

4. Tighten the bolts to 23 N·m (200 in. lbs.).

KJ

EXTERIOR

23 - 149

MOLDING - SILL

REMOVAL

Front Sill Molding

1. Remove the front wheel flare molding as necessary

to gain access to the rivets. (Refer to 23 - BODY/
EXTERIOR/WHEEL OPENING FLARE MOLDING -
REMOVAL)

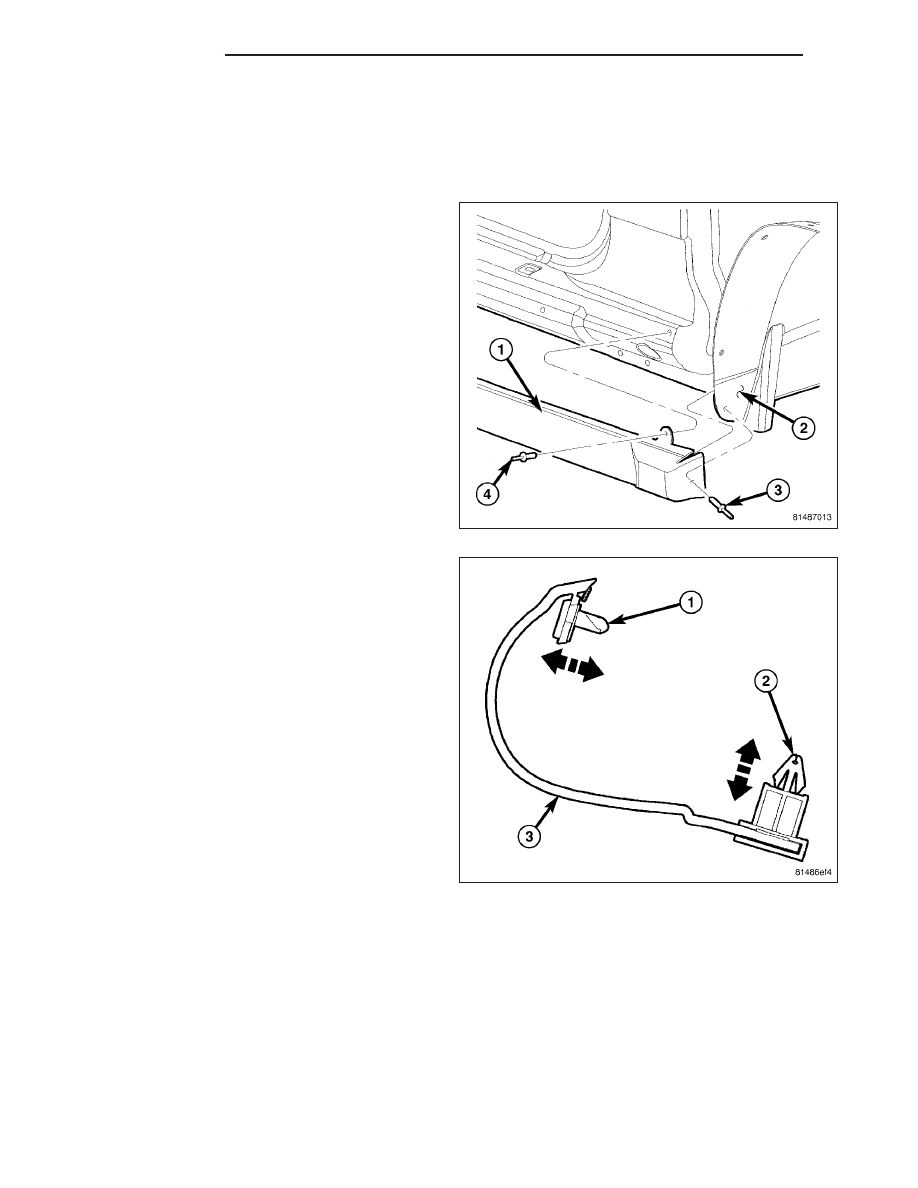

2. Remove the front rivets (3 and 4).

3. Separate the lower clips (2) using a trim tool

C-4829-A or equivalent.

4. Using a trim stick C-4755 or equivalent, separate

the adhesive tape and upper clips (1) and remove
the front sill molding (3).

23 - 150

EXTERIOR

KJ

Rear Sill Molding

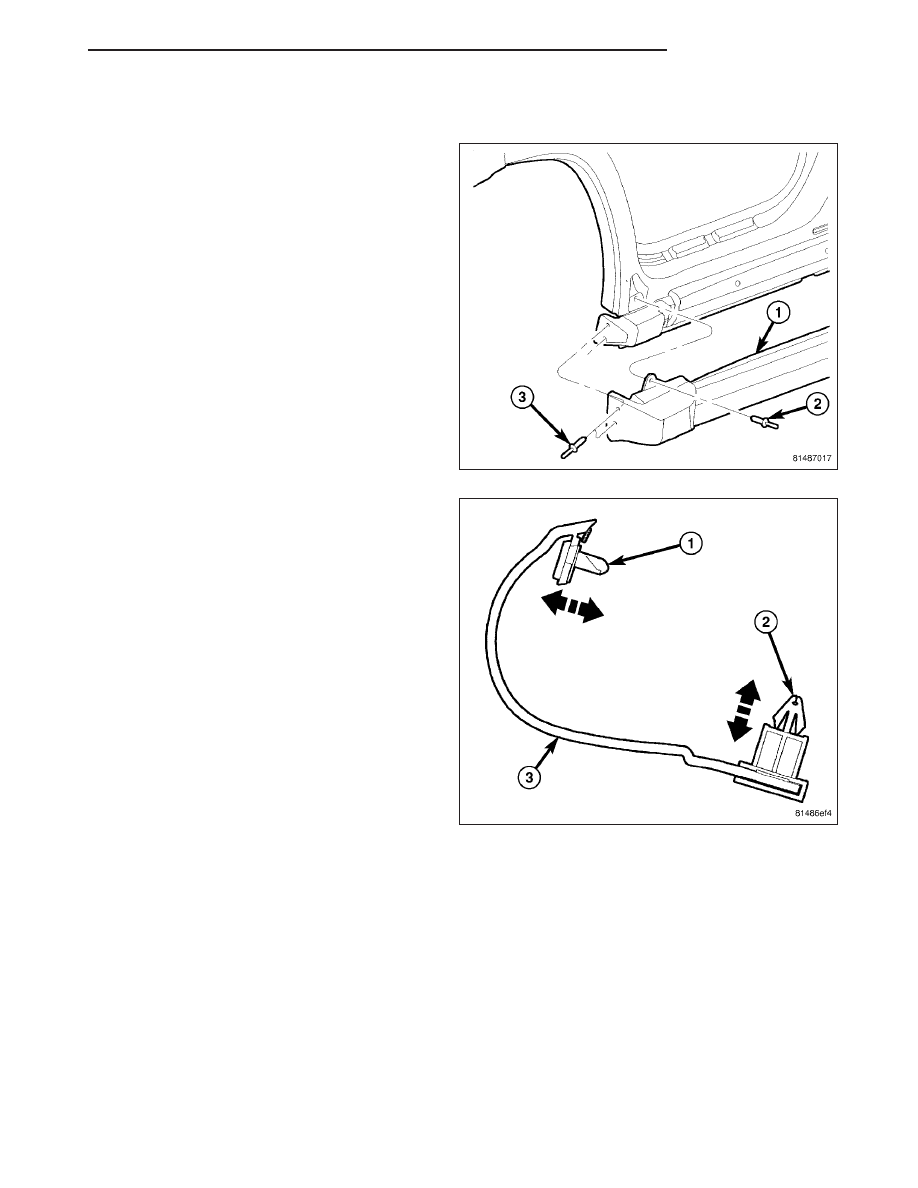

1. Open the rear door and remove the rivets (2 and

3).

2. Separate the lower clips (2) using a trim tool

C-4829-A or equivalent.

3. Using a trim stick C-4755 or equivalent, separate

the adhesive tape and upper clips (1) and remove
the rear sill molding (3).

INSTALLATION

1. Thoroughly clean all residue from the body side sill molding attachment area.

2. Wipe area clean with a 50% solution of water and alcohol and wipe dry.
