FORE/AFT

NOTE: Fore/aft (lateral) door adjustment is done by loosening the hinge to the hinge pillar fasteners one
hinge at a time and moving the door to the correct position.

1. Support the door with a suitable lifting device.

2. Loosen the hinge to hinge pillar fasteners. (Refer to 23 - BODY/DOORS - REAR/HINGE - REMOVAL)

3. Adjust the door to the correct position. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFI-

CATIONS)

4. Tighten the hinge pillar fasteners to 28 N·m (21 ft. lbs.). (Refer to 23 - BODY/DOORS - REAR/HINGE - INSTAL-

LATION)

NOTE: Use a suitable body sealer on the hinge to body mating surfaces.

UP/DOWN

NOTE: Up/down door adjustment is done by loosening either the hinge to the hinge pillar fasteners or the
hinge to door fasteners and moving the door to the correct position.

NOTE: When adjustment of the door requires the loosening of the door to hinge fasteners, it will be nec-
essary to separate the epoxy bonded washers with a chisel or other suitable tool.

NOTE: When the up/down adjustments are done correctly, the top of the door is positioned over flush to the
roof. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS)

1. Support the door with a suitable lifting device.

2. Remove the latch striker. (Refer to 23 - BODY/DOORS - REAR/LATCH STRIKER - REMOVAL)

3. Loosen the hinge to hinge pillar fasteners (Refer to 23 - BODY/DOORS - REAR/HINGE - REMOVAL) or loosen

the hinge to door fasteners (Refer to 23 - BODY/DOORS - REAR/DOOR - REMOVAL).

4. Adjust the door to the correct position. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFI-

CATIONS)

5. Tighten the hinge pillar fasteners or the door to hinges fasteners and fasteners to 28 N·m (21 ft. lbs.). (Refer to

23 - BODY/DOORS - REAR/HINGE - INSTALLATION)

6. Install the latch striker. (Refer to 23 - BODY/DOORS - REAR/LATCH STRIKER - INSTALLATION)

IN/OUT

NOTE: In/out door adjustment is done by loosening the hinge to door fasteners one hinge at a time and
moving the door to the correct position.

NOTE: When adjustment of the door requires the loosening of the door to hinge fasteners, it will be nec-
essary to separate the epoxy bonded washers with a chisel or other suitable tool.

1. Support the door with a suitable lifting device.

2. Remove the latch striker. (Refer to 23 - BODY/DOORS - REAR/LATCH STRIKER - REMOVAL)

3. Loosen the hinge to door fasteners. (Refer to 23 - BODY/DOORS - REAR/DOOR - REMOVAL)

4. Adjust the front of the door to the correct position. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH

- SPECIFICATIONS)

5. Tighten the door to hinges fasteners to 28 N·m (21 ft. lbs.).

6. Install the latch striker. (Refer to 23 - BODY/DOORS - REAR/LATCH STRIKER - INSTALLATION)

23 - 68

DOORS - REAR

KJ

DOOR GLASS

REMOVAL

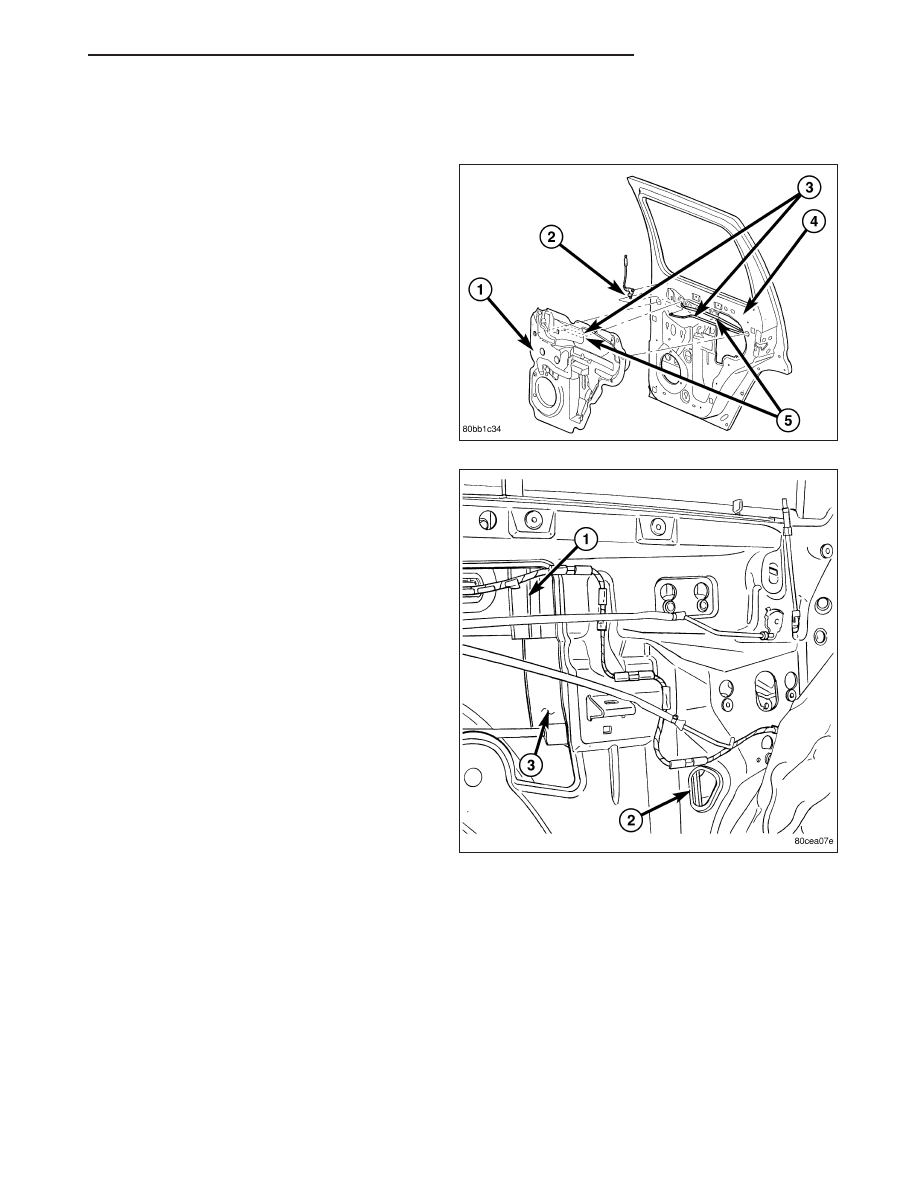

1. Remove the waterdam (1). (Refer to 23 - BODY/

DOORS - REAR/WATERDAM - REMOVAL)

2. Raise the glass (3) and line up the lift plate clip

with the hole in the door panel shown (2).

3. Using a long flat blade or hook type tool, disen-

gage the clip attaching glass retainer to regulator
lift plate.

4. Disconnect the glass from the regulator lift plate

and re-install the clip.

5. Position the glass into the bottom of the door.

KJ

DOORS - REAR

23 - 69

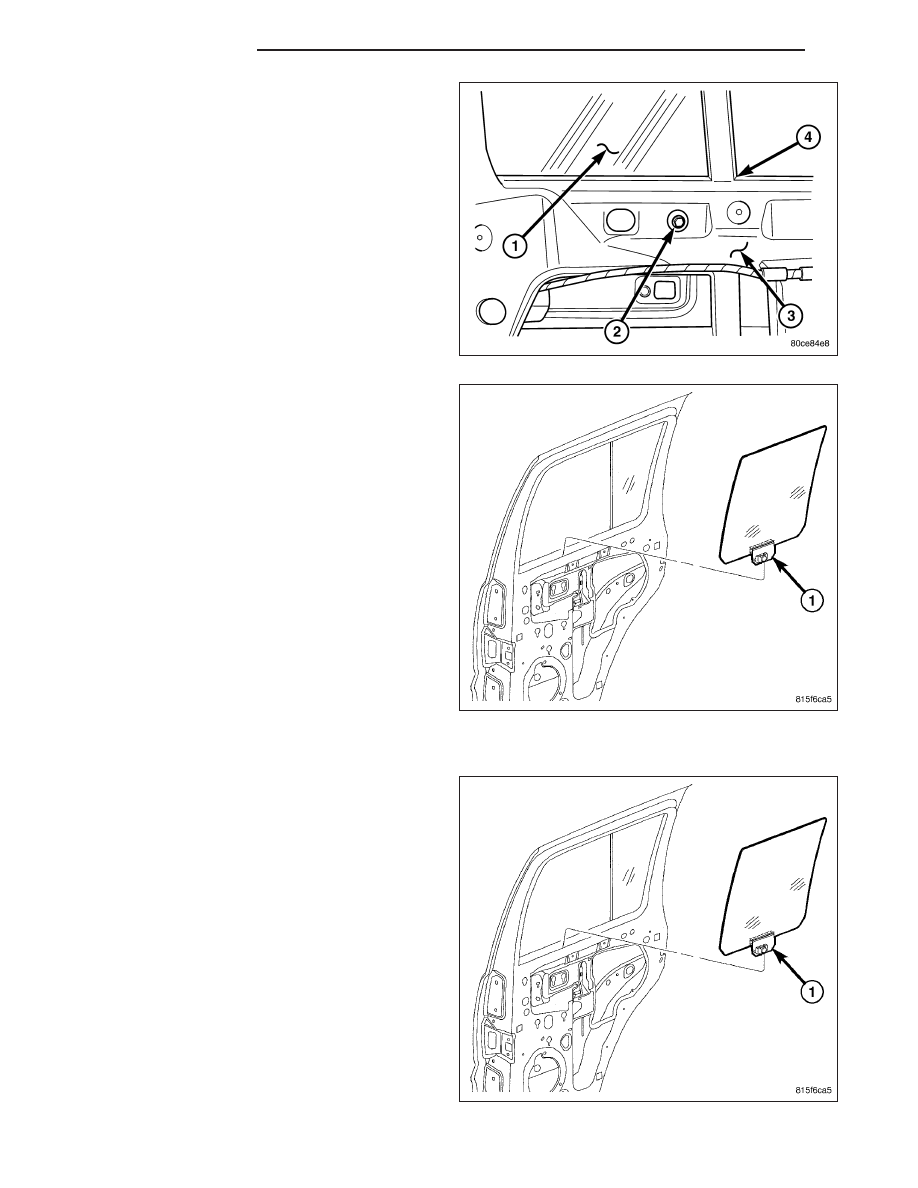

6. Remove the glass division bar bolt (2).

7. Twist the division bar towards the inside of the door

and disengage the door glass.

8. Remove the glass from the window opening.

INSTALLATION

1. Install the glass (1) through the window opening.

23 - 70

DOORS - REAR

KJ

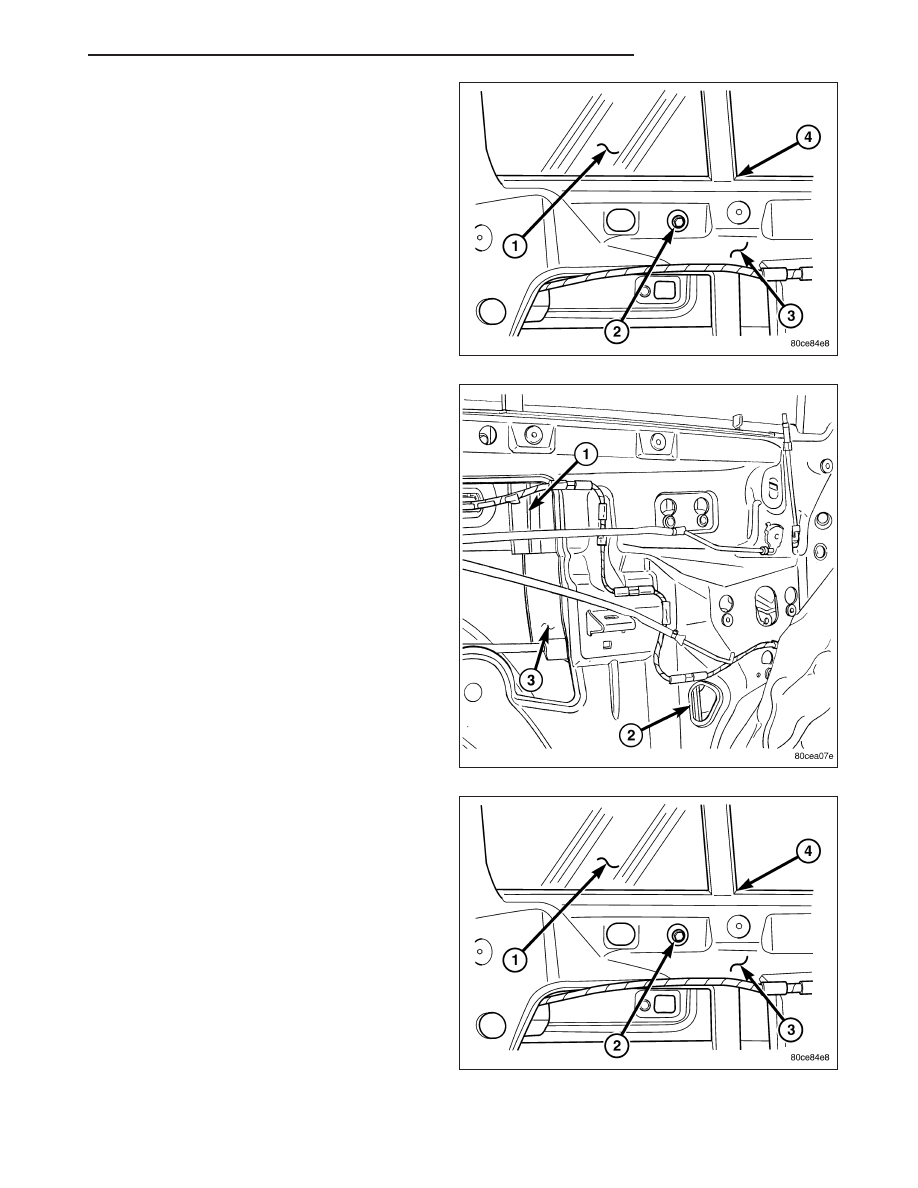

2. Position the front of the glass into the glass run

channel and as low as possible in the door.

3. Twist the glass division bar (4) towards the inside

of the door and position the door glass into the rear
run channel.

4. Seat the division bar firmly up and into the fixed

door glass (1), making sure the seal is well
engaged into the door frame with no gap inside the
car and no folded lip on the C-pillar.

5. Lift glass up in the window and engage the pin into

the regulator lift plate (2).

6. Raise the glass into the closed position and install

the division bar bolt (2).

7. Tighten the bolt to 9 N·m (80 in. lbs.).

KJ

DOORS - REAR

23 - 71
