LATCH RELEASE CABLE

REMOVAL

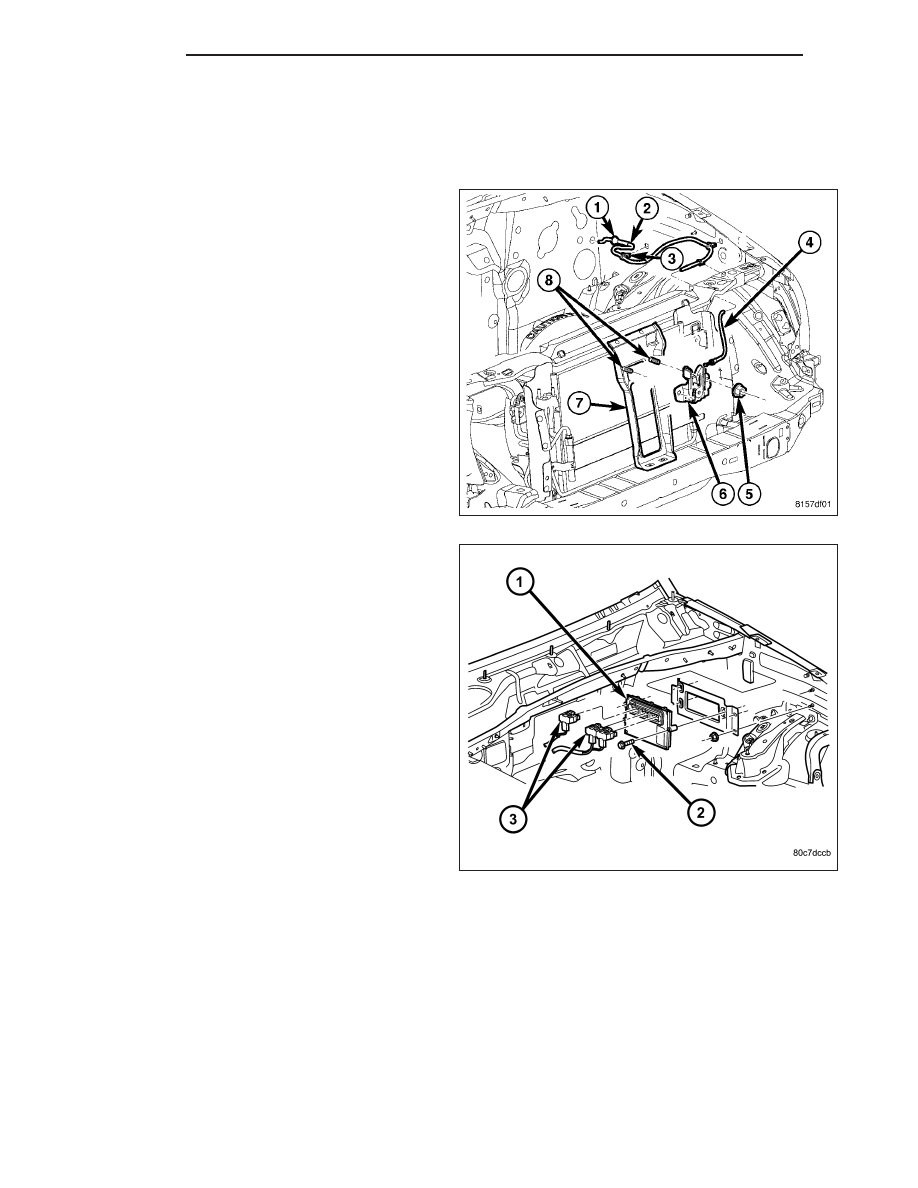

1. Remove the battery. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL)

2. Remove the hood latch. (Refer to 23 - BODY/

HOOD/LATCH - REMOVAL)

3. Remove the powertrain control module. (Refer to 8

- ELECTRICAL/ELECTRONIC CONTROL MOD-
ULES/POWERTRAIN

CONTROL

MODULE

-

REMOVAL)

23 - 24

HOOD

KJ

4. Remove the hood release handle. (Refer to 23 -

BODY/HOOD/LATCH

RELEASE

HANDLE

-

REMOVAL)

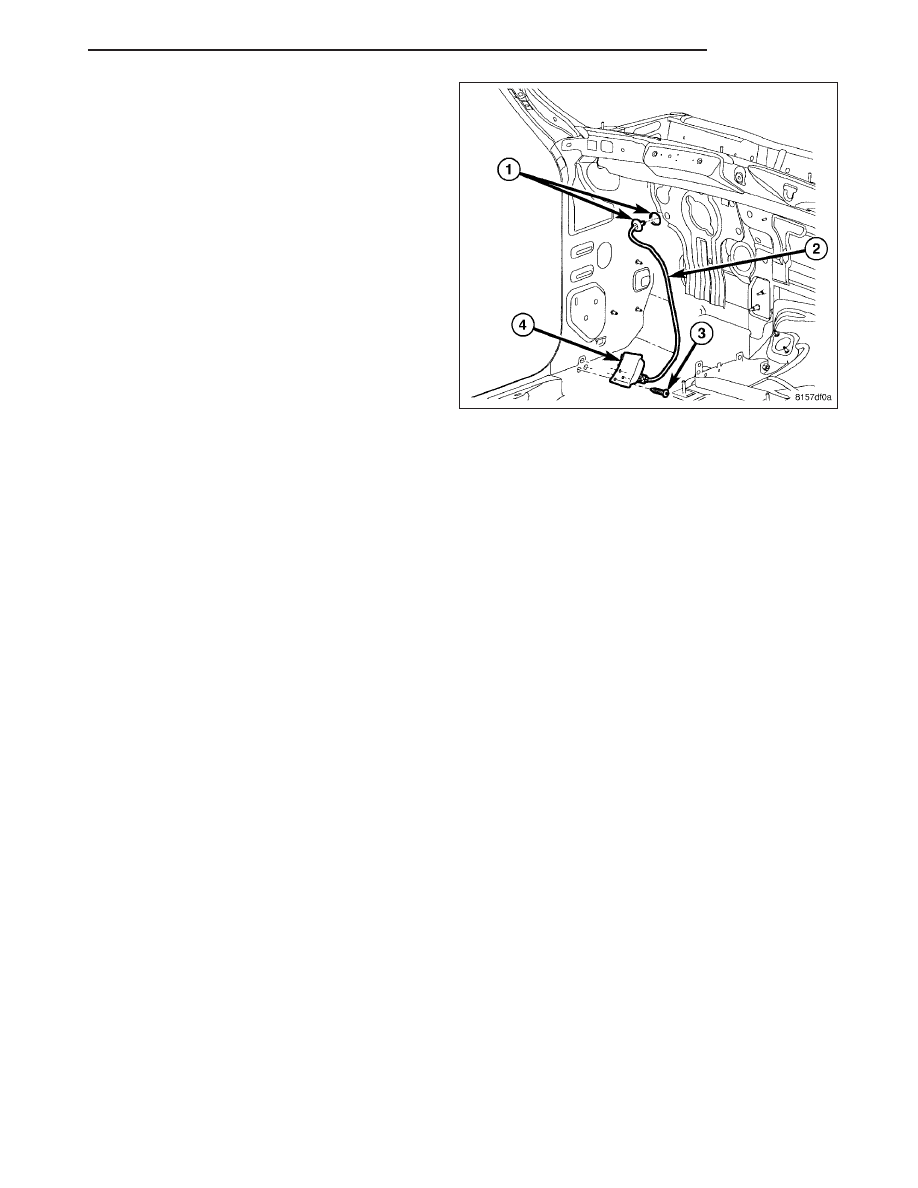

5. Disconnect the attaching clips and remove the cable from the inside.

INSTALLATION

1. Install the cable from the inside and attach the retaining clips.

2. Install the hood latch release handle. (Refer to 23 - BODY/HOOD/LATCH RELEASE HANDLE - INSTALLATION)

3. Install the powertrain control module. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/POWER-

TRAIN CONTROL MODULE - INSTALLATION)

4. Install the hood latch. (Refer to 23 - BODY/HOOD/LATCH - INSTALLATION)

5. Install the battery. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/BATTERY - INSTALLATION)

KJ

HOOD

23 - 25

SUPPORT CYLINDER

REMOVAL

NOTE: The support cylinders can be replaced one
at a time.

1. Open the hood and support.

NOTE: Lift the clips only enough to release the
ball studs.

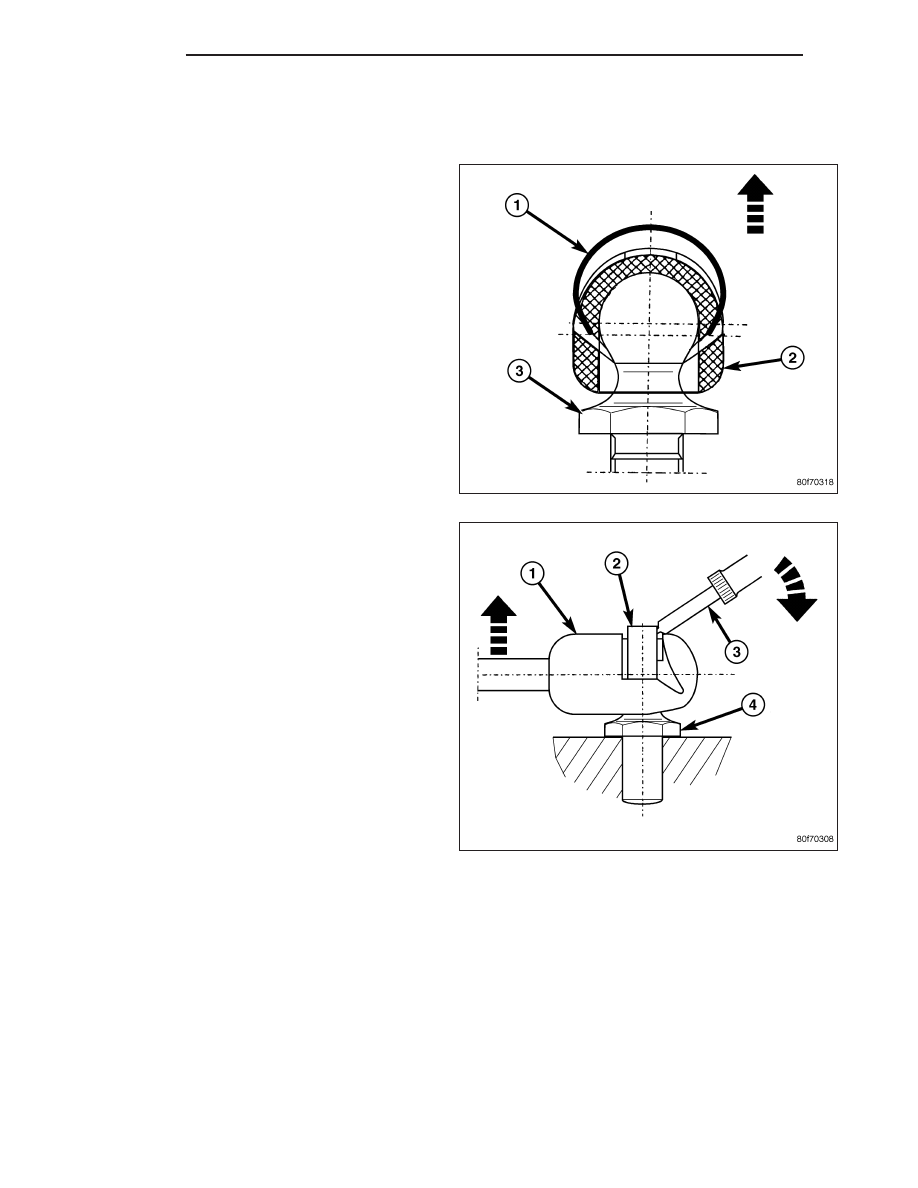

2. Using a small flat bladed tool, or equivalent,

release the upper retaining clips while pulling the
ball socket away from the ball stud.

23 - 26

HOOD

KJ

CAUTION: Do not pull the supports from the mid-
dle while removing.

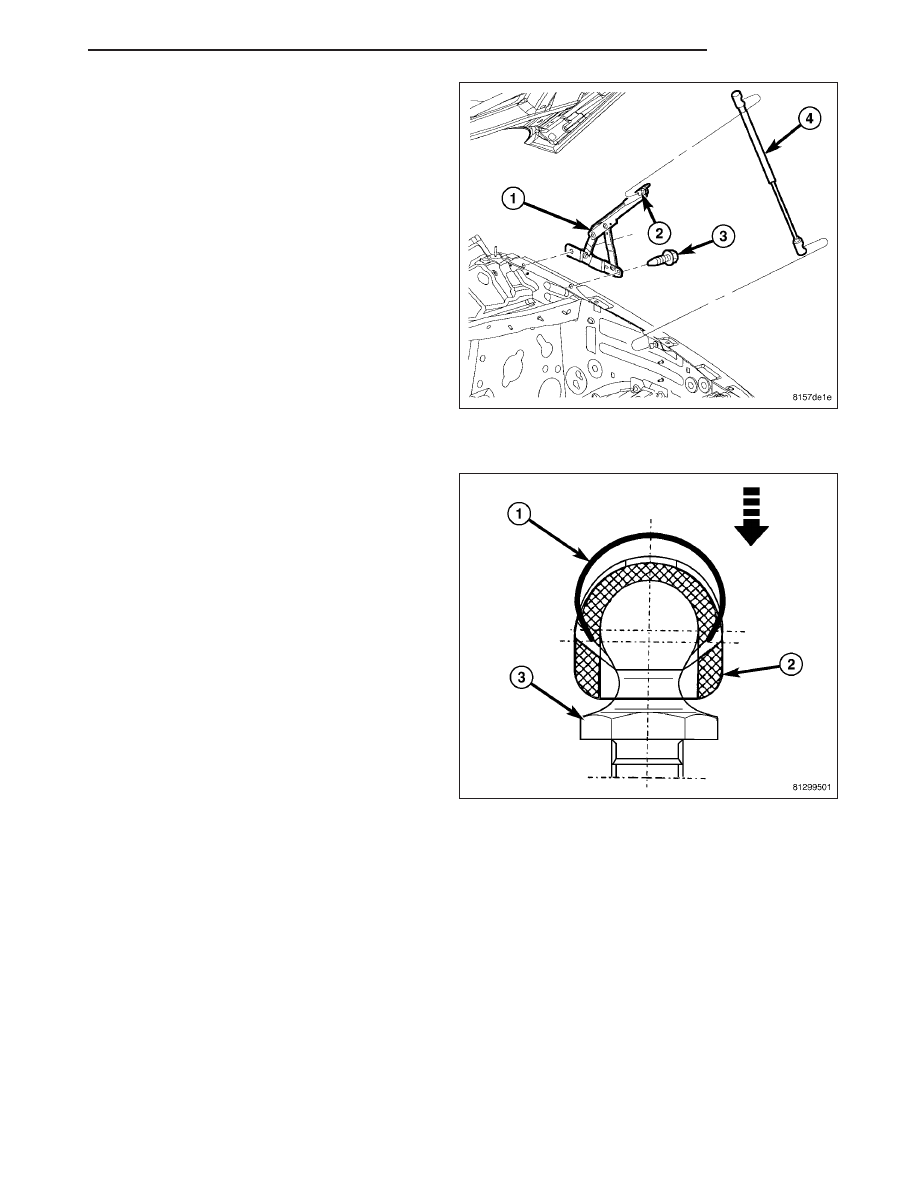

3. Pulling at the ends only, remove the support cylin-

der (4).

INSTALLATION

1. Make sure the retaining clips (1) are seated into

the ball socket (2) fully.

KJ

HOOD

23 - 27
