Jeep Liberty KJ. Manual - part 1253





TIRE PRESSURE MONITORING SYSTEM - ELECTRICAL DIAGNOSIS

DIAGNOSIS AND TESTING

22 - 2

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

KJ

C0077- LOW TIRE PRESSURE

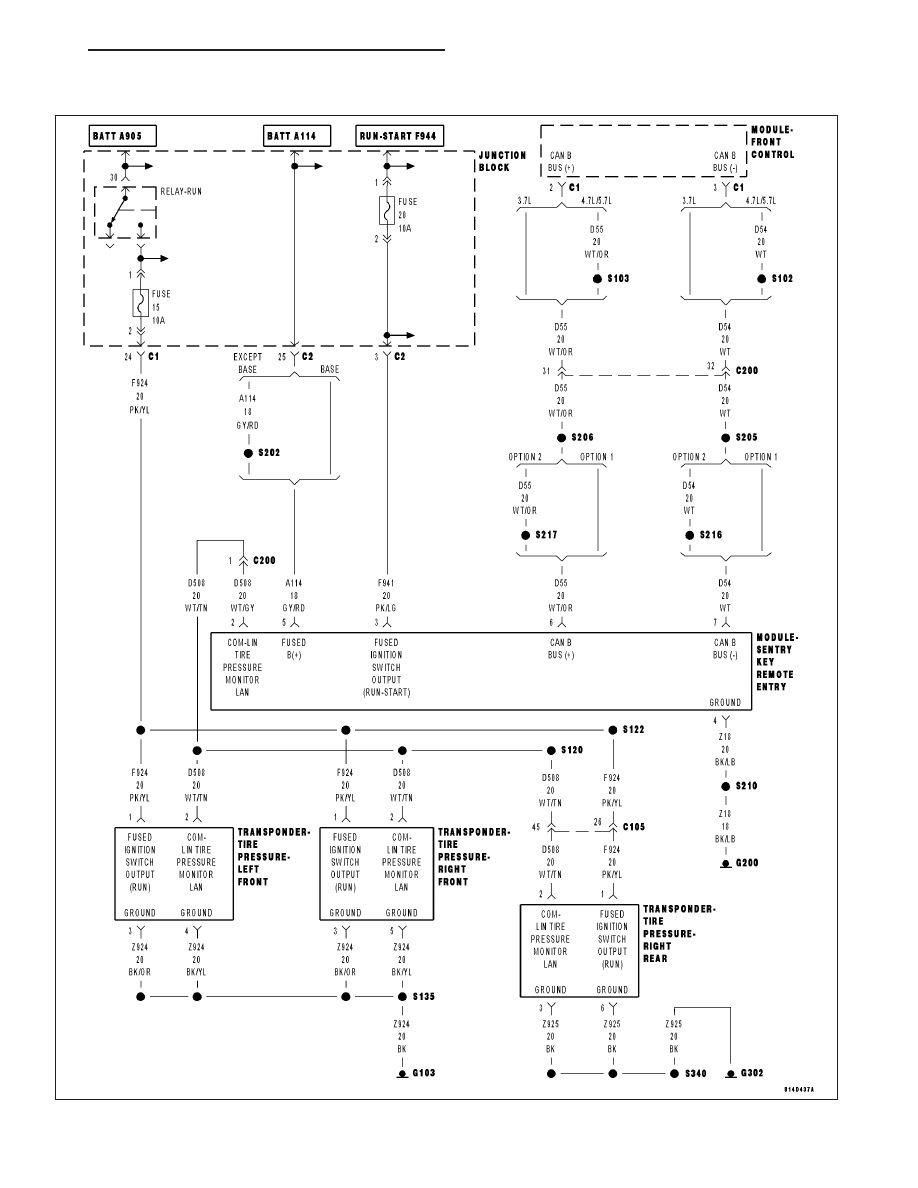

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously.

Set Condition:
A low pressure condition will exist when the tire pressure falls below or is equal to the low pressure threshold
value as specified for the vehicle.

Possible Causes

INTERMITTENT PERFORMANCE DTC

INCORRECT TIRE PRESSURE

TIRE PRESSURE SENSOR

WCM (SKREEM)

Diagnostic Test

1.

DTC STATUS IS ACTIVE

NOTE: If the incorrect Placard Values were programmed into the WCM/SKREEM, a DTC could be set. Before
continuing with any TPM diagnostic test, using the scan tool, check that the correct Placard Values have
been programmed in to the module.

NOTE:
If the following conditions are present:
– Low Tire Pressure DTC (Stored)
– Tire Pressure Sensor Internal DTC (Active)
– Spare Tire is not equipped with a Tire Pressure Sensor
– Spare Tire is currently on the vehicle
Repair the tire and place it back on the vehicle.
Test drive the vehicle.
If the DTC(s) reset continue with the diagnostic procedure.

Turn the ignition on.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Is the DTC status Active at this time?

Yes

>> Go to 2

No

>> Go to 4

2.

LOW TIRE PRESSURE

NOTE: The DTC can be caused by many different factors and might not be a sensor/transmitter or a WCM
(SKREEM) fault. Interference from other elements will over power the sensor/transmitter RF frequency mak-
ing erratic operation to the TPM system. Check the vehicle for aftermarket accessories that could compro-
mise the RF frequency signal before diagnosing the TPM system.
Correct all tire pressure to the recommended specifications and wait 2 minutes.

With the scan tool, clear DTCs in the Wireless Control Module (SKREEM).

Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 m.p.h.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Does the DTC reset or is the status Active for this DTC?

Yes

>> Go to 3

No

>> Test Complete.

KJ

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

22 - 3

3.

TIRE PRESSURE SENSOR

NOTE: Before continuing, ensure the tire is free from any leaks or damage that would cause a low tire pres-
sure condition. If a problem is found, repair as necessary and retest.
Turn the ignition off.

Replace the Tire Pressure Sensor in accordance with the Service Information.

With the scan tool, clear DTCs in the Wireless Control Module (SKREEM).

Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 m.p.h.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Does the DTC reset or is the status Active for this DTC?

Yes

>> Replace the Wireless Control Module (SKREEM) in accordance with the Service Information.

No

>> Test Complete.

4.

INTERMITTENT TIRE PRESSURE SENSOR DTC

The conditions necessary to set this DTC are not present at this time.

Refer to any Technical Service Bulletins that may apply to this condition.

With the scan tool, clear DTCs in the Wireless Control Module (SKREEM).

Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 m.p.h.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Does the DTC reset or is the status Active for this DTC?

Yes

>> Repair as necessary.

No

>> Test complete.

22 - 4

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

KJ

C1501–TIRE PRESSURE SENSOR 1 INTERNAL

For a complete wiring diagram Refer to Section 8W

KJ

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

22 - 5
