Jeep Liberty KJ. Manual - part 1219





DIAGNOSIS AND TESTING - TRANSFER CASE - NV231

DIAGNOSIS CHART

Condition

Possible Cause

Correction

Transfer case difficult to shift or will
not shift into desired range.

1) Vehicle speed too great to permit
shifting.

1) Slow vehicle and shift into
desired range.

2) If vehicle was operated for an
extended period in 4H mode on dry
surface, driveline torque load may
cause difficulty.

2) Stop vehicle and shift transfer
case to Neutral position. Transfer
case can then be shifted to the
desired mode.

3) Transfer case shift cable binding.

3) Repair or replace cable as
necessary.

4) Insufficient or incorrect lubricant.

4) Drain and refill transfer case with
the correct type and quantity of
lubricant.

5) Internal transfer case
components binding, worn, or
damaged.

5) Repair or replace components as
necessary.

Transfer case noisy in all drive
modes.

1) Insufficient or incorrect lubricant.

1) Drain and refill transfer case with
the correct type and quantity of
lubricant.

Transfer case noisy while in, or
jumps out of, 4L mode.

1) Transfer case not completely
engaged in 4L position.

1) Slow vehicle, shift transfer case
to the Neutral position, and then
shift into the 4L mode.

2) Transfer case shifter binding.

2) Repair, replace, or tighten shifter
as necessary.

3) Range fork damaged, inserts
worn, or fork is binding on the shift
rail.

3) Repair or replace components as
necessary.

4) Low range gear worn or
damaged.

4) Repair or replace components as
necessary.

Lubricant leaking from transfer case
seals or vent.

1) Transfer case overfilled.

1) Drain lubricant to the correct
level.

2) Transfer case vent closed or
restricted.

2) Clean or replace vent as
necessary.

3) Transfer case seals damaged or
installed incorrectly.

3) Replace suspect seal.

Abnormal tire wear.

1) Extended operation in 4Hi mode
on dry surfaces,

1) Operate vehicle in 2H mode on
dry surfaces.

21 - 820

TRANSFER CASE - NV231

KJ

REMOVAL

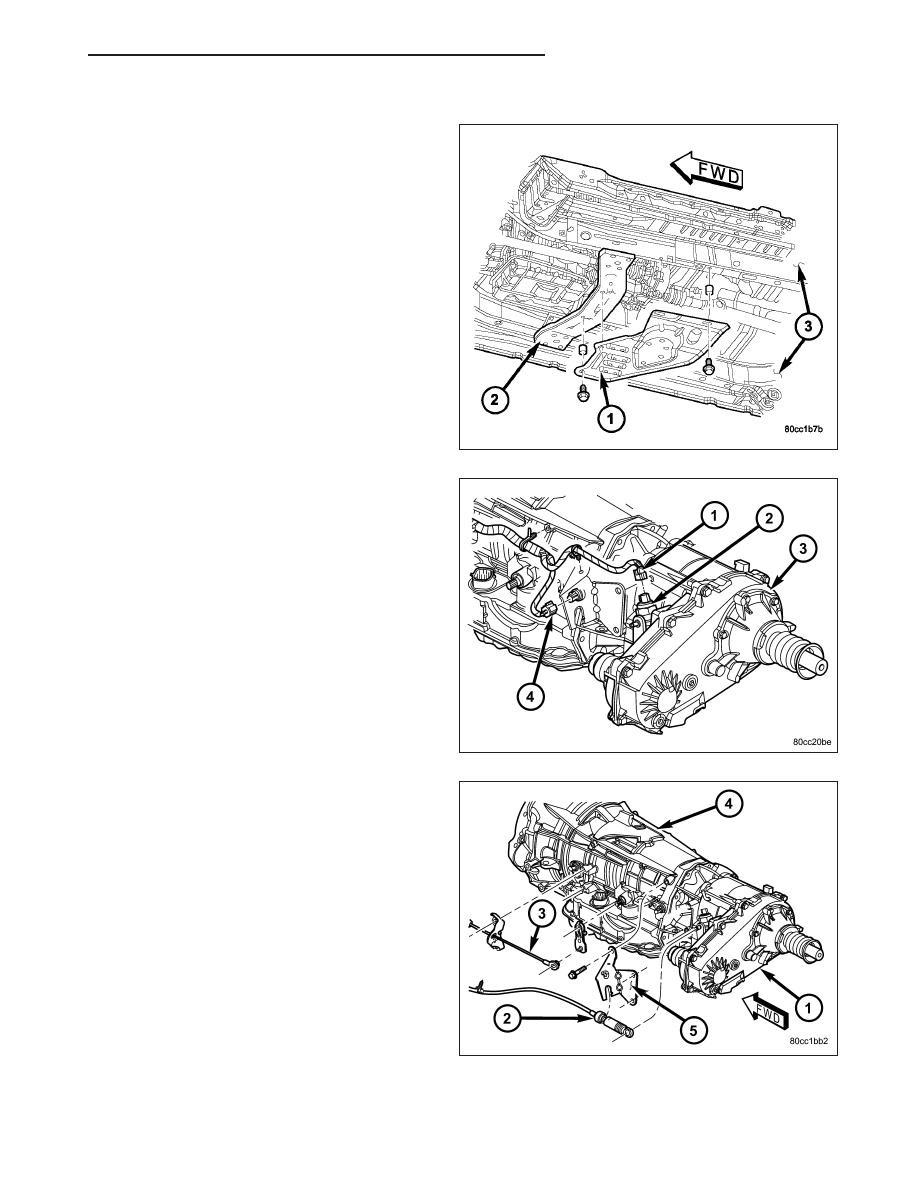

1. Shift transfer case into NEUTRAL.

2. Raise vehicle.

3. Remove skid plate (1).

4. Drain transfer case lubricant.

5. Mark front and rear propeller shaft yokes for align-

ment reference.

6. Disconnect front/rear propeller shafts at transfer

case.

7. Disconnect transfer case position sensor connector

(1).

8. Disconnect transfer case shift cable (2) at the

range lever.

9. Disconnect the transfer case shift cable from the

shift cable bracket.

KJ

TRANSFER CASE - NV231

21 - 821

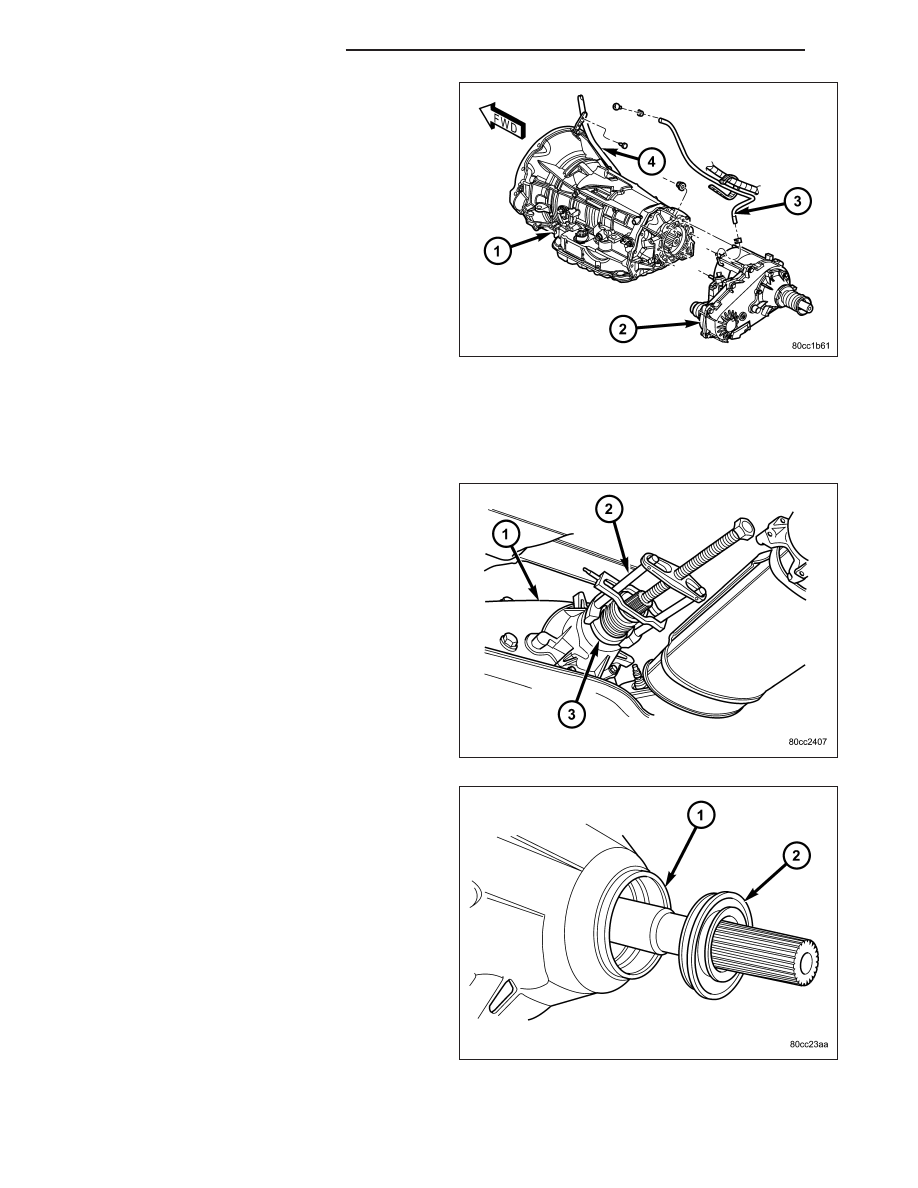

10. Disconnect transfer case vent hose (3).

11. Support transfer case with transmission jack.

12. Secure transfer case to jack with chains.

13. Remove nuts attaching transfer case to transmis-

sion.

14. Pull transfer case and jack rearward to disengage

transfer case.

15. Remove transfer case from under vehicle.

DISASSEMBLY

Position transfer case on shallow drain pan. Remove drain plug and drain lubricant remaining in case.

REAR RETAINER AND OIL PUMP

1. Spread band clamp which holds output shaft boot

to the output shaft slinger with a suitable awl, or
equivalent.

2. Remove output shaft boot from slinger and output

shaft.

3. Remove the output shaft rear slinger (3) using

Puller MD-998056-A (2).

4. Use a suitable pry tool, or a slide hammer mounted

screw, to remove the seal (2) from the rear retainer
(1).

21 - 822

TRANSFER CASE - NV231

KJ

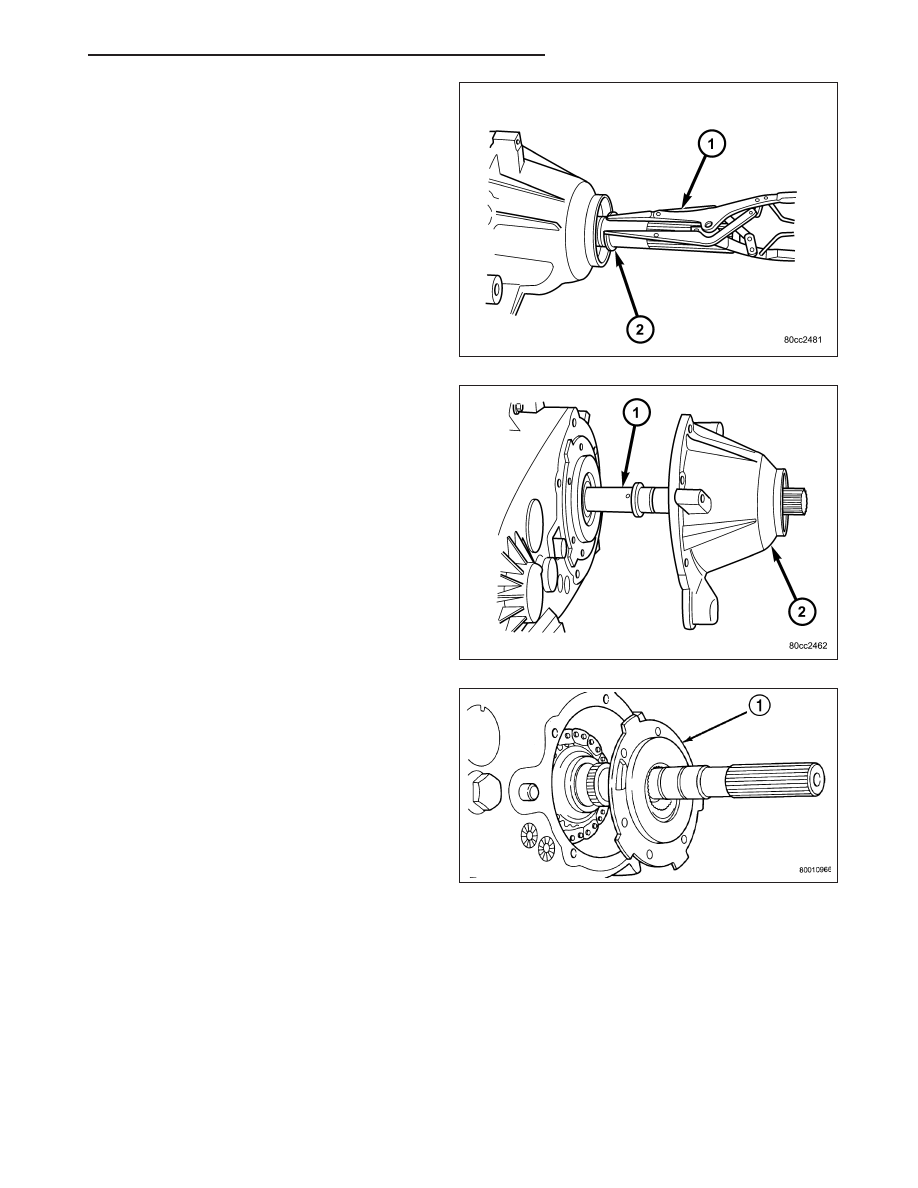

5. Remove the rear output bearing I.D. retaining ring

(2).

6. Remove the bolts holding the rear retainer to the

rear case half.

7. Tap rear retainer with rawhide or rubber mallet to

loosen sealer bead.

8. Remove rear retainer (2) from rear case half.

9. Remove the remaining output shaft bearing snap-

ring.

10. Disengage oil pickup tube from oil pump (1) and

remove oil pump assembly. Remove oil pump by
tilting the edge of the oil pump from under the
edge of the rear case half and sliding the pump
off the output shaft.

KJ

TRANSFER CASE - NV231

21 - 823
