Jeep Liberty KJ. Manual - part 119

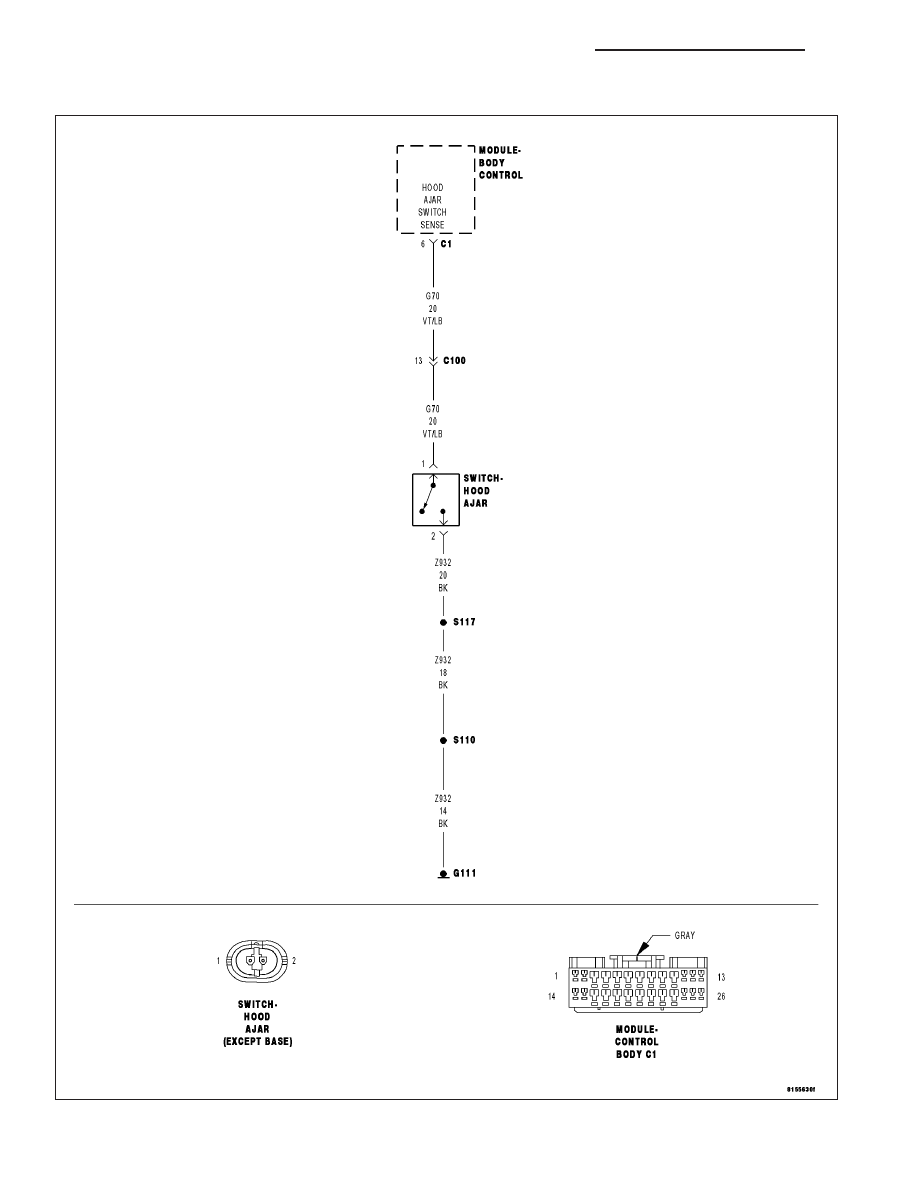

*HOOD AJAR CIRCUIT SHORT TO GROUND – EXPORT ONLY

For a complete wiring diagram Refer to Section 8W.

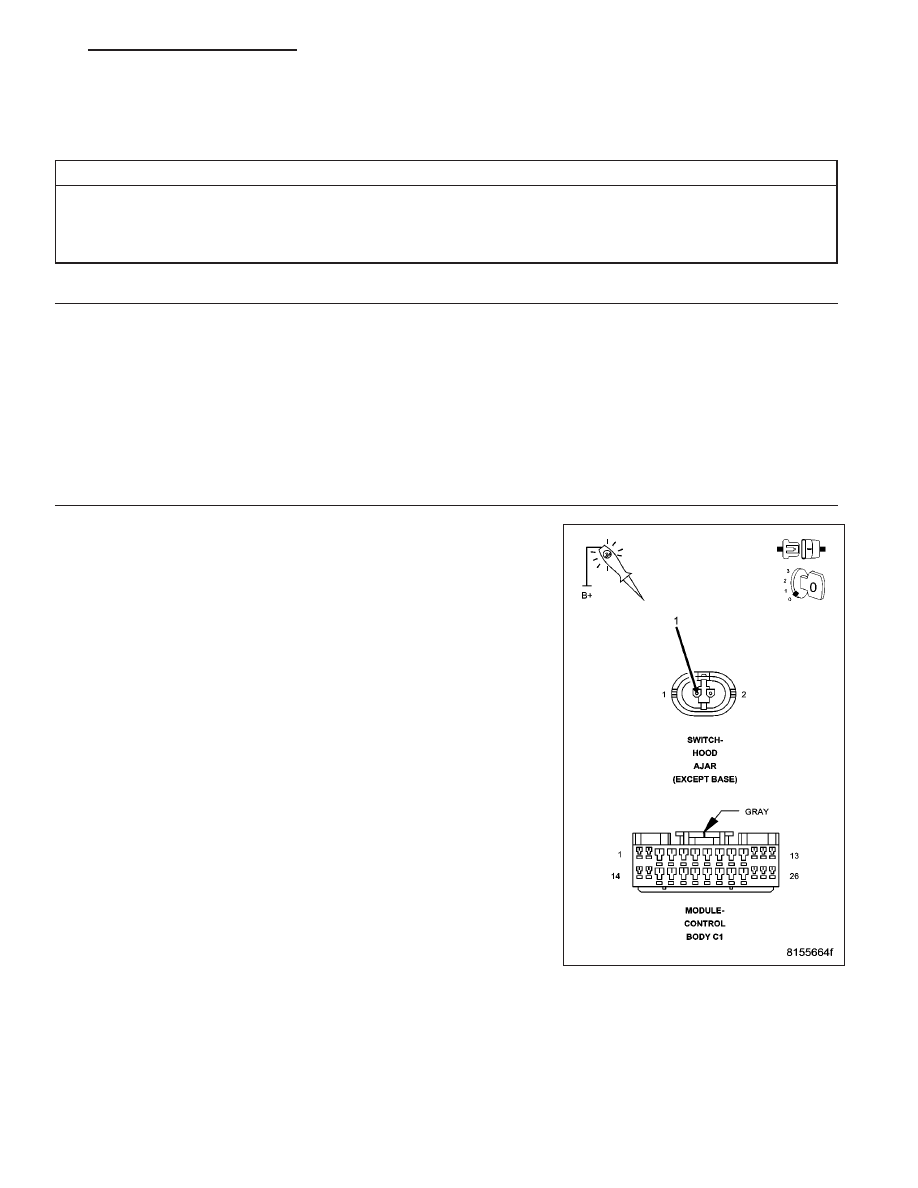

8L - 134

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

KJ

Theory of Operation

The scan tool will display the door state NOT the switch state. It will display as True/False. True states that the door
is ajar (open). False states that the door is NOT ajar (closed).

Possible Causes

(G70) HOOD AJAR SWITCH SENSE CIRCUIT SHORT TO GROUND

HOOD AJAR SWITCH

BODY CONTROL MODULE

1.

CHECK FOR SHORTED HOOD AJAR SWITCH

With the scan tool in Data Display, read the HOOD AJAR SW state.

Disconnect the Hood Ajar Switch connector.

Does the scan tool display HOOD AJAR SW: FALSE?

Yes

>> Replace the Hood Ajar Switch.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> Go To 2

2.

CHECK FOR (G70) HOOD AJAR SWITCH SENSE CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the Body Control Module C1 harness connector.

Using a 12–volt test light connected to 12–volts, test the (G70) Hood
Ajar Switch Sense circuit for a short to ground.

Does the test light illuminate brightly?

No

>> Replace the Body Control Module in accordance with ser-

vice information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

Yes

>> Repair the (G70) Hood Ajar Switch Sense circuit for a short

to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

KJ

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

8L - 135

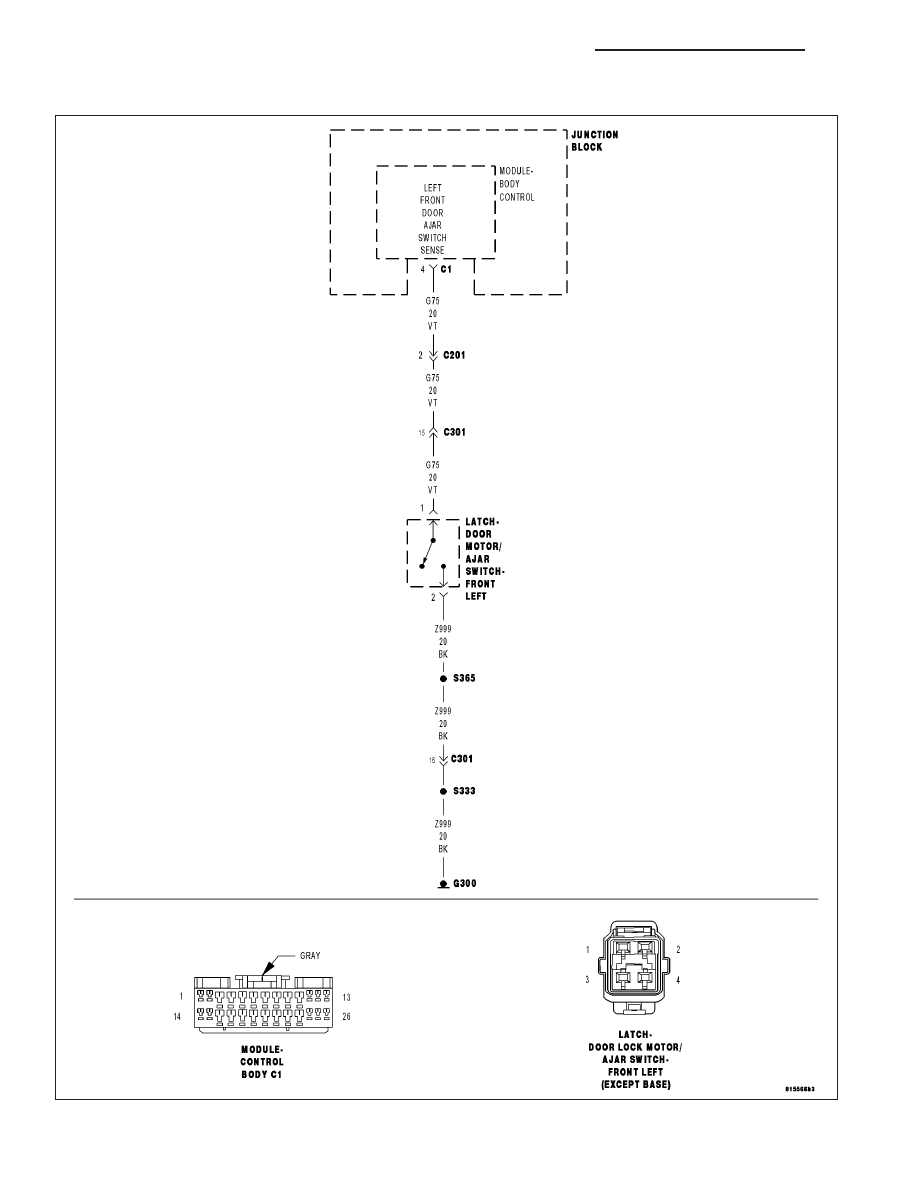

*LEFT FRONT DOOR AJAR CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W.

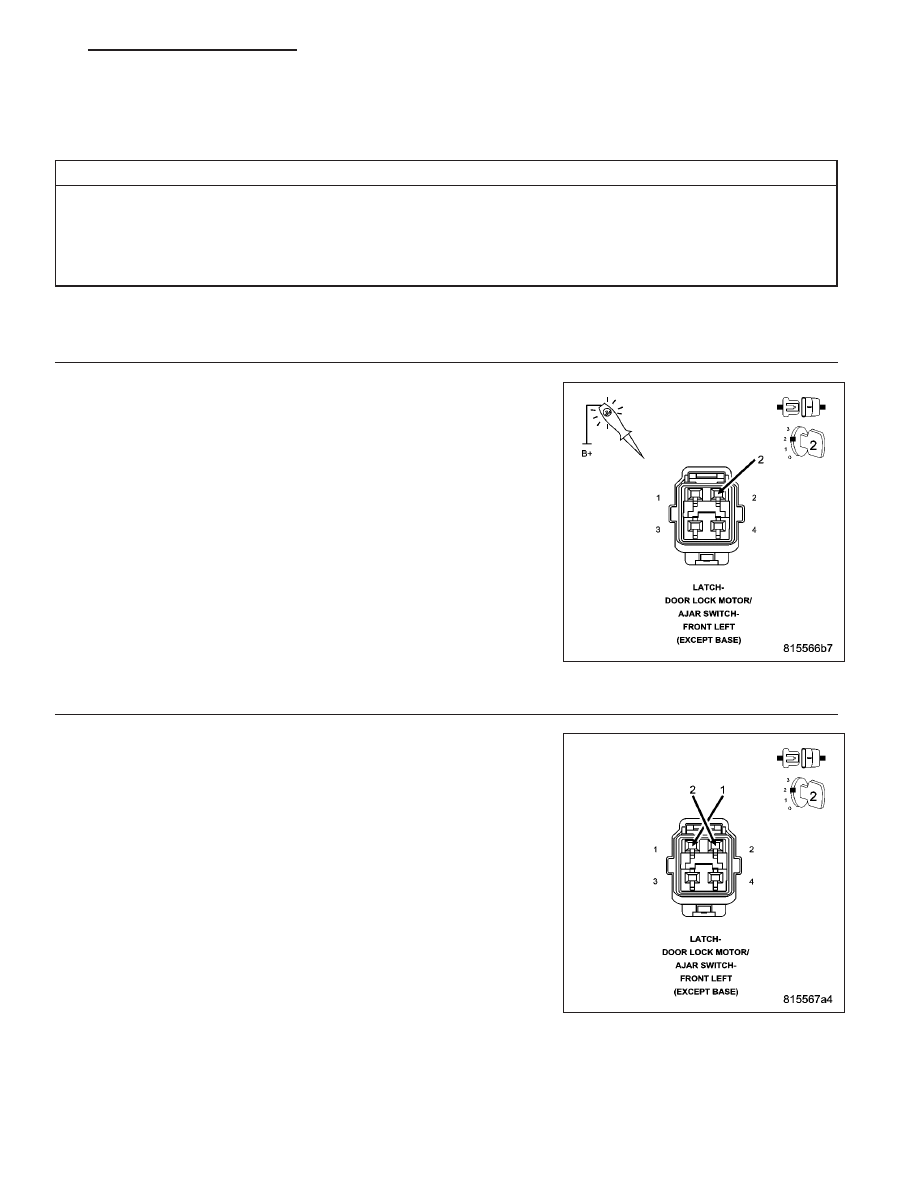

8L - 136

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

KJ

Theory of Operation

The scan tool will display the door state NOT the switch state. It will display as True/False. True states that the door
is ajar (open). False states that the door is NOT ajar (closed).

Possible Causes

LEFT FRONT DOOR AJAR SWITCH GROUND CIRCUIT OPEN

(G75) LEFT FRONT DOOR AJAR SWITCH SENSE CIRCUIT OPEN

DOOR LOCK MOTOR/AJAR SWITCH

BODY CONTROL MODULE

Diagnostic Test

1.

OPEN LEFT FRONT DOOR AJAR SWITCH GROUND CIRCUIT

Disconnect the Left Front Door Lock Motor/Ajar switch connector.

Using a 12-volt Test Light connected to 12-volts, test the Ground circuit.

Does the test light illuminate brightly?

Yes

>> Go To 2

No

>> Repair the Ground circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

2.

CHECK FOR OPEN LEFT FRONT DOOR AJAR SWITCH

Connect a jumper wire between the Sense circuit and the Ground cir-
cuit.

With the scan tool in Data Display, read the LEFT FRONT DOOR AJAR
SW state.

NOTE: For the Left Front Door Ajar state the scan tool will read
“PASS” for RHD.

Does the scan tool display LEFT FRONT DOOR AJAR SW:
TRUE?

Yes

>> Replace the Door Lock Motor/Ajar Switch.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 3

KJ

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

8L - 137
