TRAILER TOW WIRING

DESCRIPTION

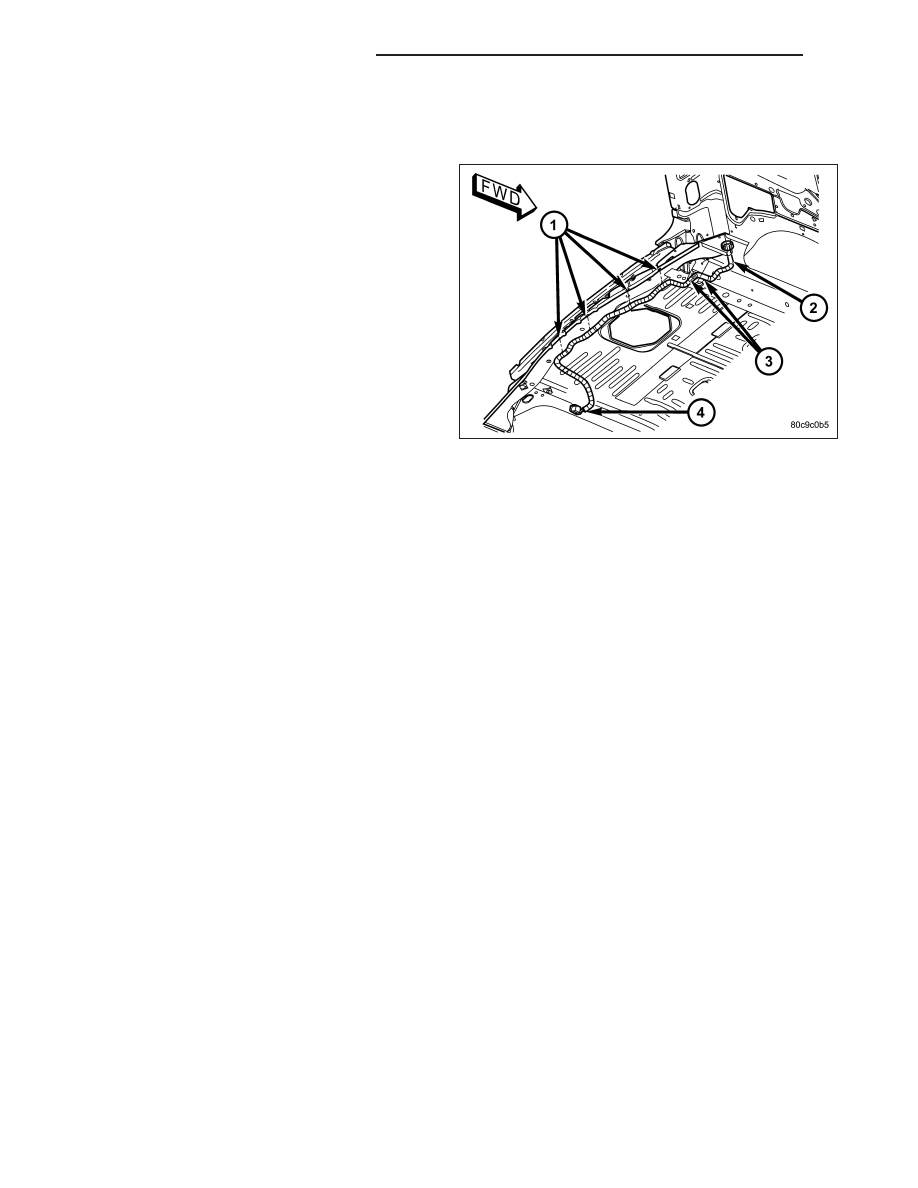

Vehicles equipped with an optional factory-installed
trailer towing package have a rear body wire harness
that includes a trailer tow wiring take out (2) secured
beneath the rear underbody with retainer clips (1 and
3). A molded connector (4) at the end of the take out
is connected to a heavy duty, sealed, 7-pin trailer tow
connector located on a bracket on the trailer hitch
receiver. The rear body harness includes a second
take out with a trailer tow relay connector bank and
the four trailer tow relays that isolate the right turn sig-
nal, left turn signal, and brake lamp circuits of the
vehicle from the electrical system of the trailer. The
fourth relay in the connector bank provides a fused
ignition switch output (run) source of battery voltage to
the trailer tow connector through a trailer tow relay
output circuit.

The package also includes an adapter harness (stored beneath the left rear seat cushion of the vehicle when it is
shipped from the factory) that adapts the 7-pin trailer tow connector to a standard, light-duty, 4-pin trailer tow con-
nector. Refer to the appropriate wiring information.

8L - 122

LAMPS/LIGHTING - EXTERIOR

KJ

TURN SIGNAL CANCEL CAM

DESCRIPTION

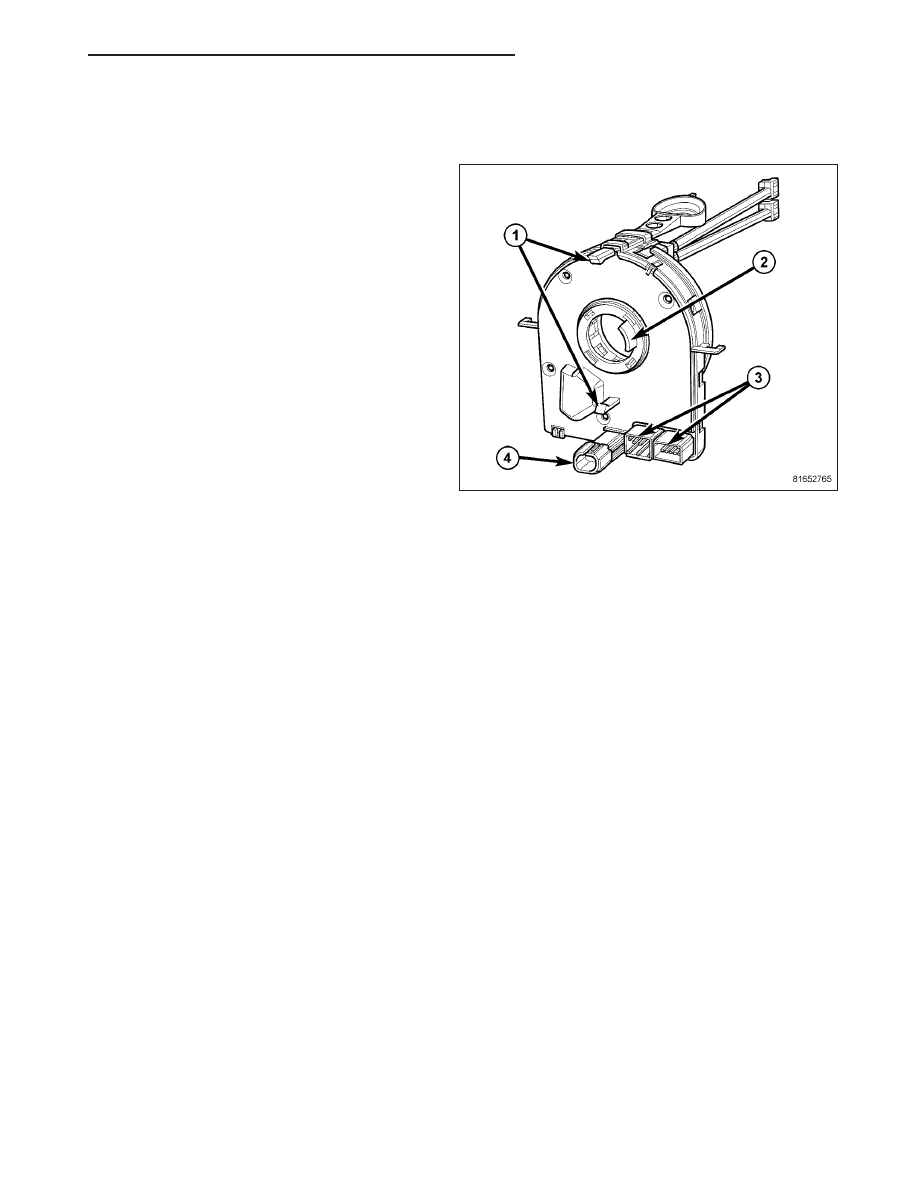

The turn signal cancel cam (2) is concealed within the
steering column. The cancel cam consists of a single
lobe that is integral to the lower hub of the clockspring
rotor. The clockspring mechanism provides turn signal
cancellation as well as a constant electrical connection
between the horn switch, driver airbag, speed control
switches, and remote radio switches on the steering
wheel and the instrument panel wire harness on the
steering column. The housing of the clockspring is
secured to the lock housing near the top of the steer-
ing column and remains stationary. The rotor of the
clockspring, including the turn signal cancel cam lobe
rotates with the steering wheel.

The turn signal cancel cam is serviced as a unit with the clockspring and cannot be repaired. If ineffective or dam-
aged, the entire clockspring unit must be replaced. (Refer to 8 - ELECTRICAL/RESTRAINTS/CLOCKSPRING -
REMOVAL).

OPERATION

When the multi-function switch left (lighting) control stalk is moved to a latched turn signal position, a turn signal
cancel actuator is extended from the left inside surface of the switch housing toward the turn signal cancel cam. As
the steering wheel is rotated to complete the turn, the cam lobe will contact the actuator, automatically cancelling
the turn signal event and releasing the latched multi-function switch left control stalk to the neutral position.

KJ

LAMPS/LIGHTING - EXTERIOR

8L - 123

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

TABLE OF CONTENTS

page

page

LAMPS/LIGHTING - INTERIOR - ELECTRICAL

DIAGNOSTICS
DIAGNOSIS AND TESTING

*FLIP-UP GLASS AJAR CIRCUIT OPEN . . . . . . 126
*FLIP-UP GLASS AJAR CIRCUIT SHORT TO

GROUND

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

*HOOD AJAR CIRCUIT OPEN – EXPORT

ONLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

*HOOD AJAR CIRCUIT SHORT TO GROUND

– EXPORT ONLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 134

*LEFT FRONT DOOR AJAR CIRCUIT OPEN . . 136
*LEFT FRONT DOOR AJAR CIRCUIT SHORT

TO GROUND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

*LEFT REAR DOOR AJAR CIRCUIT OPEN . . . 141
*LEFT REAR DOOR AJAR CIRCUIT SHORT

TO GROUND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

*RIGHT FRONT DOOR AJAR CIRCUIT OPEN . 146
*RIGHT FRONT DOOR AJAR CIRCUIT

SHORT TO GROUND

. . . . . . . . . . . . . . . . . . . . . . . 149

*RIGHT REAR DOOR AJAR CIRCUIT OPEN . . 151
*RIGHT REAR DOOR AJAR CIRCUIT SHORT

TO GROUND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

*TAILGATE AJAR CIRCUIT OPEN . . . . . . . . . . . 156
*TAILGATE AJAR CIRCUIT SHORT TO

GROUND

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

*COURTESY LAMPS INOPERATIVE-ALL

LAMPS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

*COURTESY LAMPS INOPERATIVE-

OVERHEAD LAMPS

. . . . . . . . . . . . . . . . . . . . . . . . 162

*COURTESY LAMPS STAY ON AT ALL

TIMES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

DIMMING LEVEL SWITCH INPUT CIRCUIT

HIGH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

DIMMING LEVEL SWITCH INPUT CIRCUIT

LOW.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

8L - 124

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

KJ

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

DIAGNOSIS AND TESTING

KJ

LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS

8L - 125
