6.

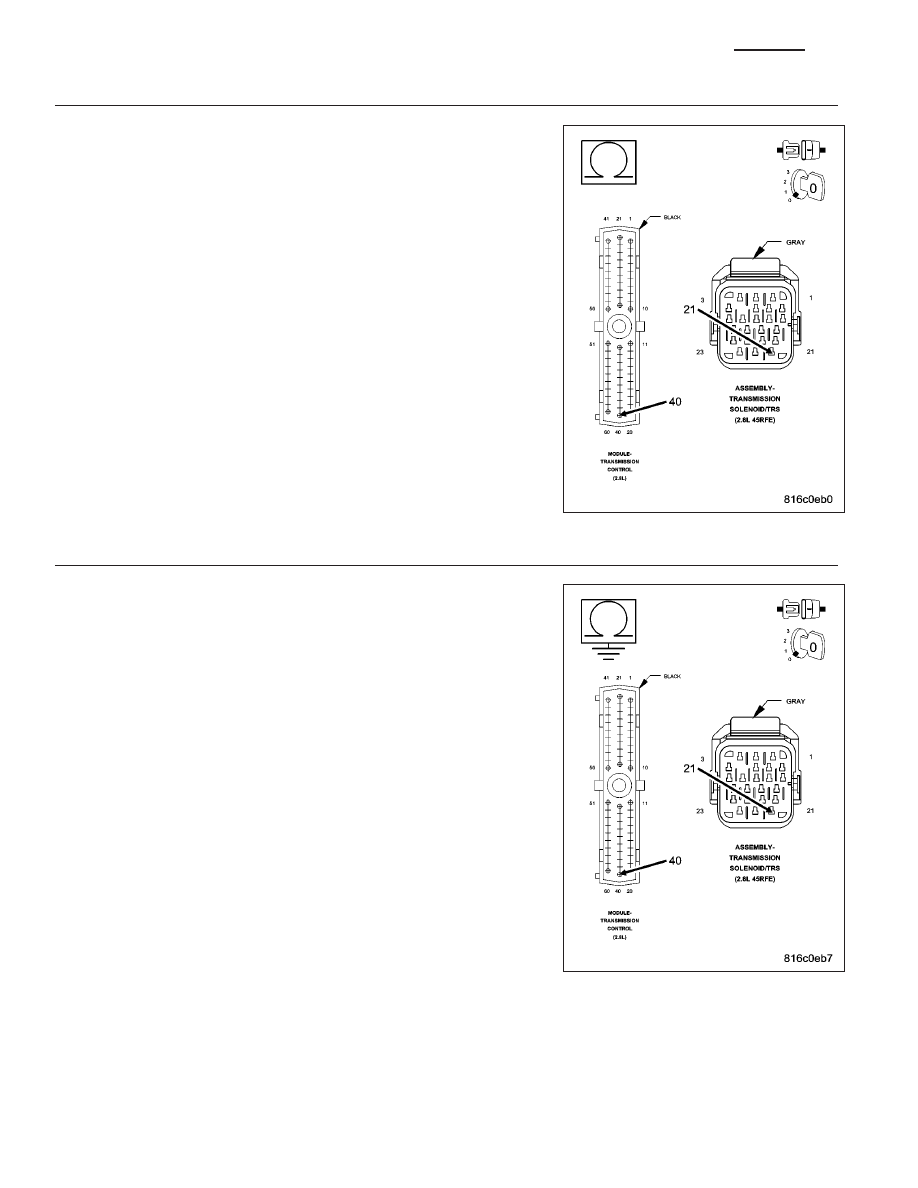

CHECK THE (T140) PRESSURE CONTROL SOLENOID CONTROL CIRCUIT FOR AN OPEN

Turn the ignition off to the lock position.

Disconnect the Transmission Simulator, Miller tool #8333.

Disconnect the TCM harness connector.

Measure the resistance of the (T118) Pressure Control Solenoid Control
circuit between the Solenoid/TRS harness connector and the TCM har-
ness connector.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (T118) Pressure Control Solenoid Control circuit

for an open.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)

No

>> Go To 7

7.

CHECK THE (T140) PRESSURE CONTROL SOLENOID CONTROL CIRCUIT FOR A SHORT TO GROUND

Measure the resistance between ground and the (T118) Pressure Con-
trol Solenoid Control circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T118) Pressure Control Solenoid Control circuit

for a short to ground.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)

No

>> Go To 8

21 - 556

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS - (DIESEL)

KJ

8.

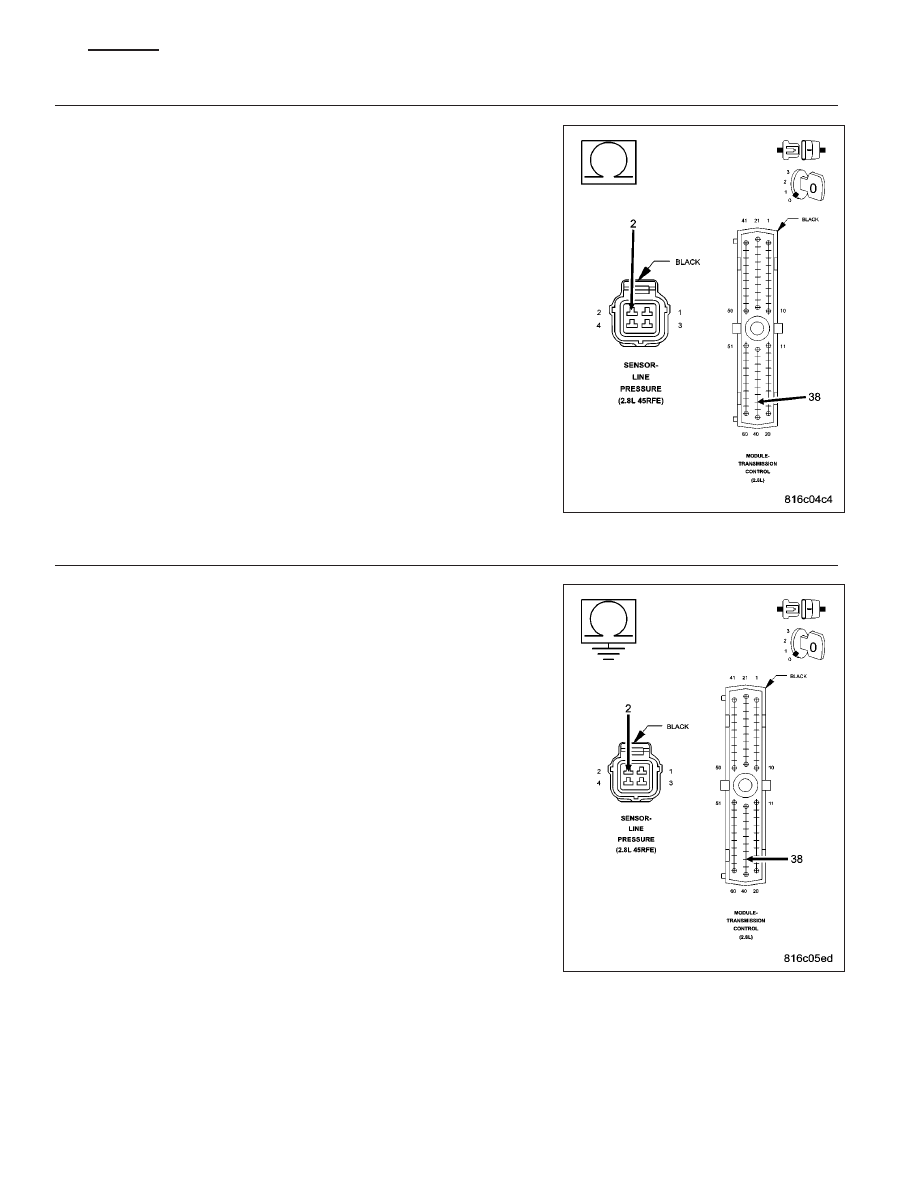

CHECK THE (T39) 5-VOLT SUPPLY CIRCUIT FOR AN OPEN

Measure the resistance of the (T39) 5-volt Supply circuit between the
Line Pressure Sensor harness connector and the TCM harness connec-
tor.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (T39) 5-volt Supply circuit for an open.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)

No

>> Go To 9

9.

CHECK THE (T39) 5-VOLT SUPPLY CIRCUIT FOR A SHORT TO GROUND

Disconnect the TCM harness connector.

Disconnect the Line Pressure Sensor harness connector.

Measure the resistance between ground and the (T39) 5-volt Supply cir-
cuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T39) 5-volt Supply circuit for a short to ground.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)

No

>> Replace the Transmission Control Module per the Service

Information. With the scan tool perform the QUICK LEARN
procedure.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)

KJ

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS - (DIESEL)

21 - 557

10.

CHECK WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorted and open circuits.

With the scan tool, check the DTC EVENT DATA to help identify the conditions in which the DTC was set.

Where there any problems found?

Yes

>> Repair as necessary.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

No

>> Test Complete.

21 - 558

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS - (DIESEL)

KJ

P0870-OD HYDRAULIC PRESSURE TEST

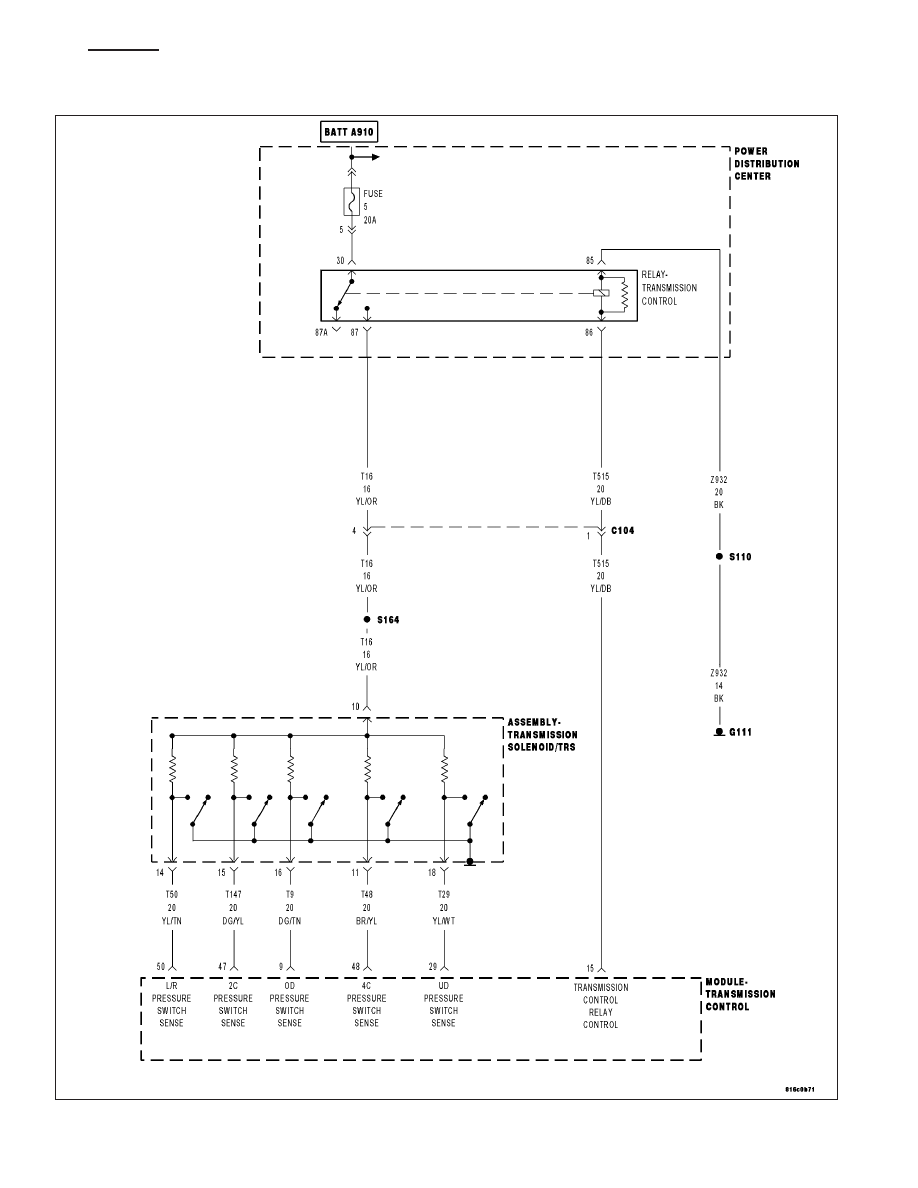

For a complete wiring diagram Refer to Section 8W

KJ

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS - (DIESEL)

21 - 559
